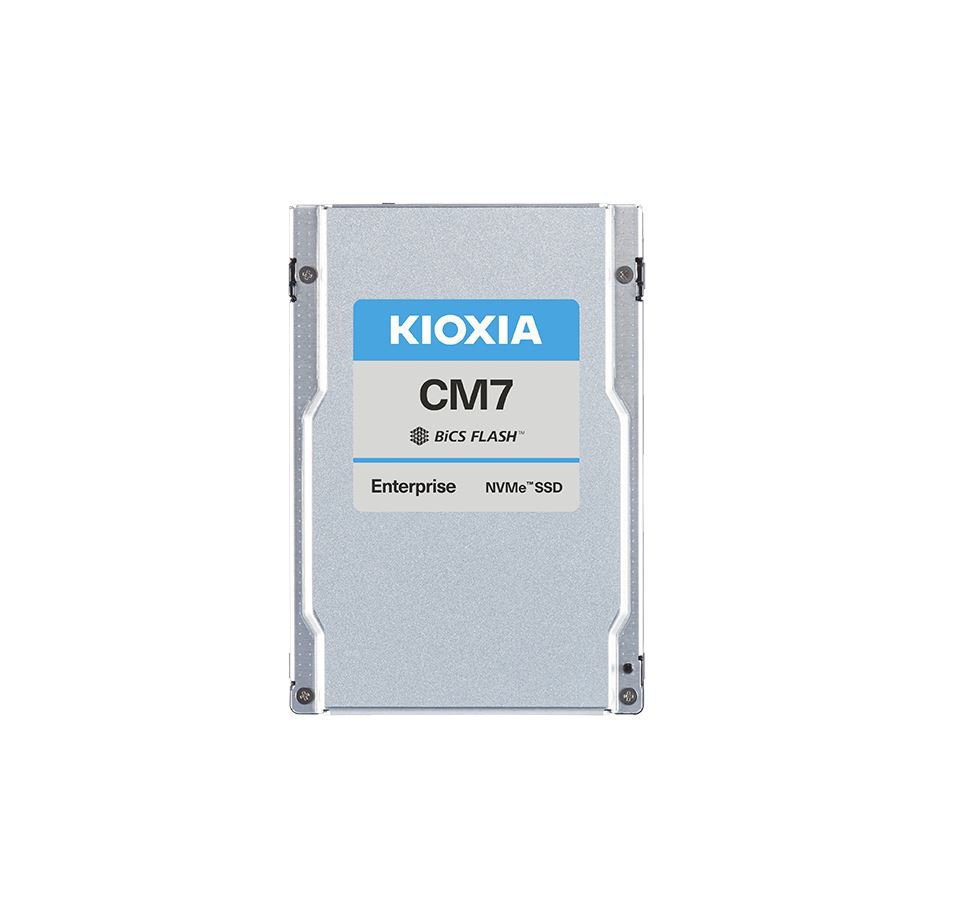

KIOXIA KCMYDRUG7T68 Enterprise 7680 GB 2.5 inch PCIe 5.0 NVMe 2.0 SSD

Product Information

KIOXIA KCMYDRUG7T68 Enterprise NVMe Read Intensive 7680 GB 2.5 inch PCIe 5.0 NVMe 2.0 SSD

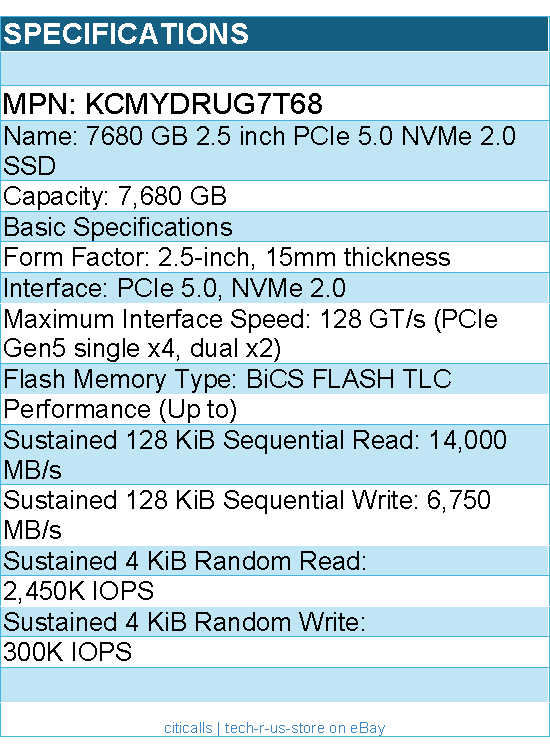

Main Features

• MPN: KCMYDRUG7T68
• Capacity: 7,680 GB
• Basic Specifications
• Form Factor: 2.5-inch, 15mm thickness
• lnterface: PCIe 5.0, NVMe 2.0
• Maximum Interface Speed: 128 GT/s (PCIe Gen5 single x4, dual x2)
• Flash Memory Type: BiCS FLASH TLC
• Performance (Up to)
• Sustained 128 KiB Sequential Read: 14,000 MB/s
• Sustained 128 KiB Sequential Write: 6,750 MB/s
• Sustained 4 KiB Random Read: 2,450K IOPS
• Sustained 4 KiB Random Write: 300K IOPS
• Power Requirements
• Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
• Power Consumption (Active): 25 W typ.
• Power Consumption (Ready): 5 W typ.
• Reliability
• MTTF: 2,500,000 hours
• DWPD: 1
• Dimensions
• Thickness: 15 mm +0 / -0.5 mm
• Width: 69.85 mm +/- 0.25 mm
• Length: 100.45 mm Max
• Weight: 130 g Max
• Environmental
• Temperature (Operating): 0 °C to 73 °C
• Temperature (Non-operating): -40 °C to 85 °C
• Humidity (Operating): 5 % to 95 % R.H.
• Vibration (Operating): 21.27 m/s^2 {2.17 Grms} (5 to 800 Hz)
• Shock (Operating): 9.8 km/s^2 {1,000 G} (0.5 ms)
