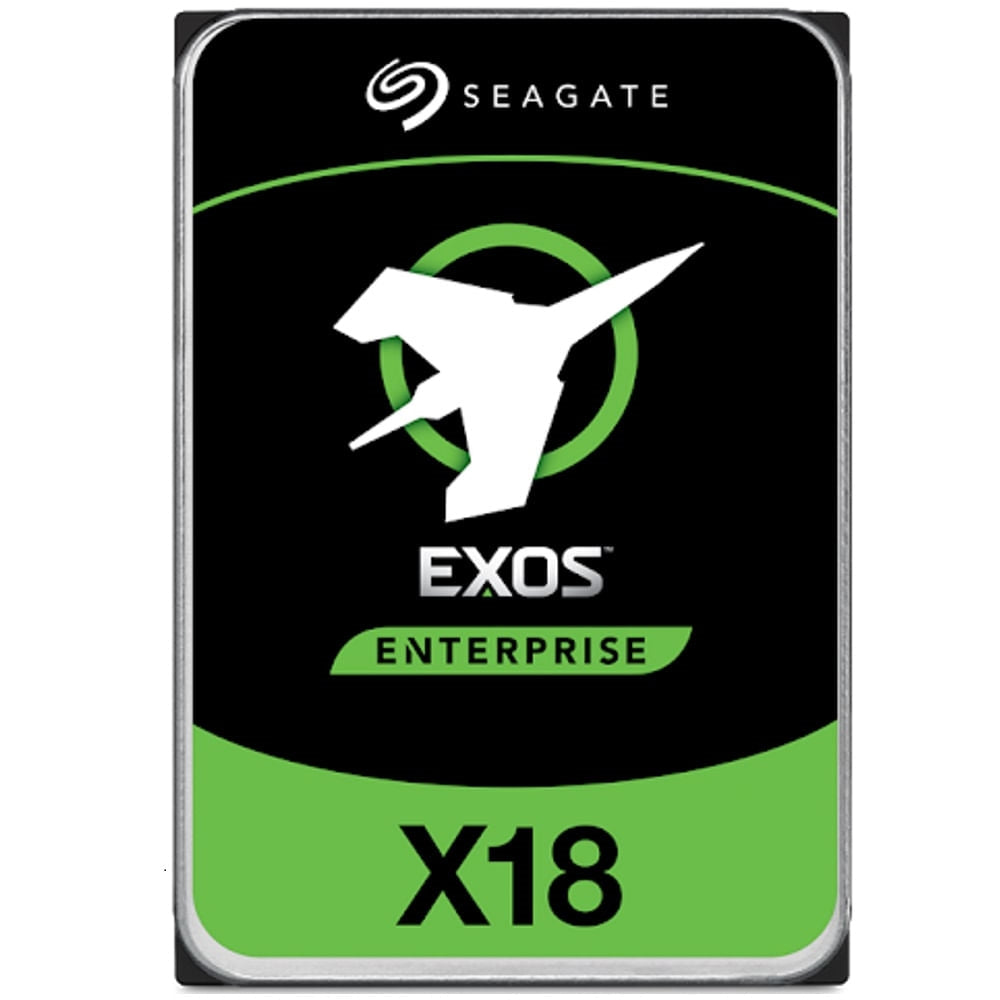

Seagate ST16000NM004J Hard Drive - 16TB SAS 12Gb s 7200RPM 256MB 512e 4Kn Bare

Marketing Information

• Seagate manufactures hard drives that specifically address the demand for hyperscale cloud scalability. As the flagship of the Seagate X class, the Exos X18 enterprise hard drives are the highest-capacity hard drives in the fleet.
• Maximum Storage Capacity for Highest Rack Space Efficiency
• Market-leading 18TB HDD offering the highest capacity available for more petabytes per rack
• Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications
• Hyperscale SATA model tuned for large data transfers and low latency
• PowerBalance feature optimizes Watts/TB
• Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design
• Proven helium side-sealing weld technology for added handling robustness and leak protection
• Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
• Data protection and security Seagate Secure features for safe, affordable, fast, and easy drive retirement
• Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating

Detail Specifications

• Capacity: 16TB
• Features
• Helium Sealed-Drive Design: Yes
• Conventional Magnetic Recording (CMR): Yes
• Protection Information (T10 DIF): Yes
• SuperParity: Yes
• Low Halogen: Yes
• PowerChoice Idle Power Technology: Yes
• PowerBalance Power/Performance Technology: Yes
• Hot-Plug Support: Yes
• Cache, Multisegmented (MB): 256
• Organic Solderability Preservative: Yes
• RSA 3072 Firmware Verification (SD and D): Yes
• Reliability/Data Integrity
• Mean Time Between Failures (MTBF, hours): 2,500,000
• Reliability Rating at Full 24x7 Operation (AFR): 0.35%
• Nonrecoverable Read Errors per Bits Read: 1 sector per 10E15
• Power-On Hours per Year (24x7): 8760
• 512e Sector Size (Bytes per Sector): 512, 520, 528
• 4Kn Sector Size (Bytes per Sector): 4096, 4160, 4224
• Performance
• Spindle Speed (RPM): 7200RPM
• Interface Access Speed (Gb/s): 12.0, 6.0, 3.0
• Max. Sustained Transfer Rate OD (MB/s,MiB/s): 270/258
• Random Read/Write 4K QD16 WCD (IOPS): 170/550
• Average Latency (ms): 4.16
• Interface Ports: Dual
• Rotation Vibration at 20-1500 Hz (rad/sec2): 12.5
• Power Consumption
• Idle A (W) Average: 5.5W
• Max Operating, Random Read/Write 4K/16Q (W): 9.6, 6.7
• Power Supply Requirements: +12 V and +5 V
• Environmental
• Temperature, Operating (oC): 5oC 60oC
• Vibration, Nonoperating: 2 to 500Hz (Grms): 2.27
• Shock, Operating 2ms (Read/Write) (Gs): 50
• Shock, Nonoperating 2ms (Gs): 200
• Warranty Information: 5 years from Seagate
