StarTech ICUSB2328I 8 Port USB to DB9 RS232 Serial Adapter HUB DIN Rail & Wall

$224.10 USD

Shipping calculated at checkout.

In stock: 3

Description

8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable - TAA

Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB

Product ID: ICUSB2328I

Warranty Information

Warranty

2 Years

Connector(s)

External Ports

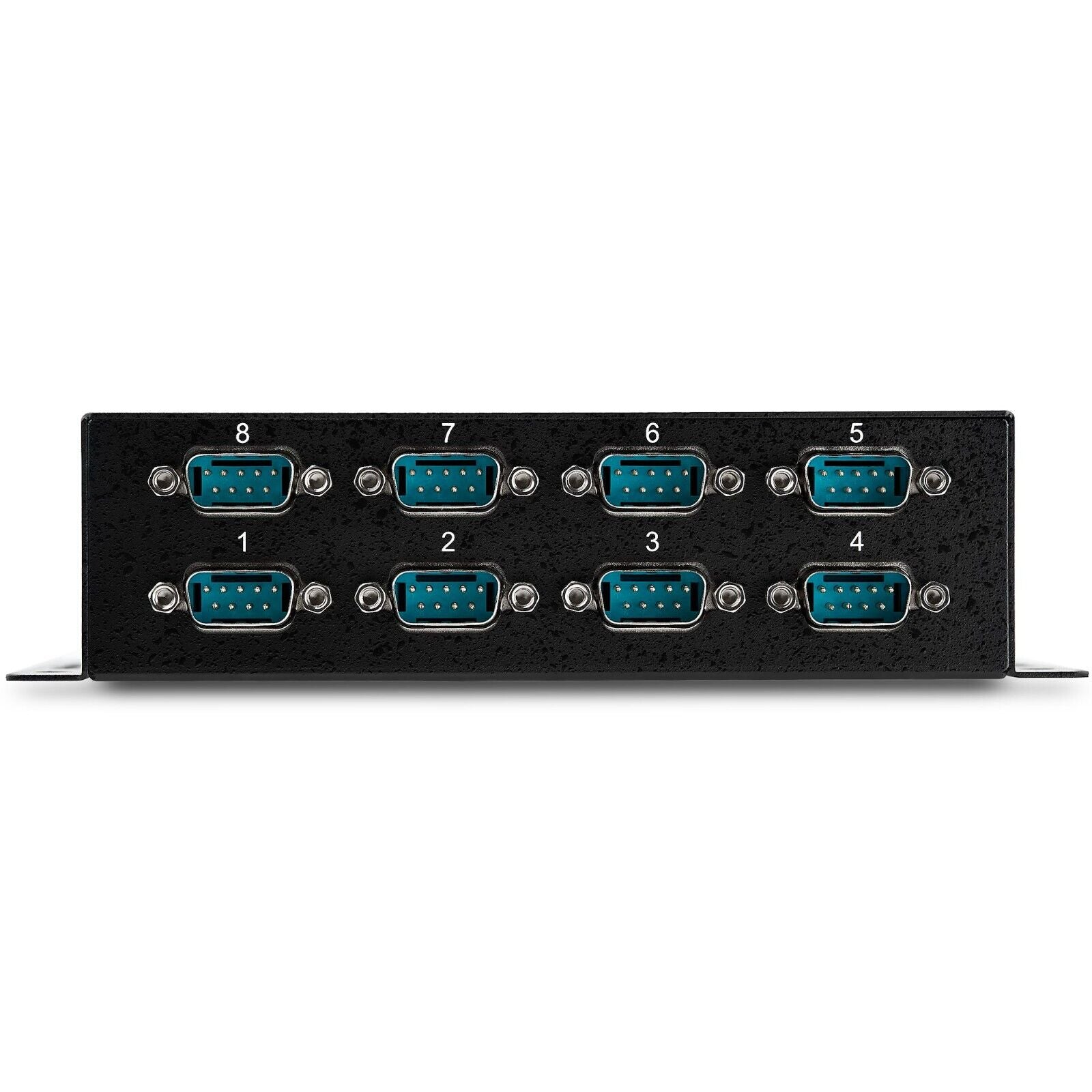

8 - DB-9 (9 pin, D-Sub)

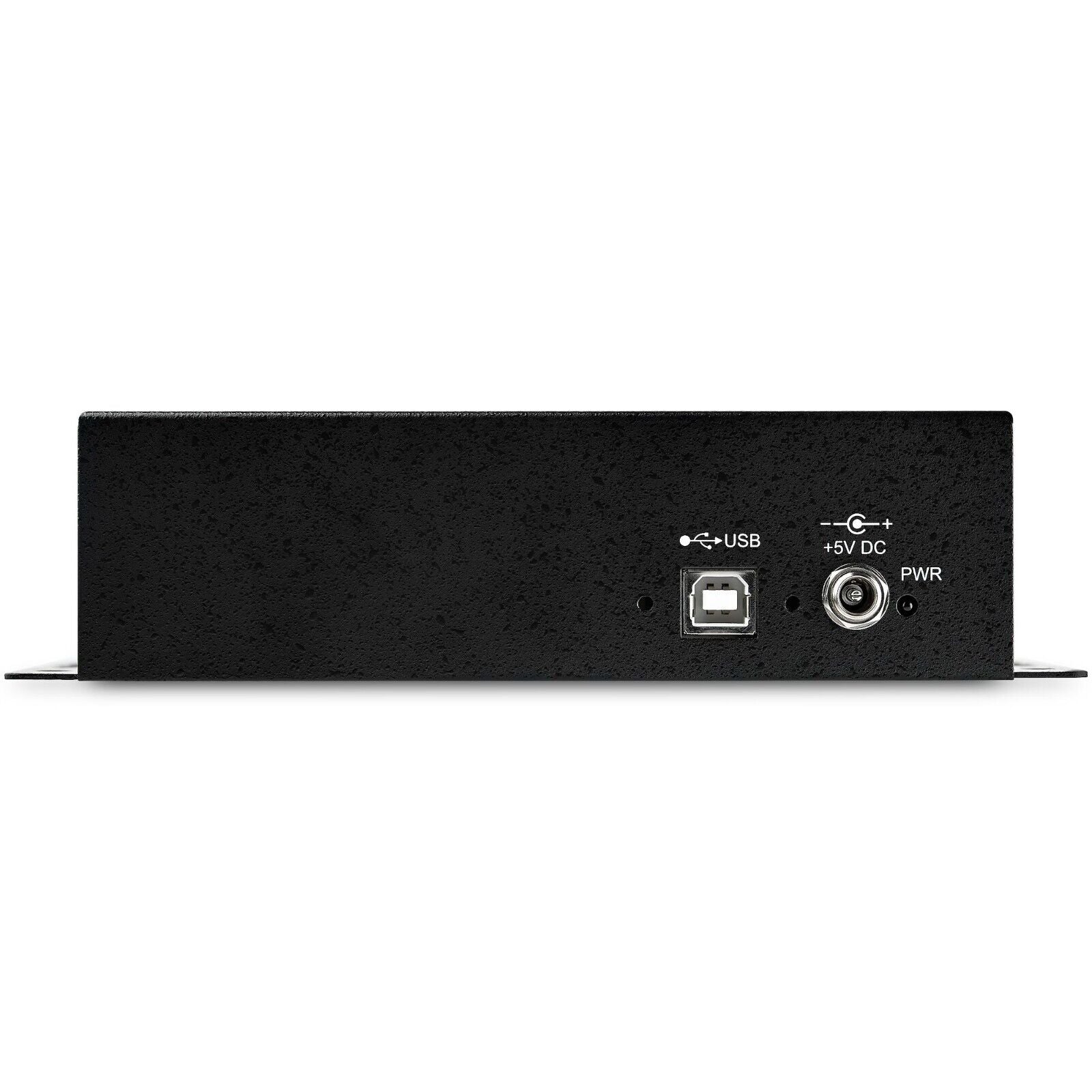

1 - USB B (4 pin)

Environmental

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Humidity

5~95% RH

Hardware

Ports

Interface

Serial

Bus Type

USB 2.0

Port Style

External Hub

Chipset ID

FTDI - FT232RL

Indicators

LED Indicators

1 - Power

Packaging Information

Package Height

2,9 in [7,3 cm]

Package Length

11,7 in [29,7 cm]

Shipping (Package) Weight

1,9 lb [0,9 kg]

Package Width

7,6 in [19,3 cm]

Package Quantity

Performance

Maximum Data Transfer Rate

921.6 Kbps

Serial Protocol

RS-232

Max Baud Rate

921.6 Kbps

Data Bits

7, 8

FIFO

4096 byte Transmit and Receive

Parity

Odd, Even, Mark, Space, None

Stop Bits

1, 2

MTBF

146,300 Hours

Physical Characteristics

Weight of Product

19,5 oz [553 g]

Color

Black

Material

Steel

Product Length

7,1 in [18 cm]

Product Width

3,9 in [10 cm]

Product Height

1,7 in [4,3 cm]

Power

Power Source

USB-Powered

Input Voltage

5 DC

Input Current

250 mA

Output Voltage

5 DC

Plug Type

Software

OS Compatibility

Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 10 ARM, 11, 11 ARM
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux Kernel 3.0.x and up - LTS Versions only

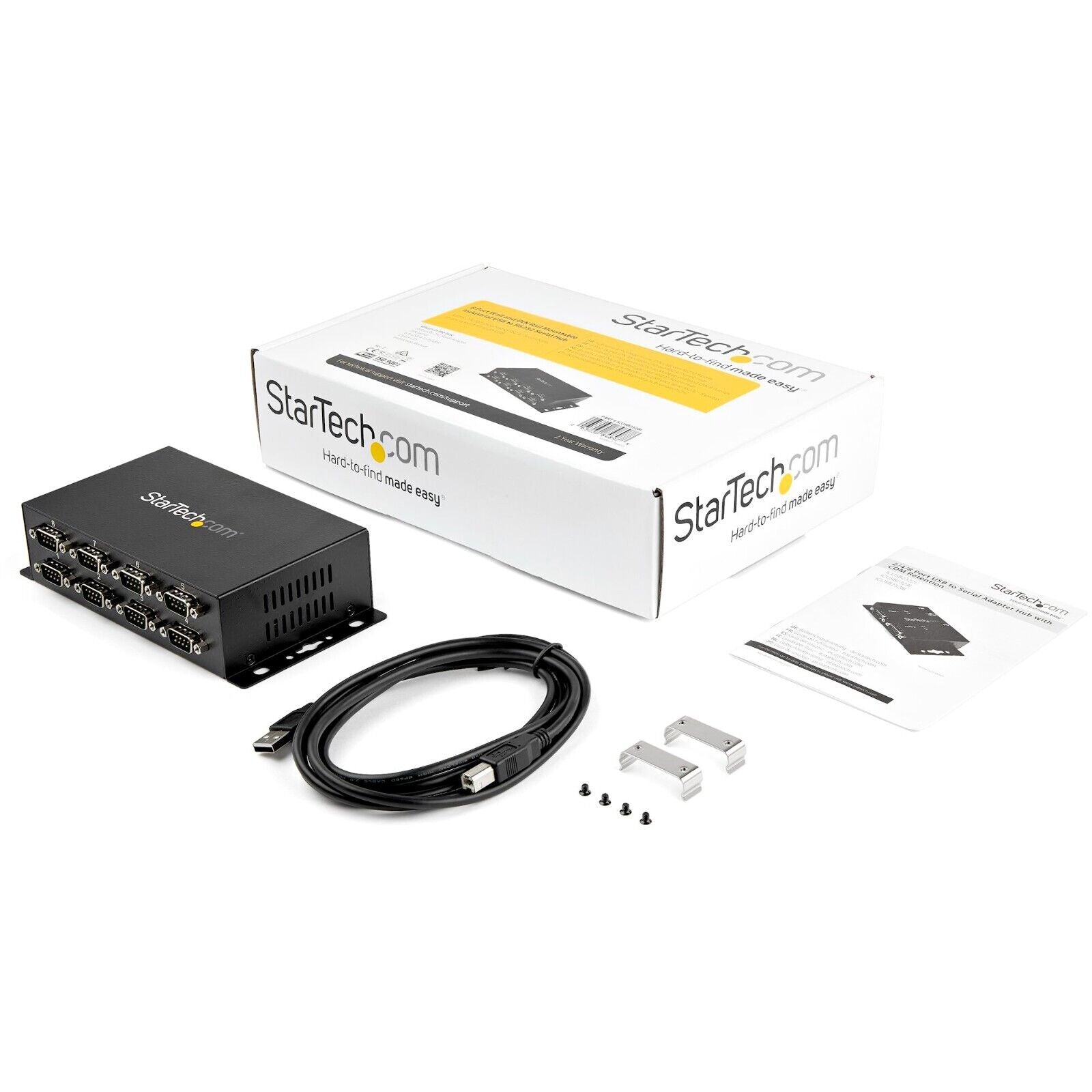

What's in the Box

Included in Package

1 - USB to RS-232 Serial Adapter

1 - DIN rail kit

1 - 6 ft USB A to B cable

1 - Driver CD

1 - Instruction Manual

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

Monrovia, CA 91016 (Most usual)
Fort Worth, TX 76155
Carol Stream, IL 60188
Moore, SC 29369
Hazelton, PA 18202
