StarTech PEX16S550LP 16 Port RS232 DB9 Serials Adapter PCIe x1 LowP Card +Cables
Regular price
$469.29 USD
Sale price
$469.29 USD
Regular price
$469.29 USD
Description
StarTech PEX16S550LP 16 Port RS232 DB9 Serials Adapter PCIe x1 LowP Card +Cables
Current product
Current
Vendor:
Startech
StarTech PEX16S550LP 16 Port RS232 DB9 Serials Adapter PCIe x1 LowP Card +Cables
Regular price
$469.29 USD
Sale price
$469.29 USD
Regular price
$469.29 USD
Options
Descriptions

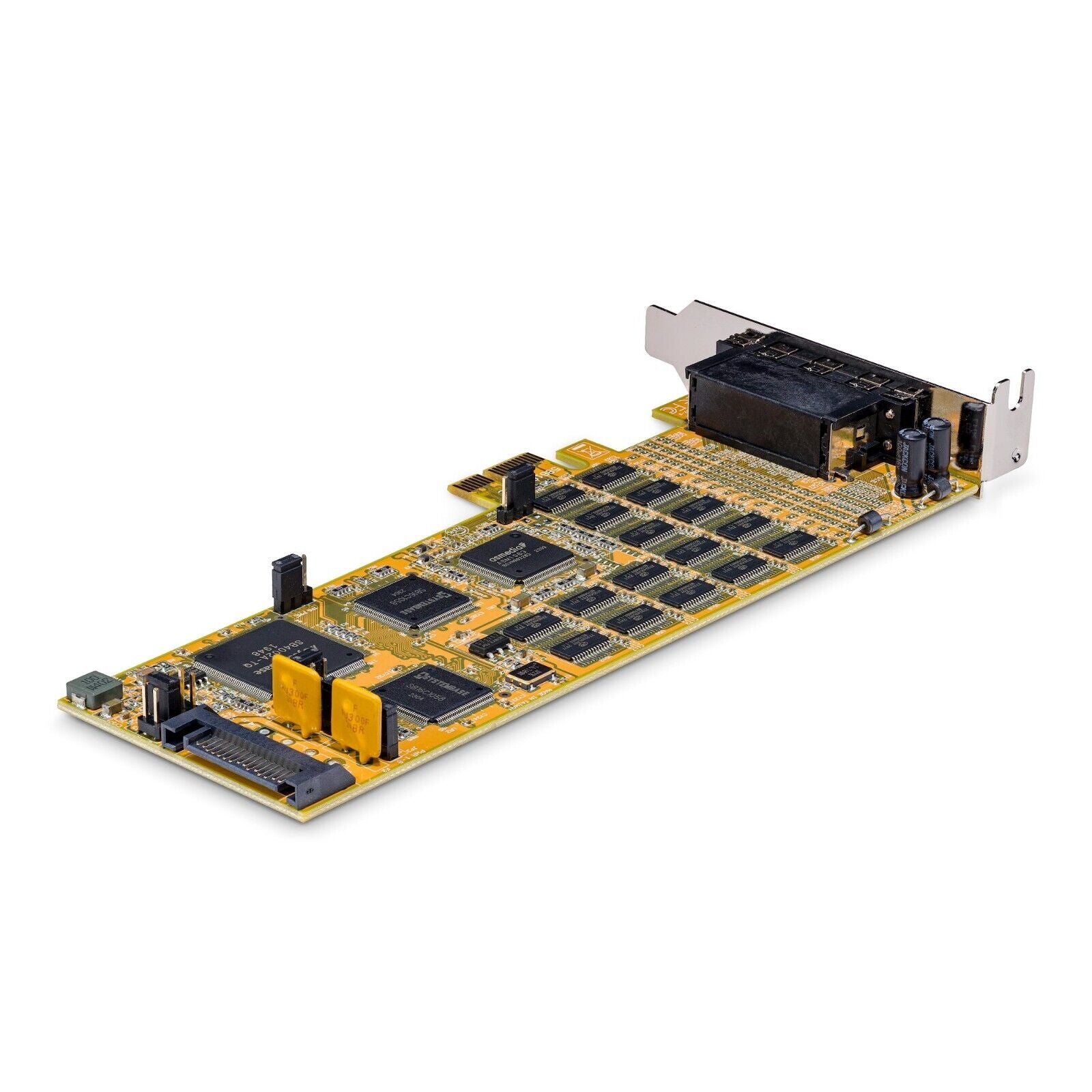

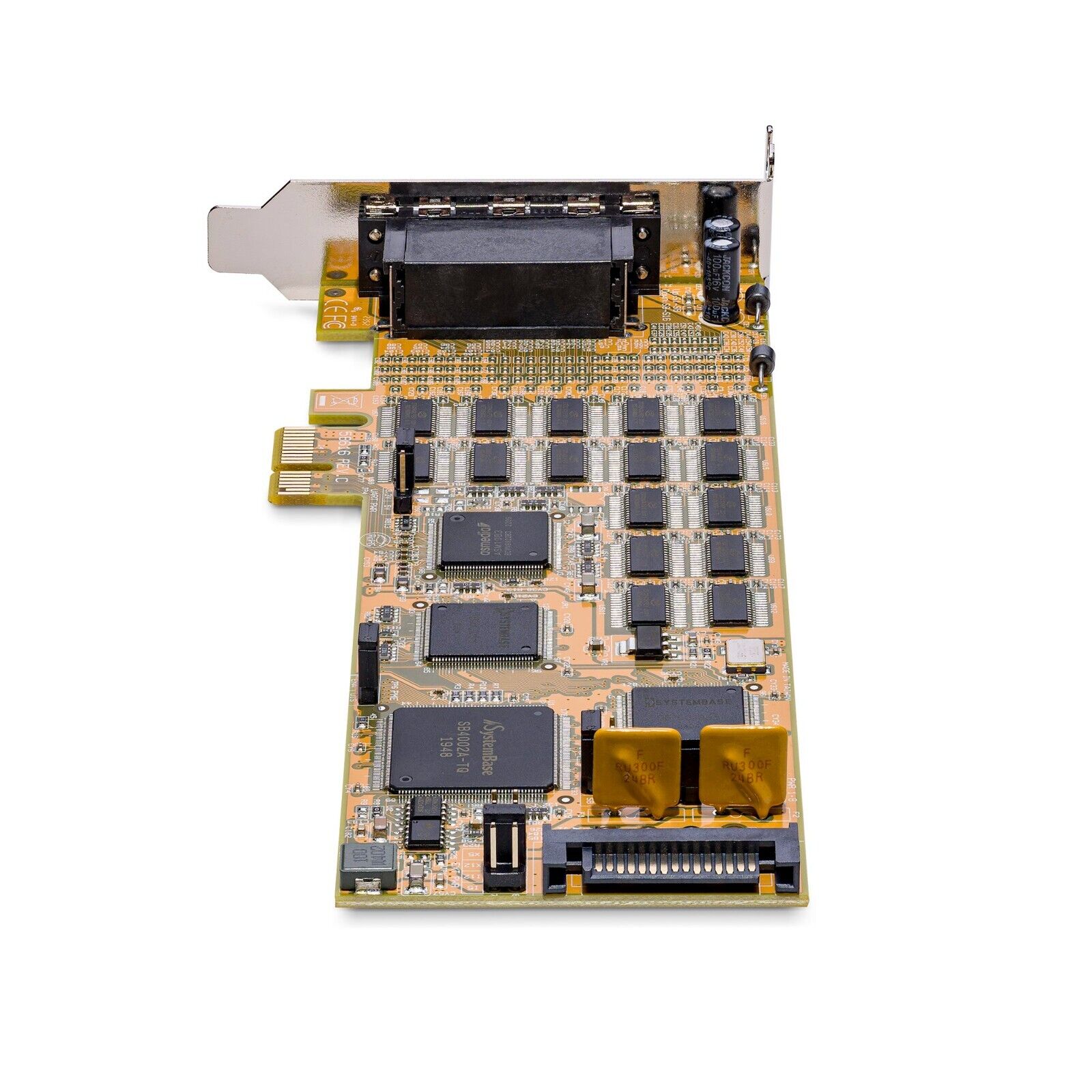

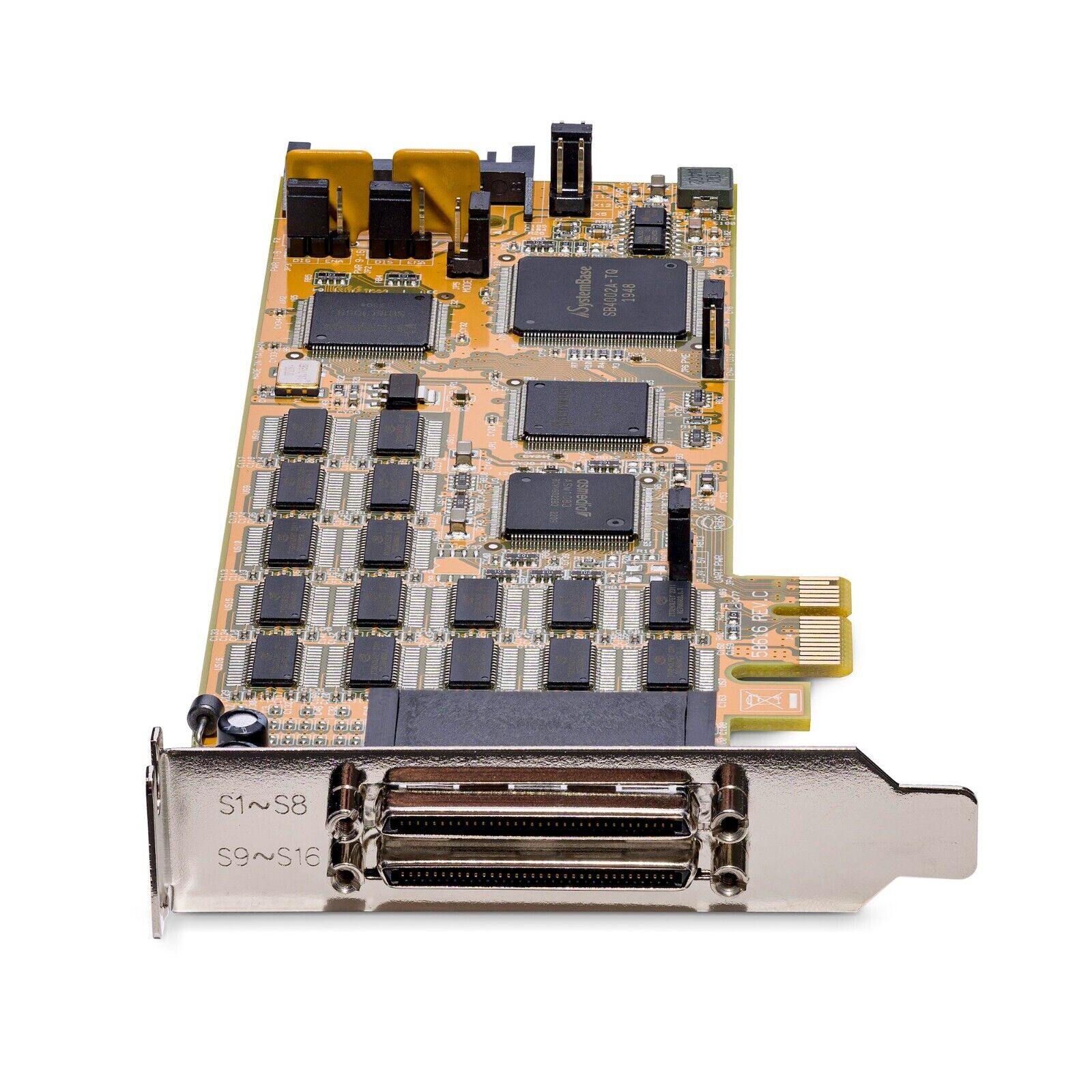

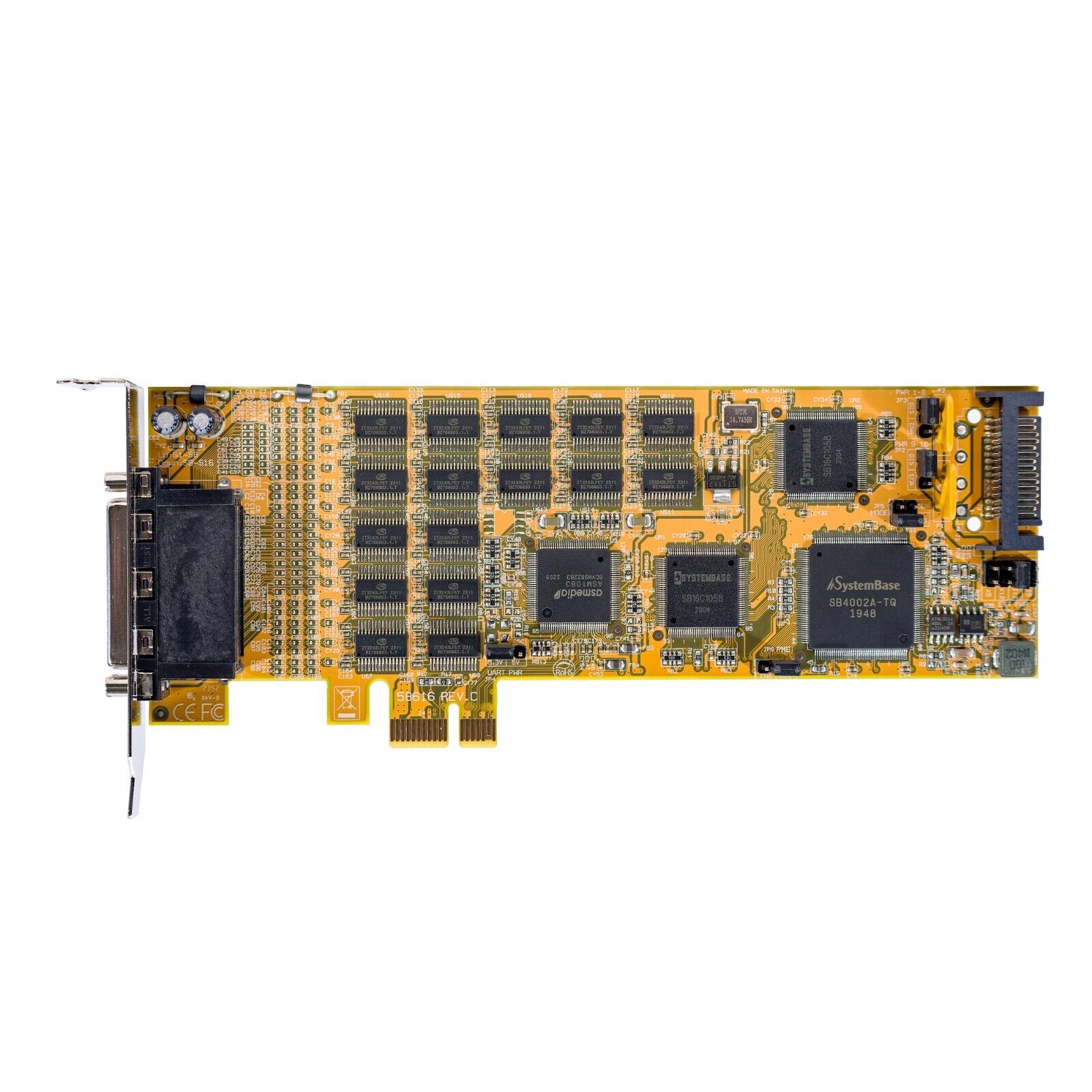

16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA
Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
Product ID: PEX16S550LP
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - SATA Power (15 pin)
External Ports
16 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 75°C (-4°F to 167°F)
Humidity
10~90% RH
Hardware
Ports
16
Interface
Serial
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Port Style
Dongle (Included)
Industry Standards
PCI Express 1.1, PCI Power Management 1.2
Chipset ID
ASMedia - ASM1083
SystemBase - SB4002A
SystemBase - SB16C1058LQ
SystemBase - SB4002A
SystemBase - SB16C1058LQ
Packaging Information
Package Height
2.8 in [70.0 mm]
Package Length
11.6 in [29.4 cm]
Shipping (Package) Weight
2.3 lb [1.0 kg]
Package Width
7.6 in [19.4 cm]
Package Quantity
1
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Physical Characteristics
Color
Yellow
Material
Steel
Product Length
6.6 in [16.8 cm]
Product Width
2.7 in [6.8 cm]
Product Height
0.9 in [2.2 cm]
Weight of Product
2.5 oz [70.0 g]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022

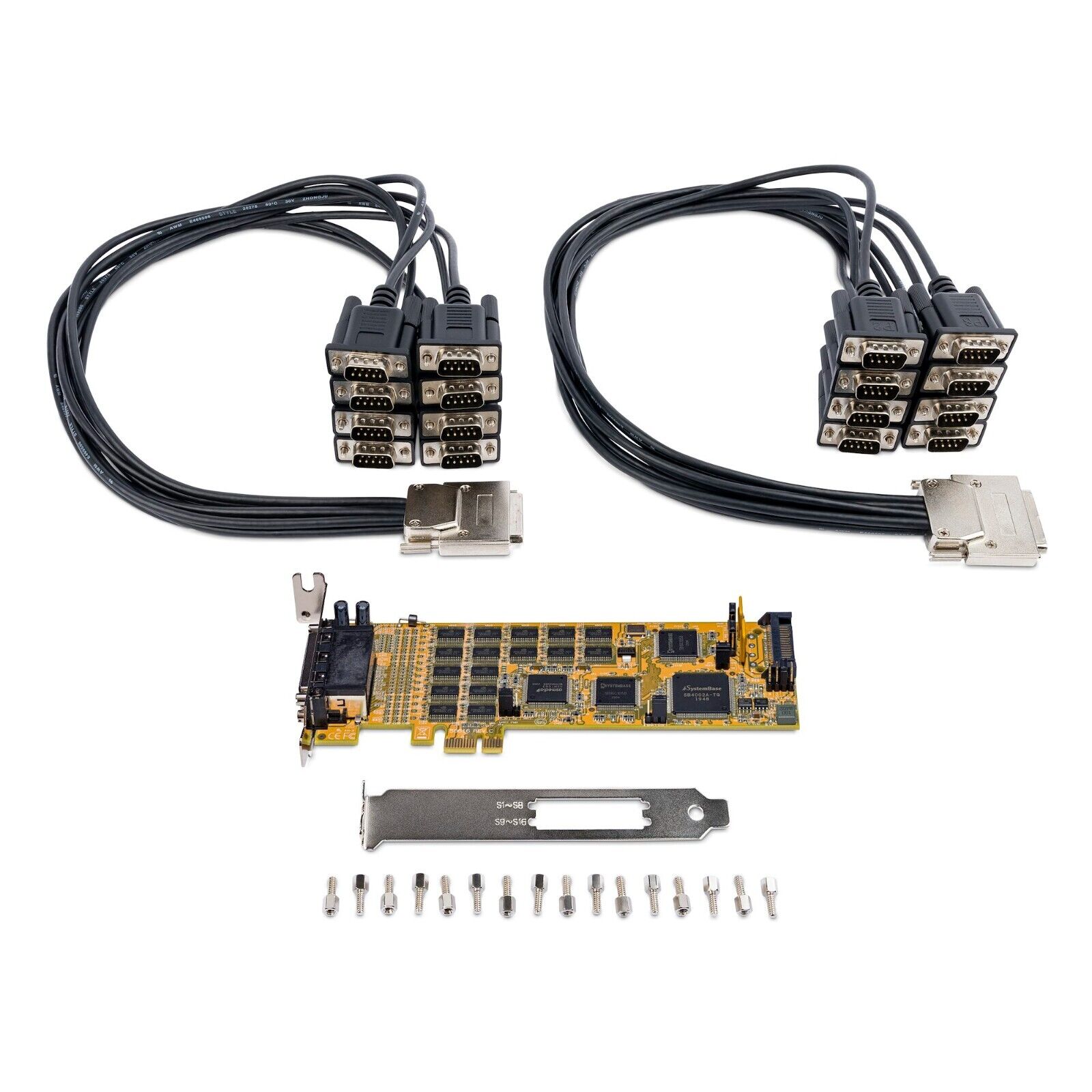

What's in the Box
Included in Package
1 - Serial Card
1 - Low Profile Bracket (installed)
1 - Full Profile Bracket

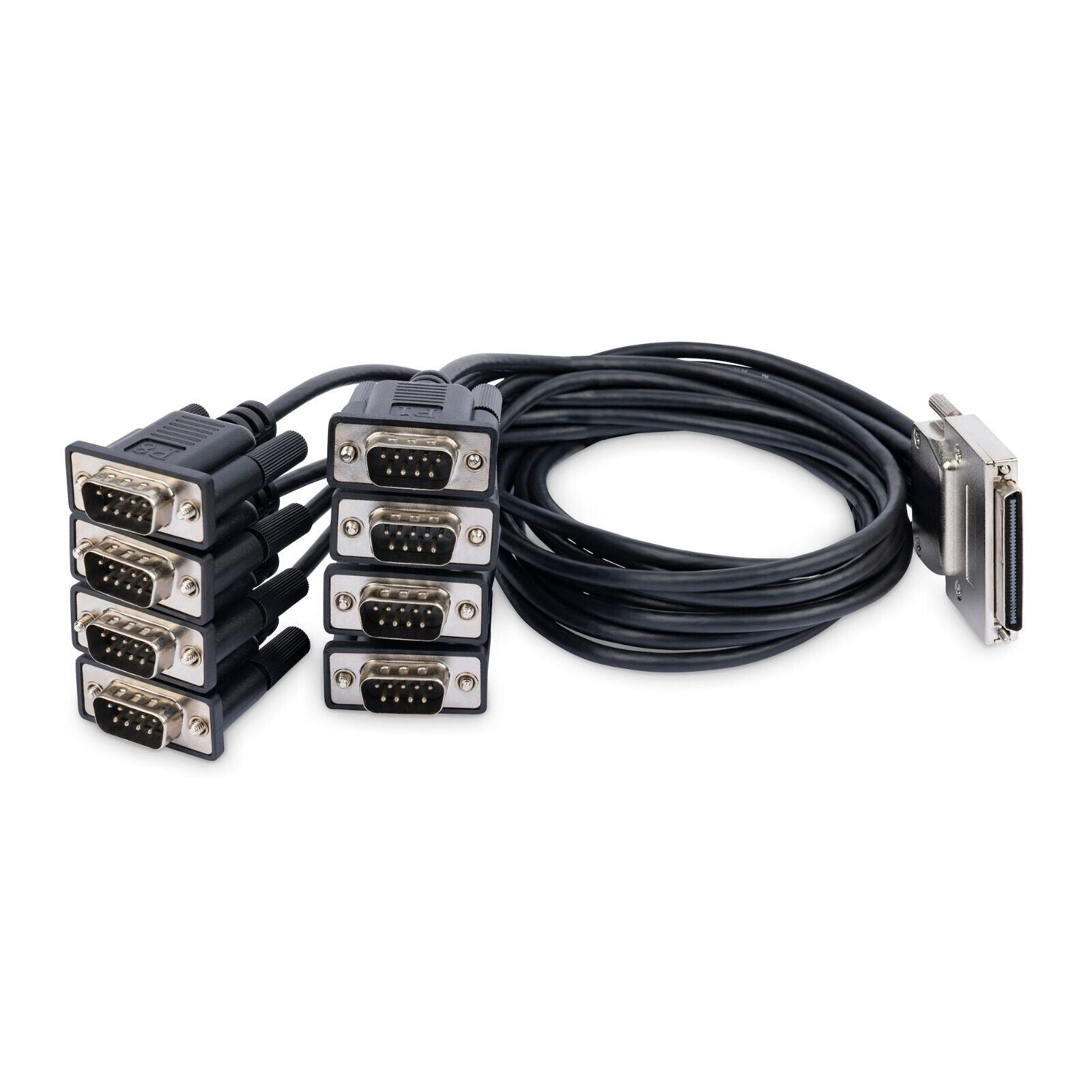

2 - Breakout Cables
1 - Driver CD
1 - Quick Start Guide
16 - Optional DB9 Connector Hex Nut Pairs
