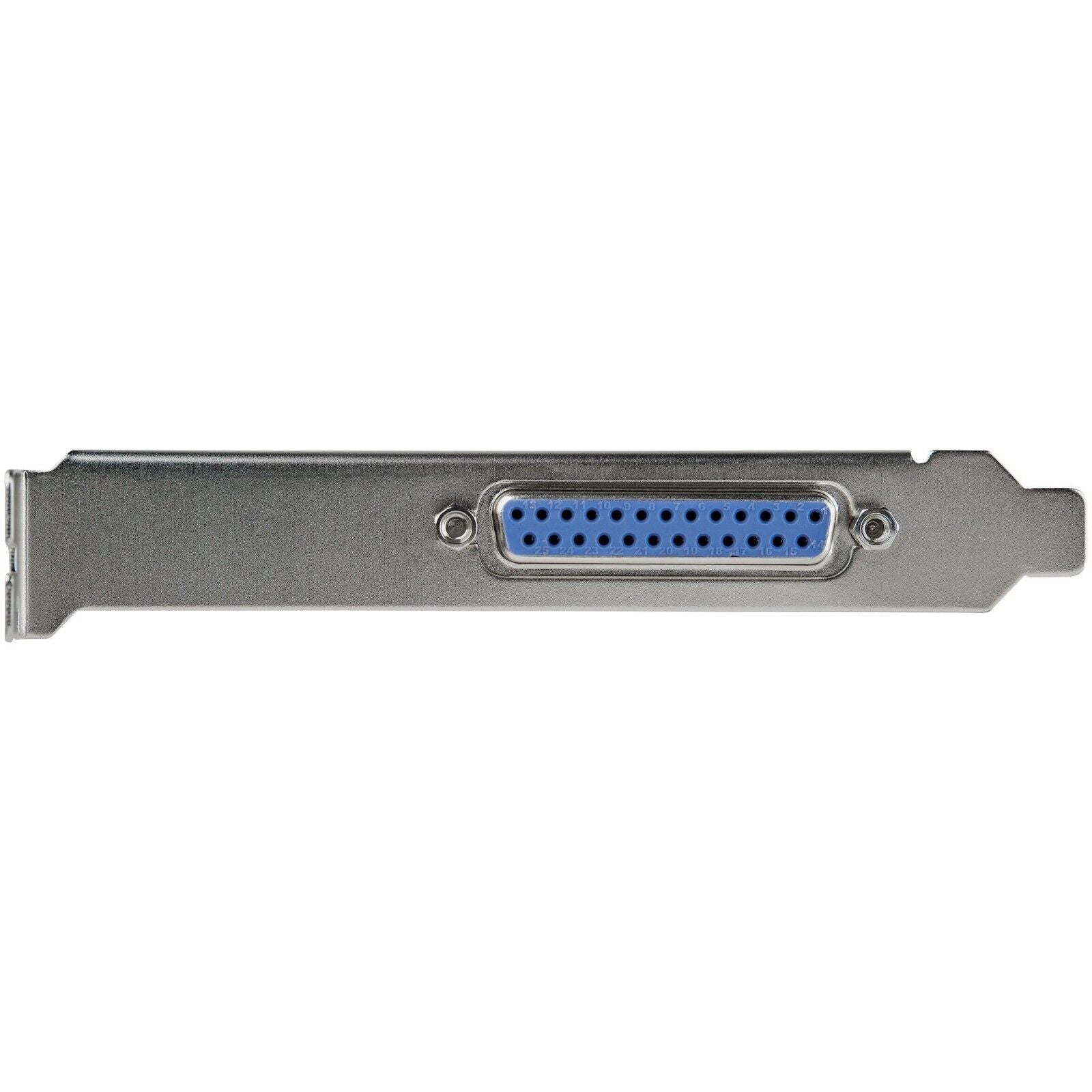

StarTech PEX1P2 1 Port Parallel PCIe Card Pci Express to DB25 Adapter Controlle

Name: StarTech PEX1P2 1 Port Parallel PCIe Card Pci Express to DB25 Adapter Controlle
Brand: Startech
SKU: INGaSTA 9AC660 - PEX1P2
Price: 41.17 USD
Availability: InStock

$41.17 USD

Shipping calculated at checkout.

In stock: 5

Description

1-Port Parallel PCIe Card - PCI Express to Parallel DB25 Adapter Card - Desktop Expansion LPT Controller for Printers, Scanners & Plotters - SPP/ECP - Standard/Low Profile

PCI Express 2.0 | LPT | PCIe 1x Slot | 2.5 Mbps | 2-Year Warranty

Product ID: PEX1P2

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

1 - PCI Express x1

External Ports

1 - DB-25 (25 pin, D-Sub)

Environmental

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

20°C to 60°C (68°F to 140°F)

Humidity

40%~80% RH

Hardware

Ports

Interface

Parallel

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

PCI Express 2.0

IEEE 1284

Chipset ID

Asix - AX99100

Packaging Information

Package Height

1.3 in [3.4 cm]

Package Length

8.3 in [21.0 cm]

Shipping (Package) Weight

4.3 oz [122.0 g]

Package Width

5.9 in [15.0 cm]

Package Quantity

Performance

Maximum Data Transfer Rate

2.5 Mbps

General Specifications

Supported Parallel Modes: SPP (Standard Printer Port), Nibble, Byte, and ECP (Extended Capabilities Port)

MTBF

958,000 hours

Physical Characteristics

Color

Black

Product Height

0.7 in [1.8 cm]

Product Length

4.7 in [12.0 cm]

Weight of Product

1.6 oz [45.0 g]

Product Width

2.9 in [7.3 cm]

Power

Input Voltage

12V DC

Output Voltage

12V DC

Software

OS Compatibility

Windows® 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.6.x and up - LTS Versions only

What's in the Box

Included in Package

1 - Quick-Start Guide

1 - PCI Express Parallel Card

1 - Full Profile Bracket (Installed)

1 - Low Profile Bracket
