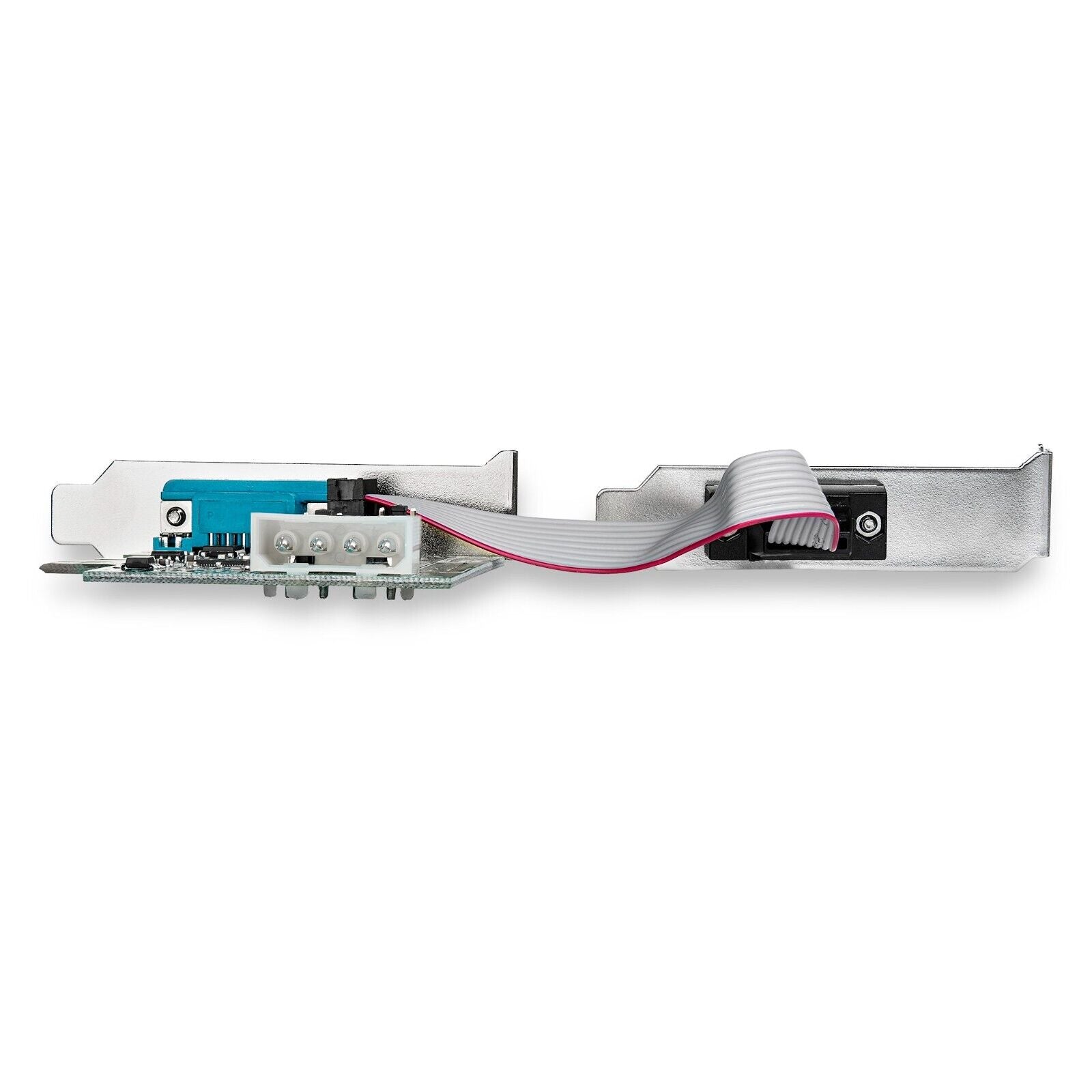

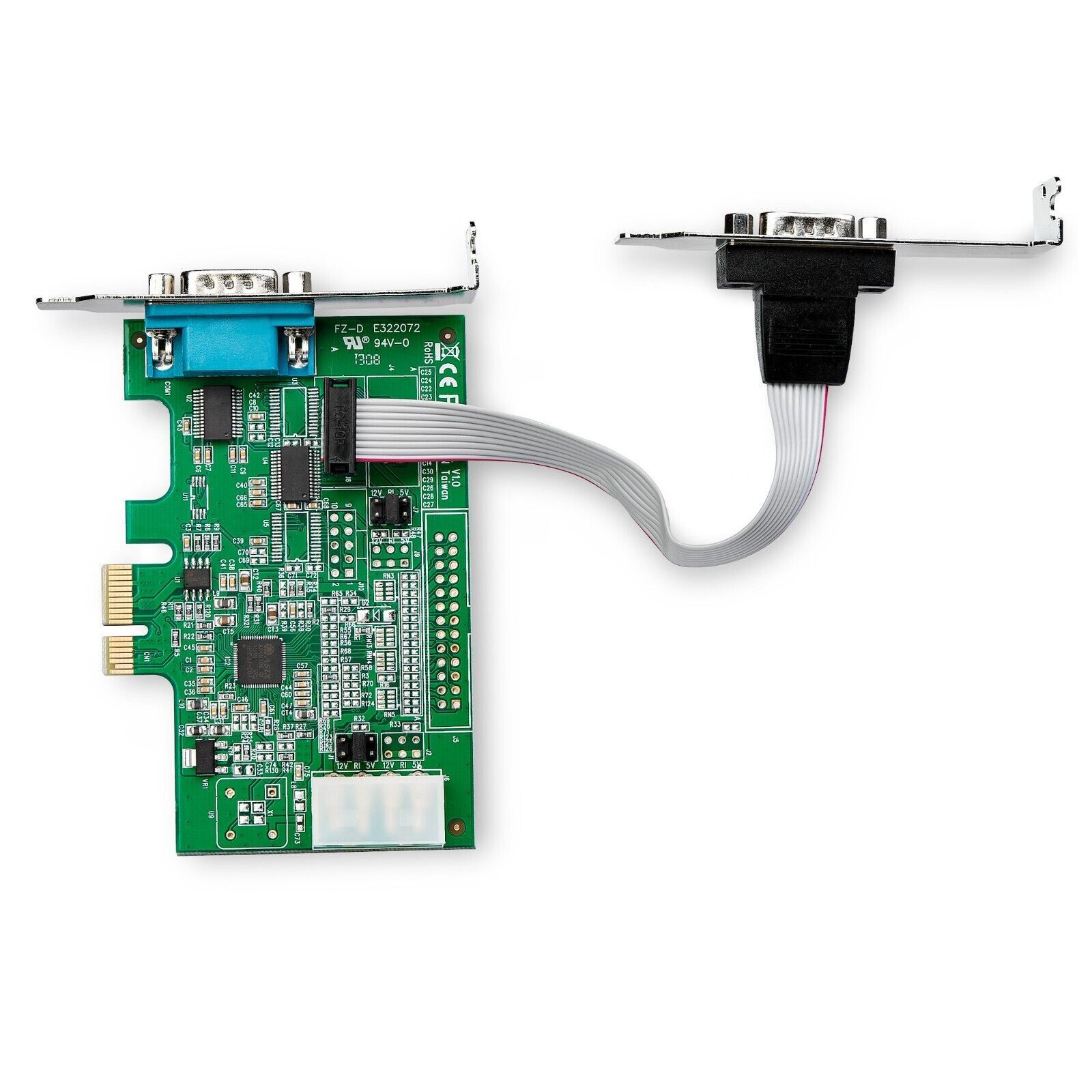

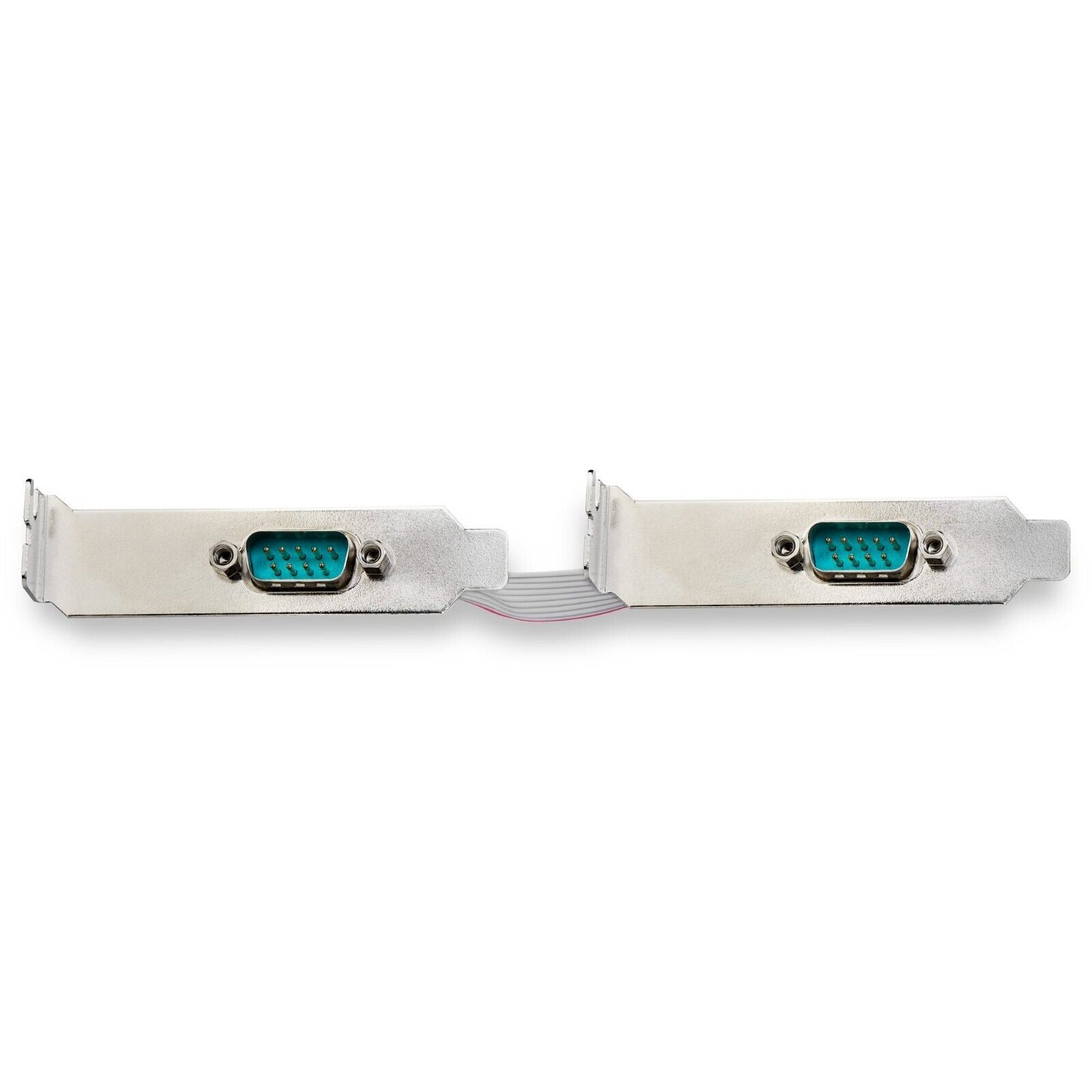

StarTech PEX2S953LP 2 Port RS232 DB9 Serial Adapter PCIe x1 LowPr Card LP4 Power
Regular price
$61.10 USD
Sale price
$61.10 USD
Regular price
$59.99 USD
Description
Couldn't load pickup availability
StarTech PEX2S953LP 2 Port RS232 DB9 Serial Adapter PCIe x1 LowPr Card LP4 Power
Current product
Current
Vendor:
Startech
StarTech PEX2S953LP 2 Port RS232 DB9 Serial Adapter PCIe x1 LowPr Card LP4 Power
Regular price
$61.10 USD
Sale price
$61.10 USD
Regular price
$59.99 USD
Options
Descriptions
2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux - TAA
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible
Product ID: PEX2S953LP
..
Warranty Information
Warranty
Lifetime
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - LP4 (4 pin; Large Drive Power)
External Ports
2 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
-10°C to 80°C (14°F to 176°F)
Storage Temperature
-20°C to 100°C (-4°F to 212°F)
Humidity
5~85% RH
Hardware
Ports
2
Interface
Serial
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Port Style
Integrated on Card
Chipset ID
Asix AX99100
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
6.7 in [17.0 cm]
Shipping (Package) Weight
4.8 oz [136.0 g]
Package Width
5.7 in [14.4 cm]
Package Quantity
1
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
None, Xon/Xoff, RTS/CTS
Parity
None, Odd, Even, Space, Mark
Stop Bits
1, 1.5, 2
MTBF
1,712,904 hours
Physical Characteristics
Product Height
3.1 in [8.0 cm]
Product Length
4.1 in [105.0 mm]
Weight of Product
3.4 oz [95.0 g]
Product Width
0.9 in [2.2 cm]
Color
Green
Material
Steel
Power
Input Voltage
12V DC
Output Voltage
12V DC
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.4.x and up - LTS Versions only
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.4.x and up - LTS Versions only
Microsoft WHQL Certified
Yes
Special Notes / Requirements
Note
Selectable power output on pin 9 of the serial port

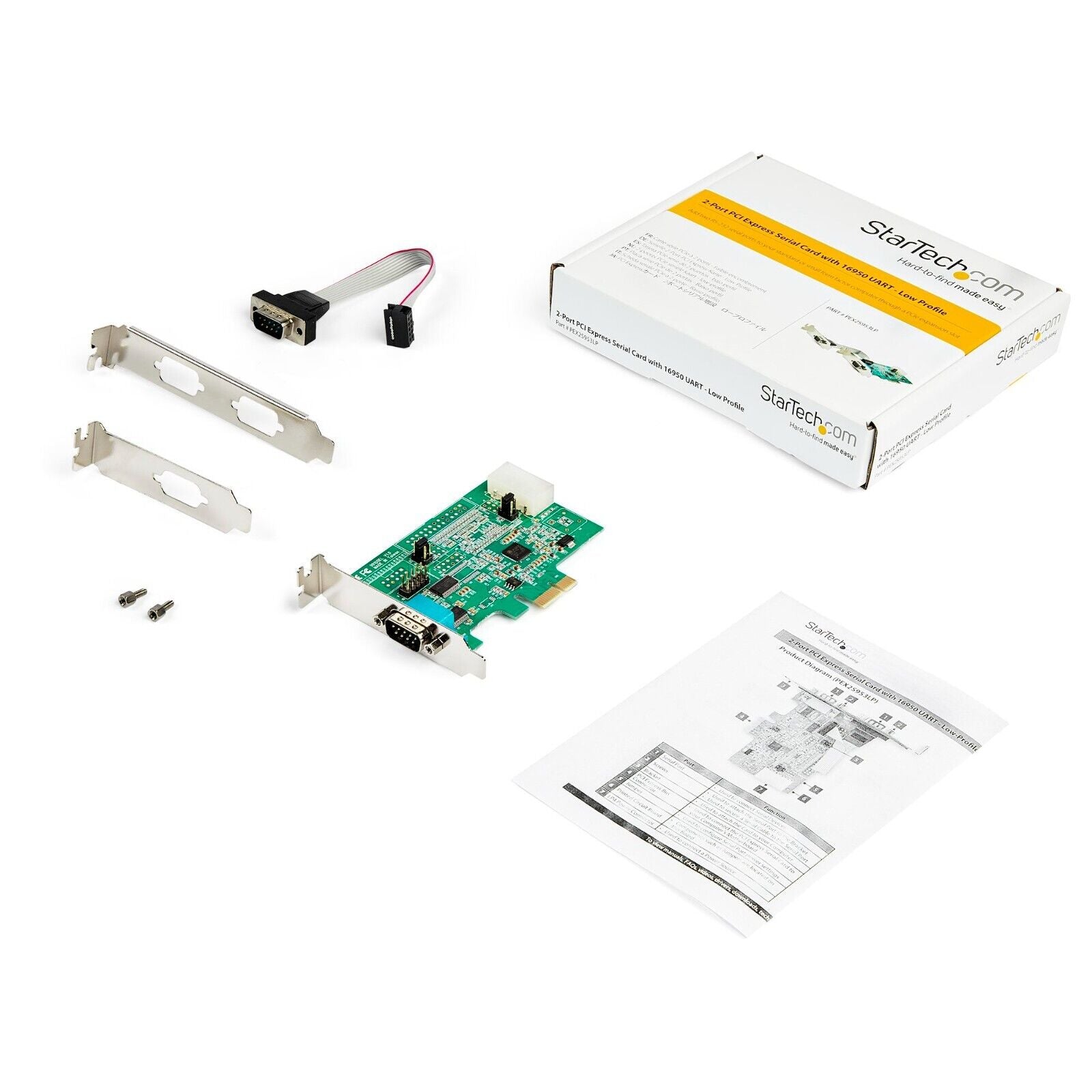

What's in the Box
Included in Package
1 - PCIe Serial Card
2 - Low Profile Brackets (Installed)
1 - Full-Profile Bracket
1 - User Manual
