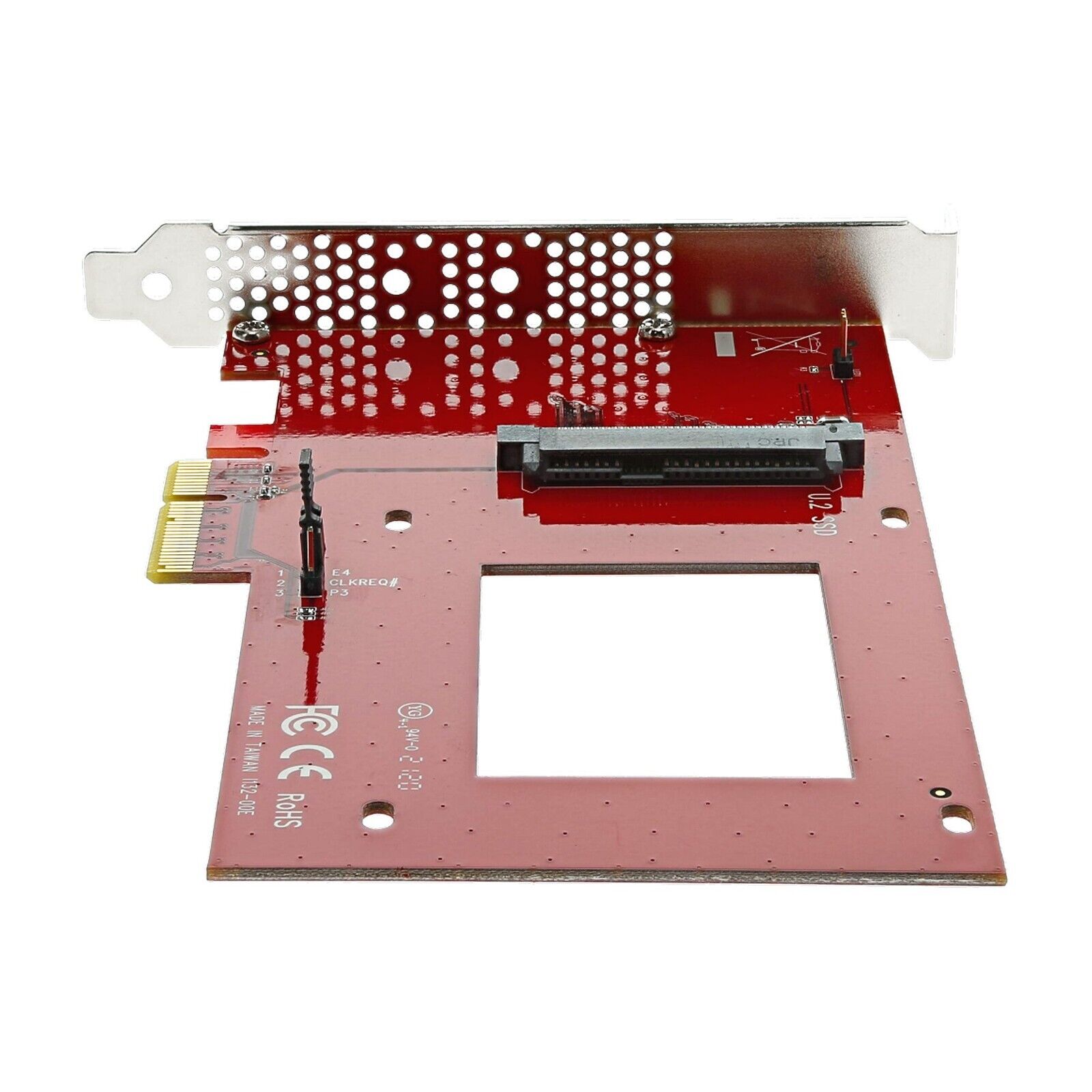

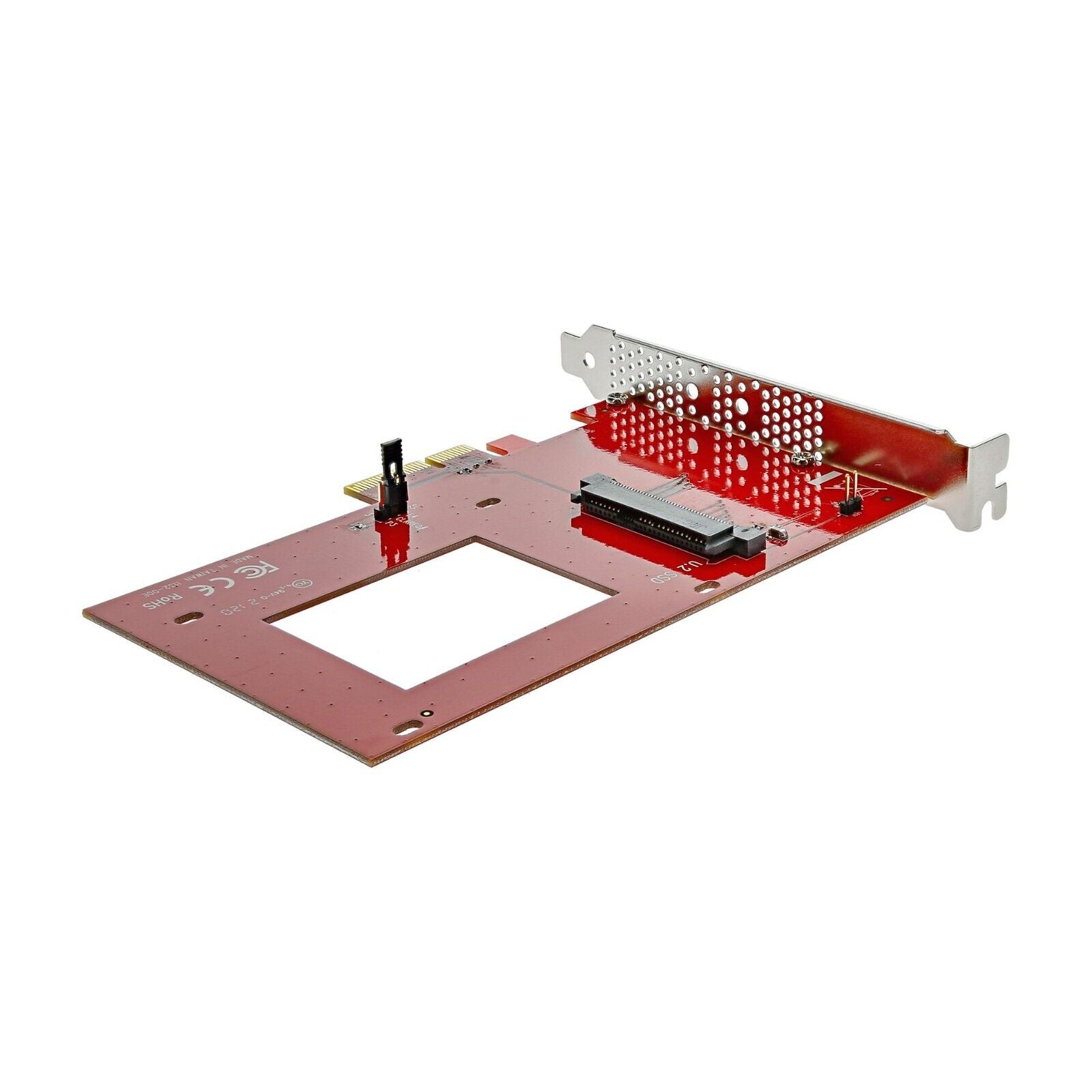

StarTech PEX4SFF8639 2.5" U.2 NVMe SSD SFF-8639 to PCIe x4 Adapter PC Card

$53.54 USD

Shipping calculated at checkout.

In stock: 1

Description

U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD - SFF-8639 - x4 PCI Express 4.0 - TAA

Mount a 2.5" U.2 NVMe SSD into your desktop computer or server, using an available PCIe expansion slot

Product ID: PEX4SFF8639

Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.

You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost system speed and performance by adding a PCIe NVMe U.2 SSD to your PC
Simplify system builds with a U.2 to PCIe adapter that mounts your SSD directly to the adapter, with no need for adapter cables
PCI Express 4.0 x4 lane host adapter
Compatible with x4 PCIe 4.0 motherboards, and backward compatible with PCIe 3.0 / 2.0 / 1.0
OS independent with no drivers required, for a fast, hassle-free setup

Warranty Information

Warranty

2 Years

Connector(s)

Drive Connectors

1 - U.2 (PCIe, NVMe, SFF-8639)

Host Connectors

1 - PCI Express x4

Environmental

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

Humidity

15% ~ 90% RH

Hardware

Interface

PCI Express

Bus Type

PCI Express

Number of Drives

Drive Size

2.5in

Compatible Drive Types

U.2 (PCIe, NVMe, SFF-8639)

Drive Installation

Fixed

Supported Drive Height(s)

15mm

12.5mm

9.5mm

7mm

5mm

Fan(s)

Indicators

LED Indicators

1 - Activity Terminal/Header

Packaging Information

Shipping (Package) Weight

5.7 oz [162.0 g]

Package Quantity

Package Length

8.5 in [21.6 cm]

Package Width

6.3 in [16 cm]

Package Height

0.8 in [2.0 cm]

Performance

Hardware Raid Supported

Hot Swap Capability

Physical Characteristics

Color

Red

Material

Steel

Product Length

6.5 in [16.5 cm]

Product Width

4.8 in [12.2 cm]

Product Height

0.9 in [2.2 cm]

Weight of Product

2.3 oz [65 g]

Software

OS Compatibility

OS independent; No software or drivers required

Special Notes / Requirements

Note

Some U.2 drives make use of a feature called PWDIS which allows for remote power cycling of drives. Only Rev 03 and up of the PEX4SFFD8639 support this feature and work with drives that use it.

What's in the Box

Included in Package

1 - drive adapter card

4 - drive-mounting screws

1 - quick-start guide
