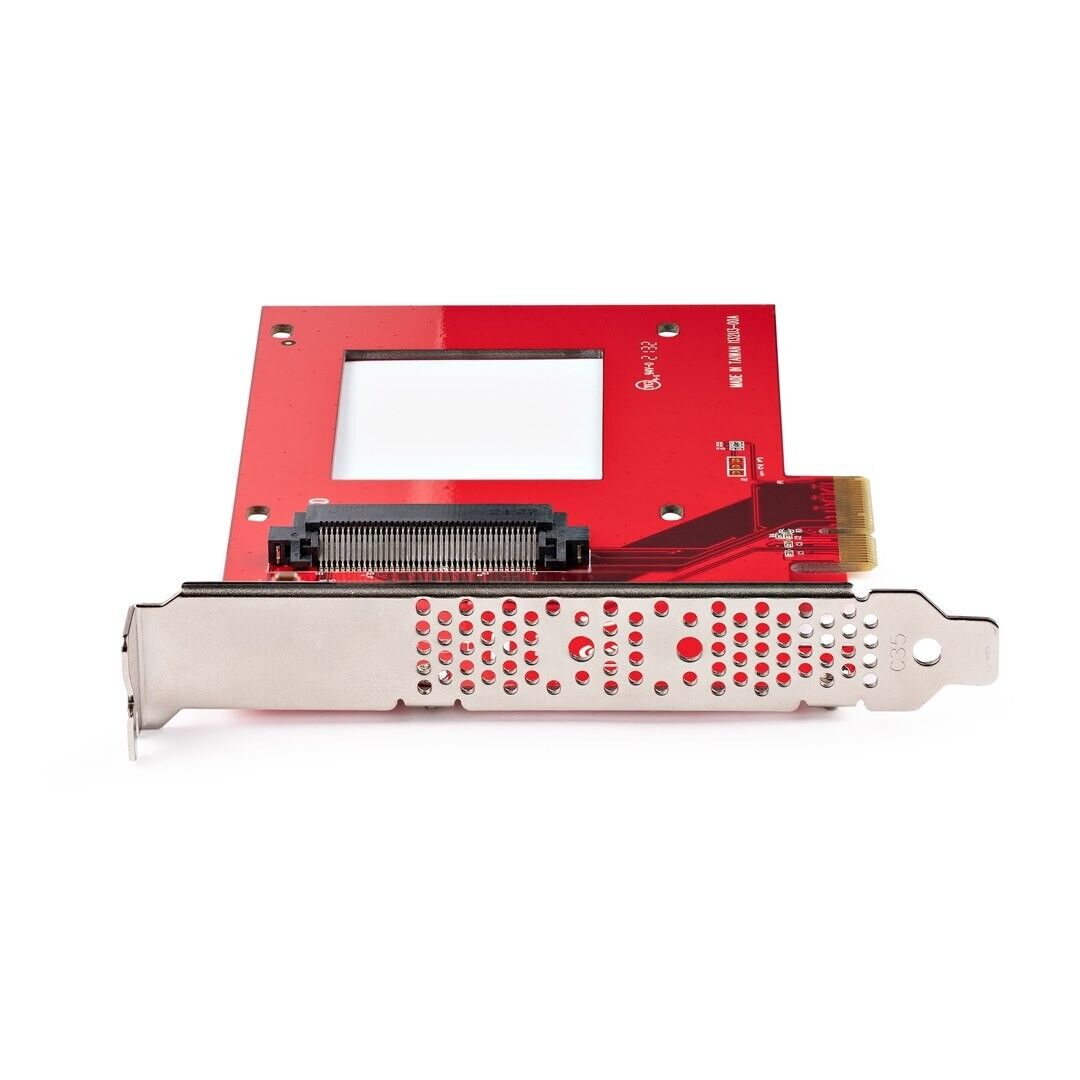

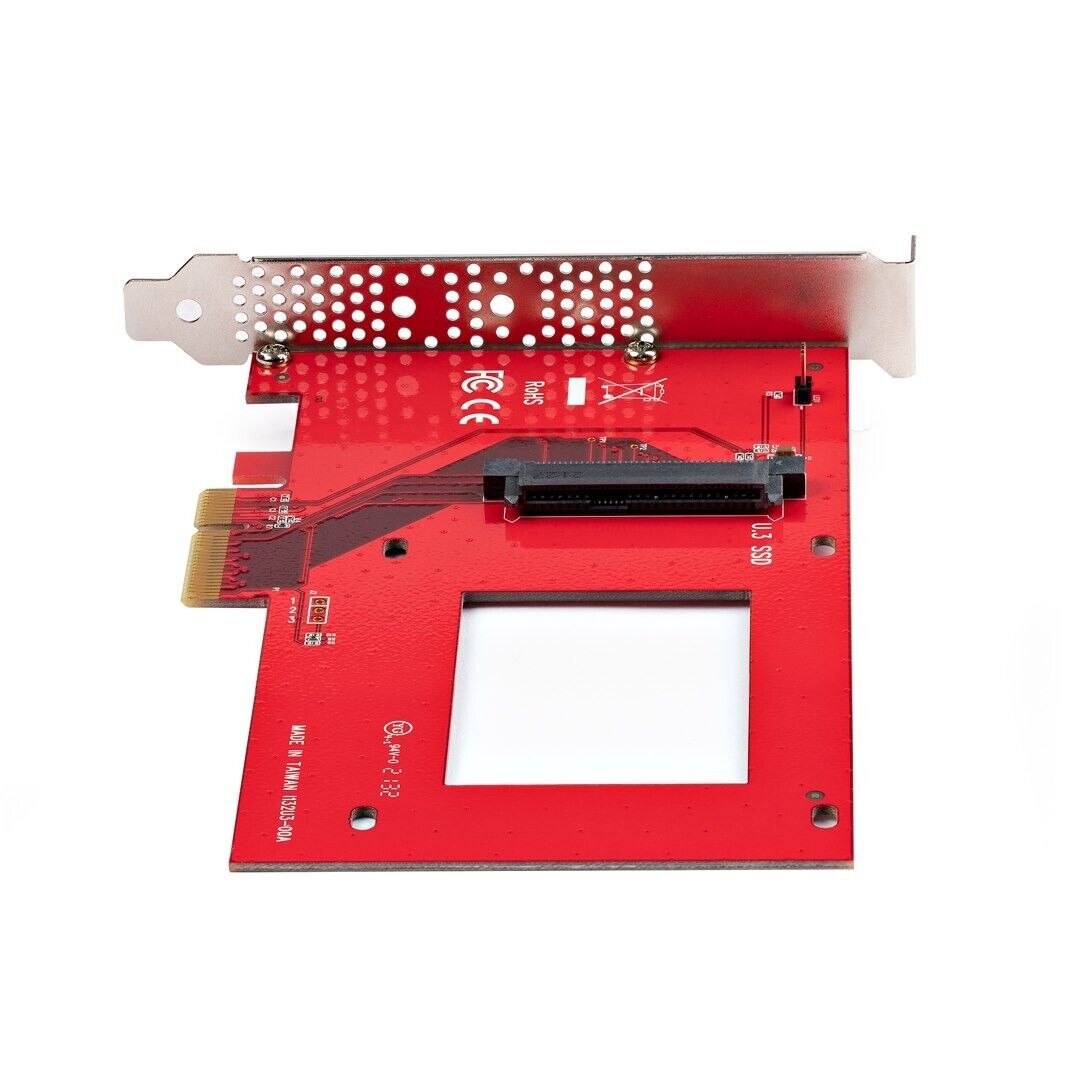

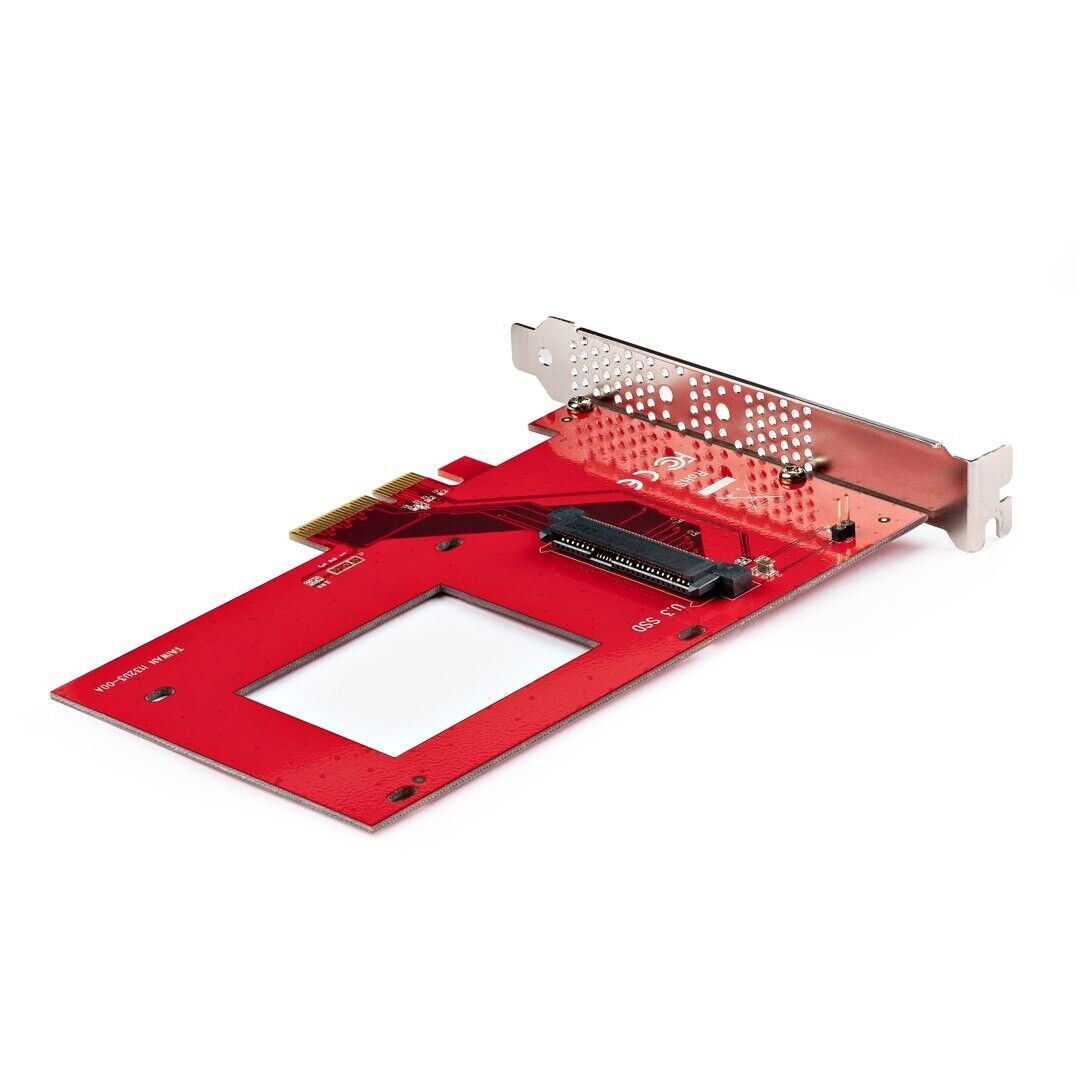

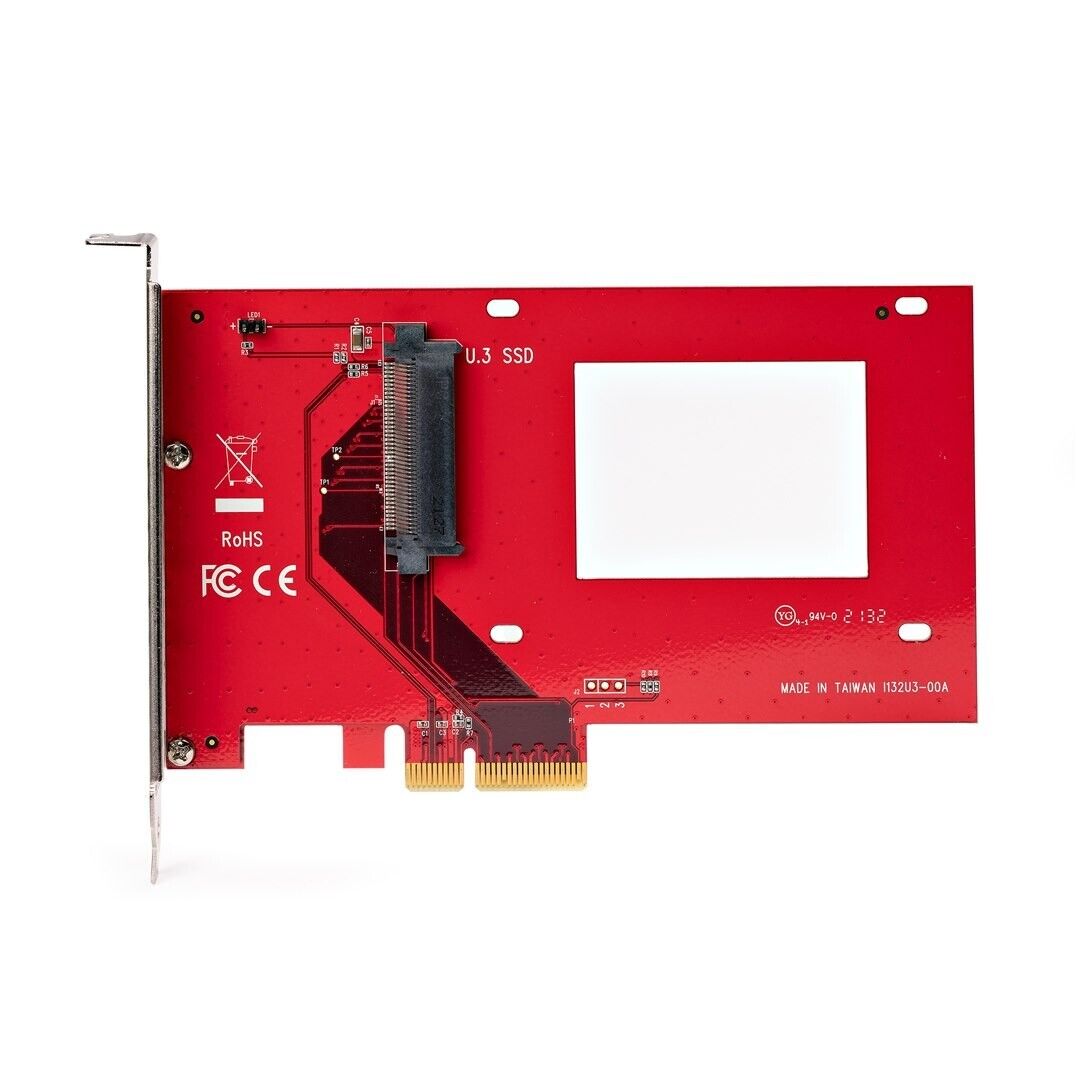

StarTech PEX4SFF8639U3 U.3 NVMe SSD to PCIe x4 Adapter Card for 2.5" SSF-TA-1001
Current product
Current
Vendor:
Startech
StarTech PEX4SFF8639U3 U.3 NVMe SSD to PCIe x4 Adapter Card for 2.5" SSF-TA-1001
Regular price
$56.50 USD
Sale price
$56.50 USD
Regular price
$55.99 USD
Options
Descriptions
U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent
Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot
Product ID: PEX4SFF8639U3
..
Warranty Information
Warranty
2 Years

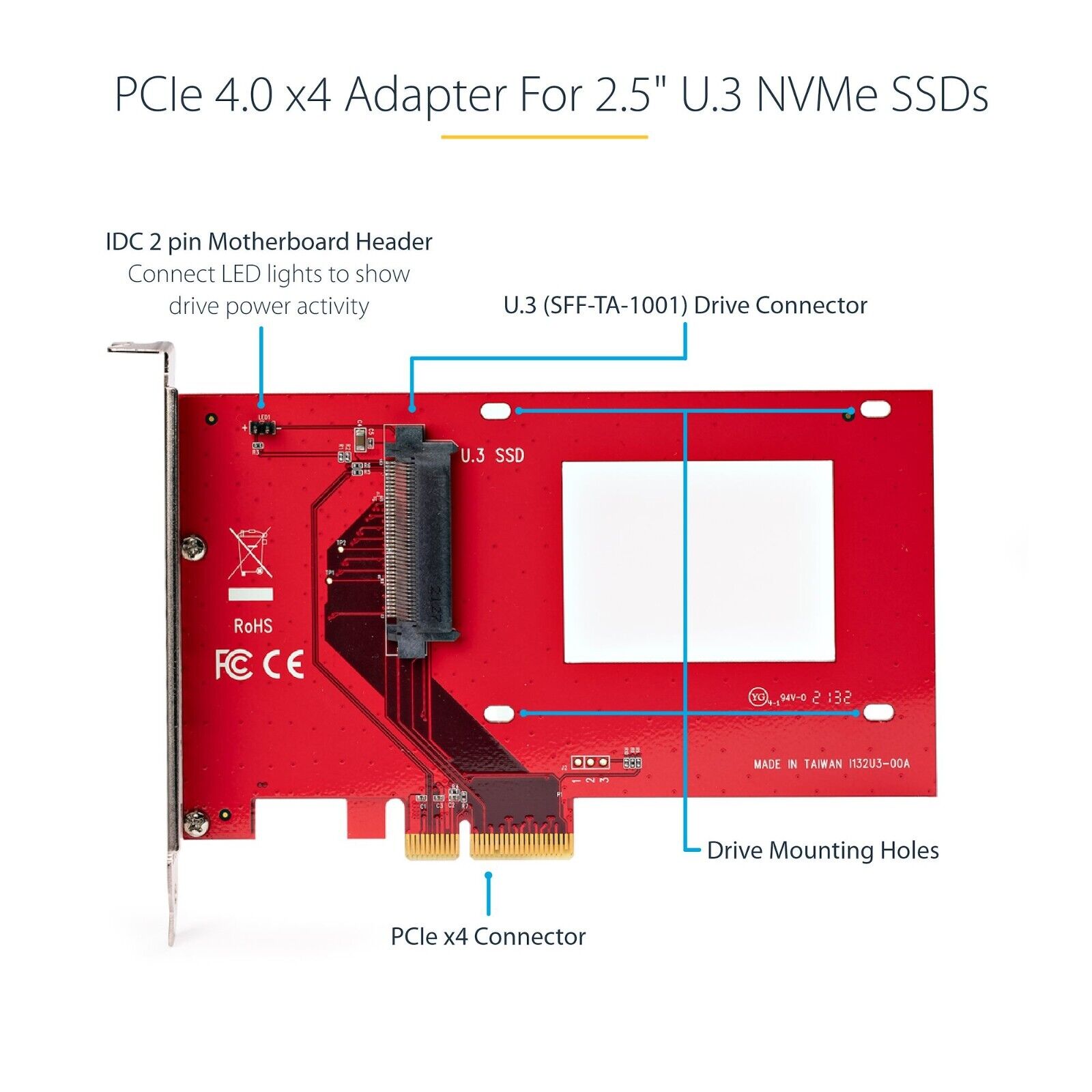

Connector(s)
Drive Connectors
1 - U.3 (PCIe, NVMe, SFF-TA-1001)
Host Connectors
1 - PCI Express x4
Other Interface(s)
1 - IDC (2 pin, Motherboard Header)
Environmental
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-40°C to 80°C (-40°F to 176°F)
Humidity
20 ~ 80%
Hardware
Interface
PCI Express x4
Bus Type
PCI Express
Number of Drives
1
Drive Size
2.5in
Compatible Drive Types
U.3 (PCIe, NVMe, SFF-TA-1001)
Drive Installation
Fixed
Supported Drive Height(s)
15mm
12.5mm
9.5mm
7mm
5mm
Fan(s)
No
Indicators
LED Indicators
1 - Drive Power/Activity Terminal Header
(LEDs not included)
(LEDs not included)
Packaging Information
Package Quantity
1
Package Length
5,9 in [15,1 cm]
Package Width
8,7 in [22,1 cm]
Package Height
1,2 in [3,0 cm]
Shipping (Package) Weight
5,3 oz [150,0 g]
Performance
Hardware Raid Supported
No
Hot Swap Capability
No
MTBF
21,693,912 Hours
Physical Characteristics
Color
Red
Product Length
6,1 in [15,4 cm]
Product Width
3,5 in [9,0 cm]
Product Height
0,1 in [0,2 cm]
Weight of Product
2,2 oz [62,0 g]
Material
UL94 - V0
Max Drive Height
0,6 in [15 mm]
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
Note
This product is compatible with U.3 drives only. U.2, SAS, and SATA drives are incompatible.
This product is backwards compatible with PCIe 3.0 slots, operating at reduced speeds.
NVMe SSDs may require additional drivers, provided by the manufacturer, or may be natively provided by the operating system (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.

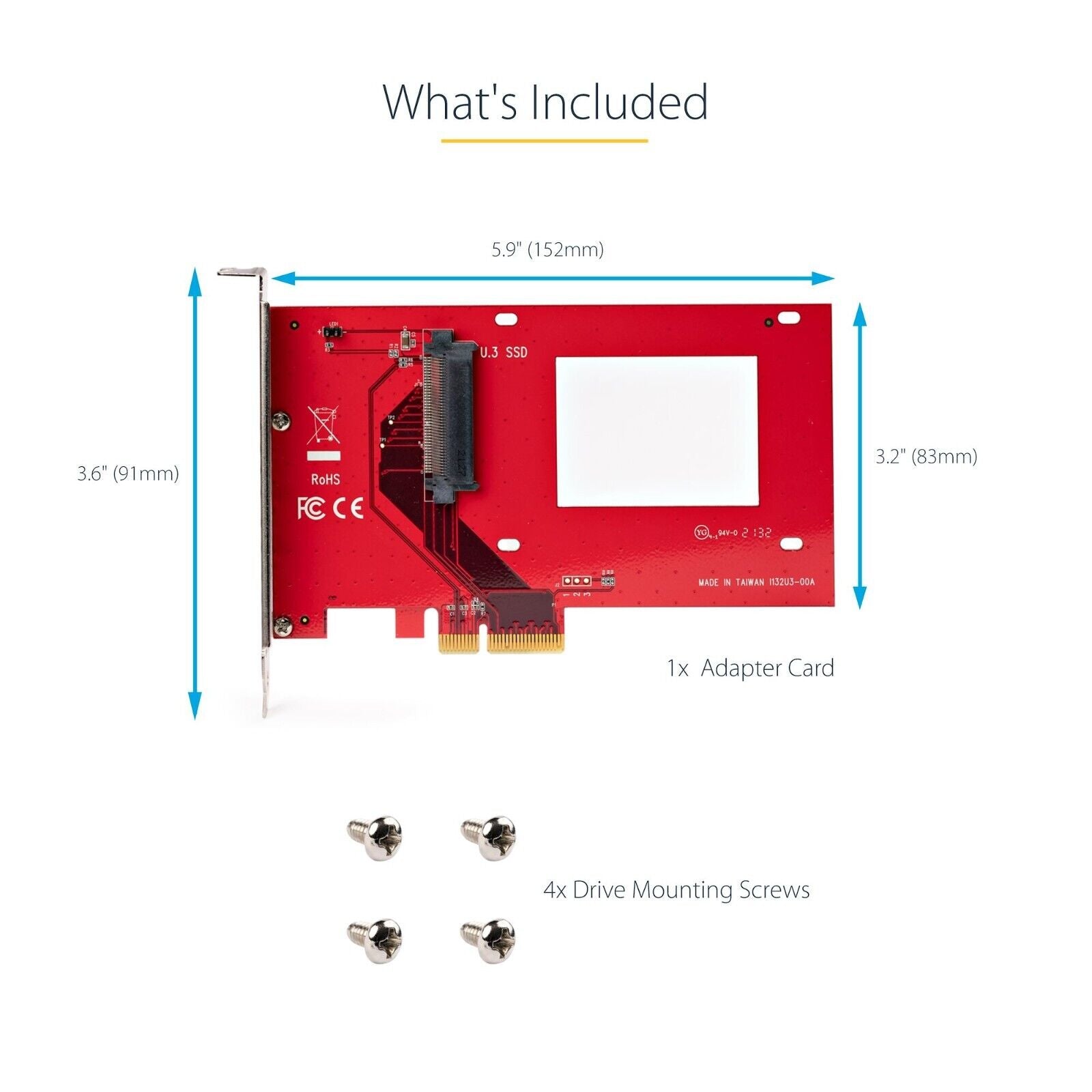

What's in the Box
Included in Package

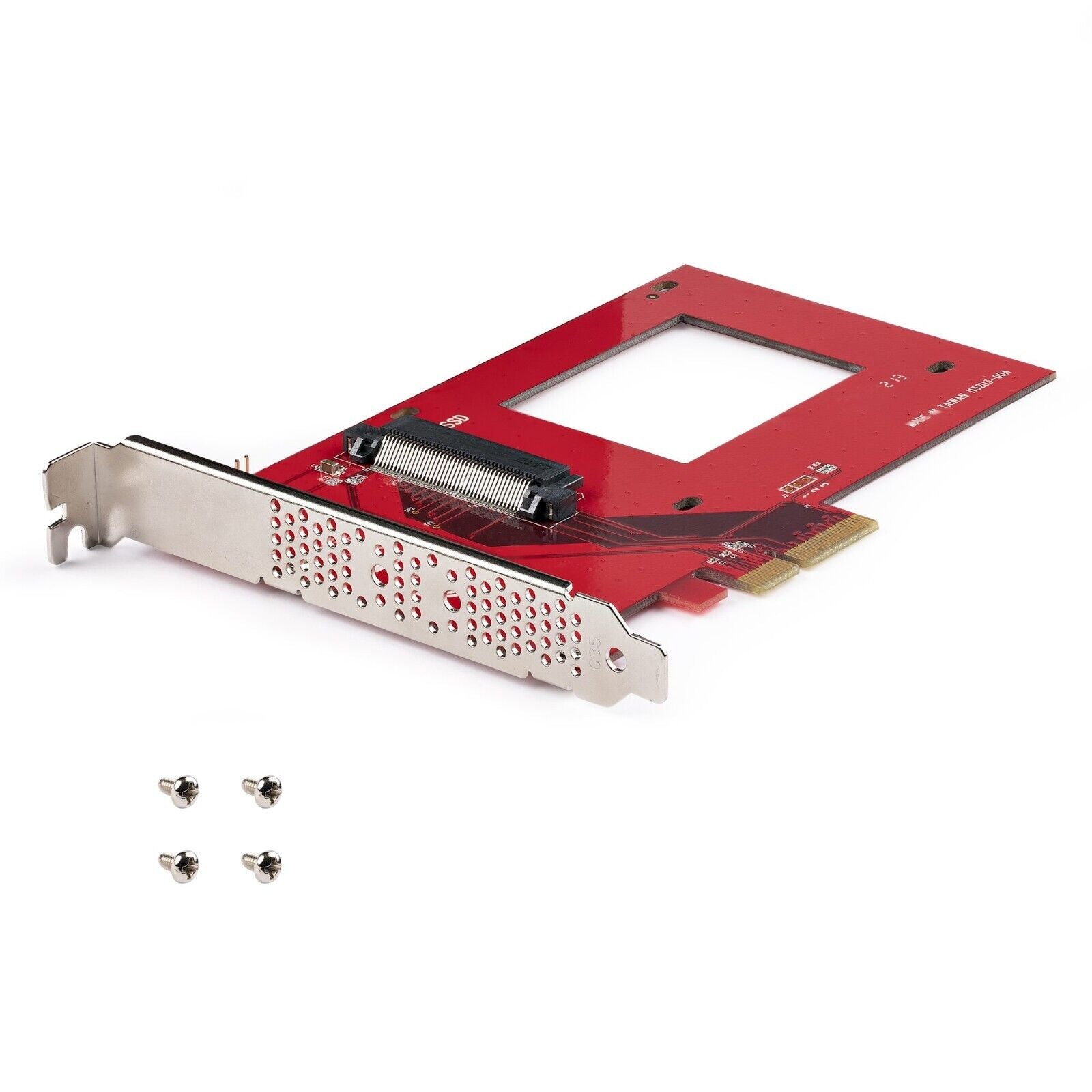

1 - U.3 to PCIe x4 Adapter
4 - Drive Mounting Screws
1 - Quick-Start Guide
