StarTech TB31PCIeX16 Thunderbolt 3 PCIe x16 1 DisplayPort Expansion Enclosure

$362.07 USD

Shipping calculated at checkout.

In stock: 6

Description

Thunderbolt 3 PCIe Expansion Chassis, External Enclosure with One PCI Express Slot, PCIe Box for Laptops/Desktops/All-In-Ones, 5K/4K Output Via TB3/DP Ports, TAA Compliant

Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop

Product ID: TB31PCIEX16

Warranty Information

Warranty

2 Years

Connector(s)

Internal Ports

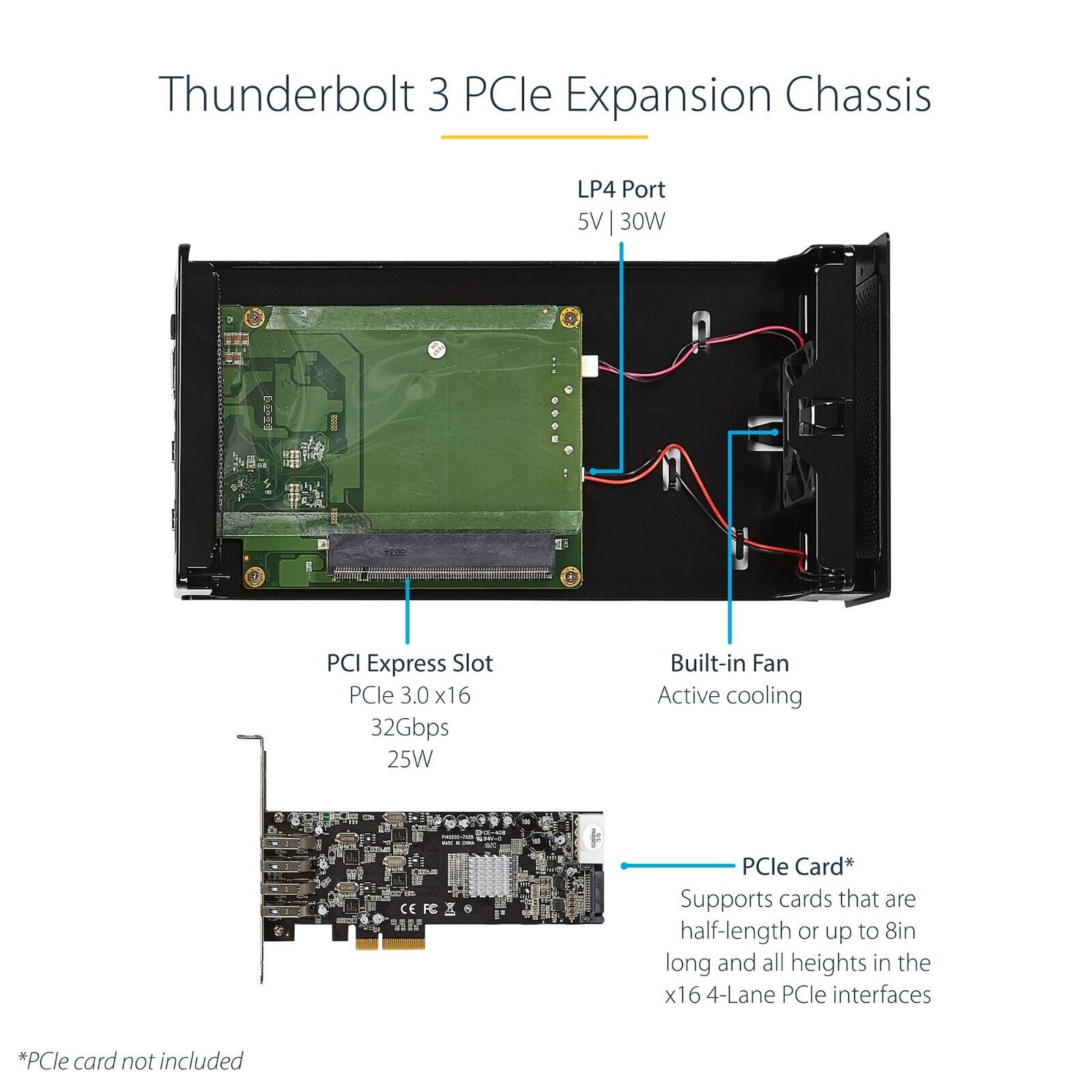

1 - PCI Express x16

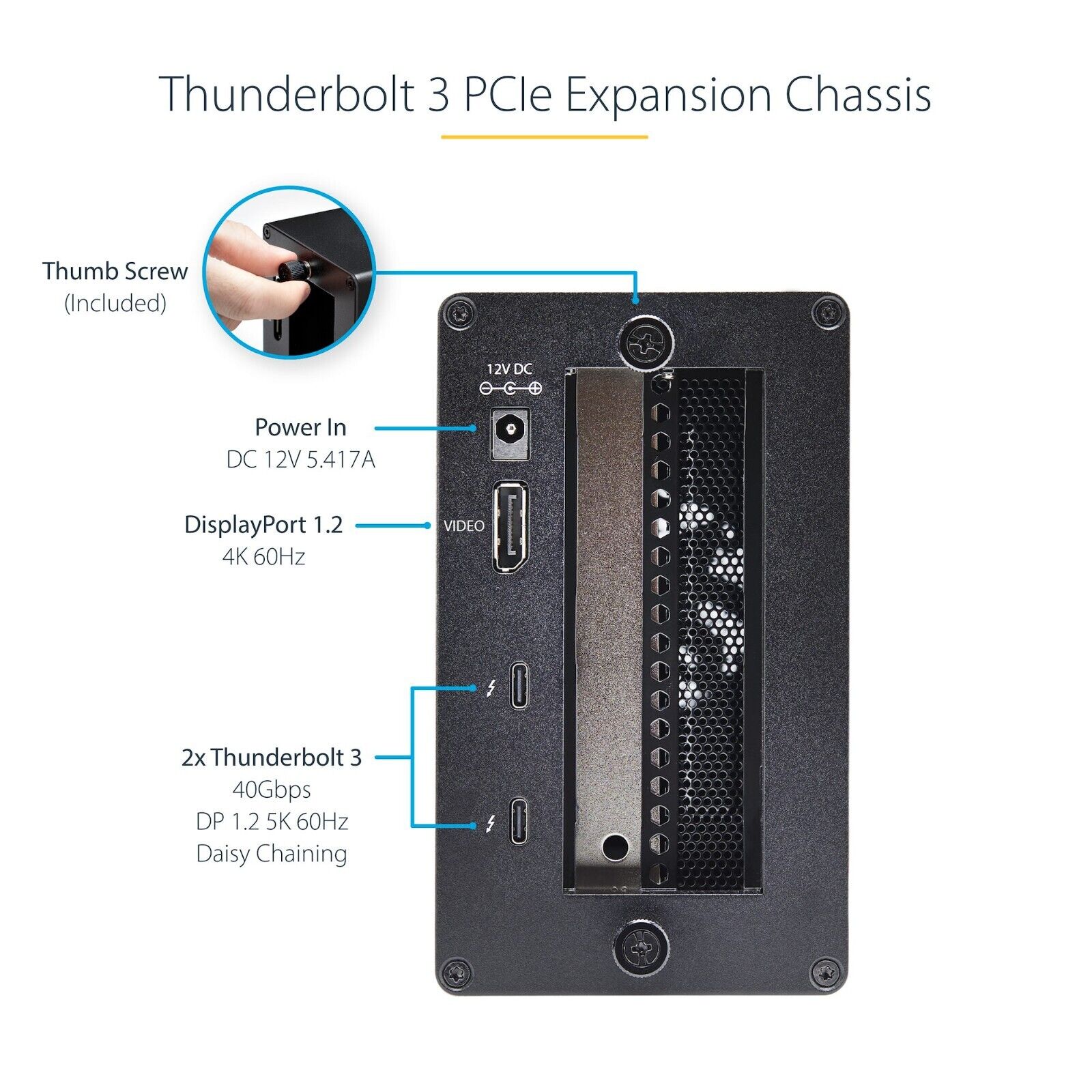

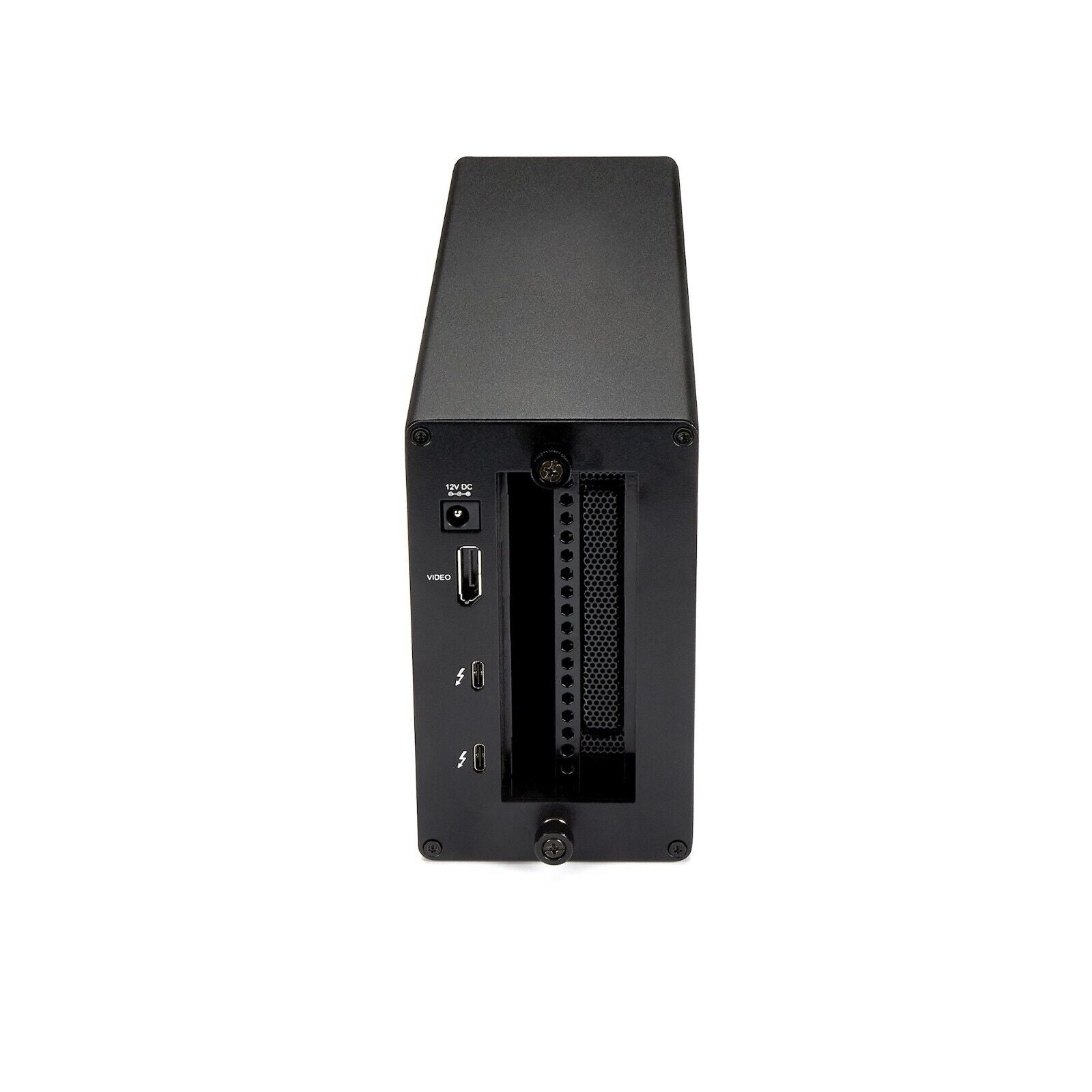

External Ports

2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps)

1 - DisplayPort (20 pin)

Environmental

Operating Temperature

5°C to 35°C (41°F to 95°F)

Storage Temperature

-20°C to 50°C (-4°F to 122°F)

Humidity

20-80%RH

Hardware

Fan(s)

Yes

Fans

1 - 60 mm

Ports

Air Flow Rate

14.06 CFM

Noise Level

24.55 dB

Interface

Thunderbolt

Bus Type

Thunderbolt 3

Card Type

Standard Profile

Industry Standards

Thunderbolt 3

Fan Bearing Type

Sleeve Bearing

Chipset ID

Intel - Alpine Ridge DSL6540

Indicators

LED Indicators

1 - Power(Blue)

Packaging Information

Shipping (Package) Weight

6.7 lb [3.0 kg]

Package Quantity

Package Length

14.1 in [35.8 cm]

Package Width

11.3 in [28.8 cm]

Package Height

5.8 in [14.8 cm]

Performance

Maximum Data Transfer Rate

40 Gbps (Thunderbolt 3)

Bandwidth

3.94 GB/s (x4 PCIe 3.0 )

Type and Rate

Thunderbolt 3 - 40 Gbit/s

Physical Characteristics

Color

Black

Material

Aluminum and Steel

Cable Length

19.7 in [500 mm]

Product Length

11.0 in [28.0 cm]

Product Width

5.6 in [14.2 cm]

Product Height

3.2 in [8.2 cm]

Weight of Product

3.6 lb [1.6 kg]

Power

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

Output Voltage

12V DC

Output Current

5.417A

Center Tip Polarity

Positive

Plug Type

Power Consumption (In Watts)

Software

OS Compatibility

Windows® 7, 8, 8.1, 10, 11
macOS 10.12 - 10.15, 11.0, 12.0, 13.0, 14.0

Special Notes / Requirements

Note

The expansion chassis does not support video cards.

This expansion chassis does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as MacBook Pro. When the dock is connected to your host laptop, a charging icon may appear on your laptop's screen. This is only sufficient enough to charge your laptop in sleep state, and charging will require an extended time period.

5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work with this expansion chassis.

A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).

Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).

When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.

Secondary Thunderbolt 3 port can also be used to connect USB 3.1 (10Gbps) USB-Type C devices, such as USB 3.1 Hubs. Backwards compatible with USB 3.0 (USB 3.1 Gen 1), and USB 2.0.

System and Cable Requirements

Thunderbolt 3 equipped computer with a Thunderbolt 3 port.

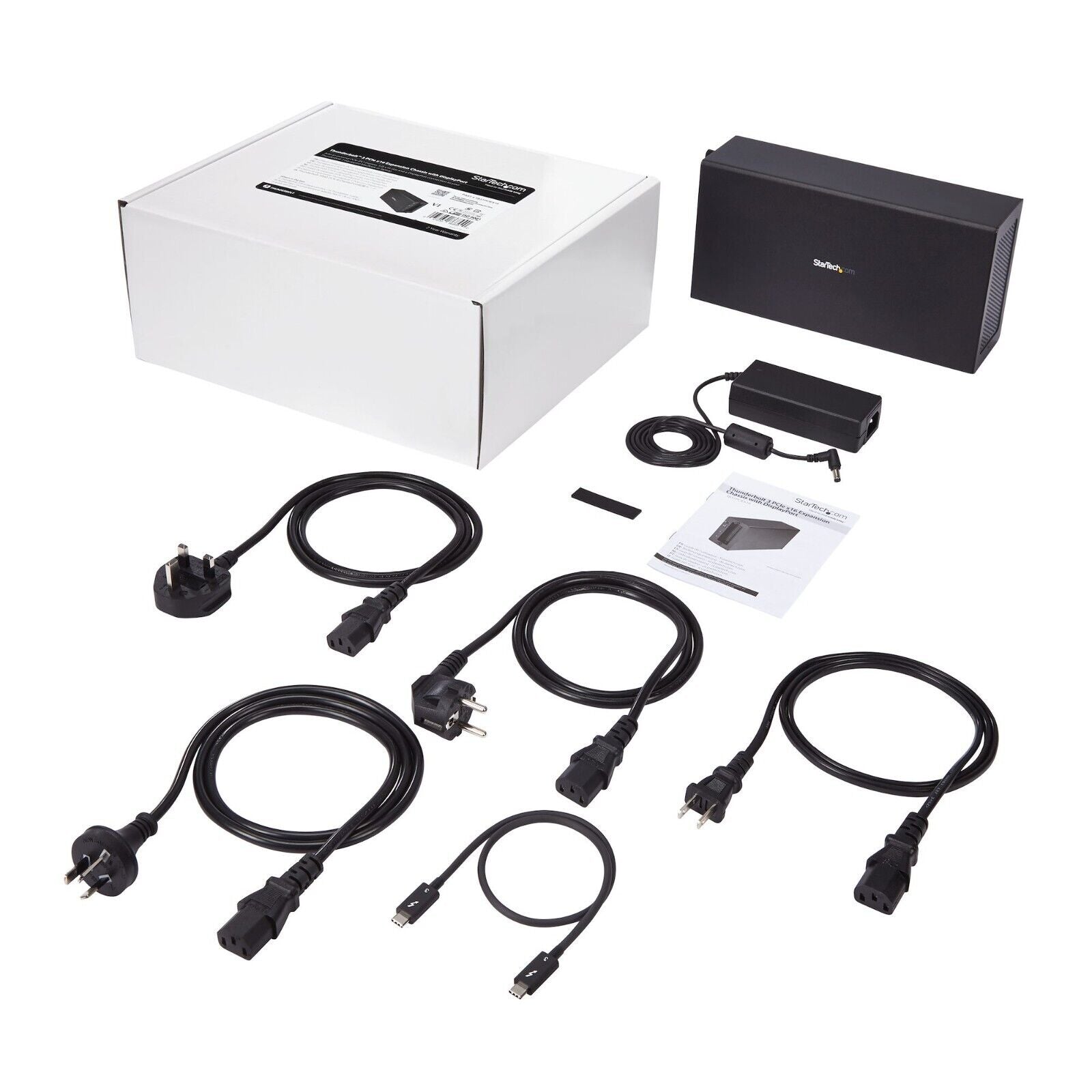

What's in the Box

Included in Package

1 - Thunderbolt 3 PCIe expansion box

1 - Thunderbolt 3 cable

4 - rubber feet

1 - universal power adapter (NA/JP, UK, EU, ANZ)

1 - quick-start guide
