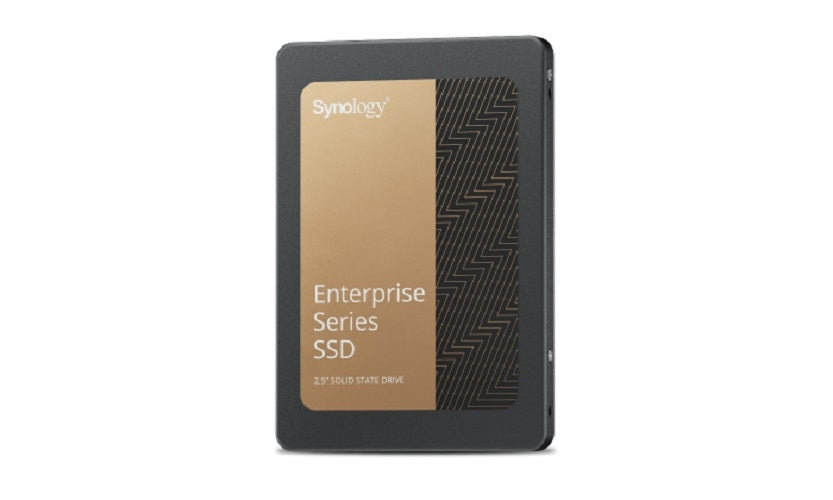

Synology SAT5210-7000G Solid State Drive 7000GB 2.5" Enterprise SATA SSD

Vendor: Synology
SKU: 272138
MPN: SAT5210-7000G

Marketing Information
High Performance SSDs with Enterprise-Grade Endurance and Reliability
Synology SAT5210 series SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive I/O workloads without compromising on endurance, providing a streamlined storage experience on Synology systems and minimizing service disruptions. SAT5210 SSDs come with advanced lifetime analytics3 and are backed by Synology’s 5-year limited warranty. 5

Highlights
• Stable High Performance
Stable performance of up to 67,000 4K random write
IOPS for demanding I/O1
• Enterprise-Grade Endurance
Suitable for intensive and mixed storage workloads
with up to 11,460 TBW2
• Robust Data Protection
End-to-end data protection and power loss protection
prevent data corruption
• Lifetime Analytics
Actionable insight helps make optimal use of SAT5210
SSD performance and longevity3
• Built for Synology Systems
Proven interoperability through rigorous validation and
automatic firmware updates via Synology DSM4

Note: Model specifications are subject to change without advance notice. Please refer to www.synology.com for the latest information.
1. Performance measured using FIO on Linux with Queue Depth 32 (128 KB = 131,072 bytes; 4 KB = 4,096 bytes).
2. The endurance rating is calculated based on JESD219A enterprise workload.
3. Lifetime analytics are available in DSM 6.2.3-25426 and above.
4. Automatic firmware updates are available in DSM 6.2.4-25556 and above.
5. The 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first.

Detail Specifications
Hardware specifications
Model number
SAT5210-7000G
Capacity
7 TB
Form factor
2.5" 7 mm
Interface
SATA 6 Gb/s
Performance
Sequential read (128 KB, QD32) 1
530 MB/s
Sequential write (128 KB, QD32) 1
500 MB/s
Random read (4 KB, QD32) 1
97,000 IOPS
Random write (4 KB, QD32) 1
50,000 IOPS
Endurance and Reliability
Terabytes Written (TBW) 2
11,460 TB
Mean Time Between Failures (MTBF)
1.5 million hours
Uncorrectable Bit Error Rates (UBER)
<1 sector per 1017 bits read
Power loss protection
Yes
Power Consumption
Supply voltage
5 V (+/- 5%)
Active read (Typ.)
3.3 W
Active write (Typ.)
5.1 W
Idle
1.8 W
Temperature
Operation temperature
0oC to 70oC (32oF to 158oF)
Storage temperature
-40oC to 85oC (-40oF to 185oF)
Others
Environment
RoHS compliant
Certification
FCC, CE, EAC, BSMI, VCCI, RCM, KC, UKCA

Warranty Information
3 Years - Direct from the Manufacturer
