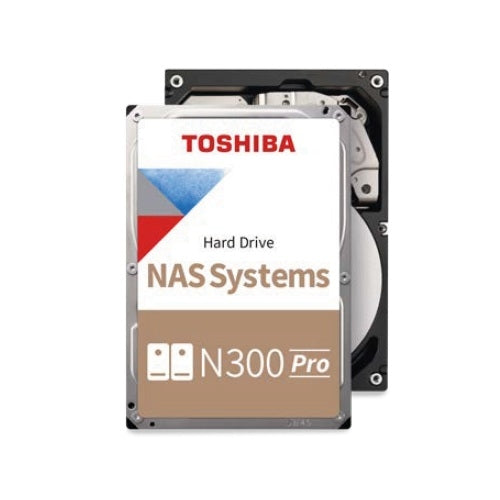

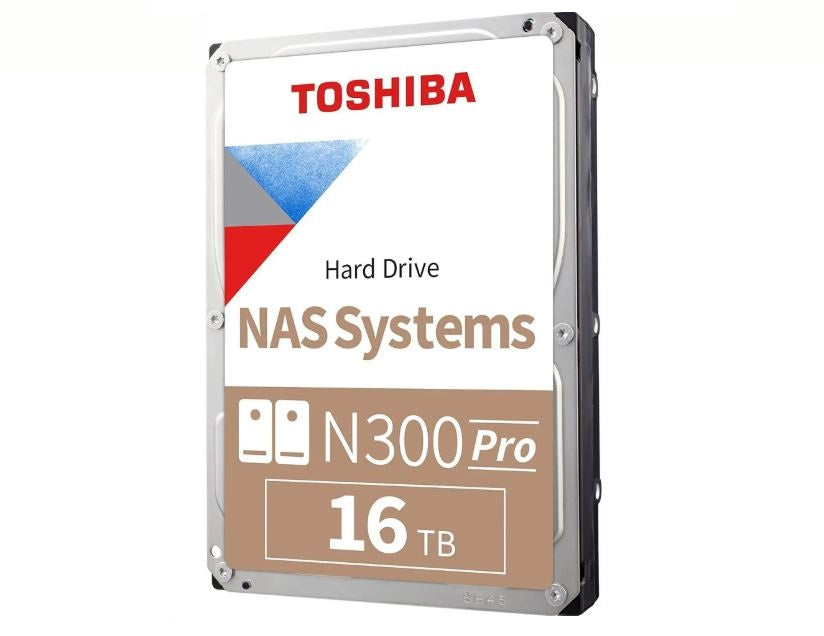

Toshiba HDWG51GUZSVB Hard Drive - 16TB 7200RPM SATA 6Gbps 3.5" N300 PRO NAS Bare

Marketing Information

N300 Pro

NAS Hard Drives

Trusted Reliability. Built for Business NAS.

• Toshiba N300 Pro NAS Hard Drive is ready to help you scale your business with up to 24 drive bay support. Offering a higher workload of up to 300 TB/year and a capacity of up to 22 TB. You can rely on the N300 Pro to help you take your business to the next level. Delivering the 7200 rpm speed you need to access your data quickly and 24/7 operation to help keep your data readily accessible, these drives are optimized to help keep your business growing.

Use for

• Network Attached Storage for high-intensity workloads
• NAS systems for medium or large-sized businesses
• RAID-optimized NAS systems with up to 24 bays

Top Features

• Designed for 24/7 operation
• Up to 24 drive bays
• Workload up to 300 TB/year
• MTTF/MTBF 1.2 million hours
• 7200 rpm speed with up to 512 MiB buffer
• CMR technology
• 3.5-inch Form Factor

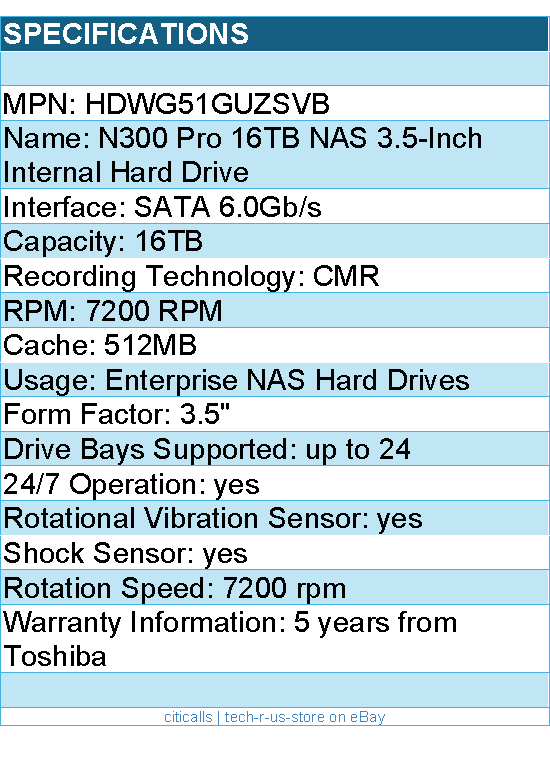

Detail Specifications

• Capacity: 16 TB
• Basic Specifications
• Recording Technology: CMR
• Interface: SATA 6.0 Gbit/s
• Mechanical Design: He
• Form Factor note2: 3.5-inch
• Sector Size: 512e
• Features
• Drive Bays Supported: up to 24
• 24/7 Operation: yes
• Rotational Vibration Sensor: yes
• Shock Sensor: yes
• Performances
• Rotation Speed: 7200 rpm
• Sustained data transfer rate:
• 281 MB/s
• (268 MiB/s)
• Buffer Size: 512 MiB
• Reliability
• MTTF/MTBF: 1 200 000 hours
• Unrecoverable Error Rate: 1 per 10E14
• Maximum rated workload: 300 TB/year
• Load/Unload cycles: 600 000 times
• Power Requirements
• Supply Voltage:
• 12VDC +/-10 %
• 5 VDC +10/-7%
• Power Consumption
• Operating: 7.48 W
• Active Idle: 4.14 W
• Environmental
• Temperature
• Operating: 5 to 60 oC (Surface)
• Non-operating: -40 to 70 oC
• Vibration
• Operating
• 7.35 m/s2 (0.75 G) (5 to 300 Hz)
• 2.45 m/s2 (0.25 G) (300 to 500 Hz)
• Non-operating
• 29.4 m/s2 (3.0 G) (5 to 500 Hz)
• Shock
• Operating: 686 m/s2 (70 G) (2 ms duration)
• Non-operating: 2450 m/s2 (250 G) (2 ms duration)
• Acoustics (Active Idle): 20 dB (Typ.)

Note

• 1. Definition of capacity: One terabyte (TB) equals one trillion bytes, but storage capacity actually available may vary depending on operating environment and formatting. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
• 2. "3.5-inch" means the form factor of HDDs. They do not indicate drives physical size.
• 3. Read and write speed may vary depending on the host device, read and write conditions, and file size.
• 4. A mebibyte (MiB) means 1 048 576 bytes.
• 5. MTTF/MTBF (Mean Time to Failure/Mean Time Between Failures) is not a guarantee or estimate of product life, it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF/MTBF.
• 6. Workload is a measure of the data throughput of the year, and it is defined as the amount of data written, read or verified by commands from the host system.

Warranty Information

• 5 years from Toshiba
