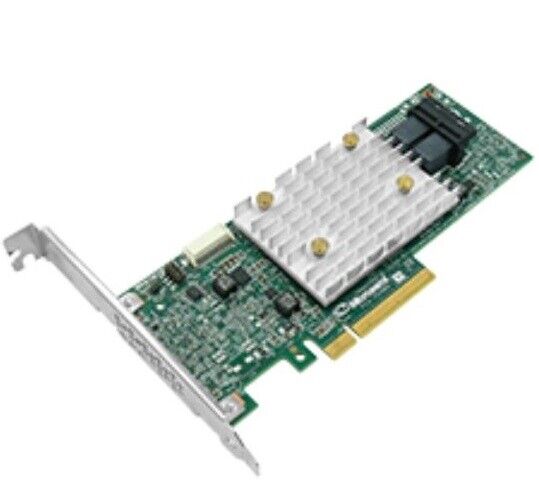

Adaptec 2293400-R CC AHA-1100-4i 4Int 4Ext 12Gbps 8xPCIe Gen3 HBA 1100 Adapter
Adaptec 2293400-R CC AHA-1100-4i 4Int 4Ext 12Gbps 8xPCIe Gen3 HBA 1100 Adapter
Adaptec 2293400-R CC AHA-1100-4i 4Int 4Ext 12Gbps 8xPCIe Gen3 HBA 1100 Adapter
Adaptec 2293400-R CC AHA-1100-4i 4Int 4Ext 12Gbps 8xPCIe Gen3 HBA 1100 Adapter
Marketing Information
The HBA 1100 delivers enterprise resiliency with its broadly deployed Smart Storage stack. Based on the PM8222 8x12G SmartIOC 2100 SAS/SATA protocol controller, the HBA 1100 Series provides a robust and stable solution that can handle the toughest system workloads and configurations. It offers over 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions. It is fully tools-compatible with existing and future Microsemi HBA, RAID, and expander solutions.
Optimized for New Devices and New Use Cases
The HBA 1100 supports SMR HDDs and their specific command sets (ZAC/ZBC for SAS/SATA SMR drives), enabling cost-efficient solutions for warm and cold storage applications. It also supports the latest SAS and SATA SSDs. The HBA 1100 is also optimized for software-defined storage solutions, such as Microsoft Storage Spaces Direct, VMWare vSAN, and OpenStack Swift/Ceph.
Features
• Up to 24 native SAS/SATA ports; low-profile/ MD2 form factor
• 12 Gbps SAS data rates using mini-SAS HD connectors
• Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
• Proven compatibility with existing Microsemi Adaptec solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
• Uses the latest 28 nm SmartIOC 2100 SAS/ SATA protocol controller to drive efficiency and performance while also having the industry's lowest power consumption
Detail Specifications
Ports
4 internal
4 external
Connectors
1 x SFF-8643
1 x SFF-8644
Package Contents
HBA 1100-4i adapter
Additional low profile vented bracket
Form Factor
MD2-Low Profile
Bus Interface
8-Lane PCIe Gen3
Processor
12 Gbps ROC
Key software features
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Support for up to 32 drives in RAID arrays
- Hardware RAID level 0,1,10,5 support
- Multi-LUN support
- SAS expander support
- TLR
- SATA NCQ
- Hot plug drive support
- S.M.A.R.T.
- MPIO support
- Multi-initiator (host)/clustering for SAS (HBA devices only)
- Enclosure management
- SES-2, SES-3
- SFF-8485, SGPIO
- SFF-8489, IBPI
- BMC support
Management utilities
- maxView Storage Manager:
- Web-based GUI management utility
- OS support: Windows, Linux, Solaris, VMware
- Remote configuration, monitoring, and notification
- Remote firmware updates
- SMI-S
- SMTP ARCCONF
- Command-line interface
- SMI-S support for VMware
BIOS Configuration Utility (CTRL+A):
- Legacy configuration utility
- Flashable BIOS support uEFI BIOS Configuration Utility
- HII-based configuration utility
- Flashable BIOS support:
Event Monitor:
- Lightweight event monitoring and logging tool
- Distributes adapter events and notifies user
Operating Systems
Microsoft Windows, Red Hat, SuSE, CentOS, Ubuntu, VMware ESXi, FreeBSD, Solaris, Citrix Xen Server, and open-source Linux drivers.
Operating Temperature
0oC to 55oC with 200 LFM airflow.
Note: This adapter contains a powerful I/O processor that requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with at least 200 LFM airflow. Temperature measured 1 inch from adapter.
Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS
Environmental Compliance
RoHS
MTBF
>1.4 million hours, measured at 40oC
Warranty Information
3 Years - Direct from the Manufacturer
