LSI Logic 05-50075-00 Controller Cards Ext 12Gb s Tri mode SATA+SAS+PCIe

$856.44 USD

Shipping calculated at checkout.

In stock: 4

Description

Vendor: LSI Logic
SKU: 243003
MPN: 05-50075-00

Marketing Information
PCIe Gen 4.0 HBA enables servers to seamlessly operate with any of the SAS, SATA or NVMe storage devices

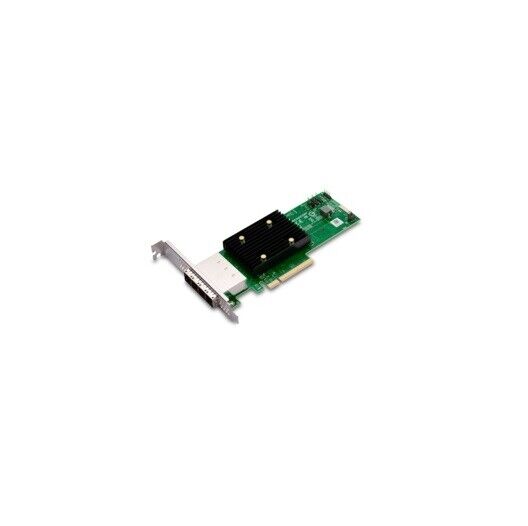

The 9500-16e Tri-Mode, PCIe Gen 4.0 HBA with 16 external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance over previous generations, the 9500-16e adapter delivers the performance and scalability needed by critical applications.

• Connects up to 1024 SAS/SATA devices or 32 NVMe devices
• Provides maximum connectivity and performance for high-end servers and applications
• Support critical applications with the bandwidth of PCIe 4.0 connectivity
• Universal Bay Management (UBM) Ready

Detail Specifications
Lifecycle
Active
Typical Power
8.74W
Host Bus Type
x8 lane PCI Express 4.0
Devices Supported
SAS/SATA: 1024, NVMe: 32
External Connectors
4 x4 SFF-8644 (ext HD)
Operating Temperature
0oC to 55oC
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
I/O Controller
SAS3816
MTBF
> 5,000,000 hours at 40o C
Operating Humidity
20% to 80% Non-condensing
Brackets
Full height and low profile
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)

Warranty Information
3 Years - Direct from the Manufacturer
