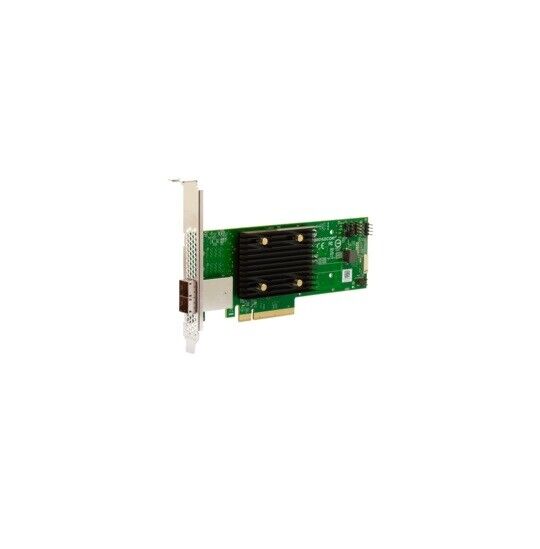

LSI Logic 05-50075-01 Controller Card 8PT Ext 12Gb s Tri mode SATA+SAS+PCIe
Regular price
$561.72 USD
Sale price
$561.72 USD
Regular price
$0.00 USD
Description
LSI Logic 05-50075-01 Controller Card 8PT Ext 12Gb s Tri mode SATA+SAS+PCIe
Current product
Current
Vendor:
LSI Logic
LSI Logic 05-50075-01 Controller Card 8PT Ext 12Gb s Tri mode SATA+SAS+PCIe
Regular price
$561.72 USD
Sale price
$561.72 USD
Regular price
$0.00 USD
Options
Descriptions
Vendor: LSI Logic
SKU: 243005
MPN: 05-50075-01
Marketing Information
PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options
The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.
• Connects up to 1024 SAS/SATA devices or 32 NVMe devices
• Provides maximum connectivity and performance for high-end servers and applications
• Support critical applications with the bandwidth of PCIe 4.0 connectivity
• Universal Bay Management (UBM) Ready
Detail Specifications
Lifecycle
Active
Typical Power
6.12W
Host Bus Type
x8 lane PCI Express 4.0
Devices Supported
SAS/SATA: 1024, NVMe: 32
External Connectors
2 x4 SFF-8644 (ext HD)
Operating Temperature
0oC to 55oC
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
I/O Controller
SAS3808
MTBF
> 5,000,000 hours at 40oC
Operating Humidity
20% to 80% Non-condensing
Brackets
Full height and low profile
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Warranty Information
3 Years - Direct from the Manufacturer
