LSI Logic 05-50077-01 Controller Cards 8PT Int. 12Gb s Tri mode SATA+SAS+PCIe
Regular price
$890.60 USD
Sale price
$890.60 USD
Regular price
$0.00 USD
Description
Couldn't load pickup availability
LSI Logic 05-50077-01 Controller Cards 8PT Int. 12Gb s Tri mode SATA+SAS+PCIe
Current product
Current
Vendor:
LSI Logic
LSI Logic 05-50077-01 Controller Cards 8PT Int. 12Gb s Tri mode SATA+SAS+PCIe
Regular price
$890.60 USD
Sale price
$890.60 USD
Regular price
$0.00 USD
Options
Descriptions
Vendor: LSI Logic
SKU: 243006
MPN: 05-50077-01
Marketing Information
Ensure data protection for performance-hungry applications in high-end servers utilizing PCIe 4.0 and a mix of internal SAS, SATA or NVMe storage devices

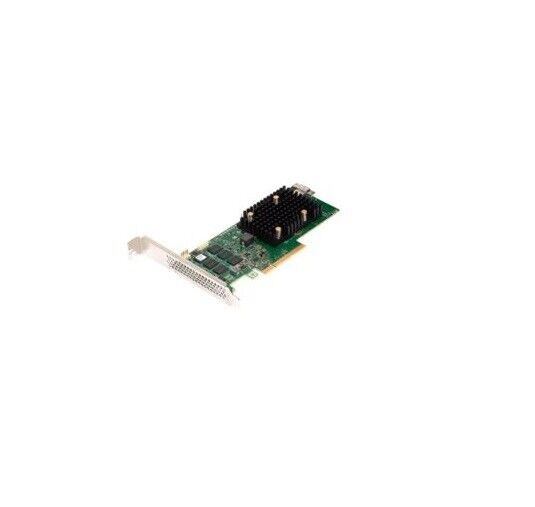

The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, based on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-8i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-8i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
• SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe
• Universal Backplane Management (UBM), which defines a common backplane control and management framework
Detail Specifications
Lifecycle
Active
Distrib. Inventory
No
Generation
12 Gb/s
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Cache Protection
CacheVault CVPM05
Host Bus Type
x8 lane PCI Express 4.0
Cache Memory
4GB
Internal Ports
8
Data Transfer Rates
12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported
SAS/SATA: 240, NVMe: 24
Internal Connector
1 x8 SFF-8654 (SlimSAS)
MTBF
3,000,000 hours at 40oC
Operating Temperature
0oC to 55oC
OS
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
I/O Processor / SAS Controller
SAS3908 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
Warranty Information
3 Years - Direct from the Manufacturer
