LSI Logic 05-50134-00 Controller Card 16PT Int 12Gb s Tri mode SATA+SAS+PCIe
Regular price
$610.00 USD
Sale price
$610.00 USD
Regular price
$0.00 USD
Description
Couldn't load pickup availability
LSI Logic 05-50134-00 Controller Card 16PT Int 12Gb s Tri mode SATA+SAS+PCIe
Current product
Current
Vendor:
LSI Logic
LSI Logic 05-50134-00 Controller Card 16PT Int 12Gb s Tri mode SATA+SAS+PCIe
Regular price
$610.00 USD
Sale price
$610.00 USD
Regular price
$0.00 USD
Options
Descriptions
Vendor: LSI Logic
SKU: 264294
MPN: 05-50134-00
Marketing Information

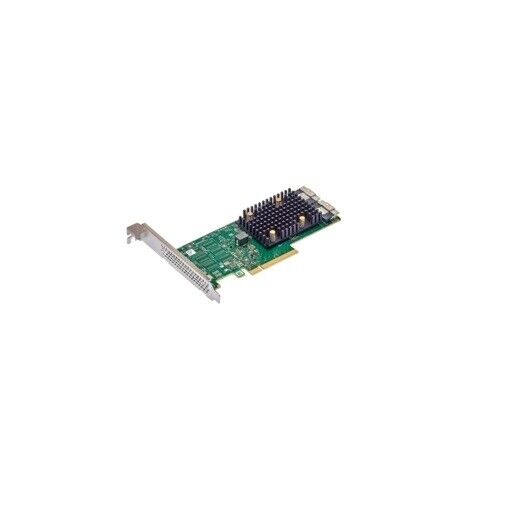

HBA 9500-16i Tri-Mode Storage Adapter
Create endless design flexibility with Tri-Mode connectivity and NVMe performance benefits with PCIe 4.0 HBA
The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) Ready
Detail Specifications
Lifecycle
Active
Distributor Inventory
No
Brackets
Full height and low profile
Devices Supported
SAS/SATA: 1024, NVMe: 32
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 4.0
Internal Connectors
2 x8 SFF-8654 (SlimSAS)
Internal Ports
16
I/O Controller
SAS3816
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 5,000,000 hours at 40o C
Operating Humidity
20% to 80% Non-condensing
Operating TemperatureoC
0oC to 55oC
OS Support
Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power
8.9W
Whats in the box
9500-16i HBA, Low Profile Bracket, Bracket, FH (attached)
Warranty Information
3 years - Direct from the Manufacturer
