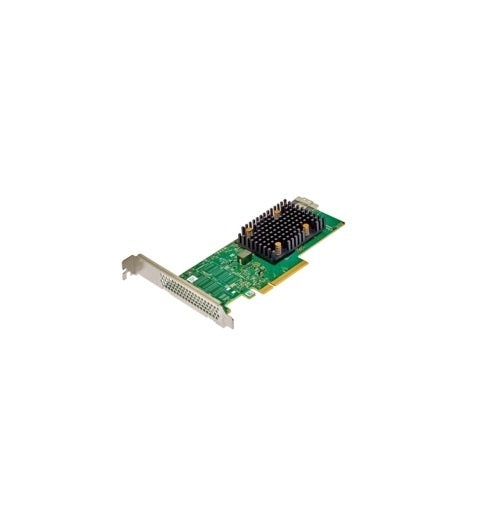

LSI Logic 05-50134-01 Controller Card - 9500-8i Int 12Gbs Tri Mode SATA+SAS+PCIe

Marketing Information

• HBA 9500-8i Tri-Mode Storage Adapter
• PCIe Gen 4.0 HBA provides high bandwidth and unprecedented flexibility to todays expanding data centers with Tri-Mode connectivity and NVMe devices
• The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
• With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.
• Connects up to 1024 SAS/SATA devices or 32 NVMe devices
• Provides maximum connectivity and performance for high-end servers and applications
• Support critical applications with the bandwidth of PCIe 4.0 connectivity
• Universal Bay Management (UBM) Ready

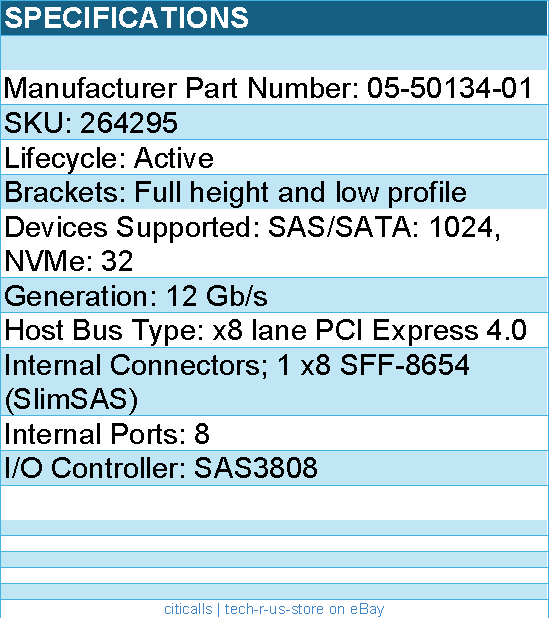

Detail Specifications

• Lifecycle: Active
• Brackets: Full height and low profile
• Devices Supported: SAS/SATA: 1024, NVMe: 32
• Generation: 12 Gb/s
• Host Bus Type: x8 lane PCI Express 4.0
• Internal Connectors; 1 x8 SFF-8654 (SlimSAS)
• Internal Ports: 8
• I/O Controller: SAS3808
• Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
• MTBF: > 5,000,000 hours at 40o C
• Operating Humidity: 20% to 80% Non-condensing
• Operating TemperatureoC: 0oC to 55oC
• OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Citrix XenServer, CentOS Linux, Oracle Enterprise Linux, Fedora, FreeBSD
• Regulatory Certifications:
• Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
• Typical Power: 5.96W
• Whats in the box: 9500-8i HBA, Low Profile Bracket, FH (attached)

Warranty Information

• 3 years from LSI Logic
