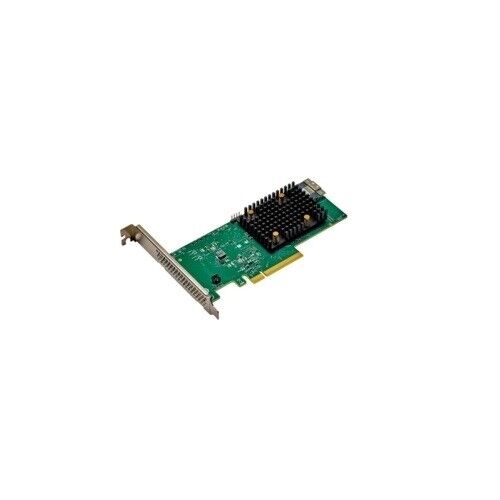

LSI Logic 05-50134-03 Controller Card MegaRAID 9540-8i 8PT 12Gb s SAS 16GT PCIe
Regular price
$445.00 USD
Sale price
$445.00 USD
Regular price
$0.00 USD
Description
Couldn't load pickup availability
LSI Logic 05-50134-03 Controller Card MegaRAID 9540-8i 8PT 12Gb s SAS 16GT PCIe
Current product
Current
Vendor:
LSI Logic
LSI Logic 05-50134-03 Controller Card MegaRAID 9540-8i 8PT 12Gb s SAS 16GT PCIe
Regular price
$445.00 USD
Sale price
$445.00 USD
Regular price
$0.00 USD
Options
Descriptions
Vendor: LSI Logic
SKU: 264212
MPN: 05-50134-03
Marketing Information
MegaRAID 9540-8i
Ensure data protection for performance-hungry applications in high-end servers utilizing PCIe 4.0 and a mix of internal SAS or SATA storage devices
The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9540-8i adapter, based on the SAS3808 PCIe 4.0 x8 IO Controller (IOC) device, delivers twice the performance of previous generations.
Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9540-8i Tri-Mode Storage Adapter is a PCIe Gen 4.0 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of critical applications.
The adapters Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enablethe operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.
Key Features Include:
• Connect up to 32 SAS/SATA devices
• Balance protection and performance for critical applications with RAID 0, 1, 10
• Support critical, high-bandwidth applications with PCIe 4.0 connectivity
• Advanced security through hardware secure boot
Detail Specifications
Whats in the Box
MegaRAID 9540-8i, FH (attached) and LP brack
Data Transfer Rates
12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported
SAS/SATA: 32
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 4.0
I/O Processor / SAS Controller
SAS3808
Internal Connectors
1 x8 SFF-8654 (SlimSAS)
Internal Ports
8
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
>3,000,000 hours at 40o C
Operating TemperatureoC
0oC to 55oC
OS
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
RAID Levels
0, 1, 10
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power
6.0W
Warranty Information
3 Years - Direct from the Manufacturer
..jeff..
