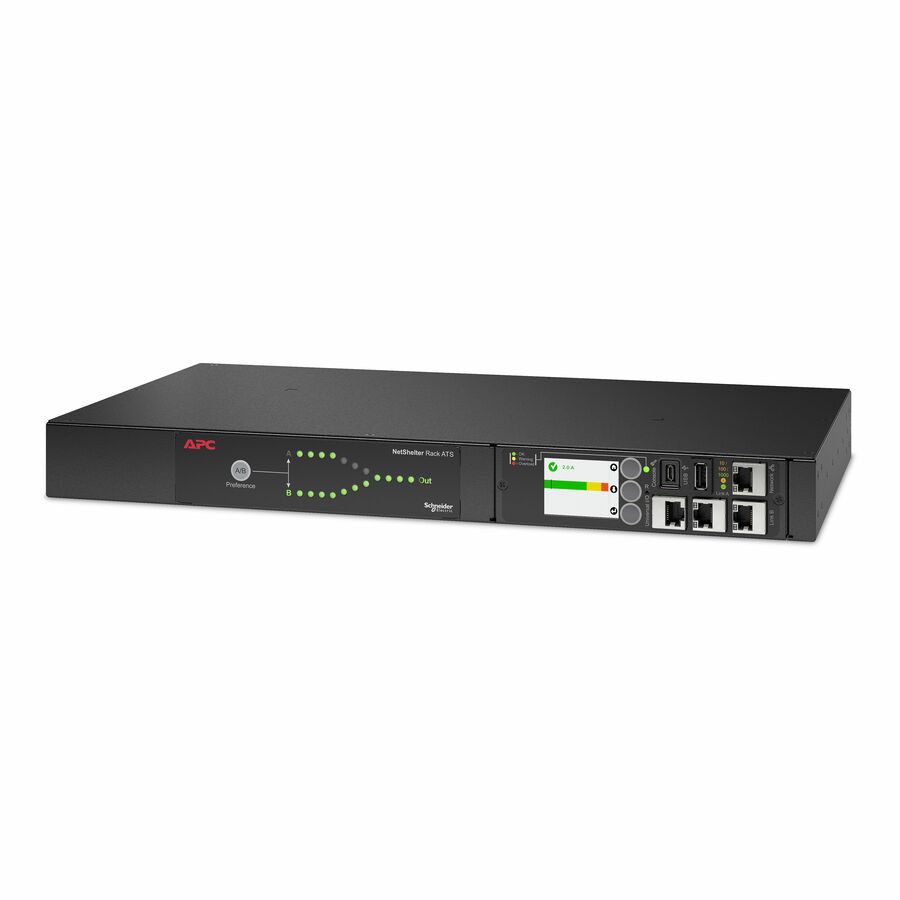

APC AP4450A Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric

Manufacturer Part Number: AP4450A

• Product Line: NetShelter
• Product Name: NetShelter Automatic Transfer Switch
• Product Type: Automatic Transfer Switch

• Marketing Information: APC NetShelter Rack Automatic Transfer Switch (ATS) AP4450A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4450A is single phase 1U Rack ATS with 15A rated current, 100V/120V rated voltage and 1440VA load capacity. For North America region, the Regulatory Derated Input Current is 12A. It comes with 2 NEMA 5-15P inlet and 10 NEMA 5-15R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Technical Information

• Plug/Connector Type: NEMA 5-15P 12A (2P + E)
• Receptacles: 10 x NEMA 5-15R
• Cord Length: 96"

Power Description

• Input Voltage:
• 100 V AC
• 120 V AC
• Output Voltage:
• 100 V AC
• 120 V AC
• Current: 15 A

Physical Characteristics

• Product Color: Black
• Form Factor: Rack-mountable
• Mounting Location: Front
• Mounting Preference:
• Horizontal
• No Preference
• Rack Height: 1U
• Height: 1.7"
• Width: 17"
• Depth: 9.3"
• Weight (Approximate): 9.70 lb

Miscellaneous

For Country/Region: United States

• Package Contents:
  • NetShelter Automatic Transfer Switch
  • Mounting Hardware
  • Rack Mounting Brackets
  • Serial Configuration Cable
• Certifications & Standards: PSE|TÜV-C|TÜV-NURTL|VCCI Class A
