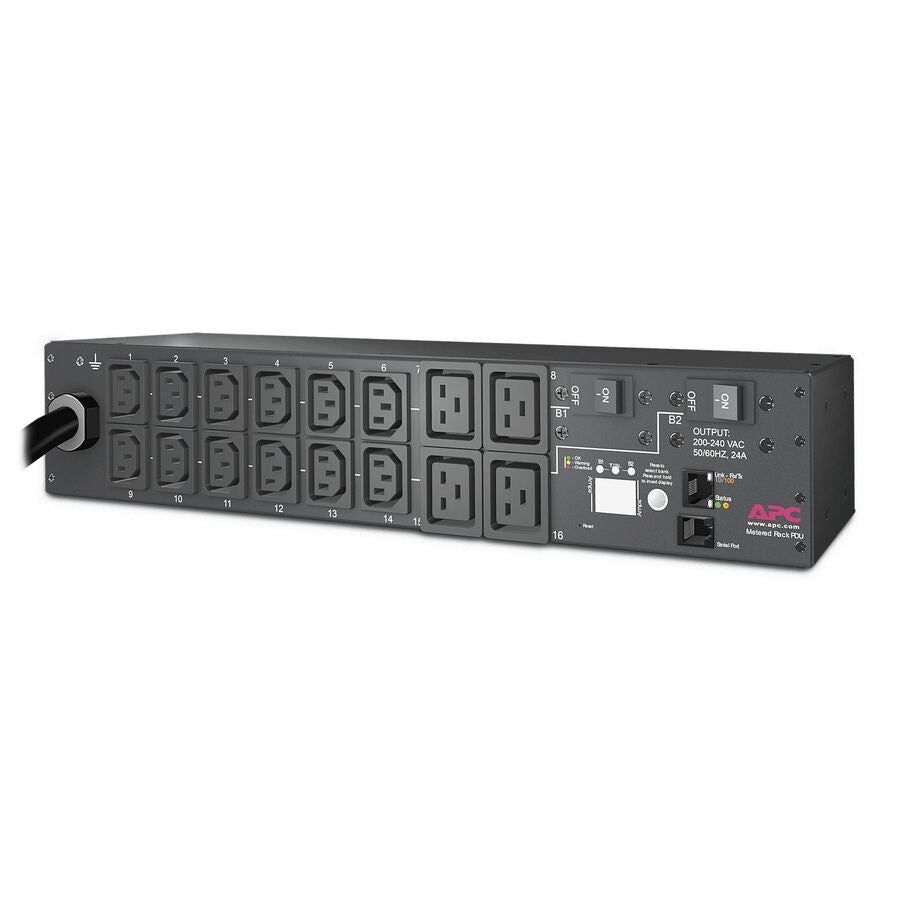

APC AP7811B NetShelter Rack PDU, Metered, 2U, 5.0kW 208V 30A

General Information

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: AP7811B
• Brand Name: APC by Schneider Electric
• Product Line: Metered Rack
• Product Name: Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
• Product Type: PDU

Marketing Information:

• APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

Technical Information

• PDU Type: Metered
• Plug/Connector Type: NEMA L6-30P
• Plug/Connector Detail: 1
• Receptacle Type:
• IEC 60320 C13
• IEC 60320 C19
• Receptacle Detail:
• 12 x IEC 60320 C13
• 4 x IEC 60320 C19

Power Description

• Input Voltage:
  • 200 V
  • 208 V
  • 230 V
  • Output Voltage: 208 V AC
• Input Current: 30 A

Physical Characteristics

• Mounting Orientation: Horizontal
• Mounting Preference: No Preference
• Mount Type: Rack-mountable
• Placement:
• Front
• Rear
• Rack Height: 2U
• Cord Length: 12 ft
• Height: 3.5"
• Width: 17.5"
• Depth: 4.4"
• Weight (Approximate): 7.41 lb

Miscellaneous

• For Country/Region: United States
• Package Contents:
  • Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
  • Cord retention bracket(s)
  • Installation guide
  • Rack mounting brackets
  • User manual
