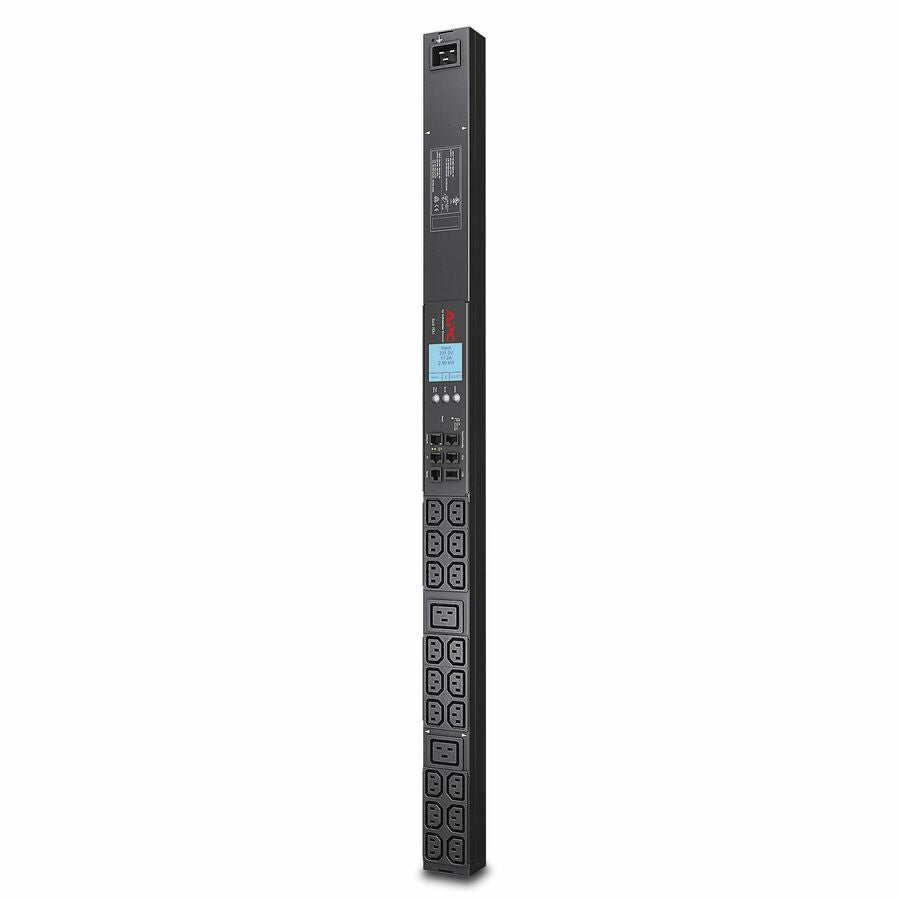

APC AP8858NA3 Rack PDU 2G, Metered, ZeroU, 20A, 208V, (18) C13 & (2) C19

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: AP8858NA3
• Product Line: Metered Rack
• Product Model: AP8858NA3
• Product Name: Metered Rack AP8858NA3 20-Outlets PDU

Marketing Information:

• APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

Product Type: PDU

Technical Information

• PDU Type: Metered
• Plug/Connector Type: NEMA L6-20P
• Power Description
• Input Voltage:
• 200 V
• 208 V
• 230 V
• 240 V
• Output Voltage: 208 V AC
• Management
• Management:
• Protocols:
• SNMP
• Telnet

Physical Characteristics

• Mounting Orientation: Vertical
• Mounting Preference: No Preference
• Mount Type: Rack-mountable
• Placement: Side
• Rack Height: 0U
• Cord Length: 9.84 ft
• Height: 35.5"
• Width: 2.2"
• Depth: 1.7"

Miscellaneous

• Package Contents:
  • Metered Rack AP8858NA3 20-Outlets PDU
  • Installation guide

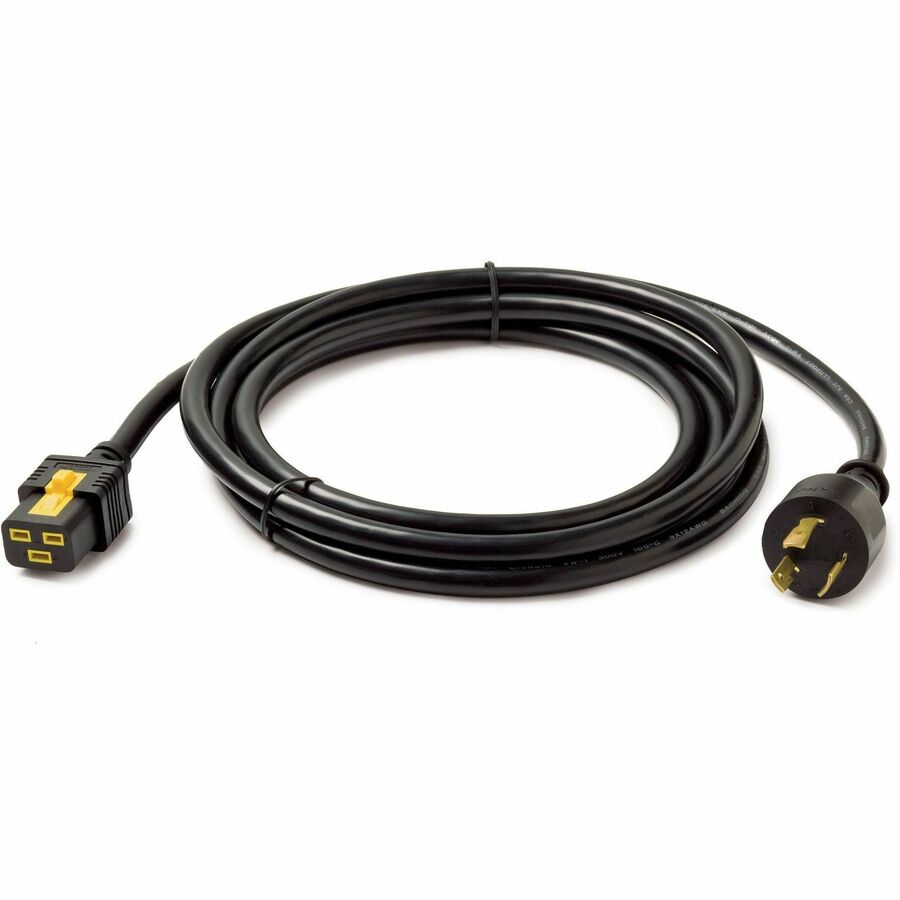

  • Locking input power cord
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable

Certifications & Standards: METI Denan|VDE
