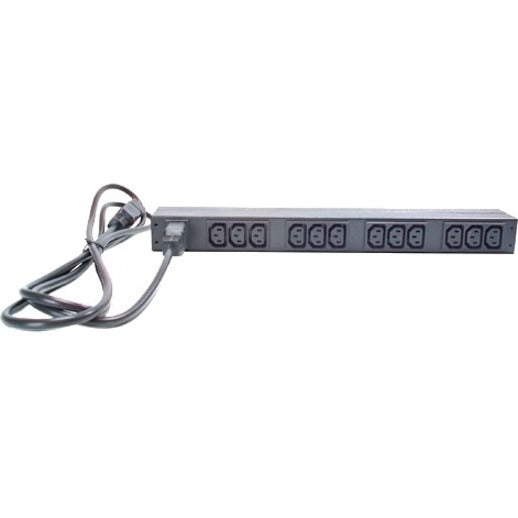

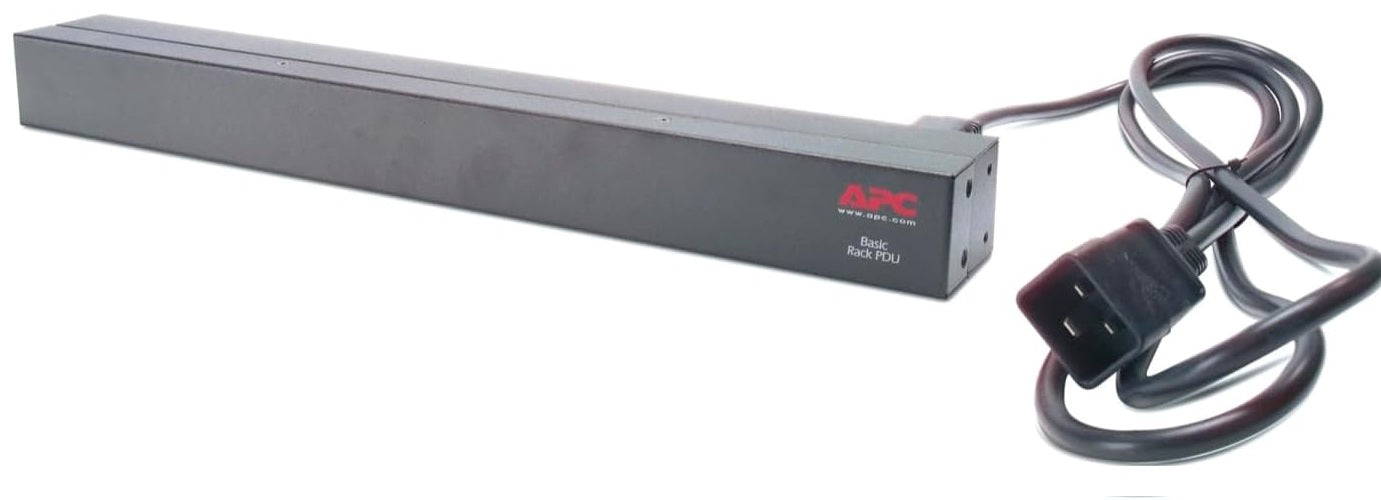

APC AP9565 NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: AP9565
• Product Line: NetShelter
• Product Series: Basic
• Product Name: Basic Rack 3.68kVA PDU

Marketing Information:

• Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Packaged Quantity: 1 Each

• Product Type: PDU

Technical Information

• PDU Type: Basic
• Plug/Connector Type: IEC 60320 C20
• Receptacle Type: IEC 60320 C13
• Receptacle Detail: 12 x IEC 60320 C13

Power Description

• Input Voltage:
• 200 V
• 208 V
• 230 V
• Input Voltage Range: 120 V AC - 240 V AC
• Output Voltage:
• 208 V AC
• 230 V AC
• Power Rating (VA): 3680 VA

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Mounting Orientation: Horizontal
• Mounting Preference: No Preference
• Mount Type: Rack-mountable
• Placement:
• Front
• Rear
• Rack Height: 1U
• Cord Length: 8.20 ft
• Height: 1.7"
• Width: 17.6"
• Depth: 2.2"

Miscellaneous

Package Contents:

• Basic Rack 3.68kVA PDU
• Installation guide
• Rack mounting brackets

Certifications & Standards: cUL Listed|CE|Queensland Australia|UL Listed|VDE

Warranty

• Limited Warranty: 2 Year from APC
