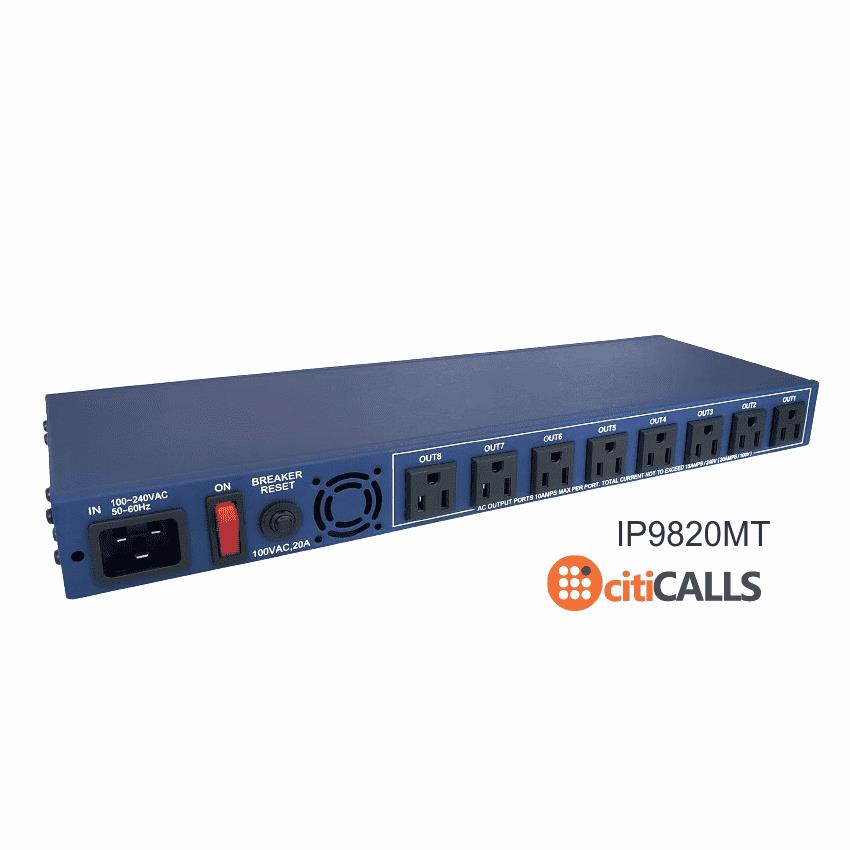

Aviosys IP9820MT 8 Port Web Power Controller Switch Pro Rack Mount Reboot Ping

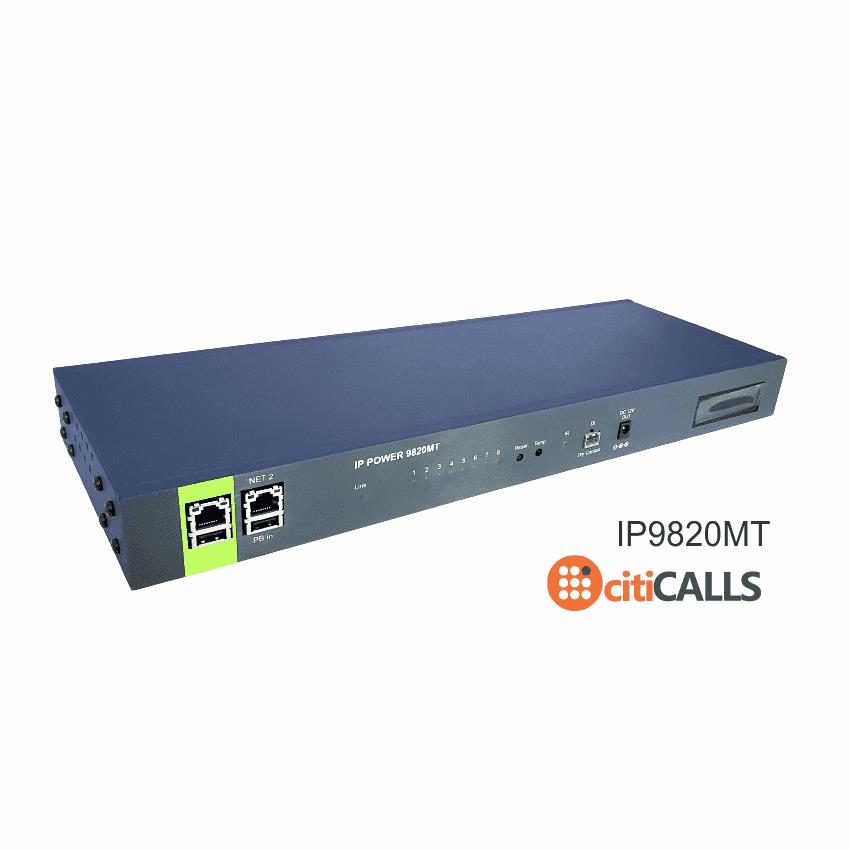

Aviosys IP9820MT is an 8 Port Rack Mount Web Power Switch Controller.

This model can be used worldwide with the Power Cord plug that is required for your country's power connector. The power cord is sold separately. Please see the power cord connector type guide below:

The IP9820MT provides your and your staff with the ability to remotely control the power for critical devices. You can remotely click a few buttons from any web browser or even using your smart phone on the web to removely turn power off and on. You can have up to 8 devices connected to the controller.

Power to the remote devices can be rebooted individually or all devices at once. This capability saves you time and effort and totally eliminate the need to send a technician to remote locations.

Main Benefit:

• Remote Power Cycling of 1 to 8 outlets
• Monitor the power usage information
• Set up overload alerts via email

Features:

• LCD Panel Display: Shows ip address, voltage, current and temperature
• Support HTTP, HTTPS/SSL, TCP/IP, PPPOE, DHCP, DDNS, SNMP V1/2/3, SMTP, NTP, TLS
• Support Cloud Connect: AWS IOT, GOOGLE Cloud IoT, Microsoft AZURE IOT
• Support Telnet/SSH
• Syslog Loggin
• Ammeter, Voltmeter Measure
• Auto-Ping
• Task Scheduler
• VPN Client Mode
• Handy Remote Control
• 2 Ethernet Ports

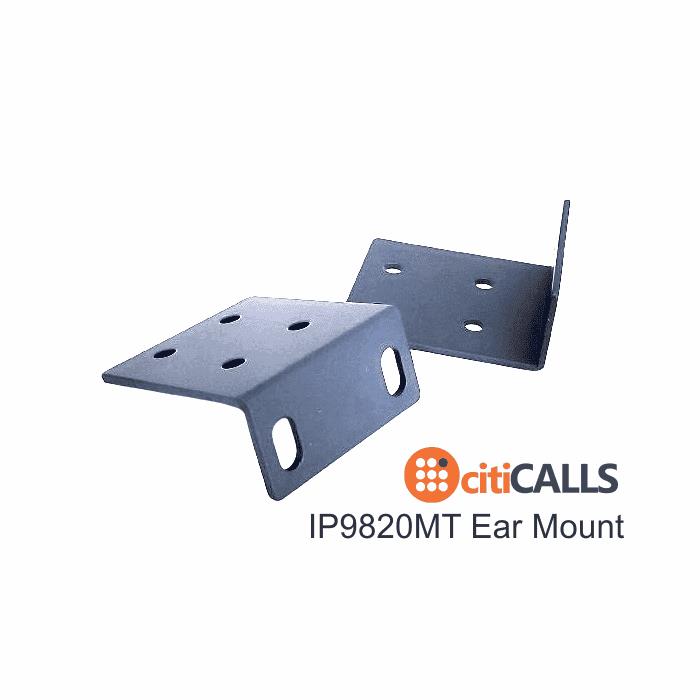

• 1U Rack Mount Short Depth

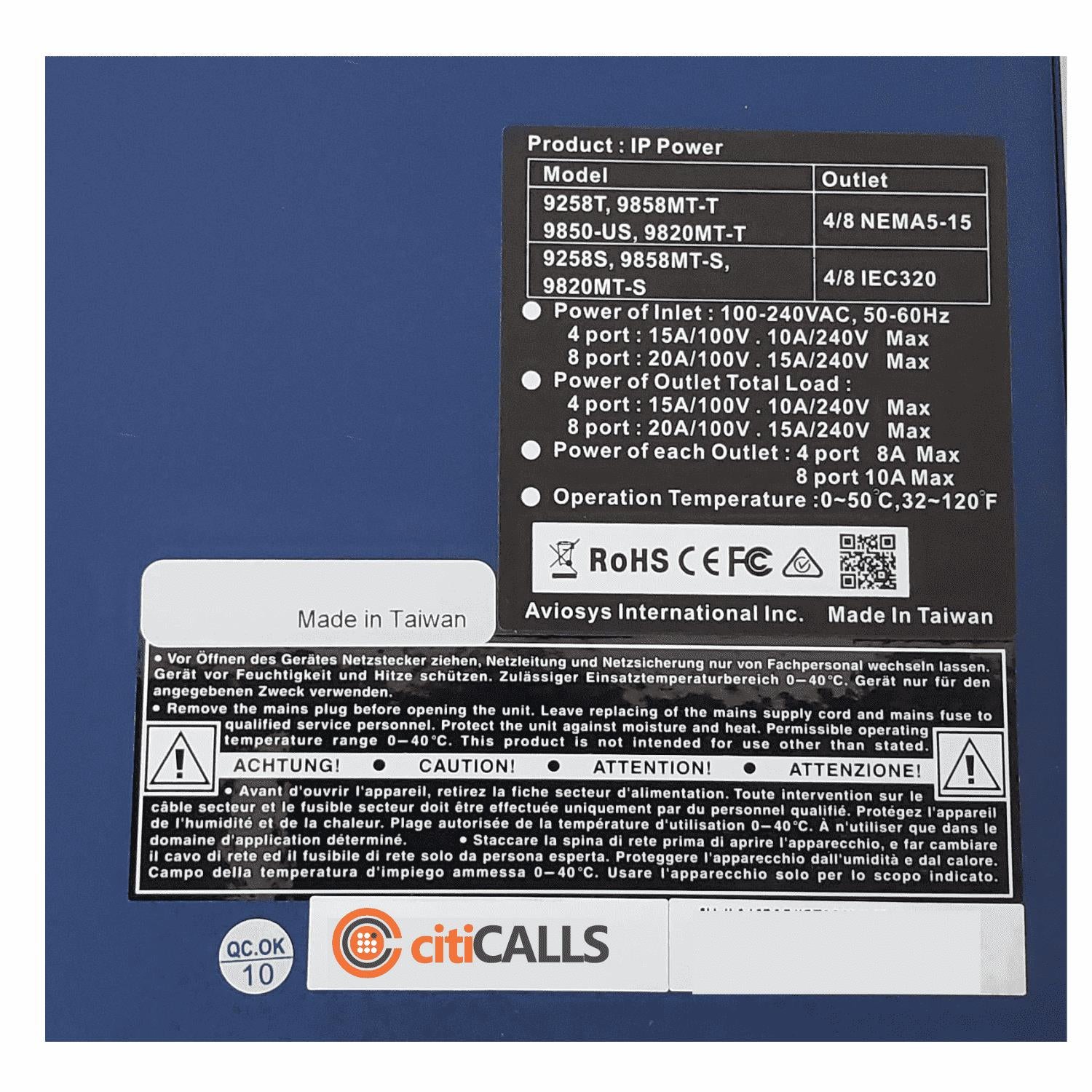

Specifications

• Dimensions: 450 x 170 x 45mm( L / W / H )

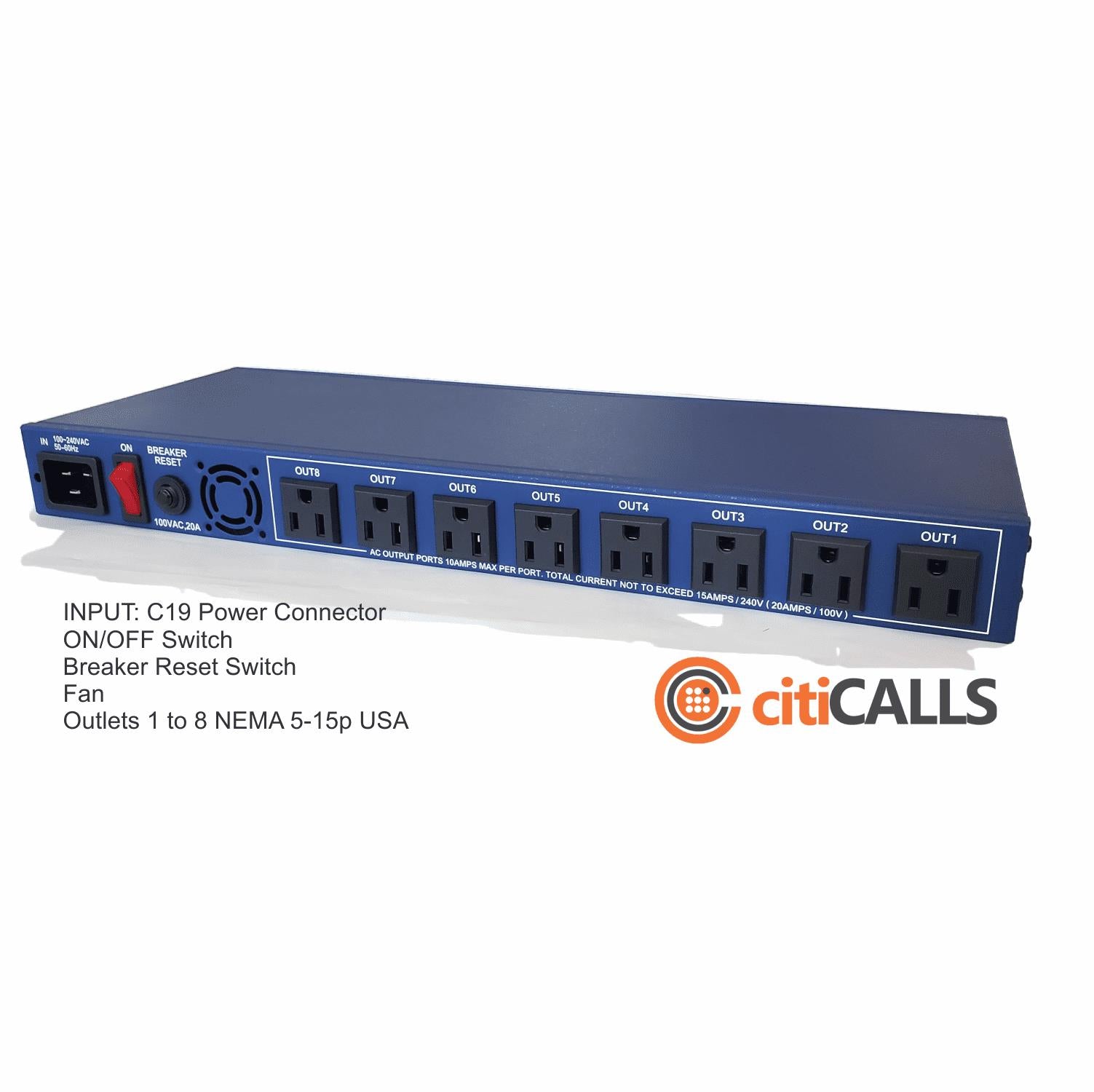

• Input: 100~240VAC, IEC C20 socket
• Output: 8 Type B Outlets (NEMA5-15p)
• Max current per outlet 10A
• Max current total: 8 outlets 20A 110V / 15A 220V

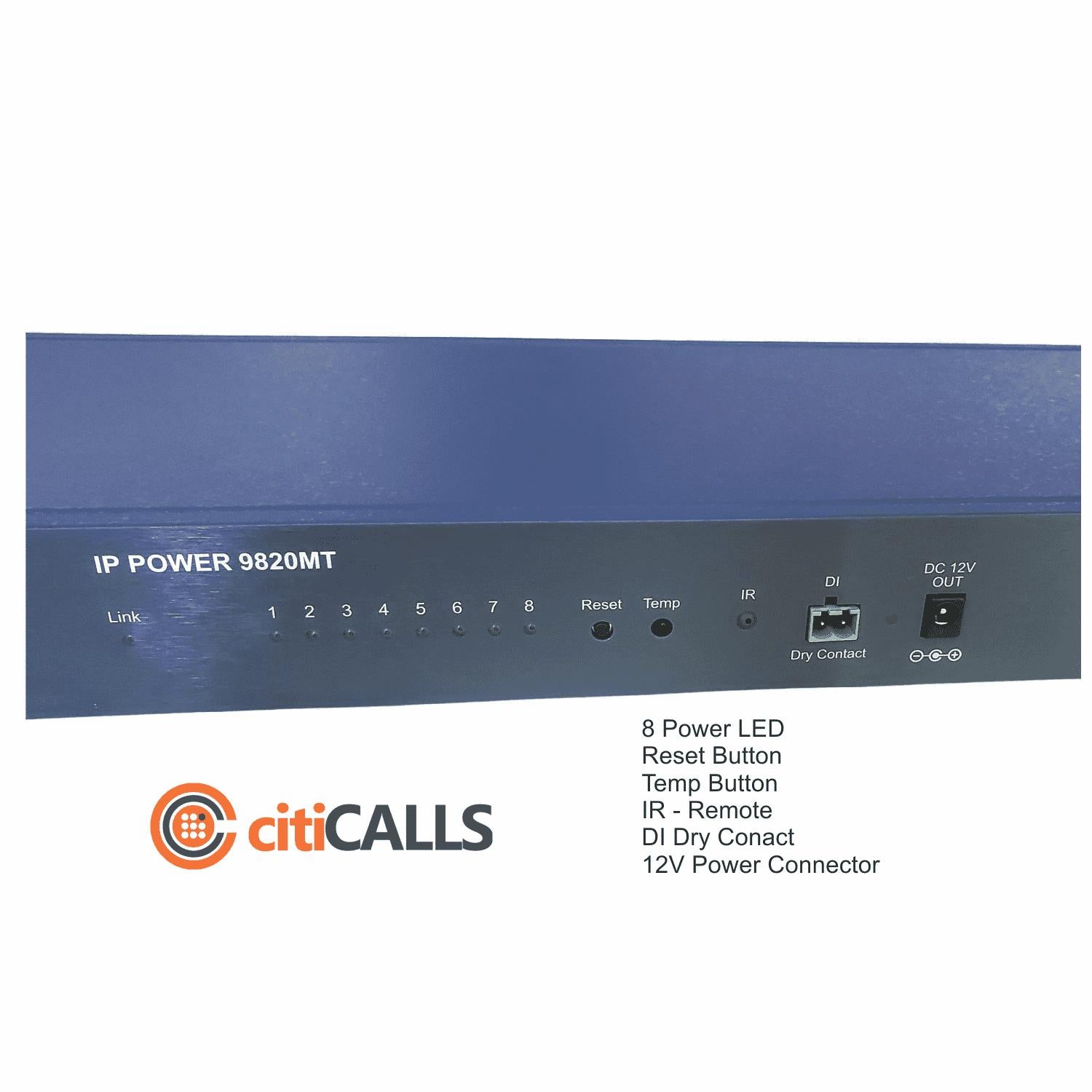

Interface:

• 8 LED indicator lights
• Reset Breaker: Fuse protection button
• DI sensor, can trigger an event of user-defined condition
• IR Sensor, online power control
• Restart/Reset button
• DC 1A 12V Output
• LCD Panel: showing IP Address, current and temperature, power in voltage
• Operating temperature 0~50°C

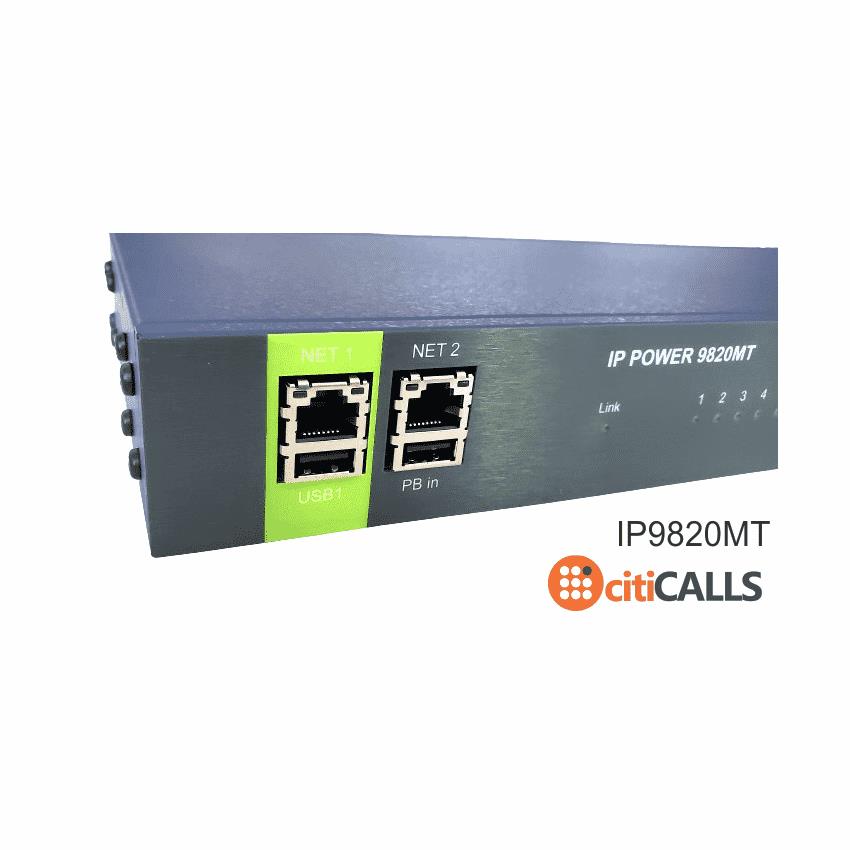

• Network: 2x RJ-45 10/100M Ethernet
• USB: 2x USB 2.0 Port, 4G telecom dongle expansion, power bank, UPS
