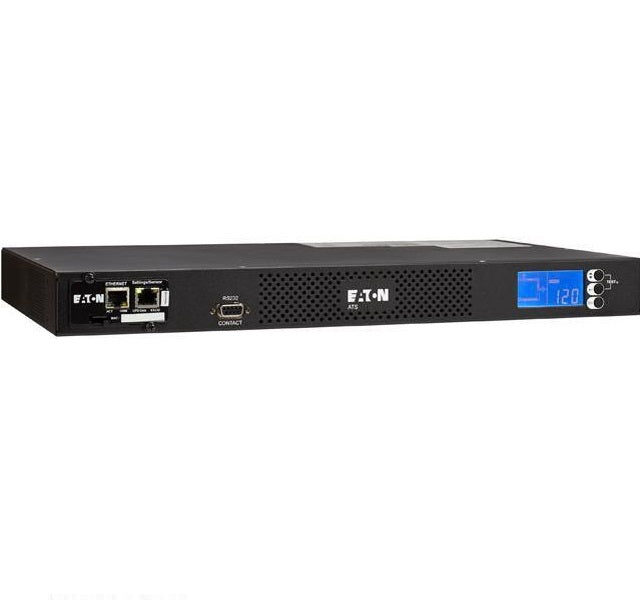

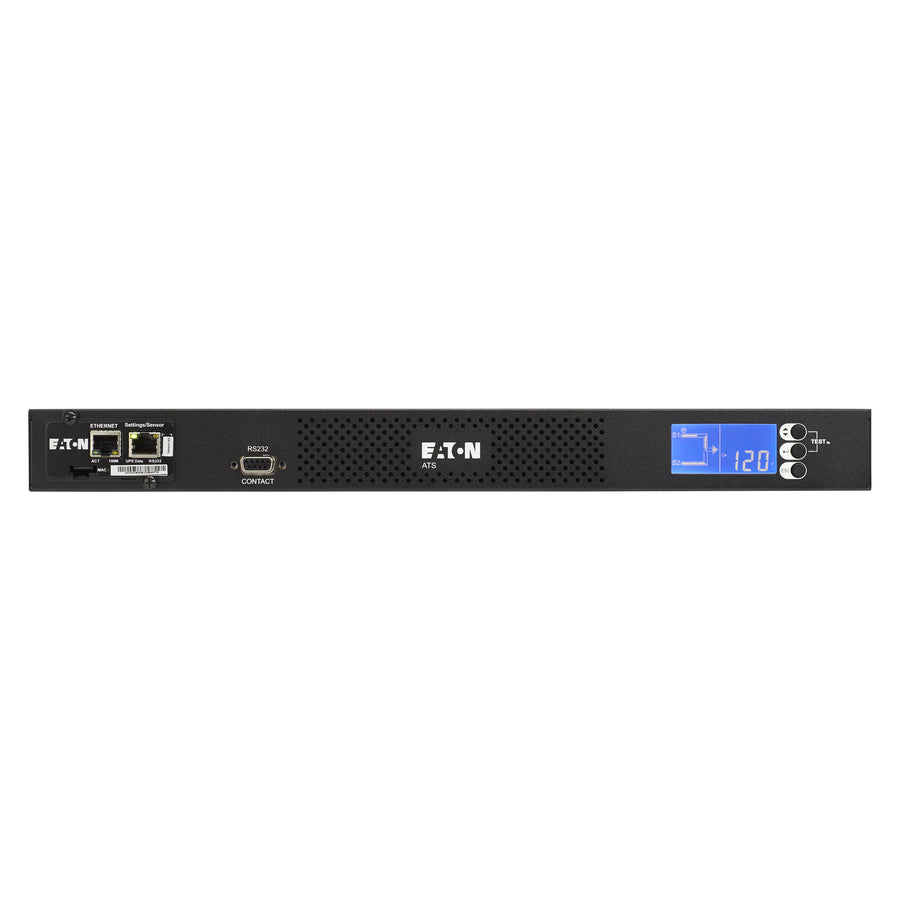

Eaton EATS115 ATS rack PDU, 1U, (2) 5-15P input, 1.44 kW max, 120V, 12A

General Information

• Manufacturer: Eaton Corporation
• Brand Name: Eaton
• Manufacturer Part Number: EATS115
• Product Name: eATS 10-Outlet PDU
• Product Line: eATS
• Product Type: PDU

Overview:

• Eaton eATS ePDUs
• Designed for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
• Provides power redundancy to equipment with 1 or 2 power supplies
• Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
• Power is transferred back to the primary source when it is automatically restored
• Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD
• Offers remote monitoring and email alerts with included network card

Physical Characteristics

• Weight (Approximate): 9.15 lb
• Rack Height: 1U
• Height: 1.7"
• Width: 17.3"
• Depth: 9.8"
• Mounting Orientation: Horizontal

Power Description

• Input Current: 12 A

• Power Rating (Watt): 1440 W

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 10 x NEMA 5-15R
• Plug/Connector Detail: 2 x NEMA 5-15P

Interfaces/Ports

• Network (RJ-45): Yes

Miscellaneous

• Country of Origin: China
