StarTech RKPW101920 1U Rack Mount PDU 10 Outlets Power Strip w 8Ft Cord Black

Name: StarTech RKPW101920 1U Rack Mount PDU 10 Outlets Power Strip w 8Ft Cord Black
Brand: Startech
SKU: INGaSTA 9GG645 - RKPW101920
Price: 124.18 USD
Availability: InStock

$124.18 USD

Shipping calculated at checkout.

In stock: 3

Description

10 Outlet Rack Mount Power Strip 125V/16 Amp - 1U Horizontal 19" Rackmount PDU - NEMA 5-20P Input - 10x NEMA 5-15/20R Outlets - Rack Mount PDU - UL Listed - 8ft Power Cord

Rackmount PDU | 16 Amps | 10 Outlets | UL Listed | For 2-Post or 4-Post Racks

Product ID: RKPW101920

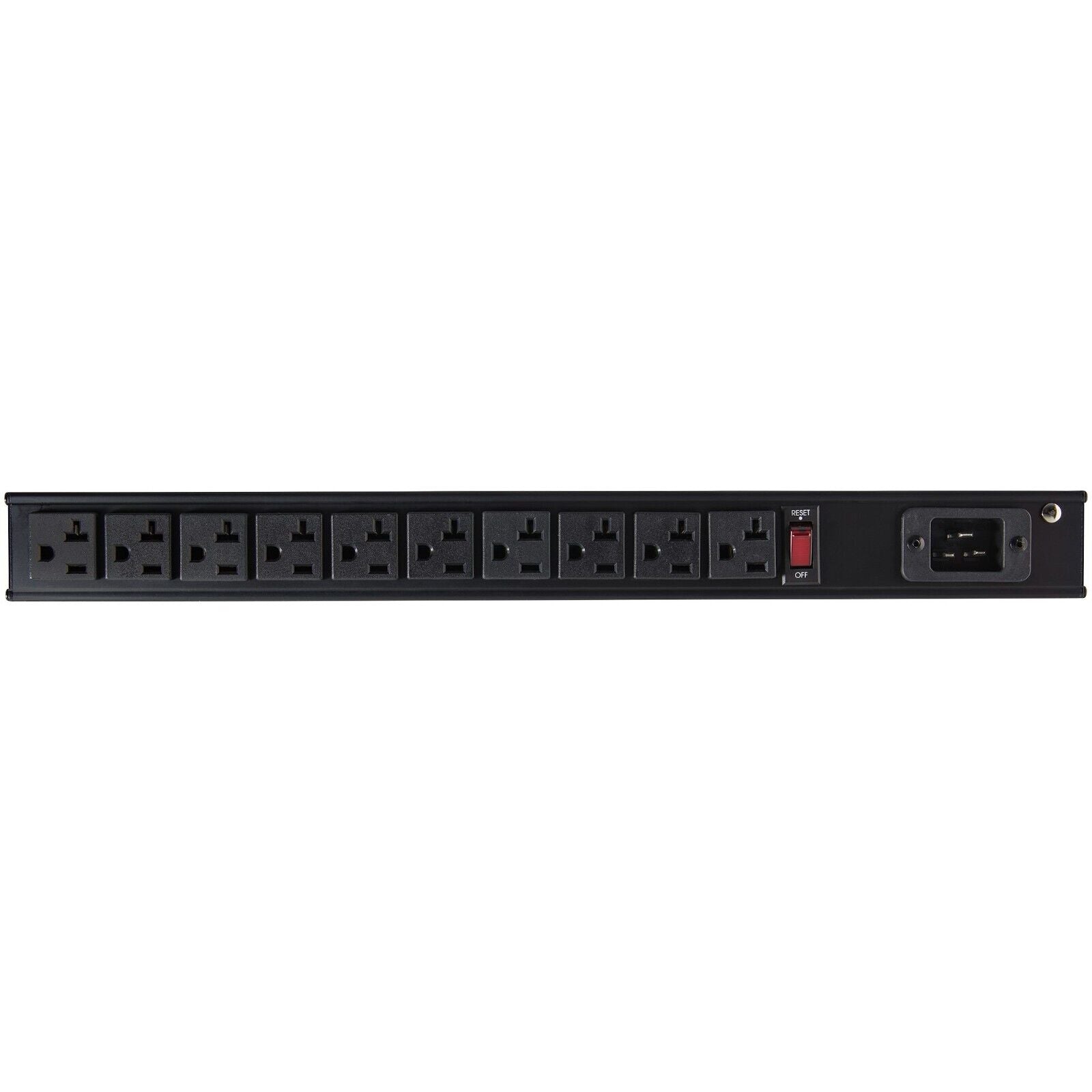

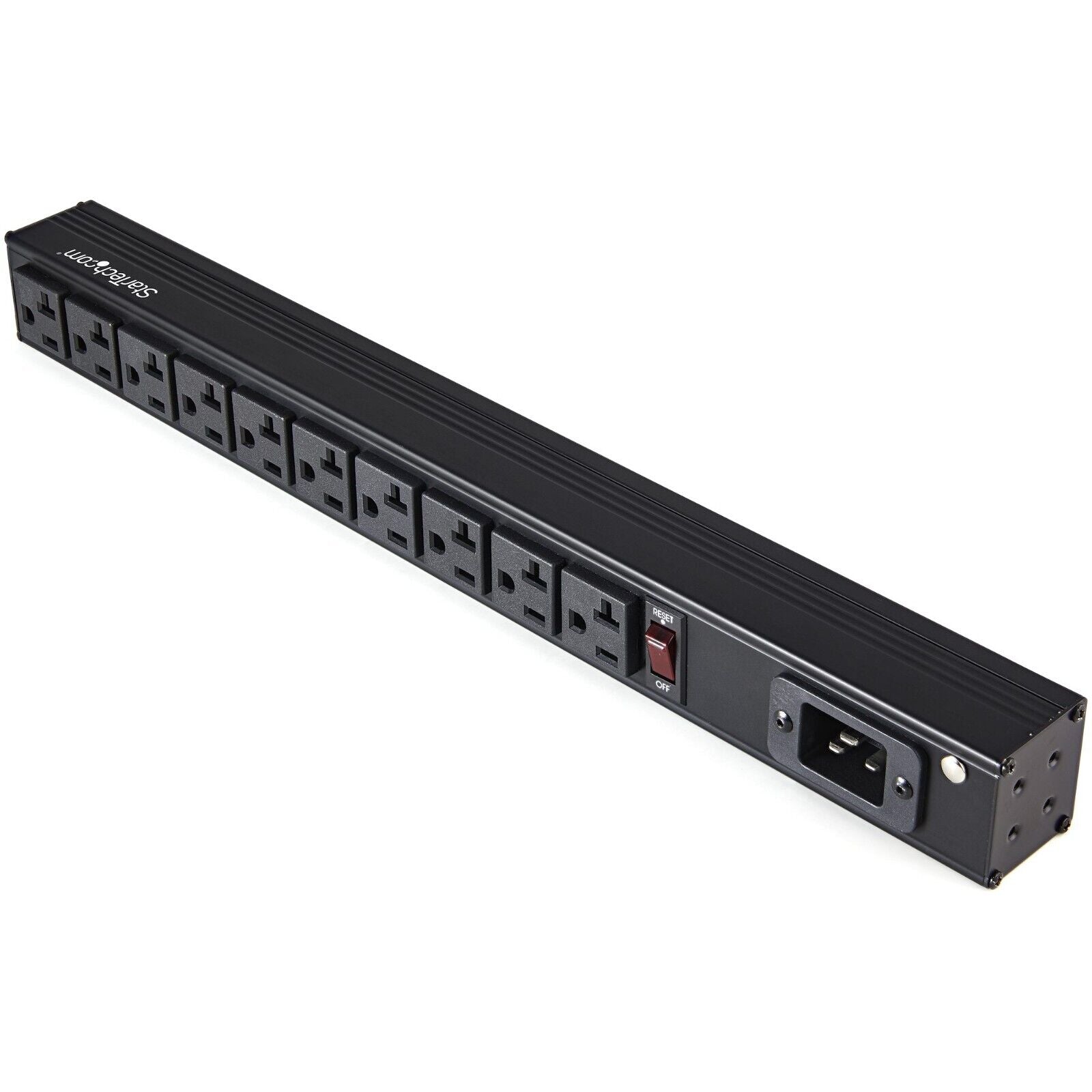

This 10-outlet (125V 16A) Rack PDU delivers a power distribution solution for your server rack/cabinet. The business-grade 1U power distribution unit can be mounted horizontally in any 19 inch server rack 4" in depth or greater, to provide ten 125V (16A) power outlets. You can access ten plugs on the front of the horizontal-mount network rack PDU.

0 OUTLET RACK MOUNT POWER STRIP: 10x 5-15/20R Outlets; 16 Amps; Max Input & Output: 125V; 8ft. NEMA 5-20P Power Cord; UL Listed PDU; For 19" Racks/Cabinets; Front-Facing Power Switch; Horizontal Mount
20 AMP CIRCUIT BREAKER: This 10 outlet rackmount power strip features a built-in 20A circuit breaker, with included 8 ft long NEMA 5-20P to IEC 60320 C19 power cord
EASY INSTALLATION: The rack-mount PDU with metal housing supports 19 inch rack 1U horizontal installation, and meets ANSI/EIA RS-310-D standards
BROAD COMPATIBILITY: 1U horizontal rack-mounted power distribution unit fits many network / data 2-post and 4-post racks; Compatible with 19" server racks with minium 4" (10.2cm) depth

Connector(s)

Input Connector(s)

1 - IEC 60320 C20 Power

Output Connectors

10 - NEMA 5-20R (North America)

1 - IEC 60320 C19 Power

Environmental

Operating Temperature

0C to 40C

Storage Temperature

-10C to 60C

Humidity

5% (0C) to 95% (40C)

Hardware

U Height

Form Factor

Horizontal

Number of Power Outlets

Rack-Mountable

Yes

Packaging Information

Package Height

2.4 in [6.0 cm]

Package Length

5.2 in [13.2 cm]

Shipping (Package) Weight

2.7 lb [1.2 kg]

Package Width

17.7 in [45.0 cm]

Package Quantity

Performance

Maximum Total Current

20A

Maximum Total Current Draw per Phase

20A

Regulatory Derated Input Current (North America)

16A

Nominal Input Voltage

125V

Nominal Output Voltage

125V

Maximum Output Voltage

125V

Load Capacity

2500VA

Physical Characteristics

Color

Black

Product Height

2.0 in [5.0 cm]

Product Length

5.1 in [13.0 cm]

Weight of Product

2.6 lb [1.2 kg]

Product Width

17.5 in [44.5 cm]

Material

Plastic and Steel

Cable Length

7.9 ft [2.4 m]

Power

Input Voltage Frequency

50/60Hz

Input Voltage

125V (max.)

Input Current

16A (max.)

Output Voltage

125V (max.)

Output Current

16A (max.)

Plug Type

NEMA 5-20P

What's in the Box

Included in Package

1 - Rackmount 10 Outlet Rackmountable Power Strip

1 - 8 ft NEMA 5-20P to IEC 60320 C19 Power Cord

1 - Quick-Start Guide
