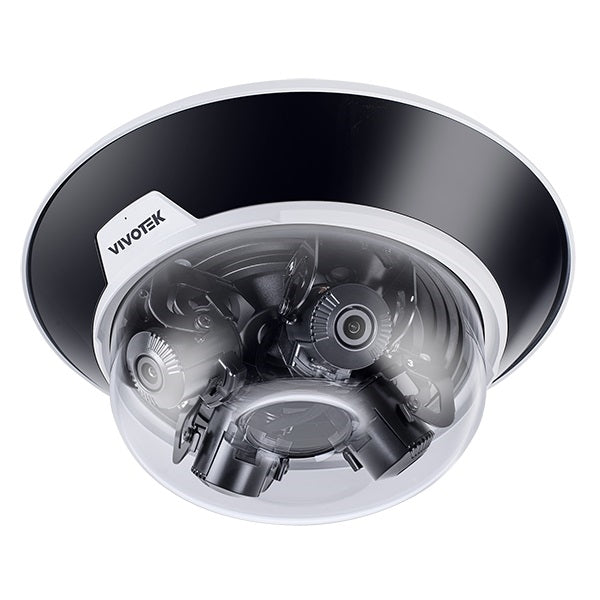

Vivotek MA9322-EHTVL 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision

Vivotek MA9322-EHTVL

Monitor four different views in an indoor or outdoor area from a single device with the white MA9322-EHTVL 20MP 4-Sensor Network Dome Camera from Vivotek. This multi-sensor camera uses four 1/2.7" 5MP progressive scan CMOS sensors to capture video at a combined resolution of 20MP. IR LEDs provide up to 98' of night vision. The camera is equipped with four 3.7-7.7mm motorized varifocal lenses that each deliver an 88.6 to 40.1° horizontal field of view. Two-way audio is possible thanks to a built-in microphone, along with an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

This NDAA-compliant camera is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.

• Multimedia SoC CPU
• Removable IR cut filter enables day and night functionality
• Supreme Night Visibility (SNV) for low-light conditions
• Smart IR technology
• H.265, H.264, and MJPEG video compressions
• Dual streaming per channel
• Two-axis angle adjustments per lens (0 to 105° vertical pivot, ±90° rotation range)
• Image settings include: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, illuminators, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR, privacy masking, and scheduled profile settings
• Built-in microphone with an audio pickup range up to 16'
• Five-window video motion detection
• Additional features include: WDR Pro (120 dB), 60.4 dB S/N ratio, ePTZ that provides 48x digital zoom, live viewing for up to 20 clients, system power and status LED indicators, and seamless recording to microSD/SDHC/SDXC card and NAS
• Compatible with Microsoft Windows 10, 8, and 7, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, and VLC 1.1.11 or above

Key Features

• 4 x 5MP Sensors
• 20MP Total Resolution
• IR LEDs for Night Vision up to 98'
• 4 x 3.7-7.7mm Motorized Varifocal Lenses
• 88.6 to 40.1° Horizontal Field of View
• Two-Way Audio
• Supports microSD Cards up to 1TB
• NDAA Compliant
• IP66 & NEMA 4X Rated for Outdoor Use
• IK10-Rated Vandal Resistance

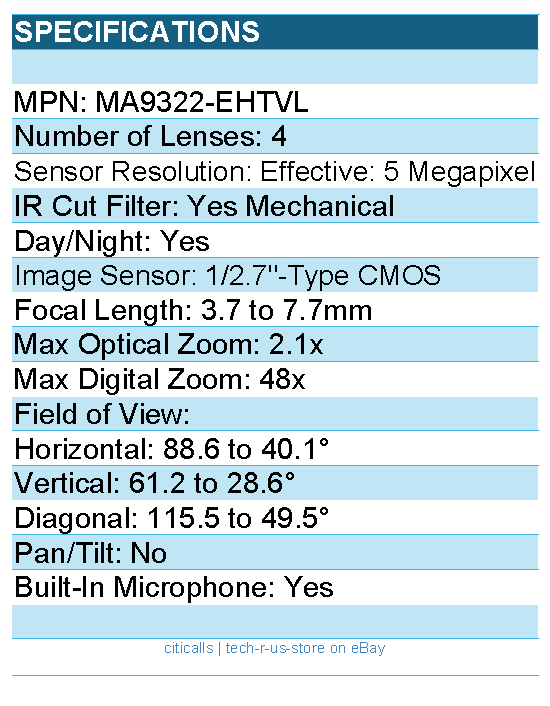

Specs

• Number of Lenses: 4
• Sensor Resolution: Effective: 5 Megapixel
• IR Cut Filter: Yes Mechanical
• Day/Night: Yes
• Image Sensor: 1/2.7"-Type CMOS
• Focal Length: 3.7 to 7.7mm
• Max Optical Zoom: 2.1x
• Max Digital Zoom: 48x
• Field of View:
• Horizontal: 88.6 to 40.1°
• Vertical: 61.2 to 28.6°
• Diagonal: 115.5 to 49.5°
• Pan/Tilt: No
• Built-In Microphone: Yes
• Power I/O:
• 1 x Barrel
• 1 x RJ45
