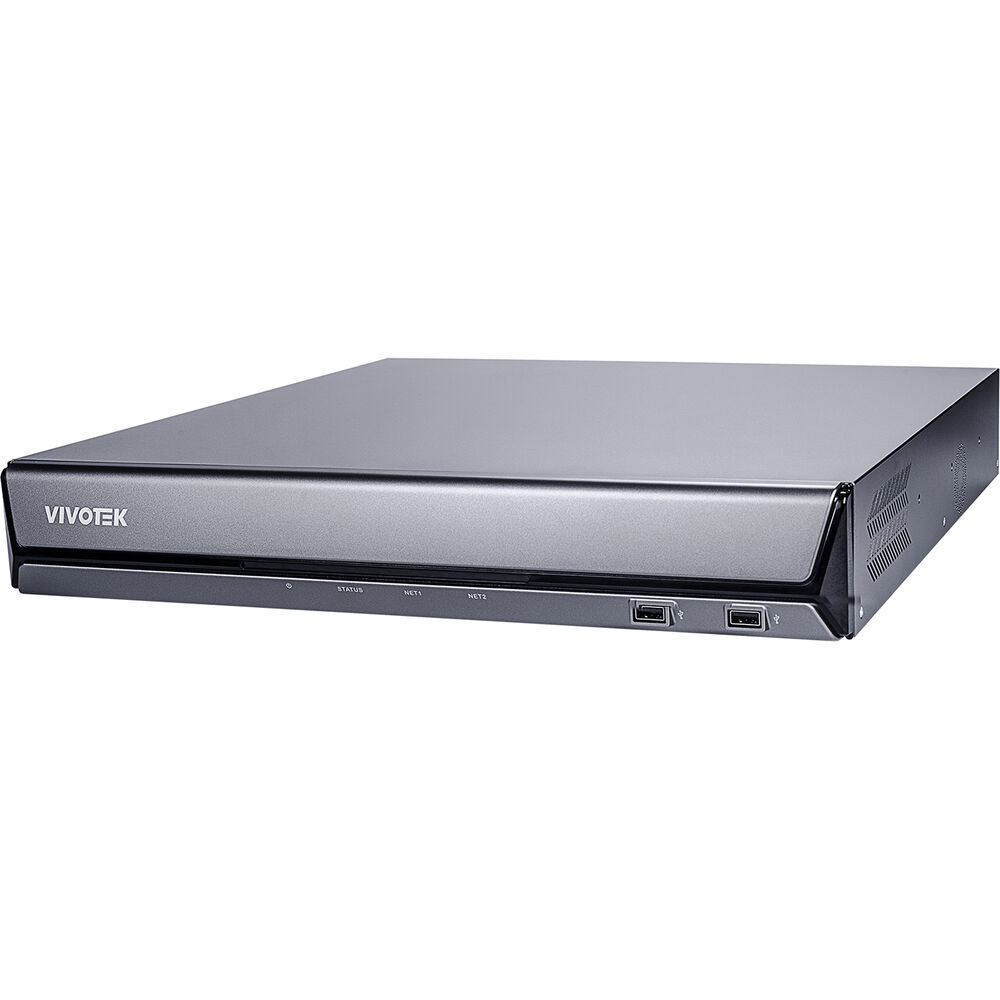

Vivotek ND9542P 32-CH H.265 Embedded PoE Network Video Recorder

Marketing Information

ND9542P

H.265 32-CH Embedded PoE NVR w/ Deep Search

• Key Features
  • 1080P 360 fps with H.265 Compression Technology
  • Up to 20MP Cameras Supported
  • 4K Video Output Display for Clear and Detailed Monitoring
  • Deep Search (Attribute Search, Scene Search)
  • VIVOTEK Smart VCA Camera Supported for Event Search & Recording
  • 802.3at/af PoE with PoE Management
  • RAID 0, 1, 5 Supported to Prevent from Recording Data Loss
  • Alarm In x16, Alarm Out x8
  • Trend Micro IoT Security & Cybersecurity Management
  • Manage with VORTEX and VAST Security Station (VSS)
  • Made in Taiwan
• Highlight Feature
• Next Generation NVR Firmware: Core+AI
• Core+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.

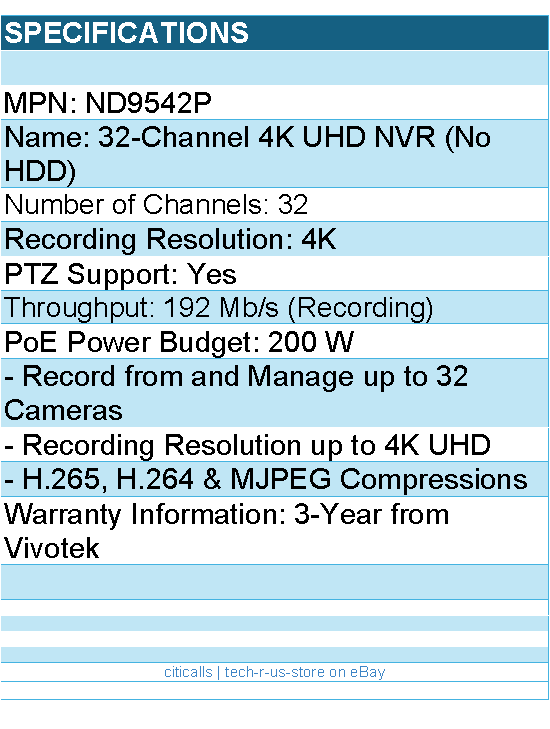

Detail Specifications

• Device
• Model: ND9542P
• OS: Embedded Linux
• Watchdog: Hardware + Software
• Power Restoration: System Restart Automatically after Power Recovery
• Display
• LiveView Display:
• 32 Channels
• Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4, 1M+31
• Video Output: HDMI x1, VGA x1
• Display Resolution: 3840x2160, 1920x1080, 1280x720
• Stream Application: ConstantAuto Adaptive Stream
• Fisheye Dewarp
• Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R
• Web: 1O, 1R, 1P
• PTZ Operation: Direction Control, Home, Iris, Preset, Patrol (Group)
• Video
• Video Format: MJPEG, H.264, H.265
• Graphic Decoder: Hardware decoding
• Decoding Resolution: Up to 7680x2560
• Decoding Capability
• H.265/H.264:
• 3840x2160 at 90 fps
• 1920x1080 at 360 fps
• Audio
• Audio Format: G.711, G.726, MPEG-2 AAC-LC
• Audio In/Out:
• 3.5 Phone Jack Audio Output x1
• 3.5 Phone Jack Audio Input (Reserved) x1
• Record
• Recording Time (sec.)
• Pre-Record: 5 (Max. 10)
• Post-Record: 20 (Max. 300)
• Recording Stream: Dual
• Recording Throughput: 192 Mbps
• Recording Mode: Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
• Recording Setting: Recycle (unit: Day)
• Watermark: Supported
• Seamless Recording: Supported
• Storage and Backup
• DISK Devices
• Internal x4 (3.5")
• (HDD is purchased by separately)
• HDD Max. Capacity: Please refer to the recommended HDD list on the VIVOTEK website.
• RAID
• RAID 0, 1, 5
• (Up to 10-CH Vision Object Analytics supported network cameras when using RAID5)
• Disk Management:
• Create, Format and Remove Disk
• HDD S.M.A.R.T.
• External Storage: USB Storage (USB 3.0)
• Video Clip Export: USB Dongle (FAT Format)
• Schedule Backup: FTP
• Playback
• Playback Display: 4 Channels
• Multi-Layout Display: 1x1, 2x2, 1P+3, 3V
• Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
• Video Search: By Calendar, Date/Time, and Alarm

Warranty Information

• 3-Year from Vivotek
