StarTech 5G3AGBB-USB-C-HUB 3-Port USB-C GbE RJ45 BusPowered w 12" Cable Gray

Name: StarTech 5G3AGBB-USB-C-HUB 3-Port USB-C GbE RJ45 BusPowered w 12" Cable Gray
Brand: Startech
SKU: INGaSTA 08RQ14 - 5G3AGBB-USB-C-HUB
Price: 53.68 USD
Availability: InStock

$53.68 USD

Shipping calculated at checkout.

In stock: 2

Description

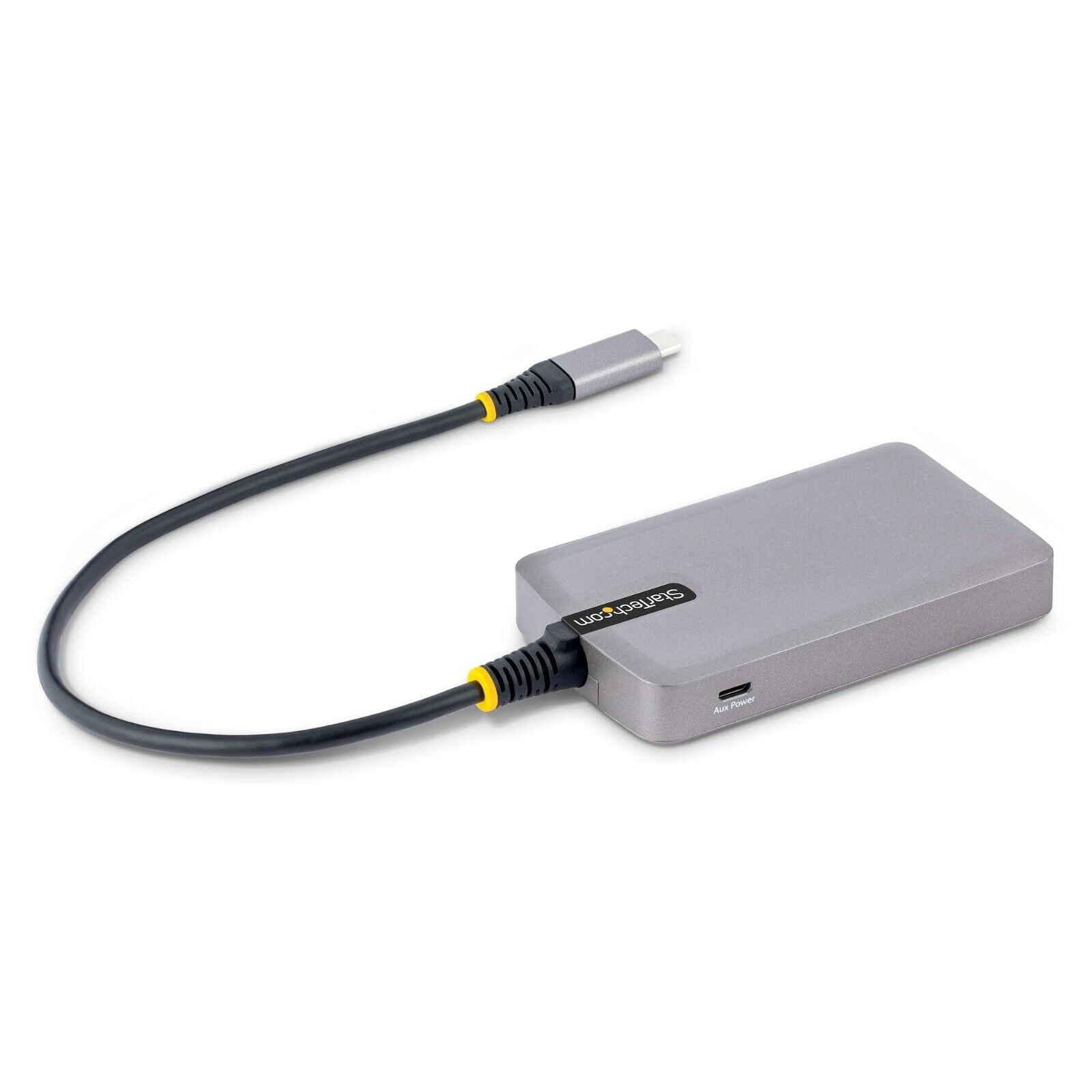

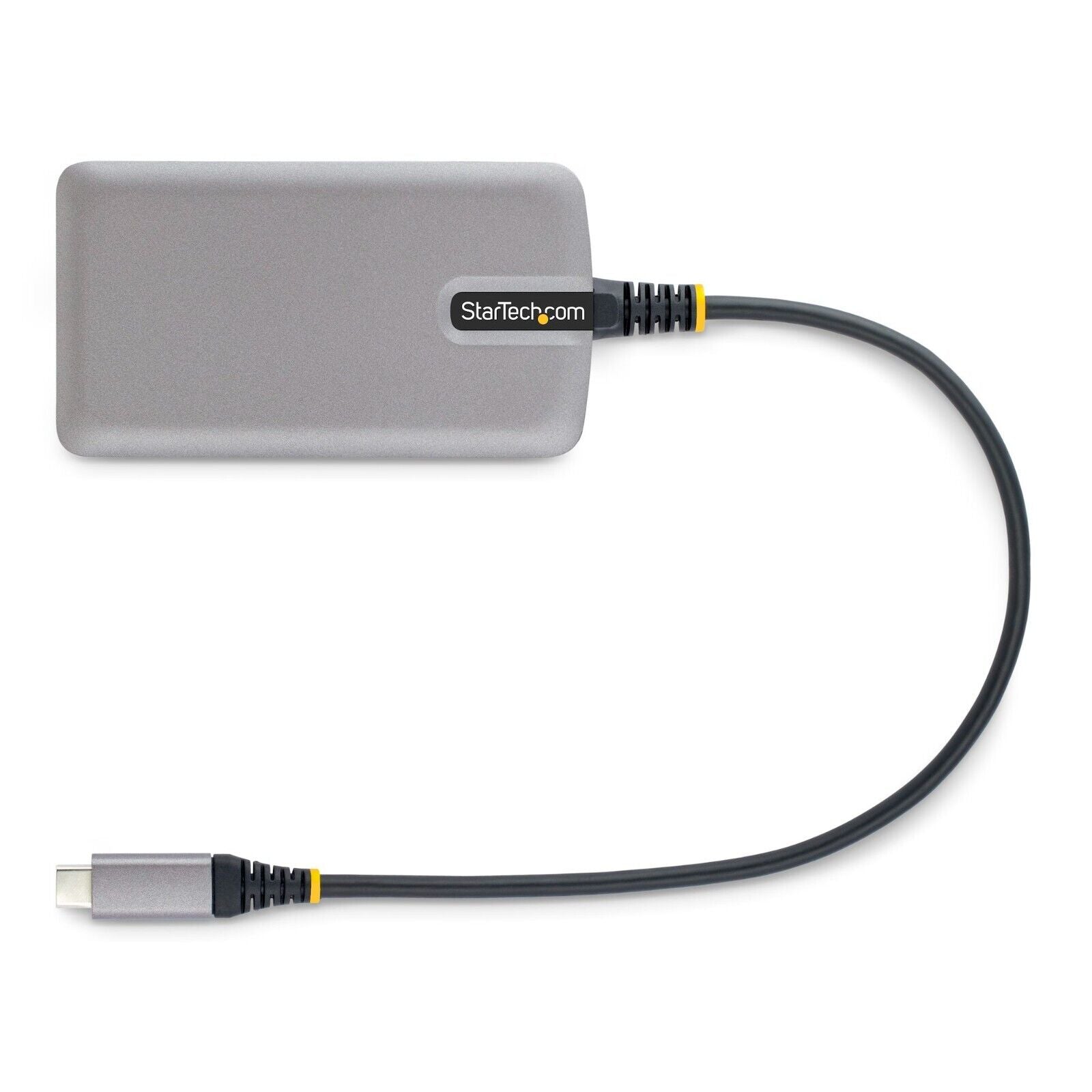

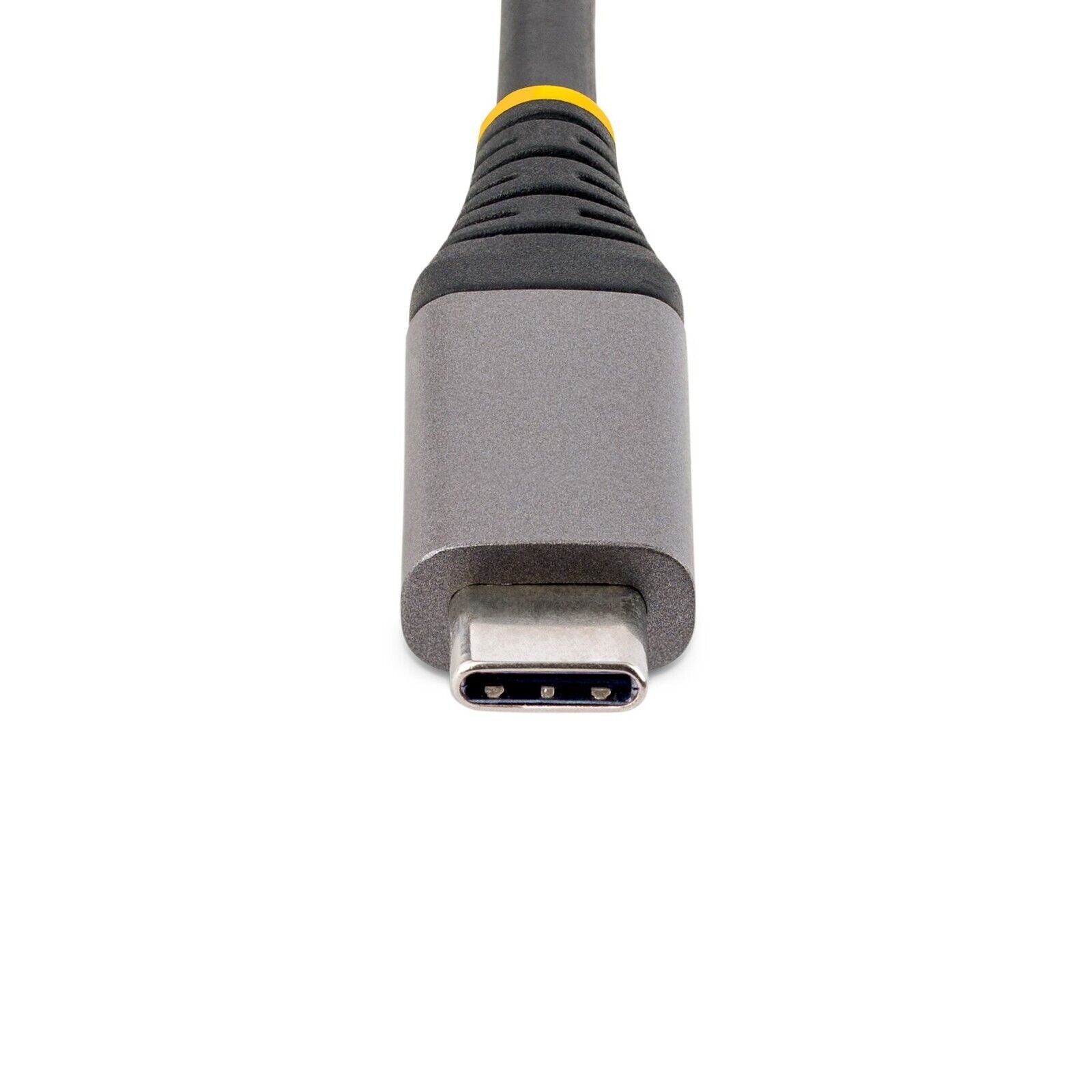

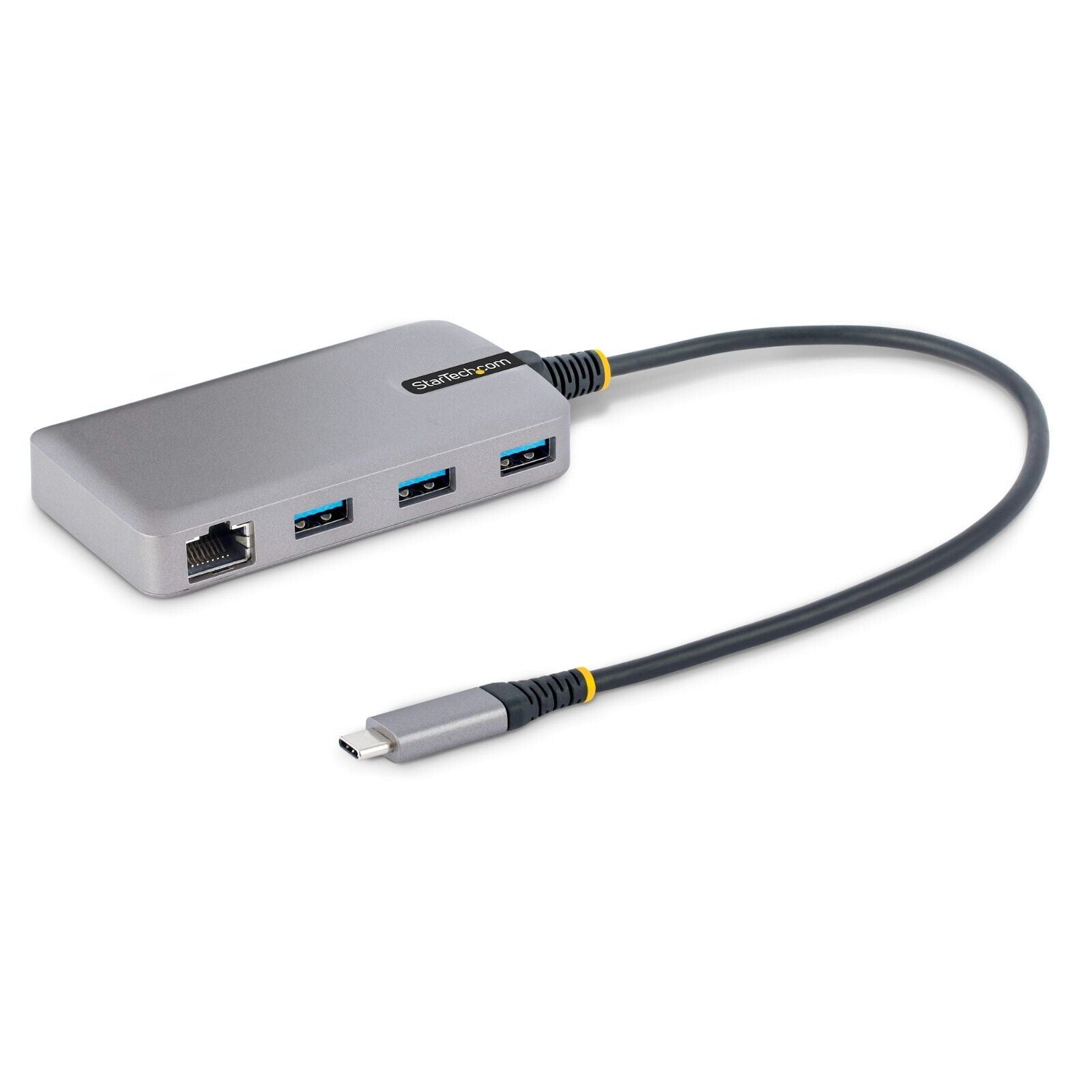

3-Port USB-C Hub with Ethernet - 3x USB-A Ports, Gigabit Ethernet RJ45, USB 3.0 5Gbps, Bus-Powered, 1ft/30cm Long Cable - Portable Laptop USB Type-C Hub Adapter w/GbE

10/100/1000Mbps Ethernet | USB Type-C to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable

Product ID: 5G3AGBB-USB-C-HUB

Warranty Information

Warranty

2 Years

Connector(s)

External Ports

3 - USB Type-A (9 pin, 5 Gbps)

1 - RJ-45

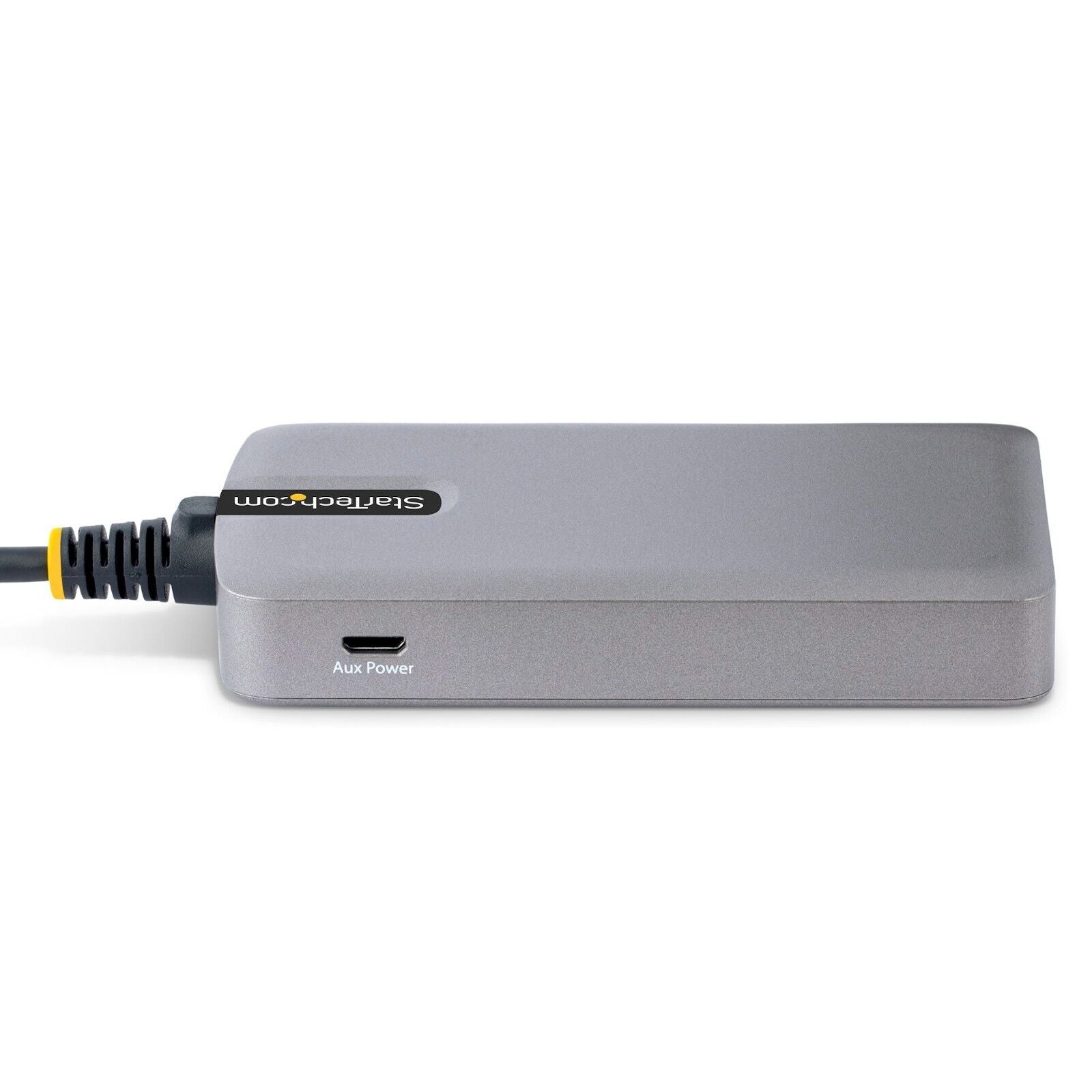

1 - USB Micro-B (5 pin) (Power)

Host Connectors

1 - USB Type-A (9 pin, 5 Gbps)

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 80°C (-40°F to 176°F)

Humidity

0% to 95 % at 25 ℃

Hardware

USB-C Device Port(s)

USB-C Host Connection

Yes

Fast-Charge Port(s)

Ports

Interface

USB 3.2 Gen 1 (5Gbps)

RJ45 (Gigabit Ethernet)

Bus Type

USB 3.2 Gen 1 (5Gbps)

Industry Standards

IEEE 802.3u, IEEE 802.3ab

IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding

USB 3.0 - Backward compatible with USB 2.0 and 1.1

Chipset ID

VIA/VLI - VL817

ASIX - AX88179A

Indicators

LED Indicators

1 - Network Link LED - Green

1 - Network Activity LED - Amber

Packaging Information

Package Length

6.7 in [17.0 cm]

Package Width

5.6 in [14.2 cm]

Package Height

1.2 in [3.0 cm]

Shipping (Package) Weight

4.9 oz [138.0 g]

Package Quantity

Performance

Maximum Data Transfer Rate

5 Gbps (USB 3.2 Gen 1)
2 Gbps (Ethernet; Full-Duplex)

Type and Rate

USB 3.2 Gen 1 - 5 Gbit/s

UASP Support

Yes

Flow Control

Full duplex flow control

Compatible Networks

10/100/1000 Mbps

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

9K max.

Physical Characteristics

Color

Space Gray

Form Factor

Compact

Product Length

16.5 in [42.0 cm]

Product Width

2.1 in [5.4 cm]

Product Height

0.6 in [1.6 cm]

Weight of Product

2.9 oz [82.0 g]

Form Factor

Attached Cable

Material

Plastic

Cable Length

11.8 in [30 cm]

Power

Power Source

Bus Powered

Software

OS Compatibility

Windows® 7, 8, 8.1, 10, 10 ARM, 11, 11 ARM
macOS 10.11, 10.12, 10.13, 10.14, 10.15, 11.0, 12.0, 13.0, 14.0 VLAN tagging is currently not supported in macOS
Linux Kernel 4.11.x (and up) - LTS versions only
ChromeOS
iPadOS
Android

Special Notes / Requirements

Note

USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).

Wake-on-LAN (WoL) functionality can be disabled by the host computer, if the host computer USB controller enters power save mode. It's recommended that USB power save modes be disabled within your operating system, if the WoL functionality is required for your application.

What's in the Box

Included in Package

1 - USB-C Hub
