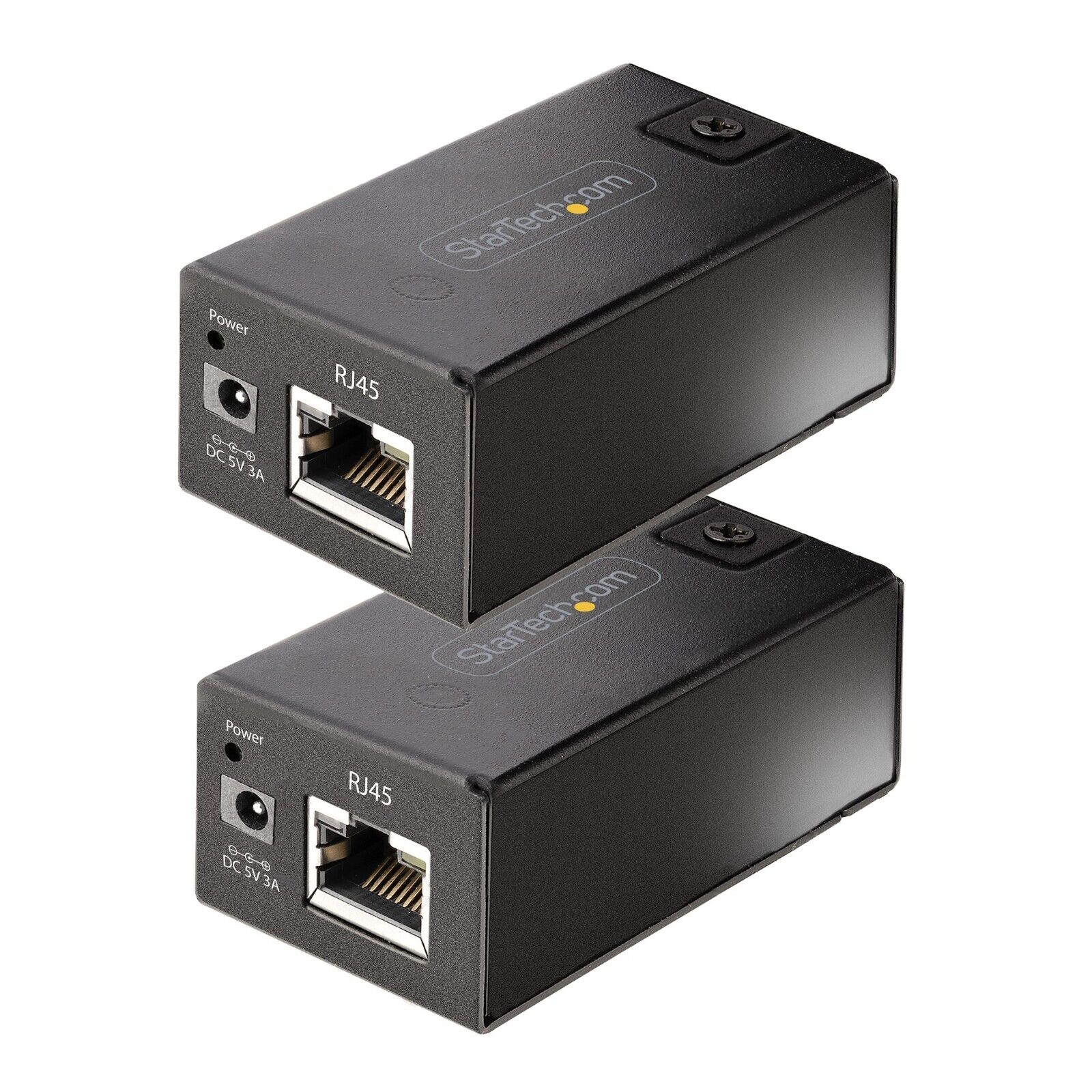

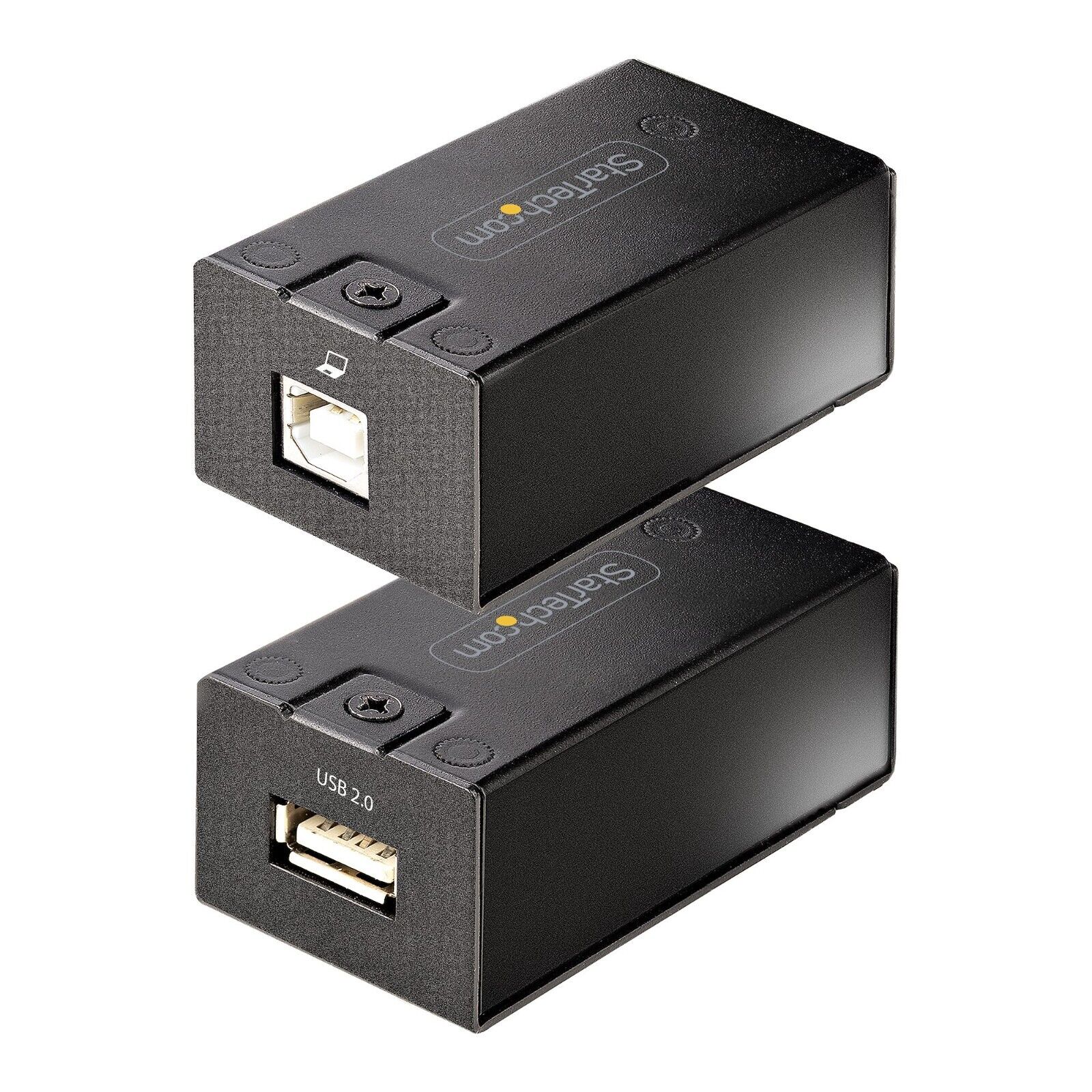

StarTech C15012-USB-EXTENDER USB 2.0 Extender over CAT5e/CAT6 Ethernet to 150m
%20USB%202.0%20Extender%20over%20Cat5e/Cat6%20Ethernet%20Cable,%20Externally%20Powered%20USB%20Extender%20via%20RJ45/Network...){kind=link}
Regular price
$256.95 USD
Sale price
$256.95 USD
Regular price
$229.99 USD
Description
StarTech C15012-USB-EXTENDER USB 2.0 Extender over CAT5e/CAT6 Ethernet to 150m
Current product
Current
Vendor:
Startech
StarTech C15012-USB-EXTENDER USB 2.0 Extender over CAT5e/CAT6 Ethernet to 150m
Regular price
$256.95 USD
Sale price
$256.95 USD
Regular price
$229.99 USD
Options
Descriptions
150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter - TAA
Connect a remote USB 2.0 device to your computer over long distances
Product ID: C15012-USB-EXTENDER
..
Warranty Information
Warranty
2 Years
Connector(s)

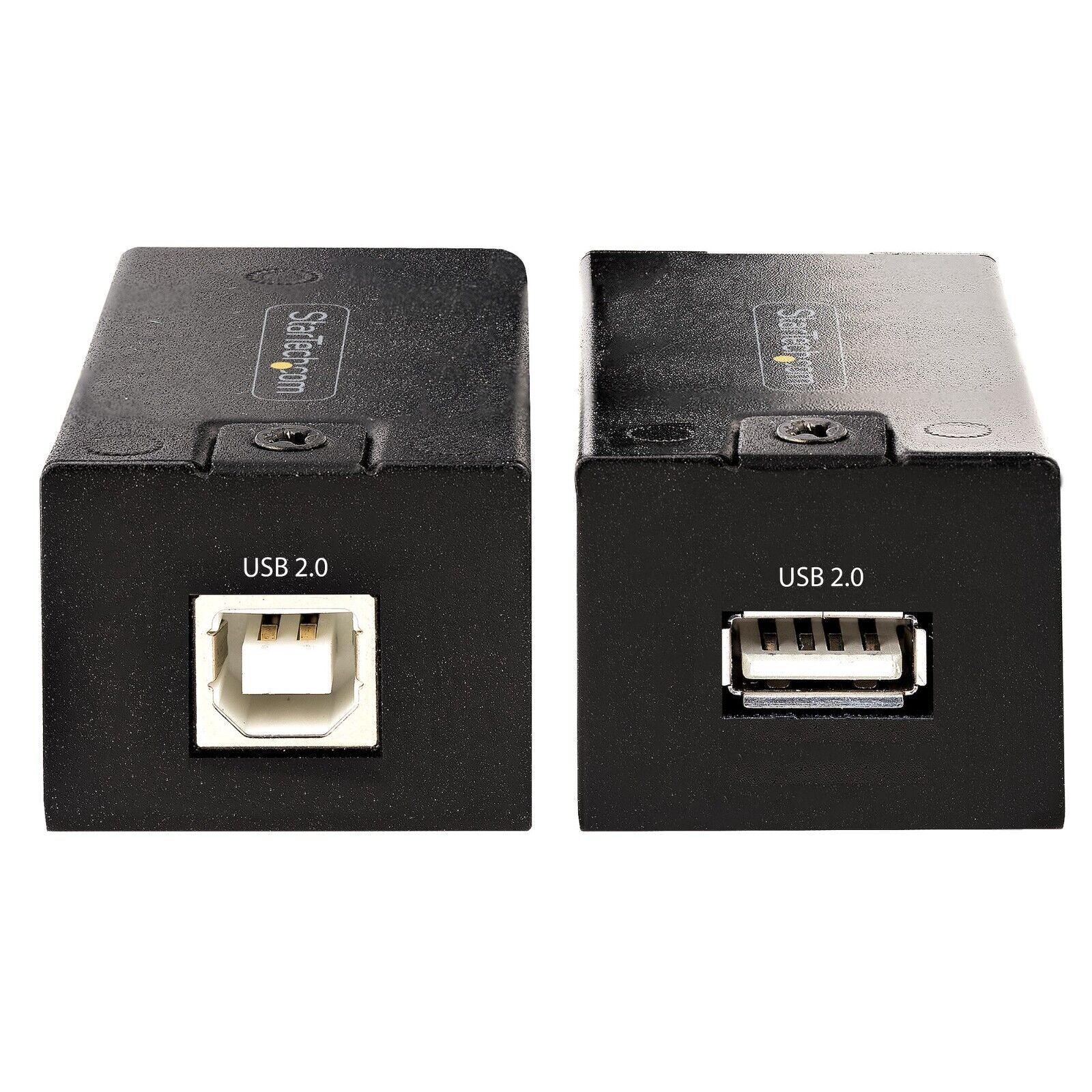

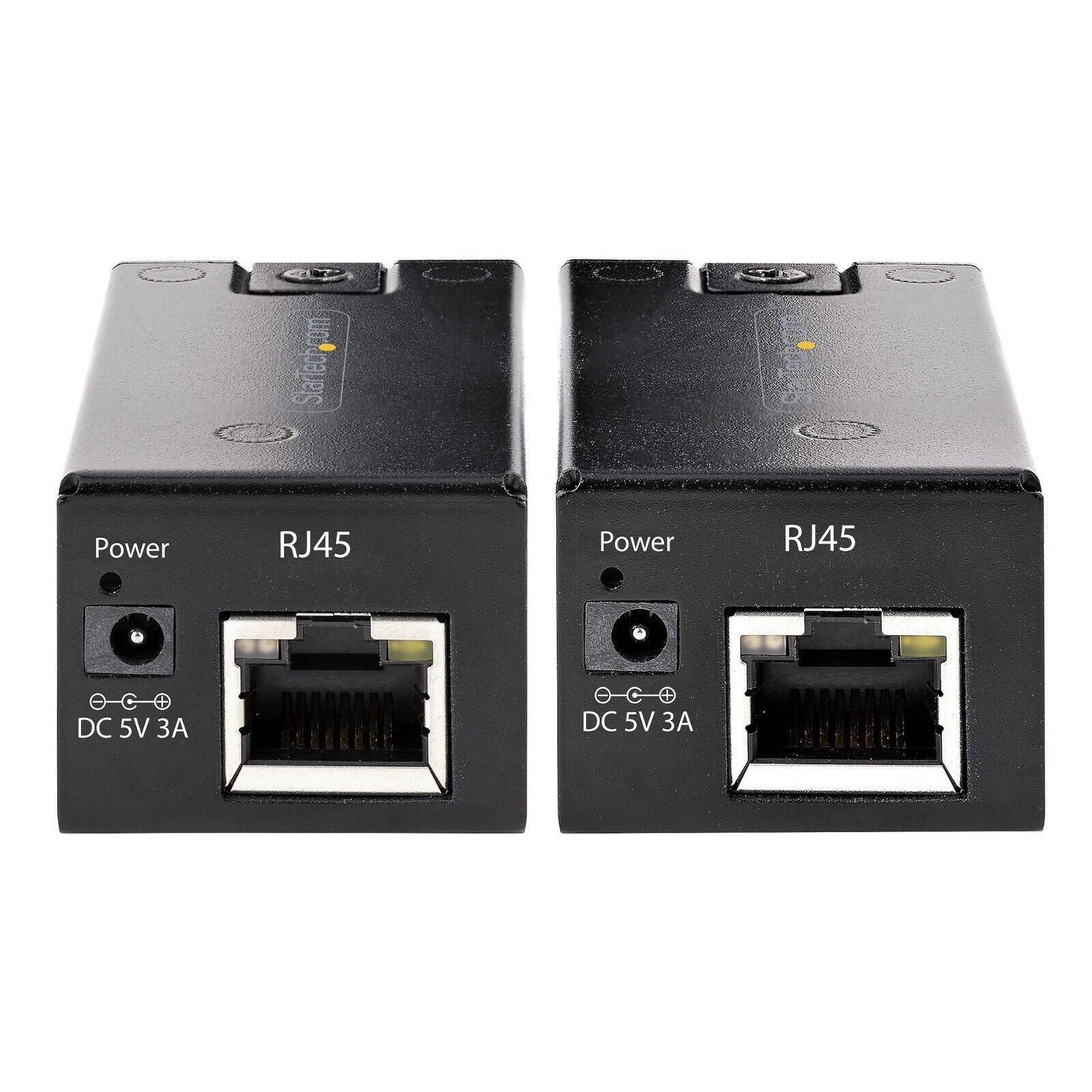

Local Unit Connectors
1 - USB B (4 pin)
1 - RJ-45
Remote Unit Connectors
1 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - RJ-45
Environmental
Operating Temperature
32°F ~ 122°F (0°C to 50°C)
Storage Temperature
-4°F ~ 158°F (-20°C to 70°C)
Humidity
10% ~ 90%
Hardware
Ports
1
Cabling
Cat 5e UTP or better
Indicators
LED Indicators
1 - Solid Green = Power
Off = No Power
Off = No Power
Packaging Information
Package Length
7.6 in [19.4 cm]
Package Width
8.7 in [22.0 cm]
Package Height
2.4 in [6.0 cm]
Shipping (Package) Weight
1.2 lb [0.5 kg]
Package Quantity
1
Performance
Maximum Data Transfer Rate
480 Mbps
Max Distance
150m [492ft]
Physical Characteristics
Color
Black
Product Length
1.3 in [3.2 cm]
Product Width
2.6 in [6.7 cm]
Product Height
1.0 in [2.5 cm]
Weight of Product
6.1 oz [173.0 g]
Material
Metal
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.6 A
Output Voltage
5 DC
Output Current
3 A
Center Tip Polarity
Positive
Plug Type
H
Power Consumption (In Watts)
15 W
Software
OS Compatibility
OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements
A host computer with an available USB-A port (USB Type-A)
Receiver and Transmitter must be connected in a point-to-point setup. The product does not work when connected via networking equipment.
Terminated RJ45 Cat5e (or better) Ethernet cable
The Ethernet cable must comply with the EIA/TIA-568-A or B Standard.
What's in the Box
Included in Package
1 - USB Over Cat5/Cat6 Transmitter
1 - USB Over Cat5/Cat6 Receiver
1 - 2 ft [61 cm] USB-A to USB-B Host Cable
1 - Universal Power Adapter (North America)
