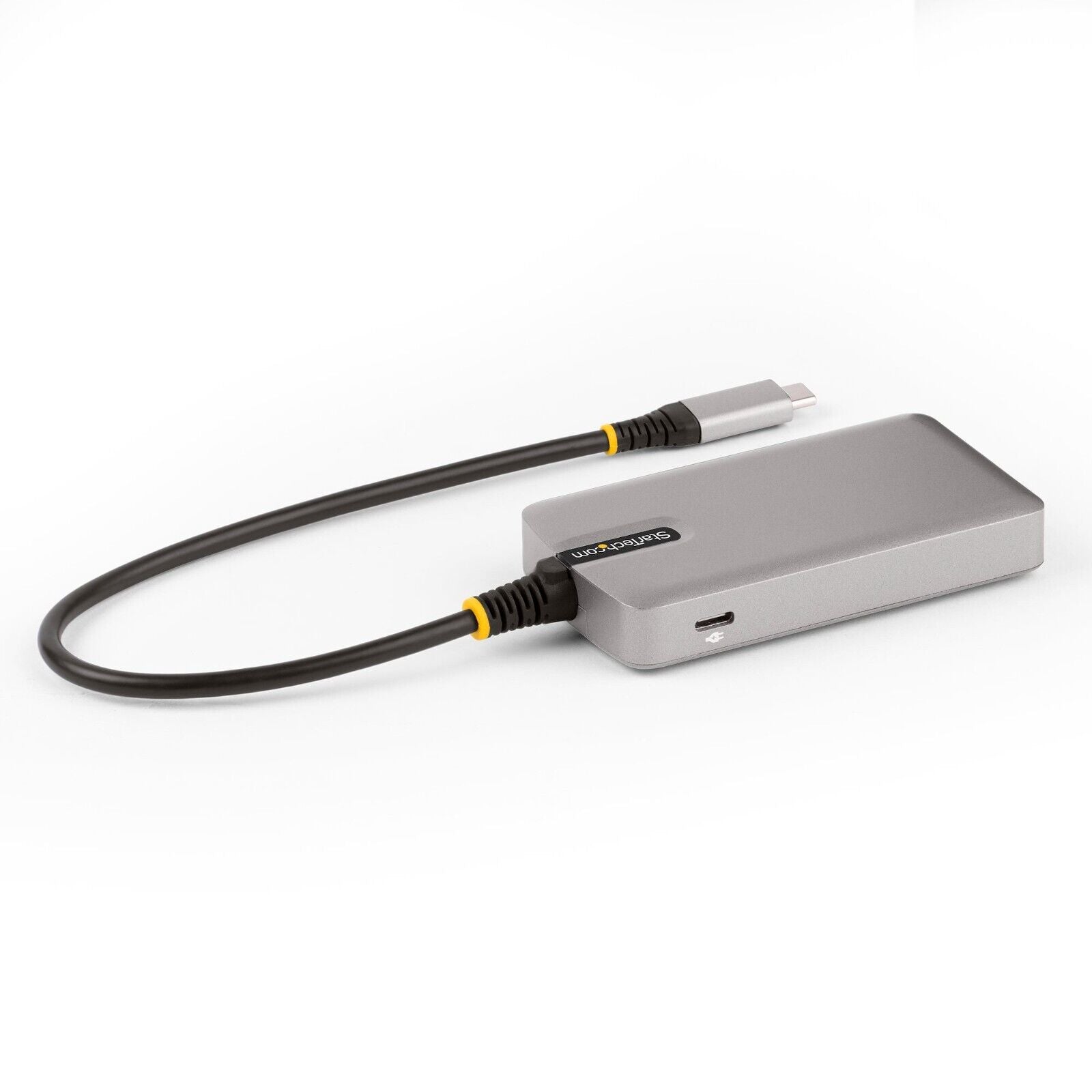

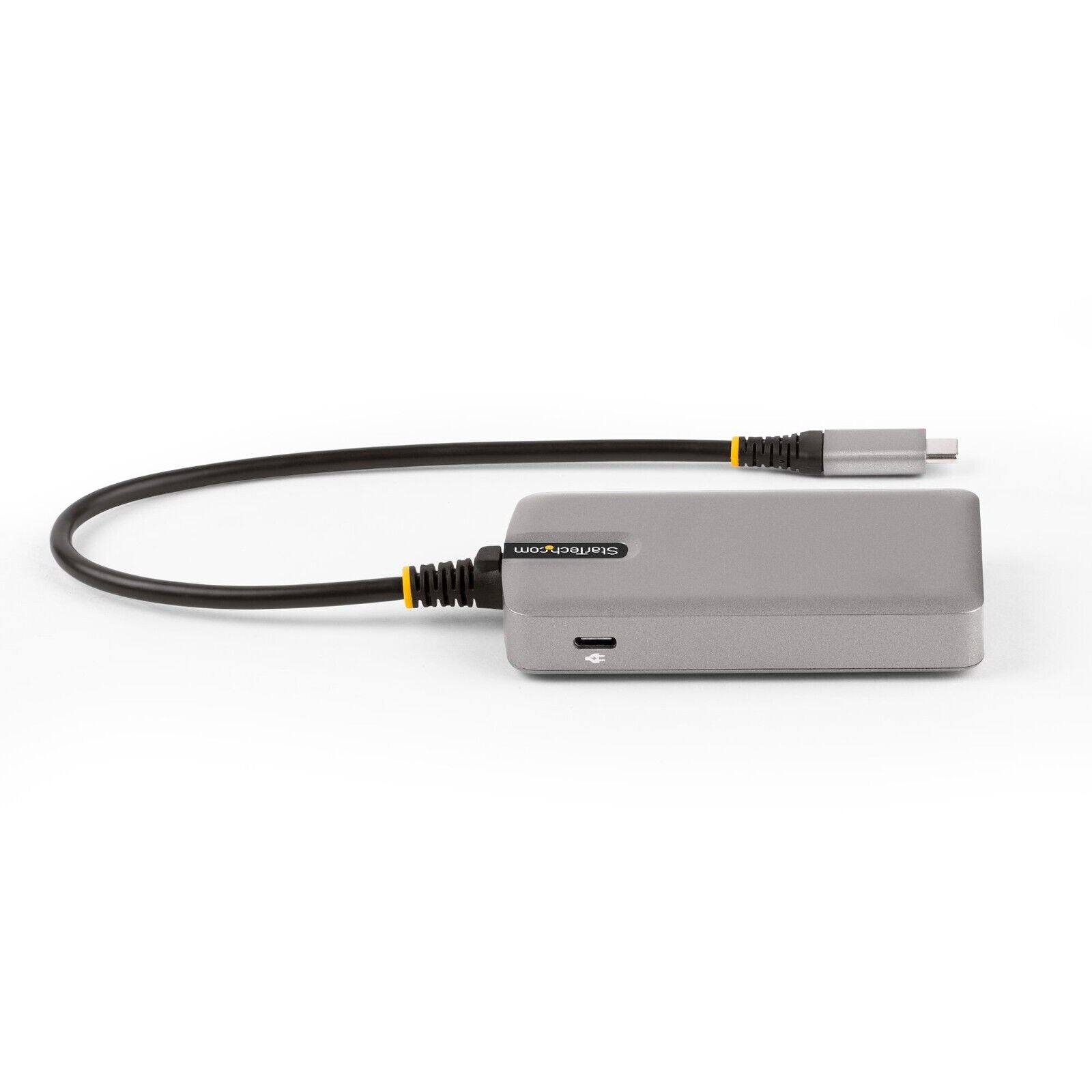

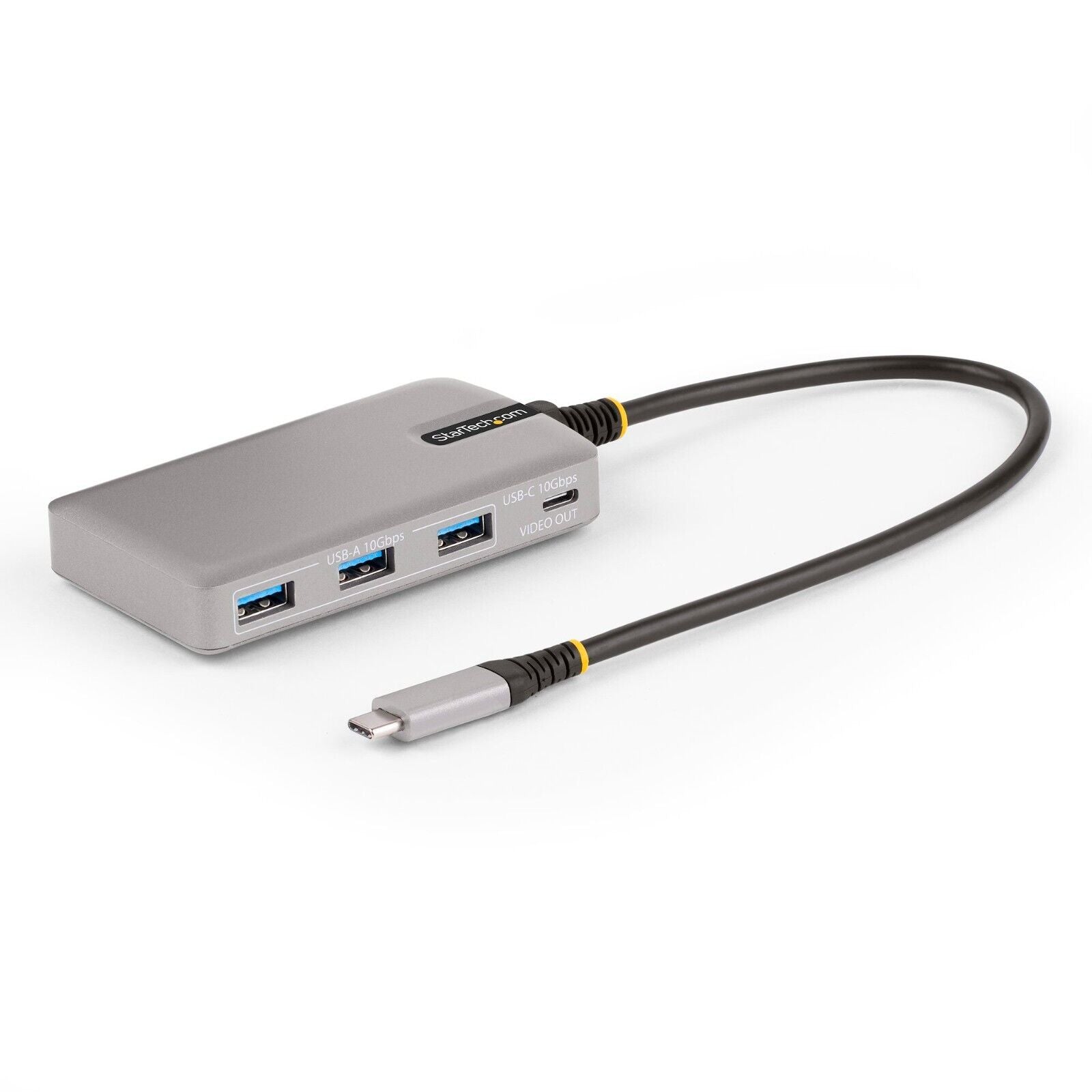

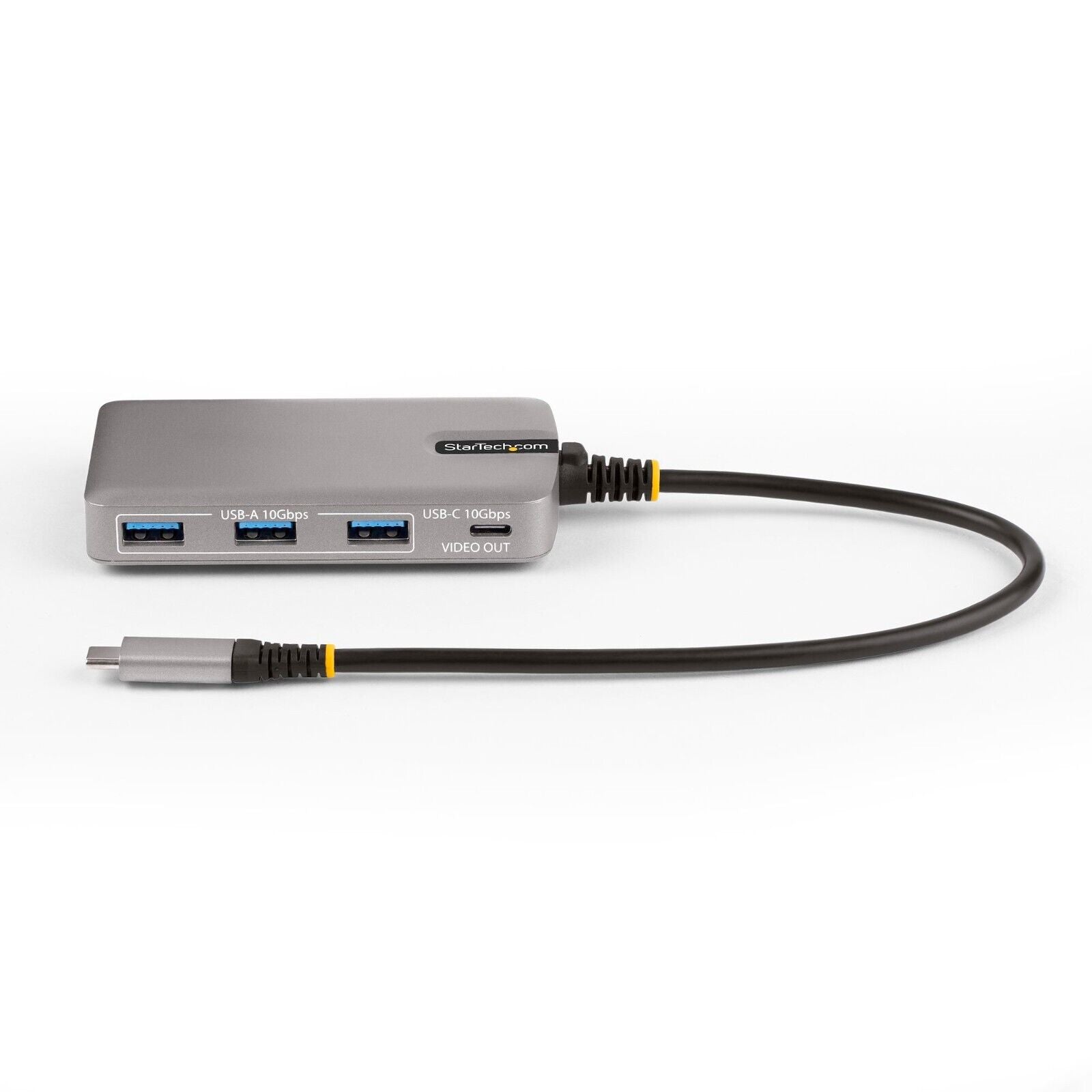

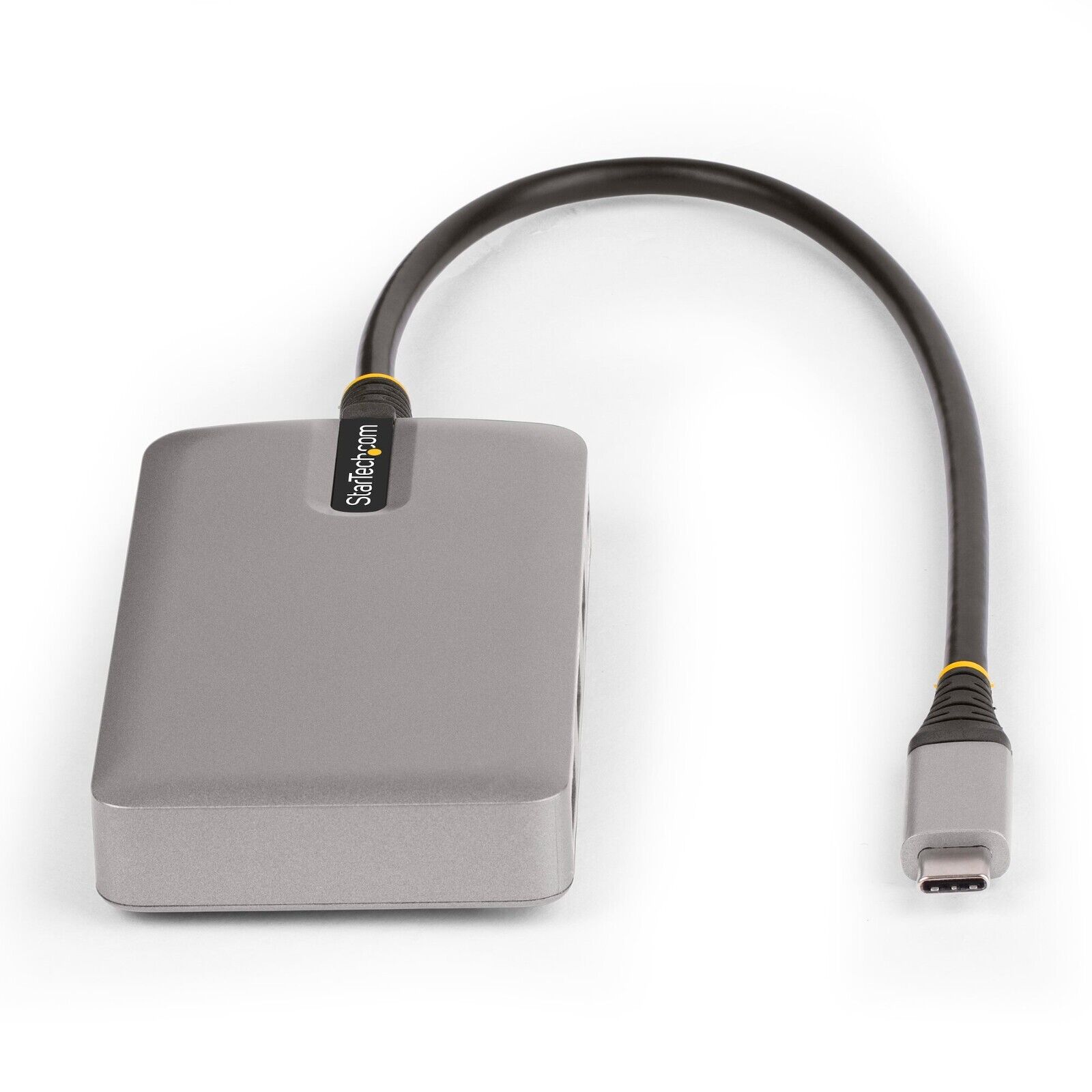

StarTech HB31C3A1CDPPD3 4-Port USB-C Hub w Video Out 100W PDelivery 12: Cable

Name: StarTech HB31C3A1CDPPD3 4-Port USB-C Hub w Video Out 100W PDelivery 12: Cable
Brand: Startech
SKU: INGaSTA HQ6135 - HB31C3A1CDPPD3
Price: 95.08 USD
Availability: InStock

$95.08 USD

Shipping calculated at checkout.

In stock: 1

Description

4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm Cable, Portable USB Hub

Add four 10Gbps USB ports (3x USB-A and 1x USB-C) to a USB-C enabled laptop while powering and charging the host device with Power Delivery 3.0

Product ID: HB31C3A1CDPPD3

Warranty Information

Warranty

2 Years

Connector(s)

External Ports

1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps, 12W Power, DP Alt-Mode Video)

3 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)

1 - USB Type-C (24 pin) USB Power Delivery Only

Host Connectors

1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

Environmental

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

0% ~ 95% RH at 25°C (77°F)

Hardware

USB-C Device Port(s)

Yes

USB-C Host Connection

Yes

Fast-Charge Port(s)

Yes

Ports

Interface

USB 3.2 Gen 2 - 10 Gbit/s

Bus Type

USB 3.2 Gen 2 10Gbps

Industry Standards

USB 3.2 Gen 2 - Backward compatible with USB 3.2 Gen 1, USB 2.0, and 1.1

USB Power Delivery 3.0

USB-C DP 1.4 Alt Mode

Wake on USB

Chipset ID

VIA - VL103-Q4

VIA - VL822-Q7

Parade - PS8802

Parade - FL7102-2L0

TMI - IM2605

Realtek - RTD2186

Packaging Information

Package Quantity

Package Length

5.6 in [14.2 cm]

Package Width

6.7 in [17.0 cm]

Package Height

1.2 in [3.0 cm]

Shipping (Package) Weight

5.3 oz [149.0 g]

Performance

Total USB Power Output

4.5W (5V/0.9A)

Maximum Data Transfer Rate

10Gbps (USB 3.2 Gen 2)

Maximum Digital Resolutions

4K (4096 x 2160) 60Hz

Type and Rate

USB 3.2 Gen 2 - 10 Gbit/s

UASP Support

Yes

General Specifications

Maximum Laptop Charging: 82W

Physical Characteristics

Color

Space Gray

Product Length

3.9 in [9.8 cm]

Product Width

2.1 in [5.4 cm]

Product Height

0.6 in [1.6 cm]

Weight of Product

3.5 oz [98.0 g]

Material

Plastic

Power

Power Source

Bus Powered and Host USB-C Power Adapter

Power Consumption (In Watts)

18W

Software

OS Compatibility

OS Independent; No additional drivers or software required

Special Notes / Requirements

Note

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure the host USB-C port supports USB Power Delivery.

Power will not pass through to the adapter when connected to a host USB-C port that lacks USB PD functionality.

Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.

System and Cable Requirements

A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).

Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).

What's in the Box

Included in Package

1 - USB-C Hub

1 - Quick-Start Guide
