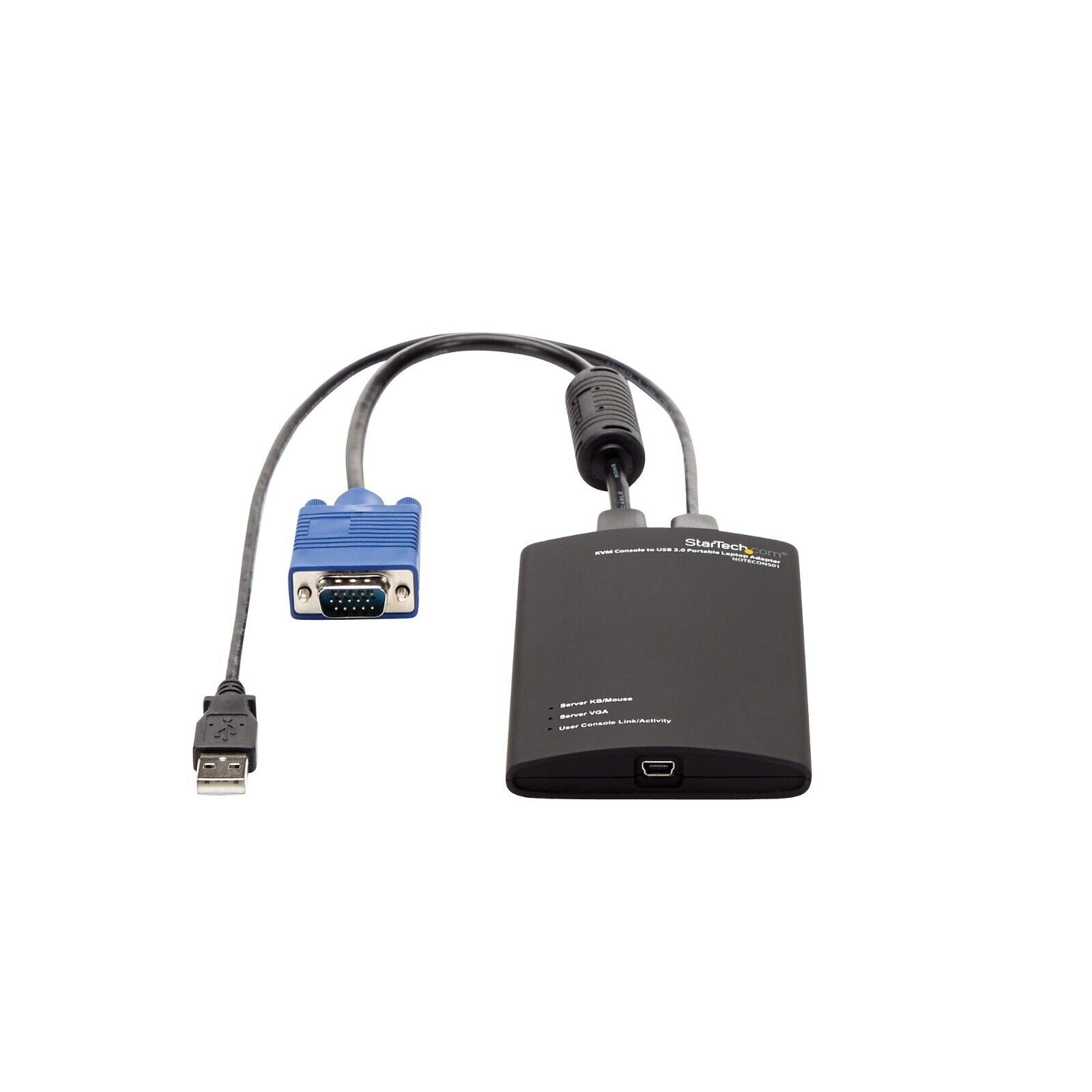

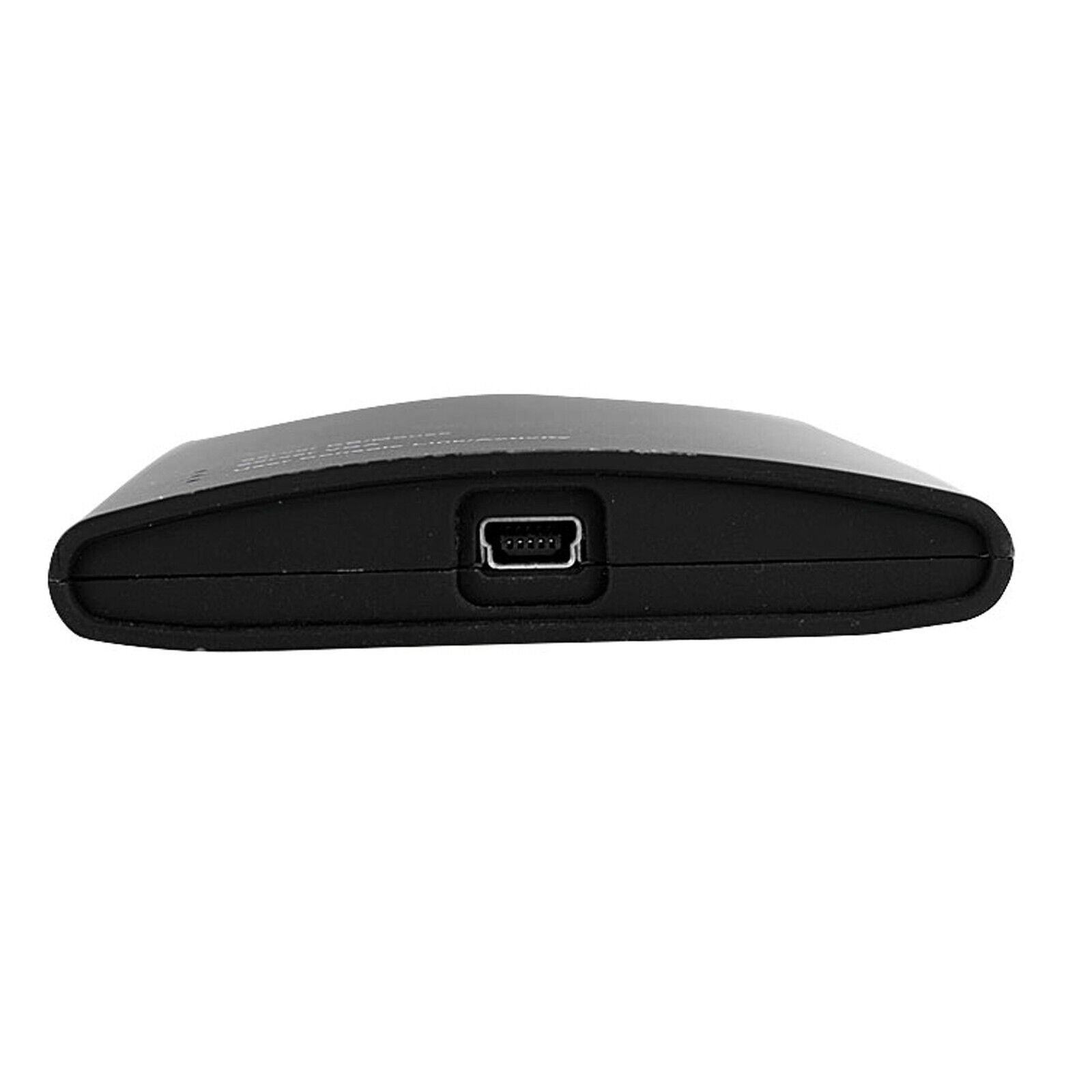

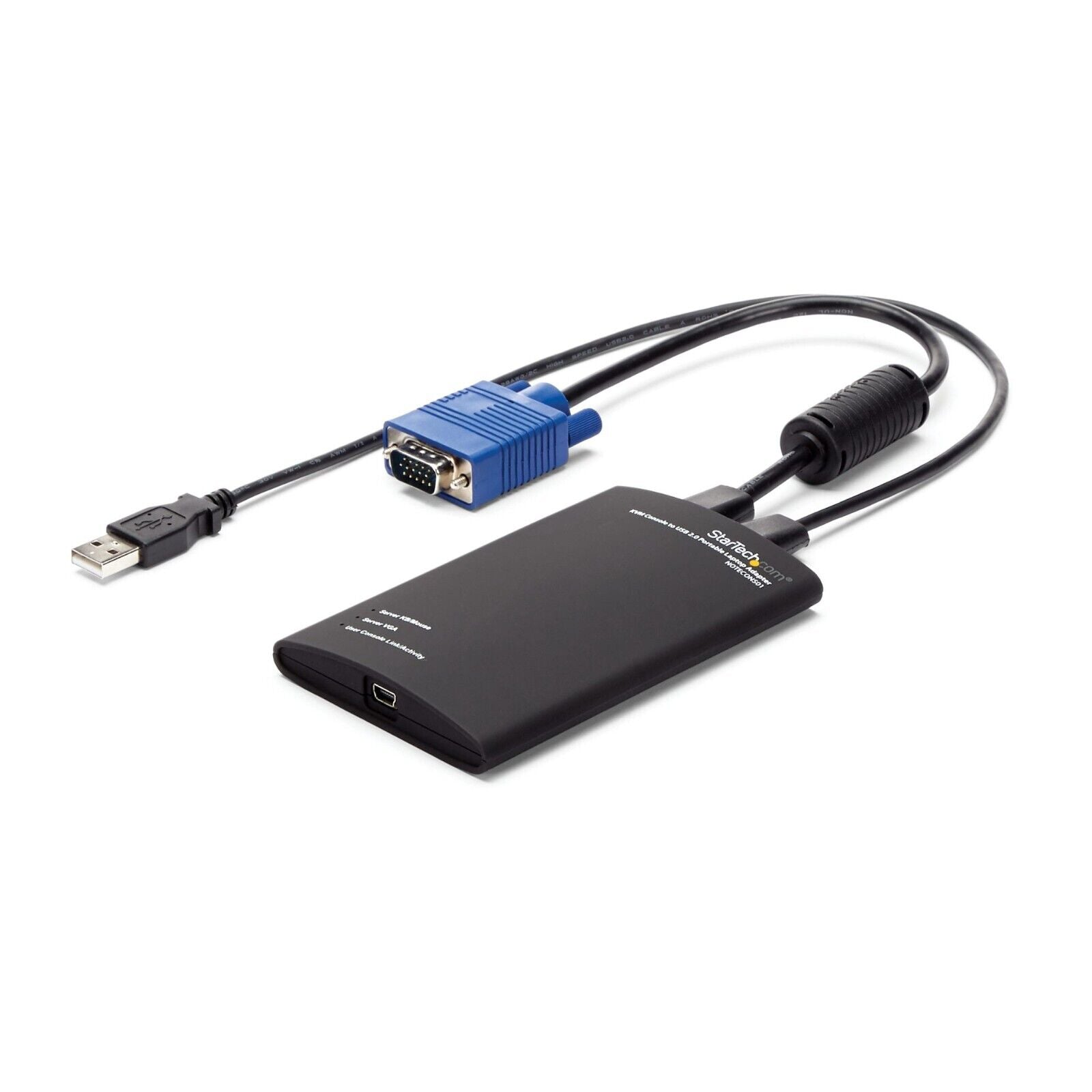

KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter - TAA

Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more

Warranty Information

Warranty

2 Years

---

Connector(s)

Console Interface(s)

1 - USB Mini-B (5 pin)

Host Connectors

1 - PS/2 (6 pin, Mini-DIN)

1 - USB 2.0 Type-A (4 pin, 480Mbps)

1 - VGA (15 pin, High Density D-Sub)

---

Environmental

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

80% RH

---

Hardware

Audio

No

KVM Ports

1

PC Interface

USB and PS/2

PC Video Type

VGA

Number of Monitors Supported

1

Rack-Mountable

No

Cables Included

Yes

Daisy-Chain

No

---

Indicators

LED Indicators

1 - Host/Server Video (VGA) Link

1 - User Console/USB Link

1 - Host/Server Keyboard/Mouse (USB,PS/2) Link

---

Packaging Information

Package Quantity

1

Package Length

11.7 in [29.8 cm]

Package Width

6.6 in [16.8 cm]

Package Height

1.9 in [4.8 cm]

Shipping (Package) Weight

14.3 oz [404.0 g]

---

Performance

On-Screen Display

No

IP Control

No

Hot-Key Selection

No

Maximum Analog Resolutions

1920x1200 @ 60Hz

Maximum Number of Users

1

MTBF

284000 Hrs

---

Physical Characteristics

Product Length

0.0 in [0.0 mm]

Color

Black

Material

Plastic

Cable Length

1 x 15in (385mm) USB host cable
1 x 11in (290mm) VGA host cable
1 x 6ft (1.8m) USB Console cable

Product Width

2.9 in [7.4 cm]

Product Height

0.6 in [1.5 cm]

Product Depth

4.5 in [115 mm]

Weight of Product

6.0 oz [170.0 g]

---

Power

Power Source

USB-Powered

Input Voltage

5V DC

Output Voltage

5 DC

---

Software

OS Compatibility

Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 2.6.x and up - LTS Versions only

---

Special Notes / Requirements

Note

If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration

---

What's in the Box

Included in Package

1 - USB PS/2 KVM Console Adapter

1 - USB Cable

1 - USB to PS/2 Adapter

1 - USB Software Key

..
