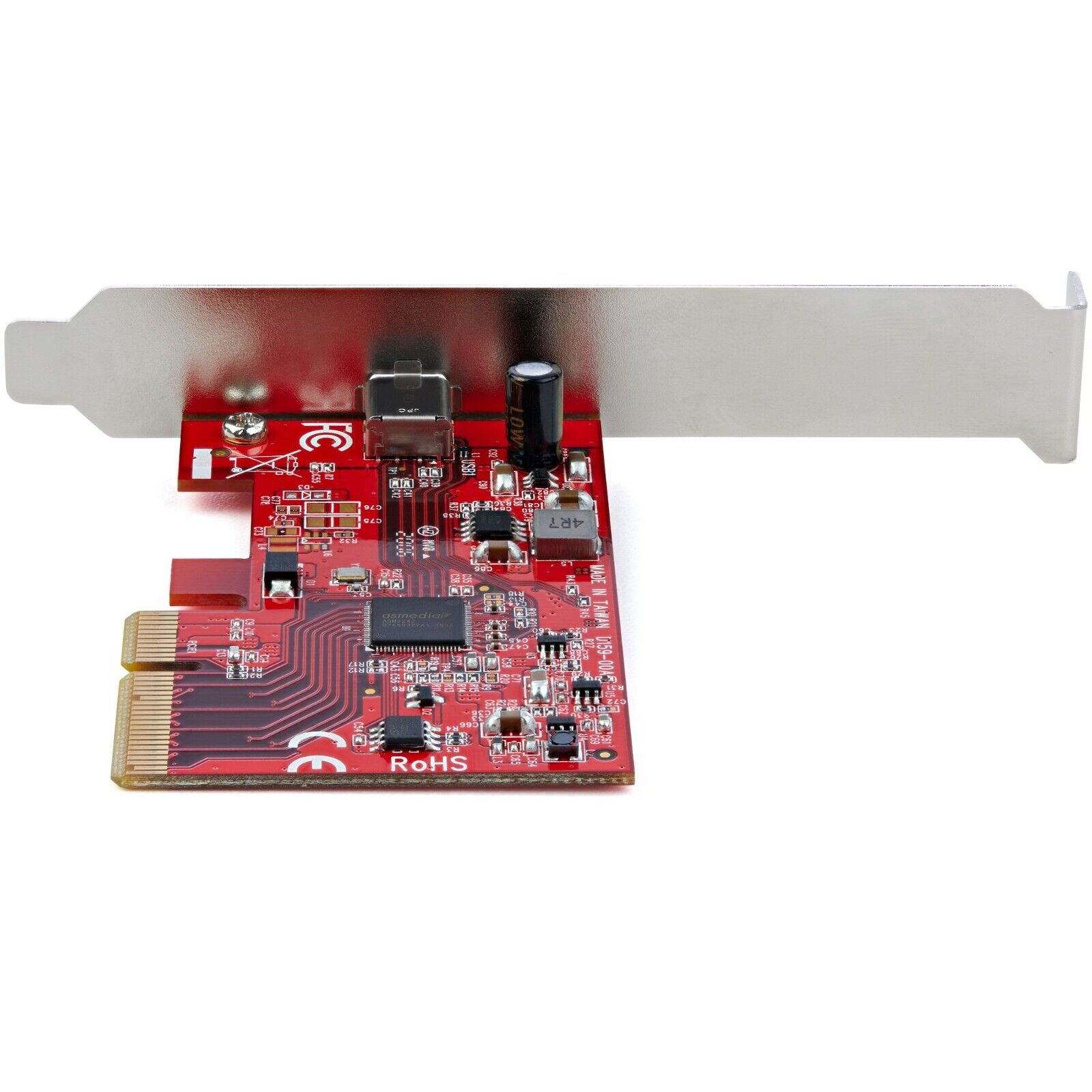

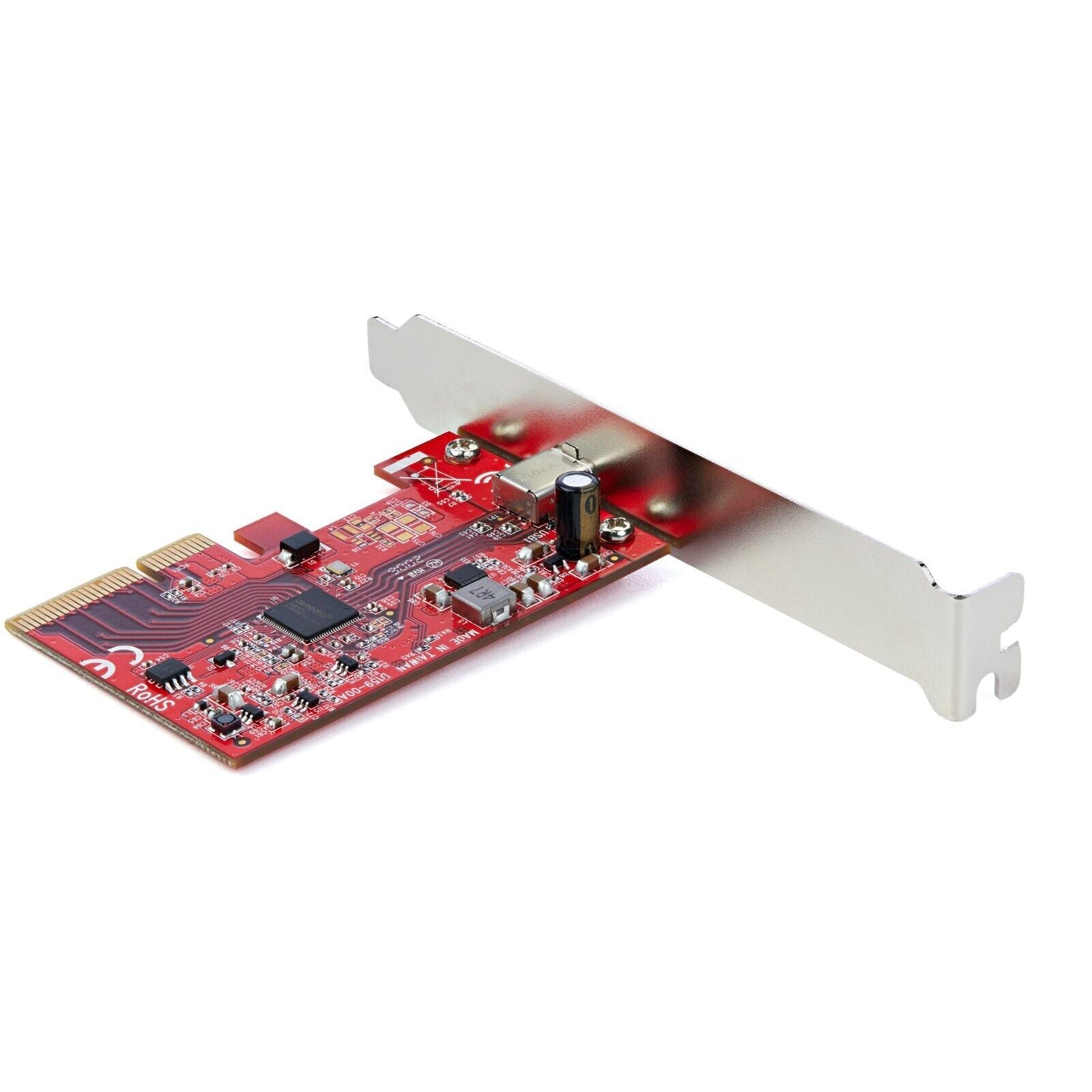

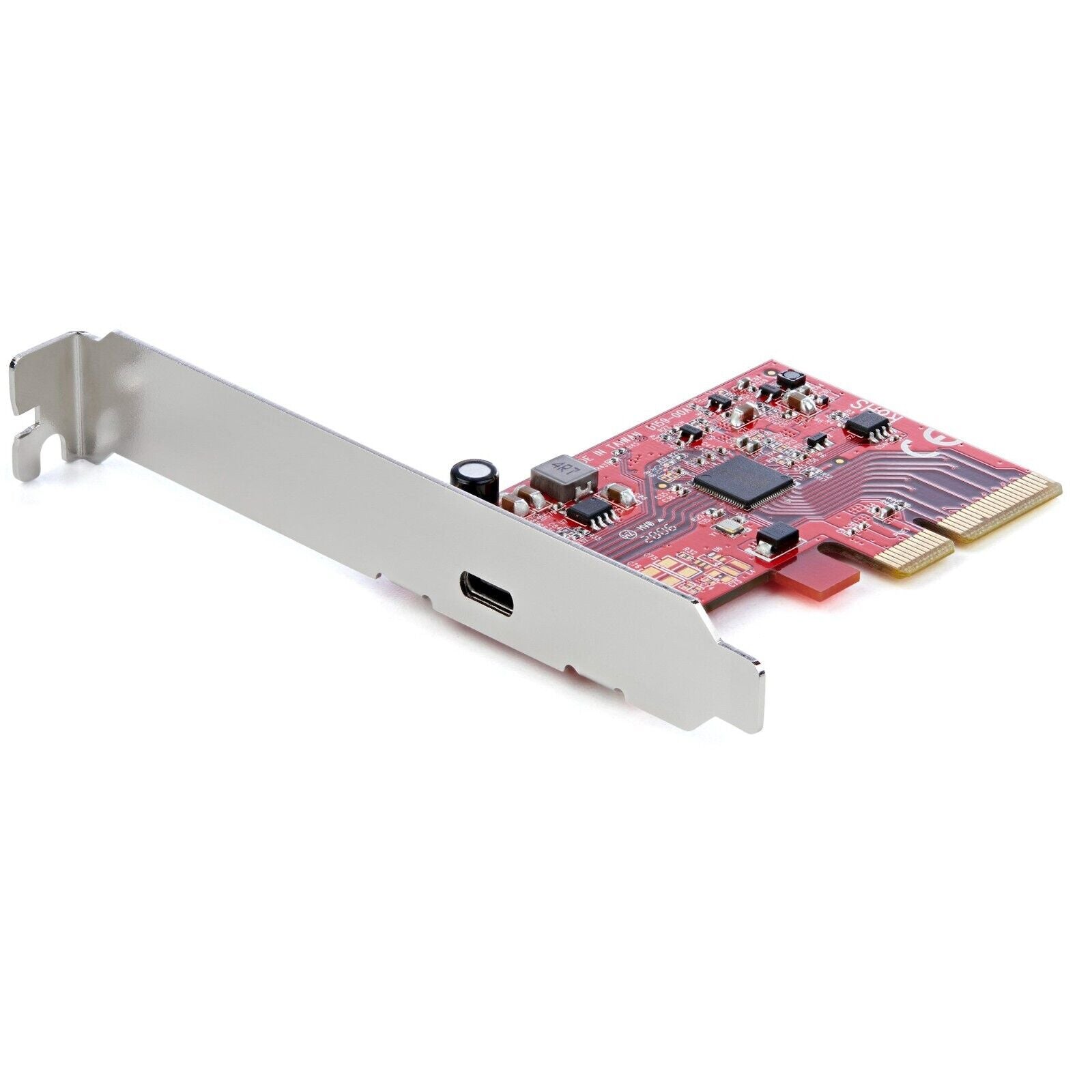

StarTech PEXUSB321C USB-C 3.2 Gen 2X2 SuperSpeed PCIe x4 Expansion Card
Regular price
$67.99 USD
Sale price
$67.99 USD
Regular price
$67.99 USD
Description
Couldn't load pickup availability
StarTech PEXUSB321C USB-C 3.2 Gen 2X2 SuperSpeed PCIe x4 Expansion Card
Current product
Current
Vendor:
Startech
StarTech PEXUSB321C USB-C 3.2 Gen 2X2 SuperSpeed PCIe x4 Expansion Card
Regular price
$67.99 USD
Sale price
$67.99 USD
Regular price
$67.99 USD
Options
Descriptions
1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card - USB Type-C PCIe Add-On Adapter Card - Expansion Card - Windows & Linux - TAA
USB 3.2 Gen 2x2 (20 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-C
Product ID: PEXUSB321C
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x4
External Ports
1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)
Environmental
Operating Temperature
0°C to 85°C (32°F to 185°F)
Storage Temperature
-25°C to 85°C (-13°F to 185°F)
Humidity
15% ~ 90% RH
Hardware
Ports
1
Interface
PCI Express x4
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
USB 3.2 Specification Rev. 1.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0
Chipset ID
ASMedia - ASM3242
Packaging Information
Package Height
1,3 in [3,2 cm]
Package Length
6,9 in [17,4 cm]
Shipping (Package) Weight
4,0 oz [114,0 g]
Package Width
5,7 in [14,4 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
20Gbps
Type and Rate
USB 3.2 Gen 2x2 (20Gbps)
UASP Support
Yes
MTBF
3,126,209 Hours
Physical Characteristics
Product Height
0,9 in [2,2 cm]
Product Length
2,0 in [5,1 cm]
Weight of Product
1,3 oz [37,0 g]
Product Width
3,1 in [8,0 cm]
Color
Red
Software
OS Compatibility
Windows® 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019, 2022
macOS 10.13 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux® 3.5 and up - LTS Versions only
Windows Server® 2012 R2, 2016, 2019, 2022
macOS 10.13 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux® 3.5 and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Note
The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 10Gbps. A PCI Express Gen 2 or Gen 3 port is required to reach speeds up to 20Gbps.
What's in the Box
Included in Package
1 - PCI Express USB Card

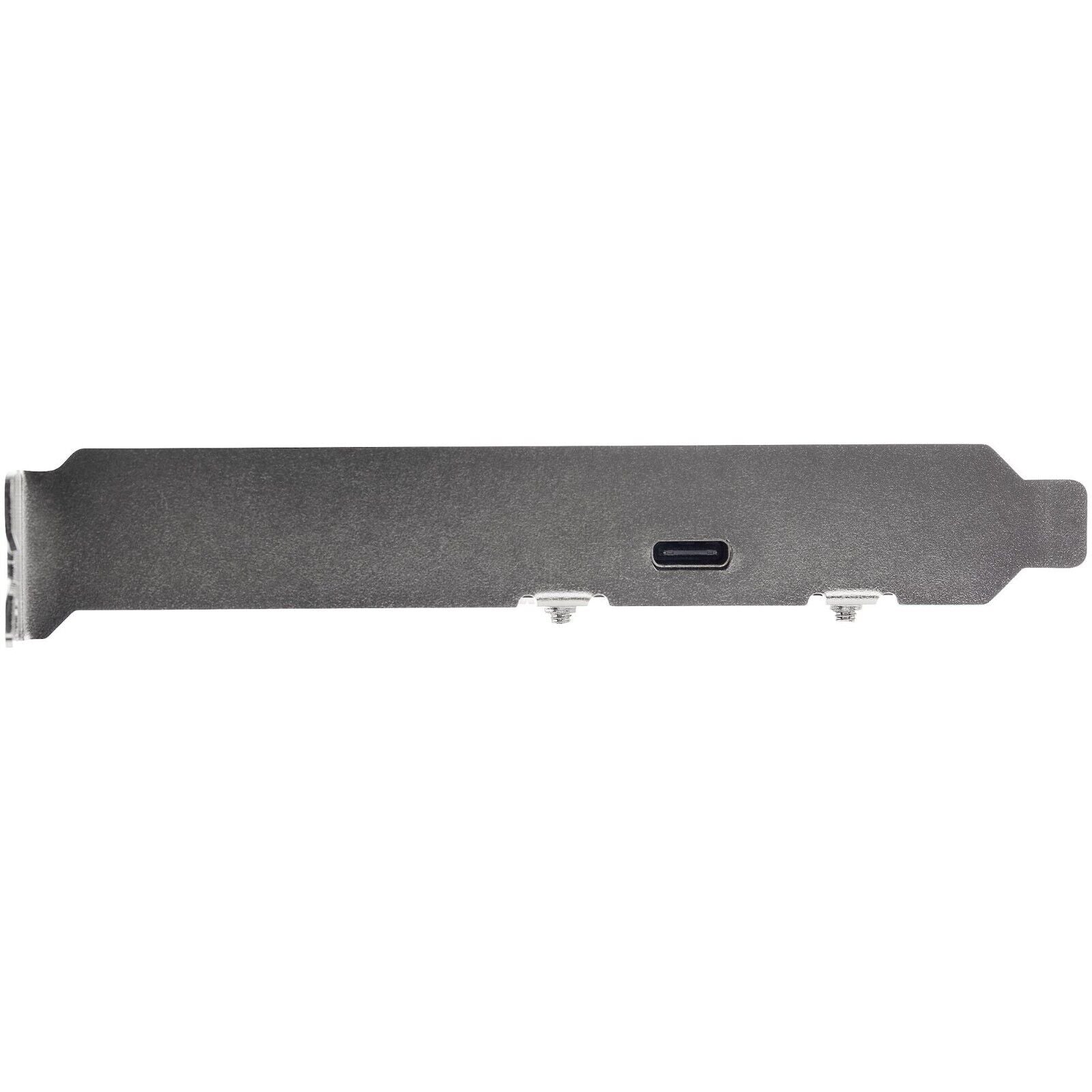

1 - Full Profile Bracket (Installed)
1 - Low Profile Bracket
1 - Quick-Start Guide
