StarTech PEXUSB3S42 4 Port USB 3.0 PCIe Adapter Low Profile Card 3 Ext 1 Int
...){kind=link}
Regular price
$48.69 USD
Sale price
$48.69 USD
Regular price
$42.99 USD
Description
Couldn't load pickup availability
StarTech PEXUSB3S42 4 Port USB 3.0 PCIe Adapter Low Profile Card 3 Ext 1 Int
Current product
Current
Vendor:
Startech
StarTech PEXUSB3S42 4 Port USB 3.0 PCIe Adapter Low Profile Card 3 Ext 1 Int
Regular price
$48.69 USD
Sale price
$48.69 USD
Regular price
$42.99 USD
Options
Descriptions
4-Port PCI Express USB 3.0 Card - 5Gbps
Add four USB 3.0 (USB 3.2 Gen 1) ports – three external ports and one internal port – to your computer
Product ID: PEXUSB3S42
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - SATA Power (15 pin)
1 - USB Type-A (9 pin, 5 Gbps)
External Ports
3 - USB Type-A (9 pin, 5 Gbps)
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
20~80% RH
Hardware
Ports
4
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset ID
VIA/VLI - VL805
Packaging Information
Package Height
1.2 in [30 mm]
Package Length
6.5 in [16.6 cm]
Shipping (Package) Weight
4.9 oz [138.0 g]
Package Width
5.7 in [14.4 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
5 Gbps
Maximum Cable Length
9.8 ft [3 m]
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
MTBF
24,000 hours
Physical Characteristics
Weight of Product
1.9 oz [55 g]
Color
Black
Material
Steel
Product Length
3.4 in [87 mm]
Product Width
0.7 in [1.9 cm]
Product Height
4.7 in [12 cm]
Power
Input Voltage
12V DC
Output Voltage
12V DC
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.6.31 and up - LTS Versions only
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.6.31 and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)
SATA power connector (recommended, but optional)
Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

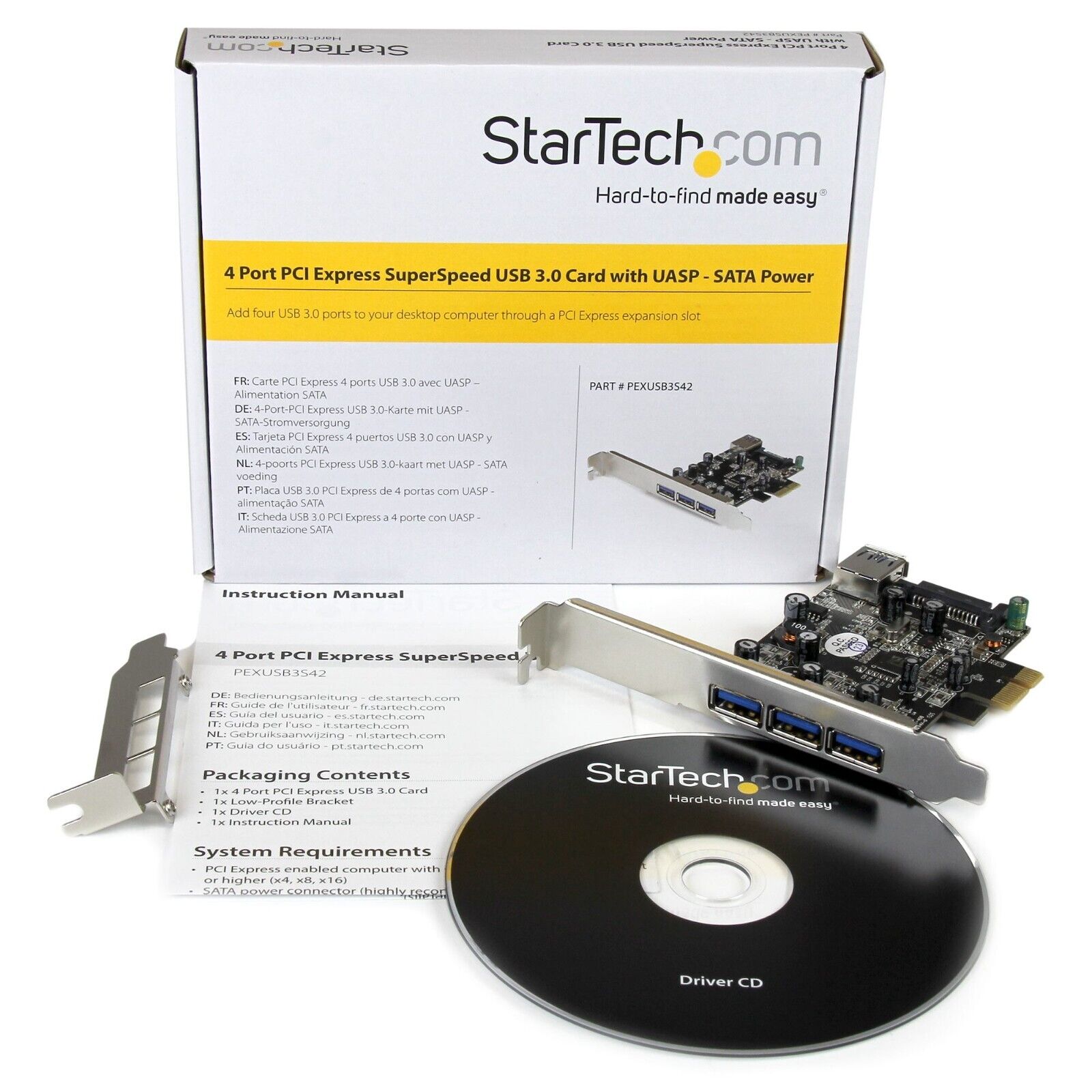

What's in the Box
Included in Package
1 - 4 Port PCI Express USB 3.0 Card
1 - Low-Profile Bracket
1 - Driver CD
1 - Instruction Manual
