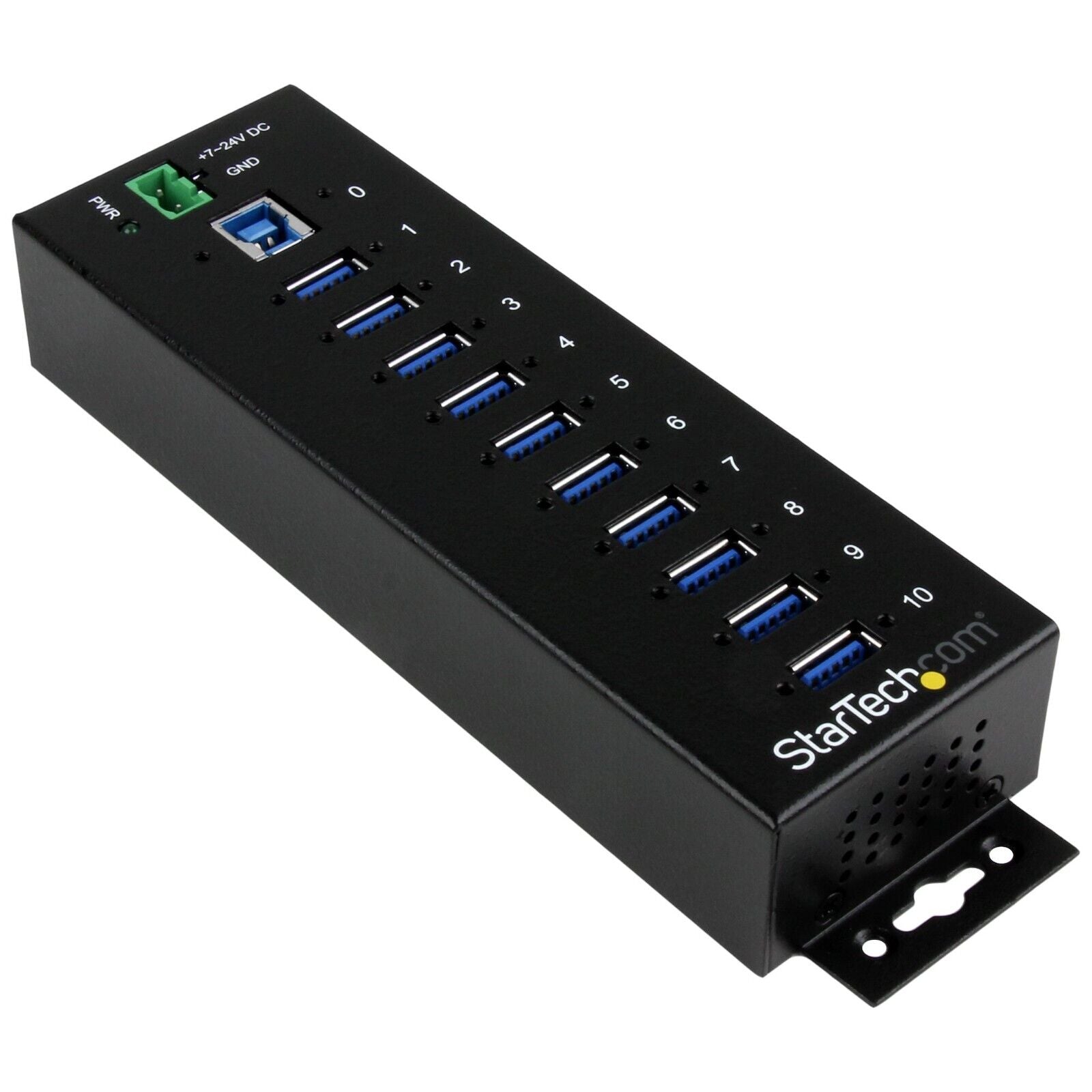

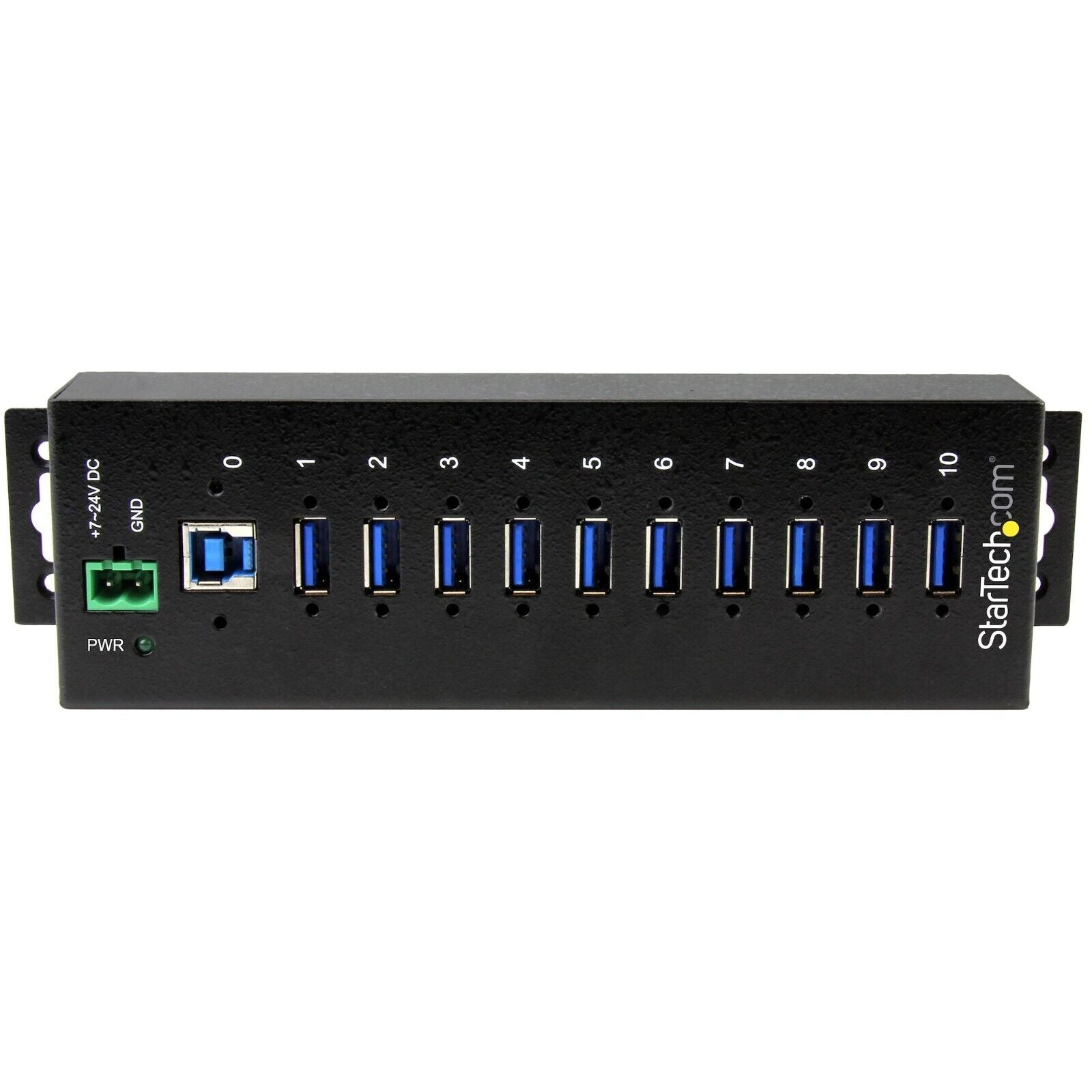

StarTech ST1030USBM 10 Port USB-A 3.0 Industrial Grade Metal Casing Hub Black

Name: StarTech ST1030USBM 10 Port USB-A 3.0 Industrial Grade Metal Casing Hub Black
Brand: Startech
SKU: INGaSTA 3A3791 - ST1030USBM
Price: 220.99 USD
Availability: InStock

$220.99 USD

Shipping calculated at checkout.

In stock: 1

Description

10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

Product ID: ST1030USBM

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

10 - USB Type-A (9 pin, 5 Gbps)

1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)

1 - Terminal Block (2 Wire)

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Humidity

5%~95% RH (Non-condensing)

Hardware

USB-C Device Port(s)

USB-C Host Connection

Fast-Charge Port(s)

Yes

Ports

Interface

USB 3.2 Gen 1 (5Gbps)

Bus Type

USB 3.2 Gen 1 (5Gbps)

Industry Standards

USB Battery Charging Specification Rev. 1.2

USB 3.0 - Backward compatible with USB 2.0/1.1

Chipset ID

Genesys Logic - GL3522

Indicators

LED Indicators

1 - Power (Green)

Packaging Information

Package Height

2.3 in [5.8 cm]

Package Length

9.6 in [24.4 cm]

Shipping (Package) Weight

1.3 lb [0.6 kg]

Package Width

6.6 in [16.8 cm]

Package Quantity

Performance

Maximum Data Transfer Rate

5 Gbps (USB 3.2 Gen 1)

Type and Rate

USB 3.2 Gen 1 - 5 Gbit/s

ESD Protection

+/-15kV (Air)

+/-8kV (Contact)

Surge Protection

350W on the DFP and UFP

MTBF

119388 hours

Physical Characteristics

Form Factor

Industrial

Weight of Product

12.6 oz [357 g]

Color

Black

Material

Steel

Cable Length

80.0 in [2032 mm]

Product Length

7.8 in [19.8 cm]

Product Width

2.2 in [5.6 cm]

Product Height

1.2 in [3.1 cm]

Power

Power Source

Terminal Block

Input Voltage

7 ~ 24 DC

Output Voltage

7 ~ 24 DC

Software

OS Compatibility

OS Independent; No additional drivers or software required

Special Notes / Requirements

System and Cable Requirements

Host computer with an available USB 3.0 port

Note

This product is intended for use with terminal block power only – Standard AC adapter not available

If connected to a USB 2.0 host port, performance may be limited

What's in the Box

Included in Package

1 - 10-port industrial USB 3.0 hub

1 - USB 3.0 host cable

1 - DIN rail mounting kit

1 - terminal block (2 wire)

1 - instruction manual
