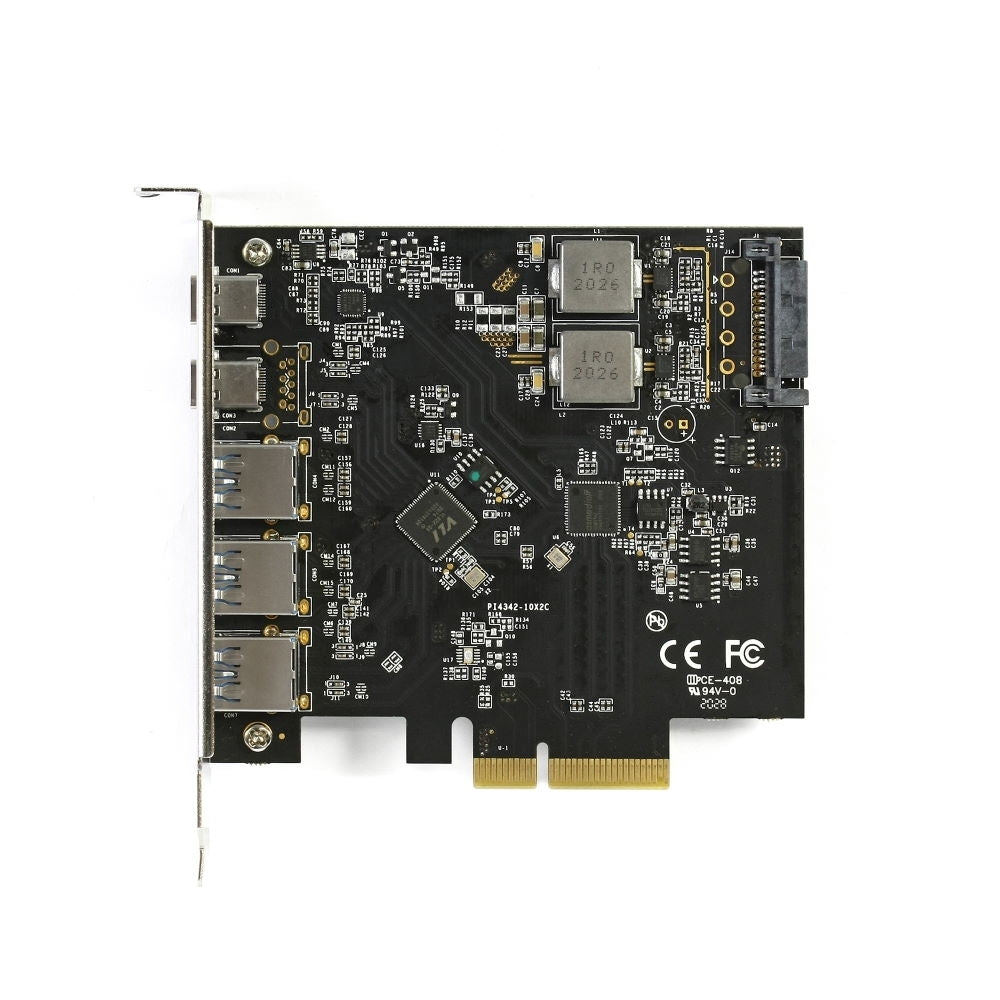

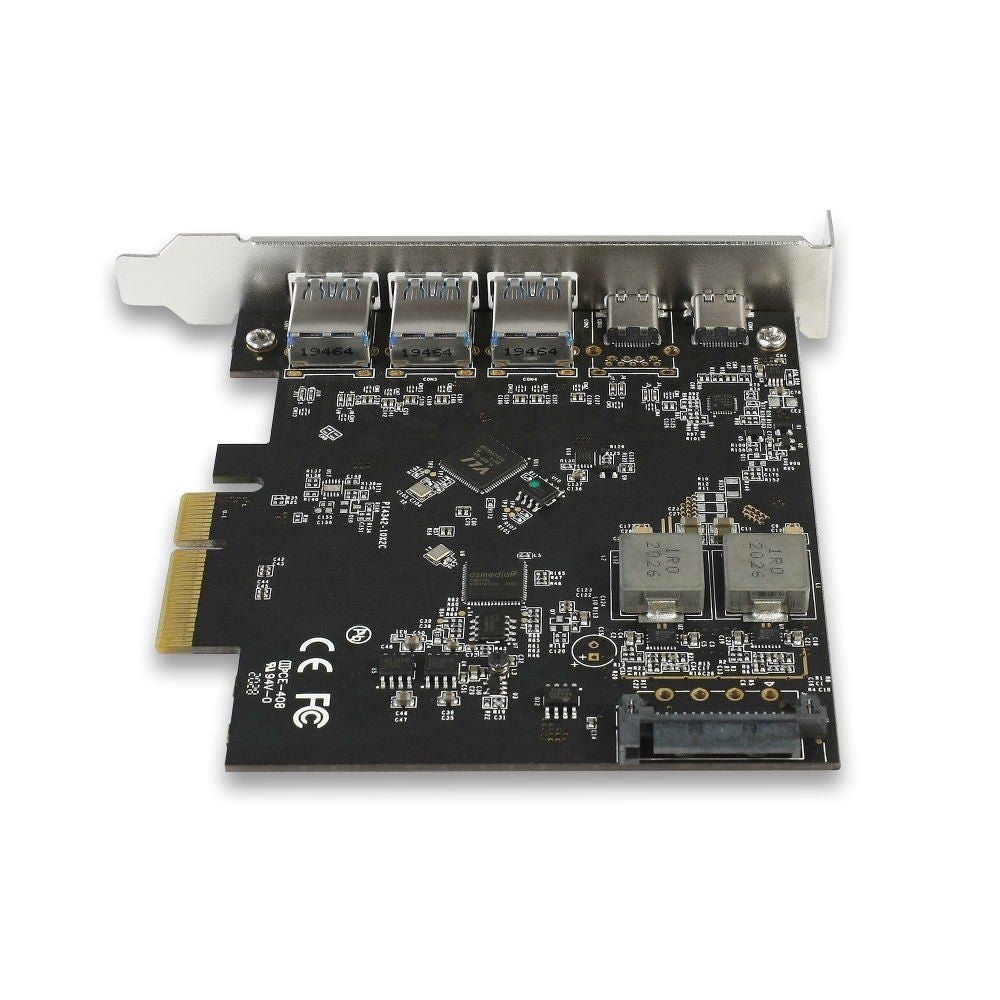

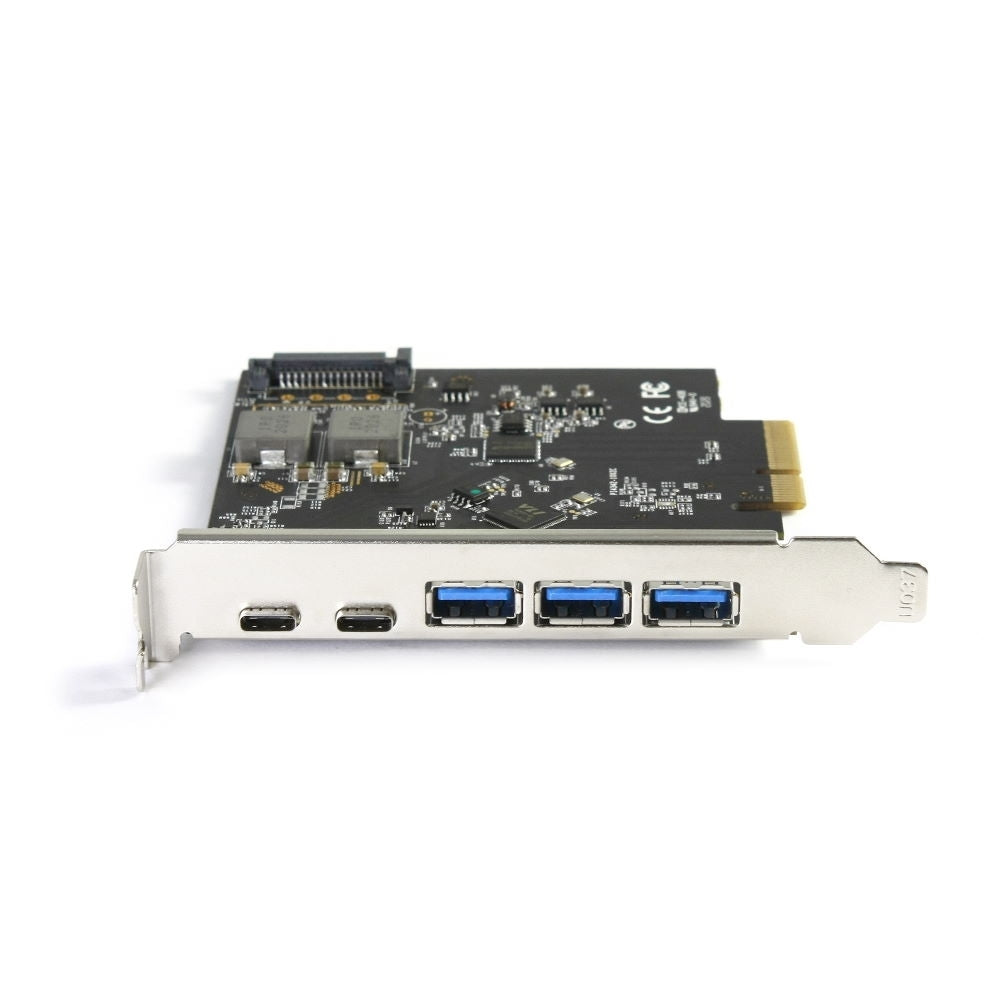

Vantec UGT-PC3A2C 5-Port USB 3.2 Gen2x2 (20Gbps) with 2C and 3A PCIe Host Card

Marketing Information

5-Port USB 3.2 Gen2x2 (20Gbps) With 2C And 3A PCIe Host Card

UGT-PC3A2C

• The Vantec 5-Port USB 3.2 Gen 2x2 (20Gbps) 2C 3A PCIe Host Card is designed to offer the latest in USB 3.2 Technology. It provides the flexibility of Two Type C and Three Type A ports all on one card. This design links the PCIe Gen3 x2 from the PCIe Bus to all five ports. All three Type-A ports support Battery Charging Specs 1.2 with 1.5A per port. Each port is capable of a theoretical speed of 10Gbps which is twice the speed of older USB 3.0(5Gbps). This speed enables you to access/transfer data extremely faster, and with backward compatibility to older USB 3.0, USB 2.0 or USB 1.1.

Highlight

• USB 3.2 Gen 2x2 (20Gbps) Speed to give you the Maximum File Transfer or Backup.Support PCIe x4 slot(use 2 lanes) interface with wider lanes for speed and large amount of data.
• Support UASP Devices on both ports for extra boost in speed when using latest OS.
• Support PCI-Express 3.0 specifications for increase speed thru the PCIe Bus.
• Support for Windows and Linux OS for latest Technology
• USB 3.1 Type C Port for Newer devices and Type A for Compatibility with older USB 3.0 and 2.0.
• Full height PCIe x2 (requires x4 slot)
• Backward compatible with legacy USB 3.0, 2.0 and 1.1
• Compliant with extensible Host Controller interface specification Revision 1.1
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
• Supports PCI Express® Card Electromechanical Specification Release 2.0
• Supports PCI Bus Power Management Interface Specification Release 1.2
• Support driver on Windows 7 and native drivers within Windows 8/8.1/10
• Support Linux kernel 3.13.0 & above

Detail Specifications

• Model: UGT-PC3A2C
• Device Support: USB 3.2 Gen2x2 Type C and Type A
• Ports:
  • 5, USB 3.2 Gen2, Two Type C and Three Type A ports
  • Type A ports support BC 1.2 specs, 5V at 1.5A or Bus-powered at 5V at 1.5A
  • Type C ports support 5V at 3A
• Bus Technology:
• PCI-Express x2 (uses PCIe x4 slot)
• Power connector:
• SATA power connector
• Environmental:
• Operating Temperature:
• 5 oC to +50oC
• Operating Humidity:
• 20% to 80 % RH (no condensation)
• Storage Temperature:
• -20oC to +60oC
• Storage Humidity:
• 10% to 90% RH (no condensation)
• System Requirements:
  • PCI-Express x4, x8 or x16 slots
  • Microsoft Windows 7 (drivers required, on CD or latest drivers online).
  • Windows 8.x/10/11 or newer (native, no drivers required),
  • Linux 3.2, 3.10, 3.12, 4.2 and 4.4 (native) or later
  • USB 3.1 devices preferred to get maximum speed
  • SATA power, not Low Profile
• Package Contents:
  • 5-Port USB 3.2 Gen2x2 (20Gbps) with 2C and 3A PCIe Host Card
  • Quick Installation Guide
• Warranty Information: 1-Year from Vantec
