SIIG JU-H20511-S1 USB 3.0 to Video DVI Dual Display Adapter Retail

Marketing Information

SIIG’s USB 3.0 to HD-/DVI Dual Display Adapter allows you to add one HD- and one DVI port simultaneously to your Windows or Mac computers through a USB (3.0) port. It supports triple display modes including Primary, Mirror and Extended to enable a wide variety of applications, great for presentation or entertainment. SuperSpeed USB 3.0 5Gbps data transfer rate and full HD resolution are supported to smoothly deliver high-resolution crystal clear images/videos. It is quick and easy to setup with no external power adapter required. This high performance dual display adapter greatly expands and enhances your computer’s display capability for a much improved efficient and productive system.

Features:

• Easily adds an HD- and DVI port simultaneously to Windows or Mac computers through a USB (3.0) port
• SuperSpeed USB 3.0 5Gbps data transfer rate supports crystal clear and smooth high-resolution video/images
• Triple display modes (Primary, Mirror, Extended) support a wide variety of applications such as presentation or entertainment, great add-on solution for increasing productivity
• Delivers 5.1 channel surround sound audio through HD- output
• Supports high resolution up to 1920x1080p (Full HD) and 2048x1152
• Quick and easy installation with no external power adapter required

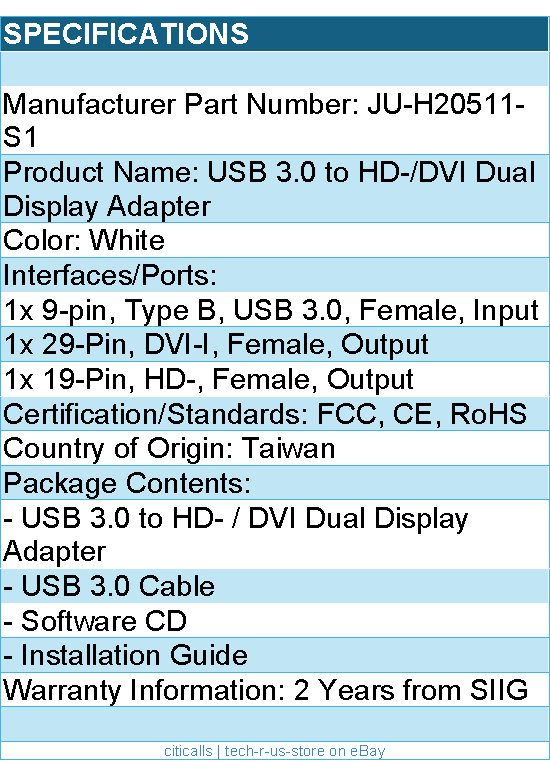

Detail Specifications

• Specifications
  • Compliant with Universal Serial Bus 3.0 Specification
  • Compatible with both standard (4:3) and widescreen (16:9 and 16:10) aspect ratios
  • Automatically detects the connected displays using VESA compliant protocols
  • Allows connecting up to 3 adapters and up to 6 monitors per system

Chipset: Display Link DL-3900

Operating Power Consumption: 2.5W

• Display Modes
  • Primary
  • Extended
  • Mirror

• Resolution
  • Standards (4:3 and 5:4): 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600, 640x480
  • Widescreen (16:9 and 16:10): 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1366x768, 1280x800, 1280x768, 1280x720

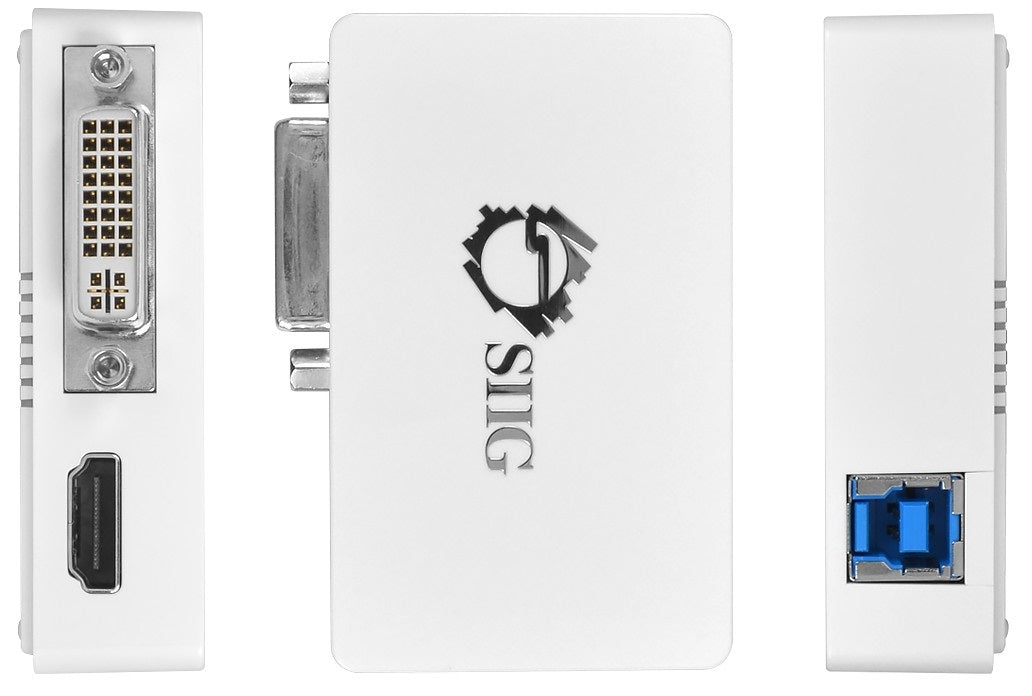

• Interfaces/Ports

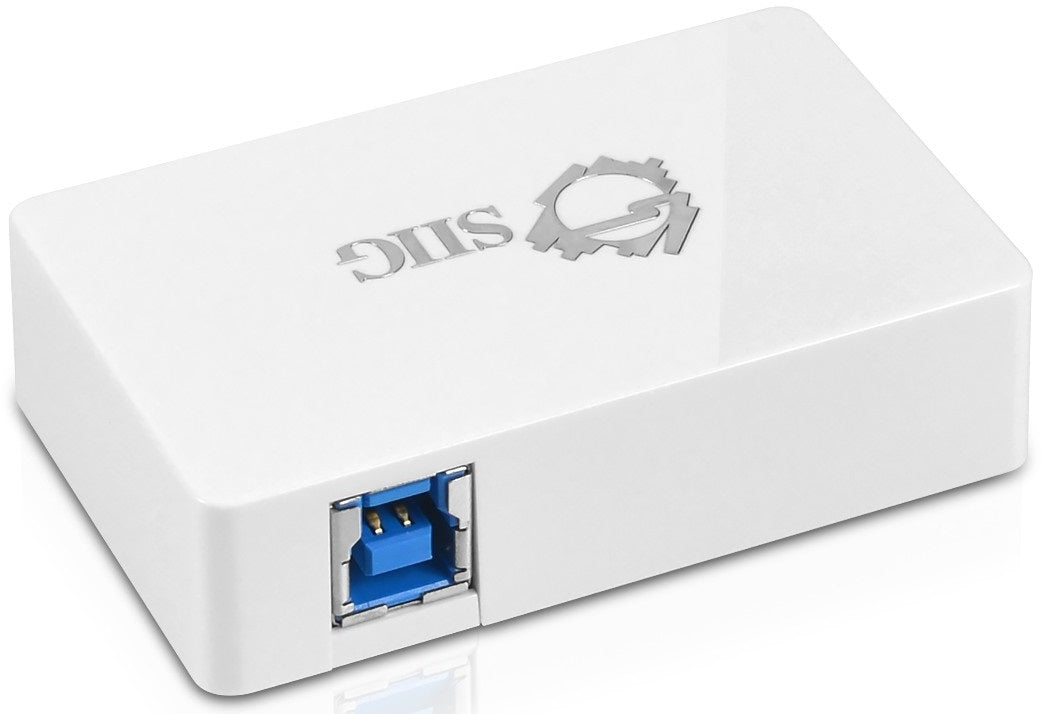

  • 1x 9-pin, Type B, USB 3.0, Female, Input

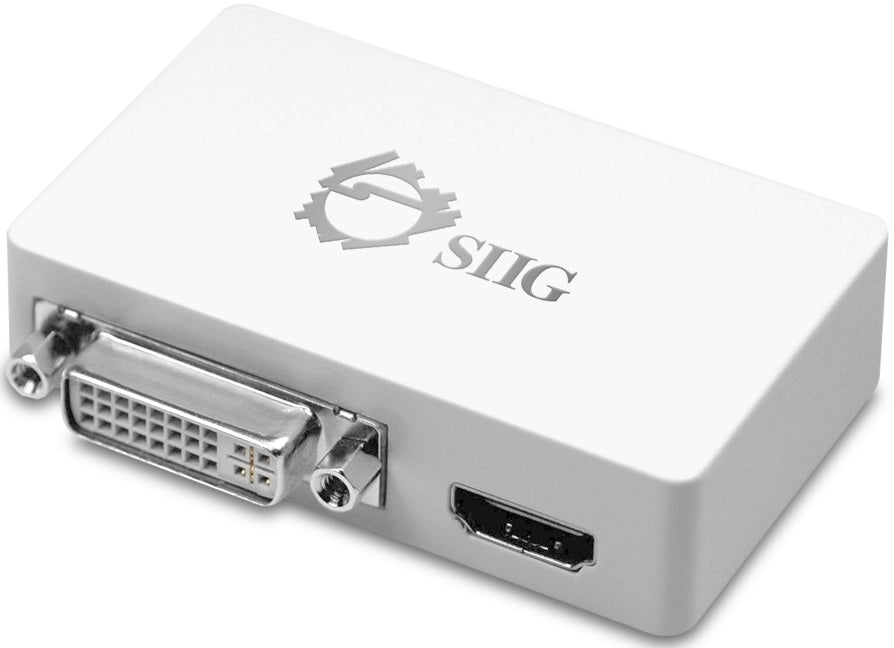

  • 1x 29-Pin, DVI-I, Female, Output
  • 1x 19-Pin, HD-, Female, Output
• USB Cable
  • USB 3.0 Type A (Male) to Type B (Male)
  • Length: 3ft (0.9m)
  • Color: White
• Environmental Conditions
  • Operating temperature: 32 to 131 degrees F
  • Storage temperature: -4 to 140 degrees F
  • Relative humidity: 10% to 90% non-condensing

Certification/Standards: FCC, CE, RoHS

Country of Origin: Taiwan

• Requirements
  • Intel Core Due 2.0 GHz CPU with an available USB 2.0/3.0 port (USB 3.0 recommended)
  • Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-bit)
  • Mac OS X 10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11

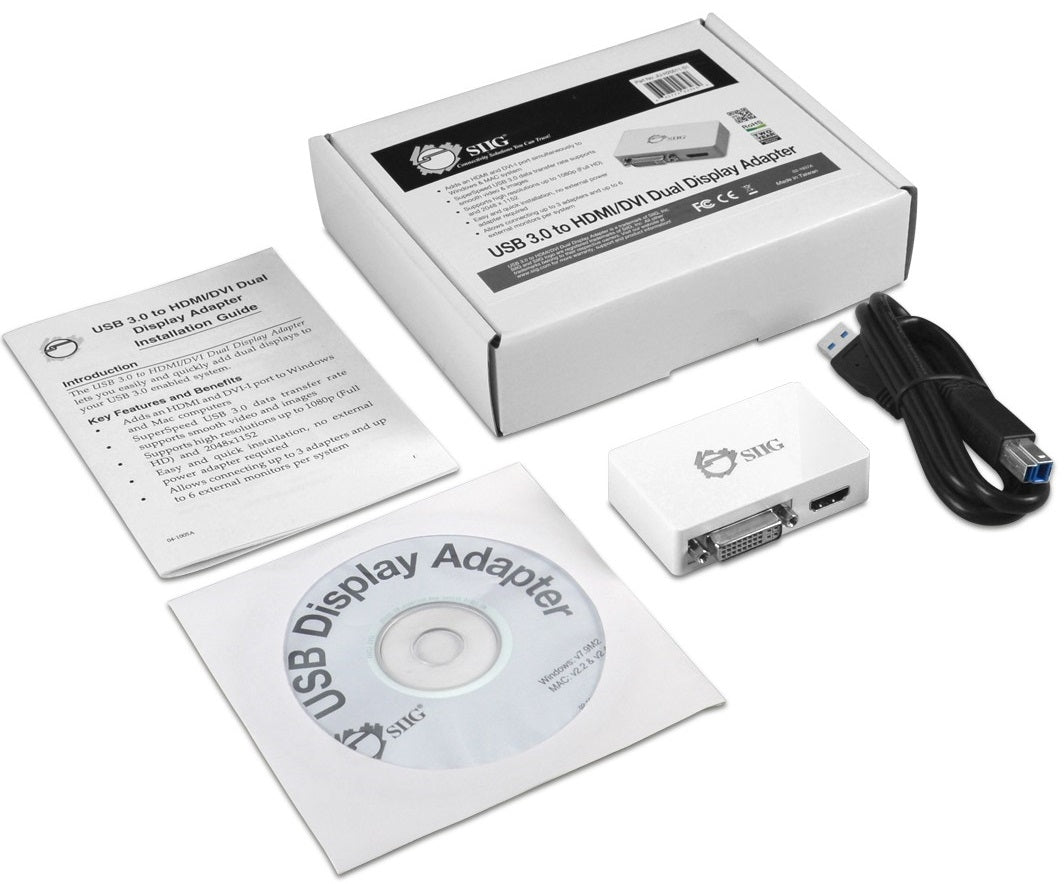

• Package Contents
  • USB 3.0 to HD-/ DVI Dual Display Adapter
  • USB 3.0 Cable
  • Software CD
  • Installation Guide
