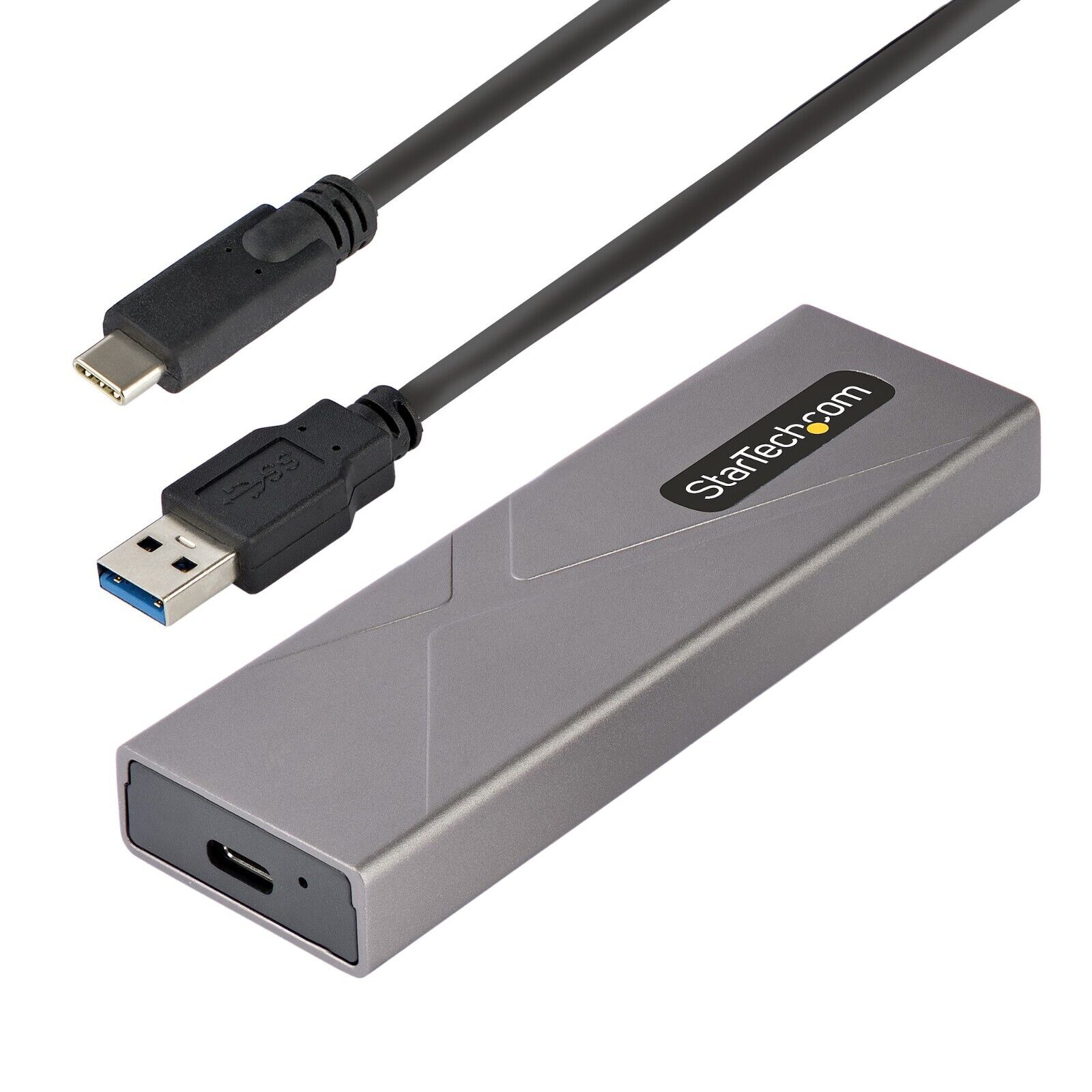

StarTech M2-USB-C-NVME-SATA USB-C to M.2 NVMe SSD Portable Adapter Enclosure Gry

Name: StarTech M2-USB-C-NVME-SATA USB-C to M.2 NVMe SSD Portable Adapter Enclosure Gry
Brand: Startech
SKU: INGaSTA 04RX14 - M2-USB-C-NVME-SATA
Price: 69.99 USD
Availability: InStock

$69.99 USD

Shipping calculated at checkout.

In stock: 2

Description

USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure - Tool-free External M.2 PCIe/SATA NGFF SSD Aluminum Case - USB Type-C&A Host Cables - Supports 2230/2242/2260/2280

Works with Both PCIe and SATA Based M.2 Drives | Supports 2230/2242/2260/2280 Drive Heights | Tool-less Drive Installation | USB-C and USB-A Host Cables Included

Product ID: M2-USB-C-NVME-SATA

Warranty Information

Warranty

2 Years

Connector(s)

Drive Connectors

1 - M.2 (PCIe, SATA, M-Key, NGFF)

Host Connectors

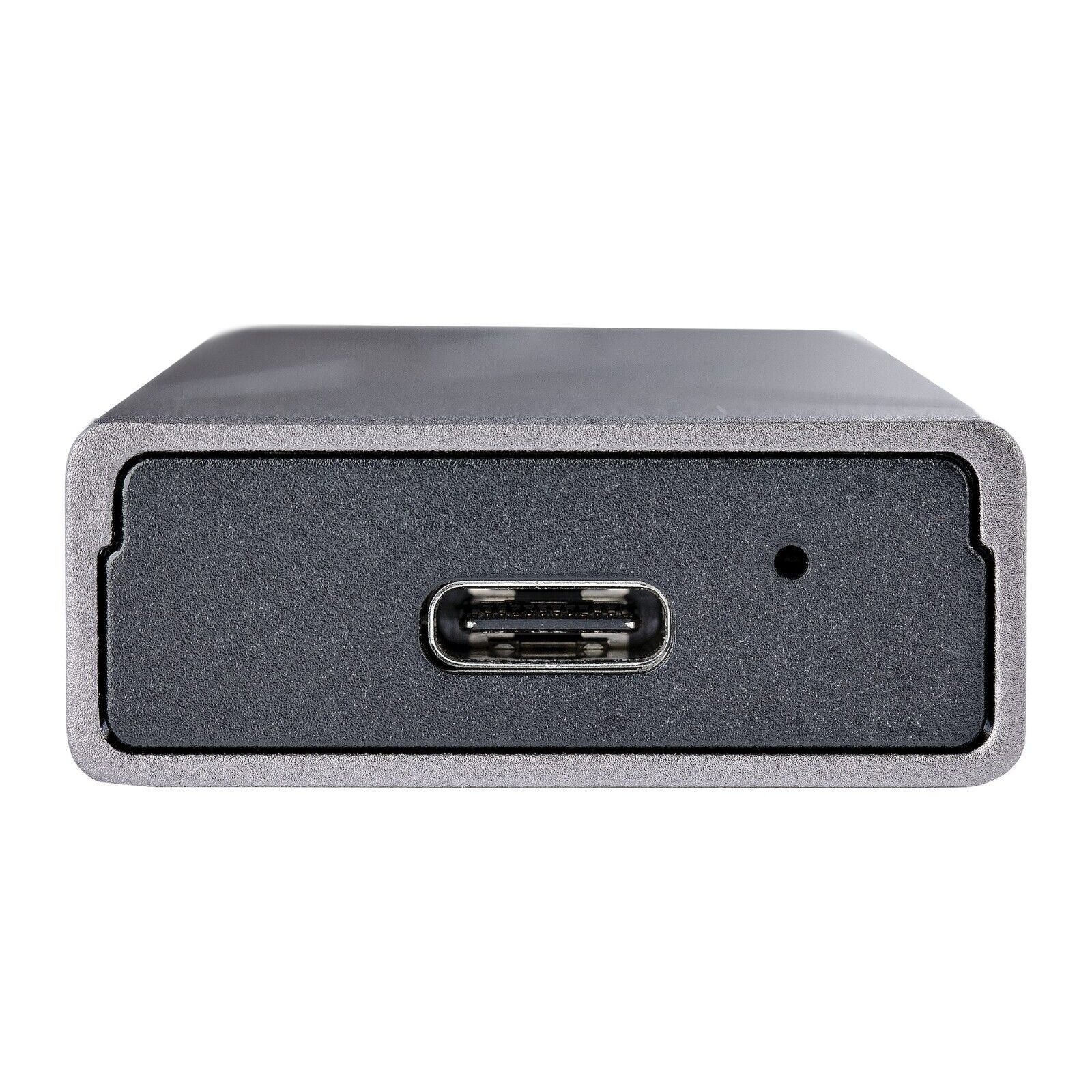

1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps)

Environmental

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-10°C to 65°C (14°F to 149°F)

Humidity

Operation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH

Hardware

Interface

USB 3.2 Gen 2

Bus Type

USB 3.2 Gen 2 10Gbps

Number of Drives

Drive Size

22 mm - M.2 NVMe

Compatible Drive Types

M.2 (PCIe, NVMe, M-Key, NGFF)

M.2 (SATA, B+M-Key, NGFF)

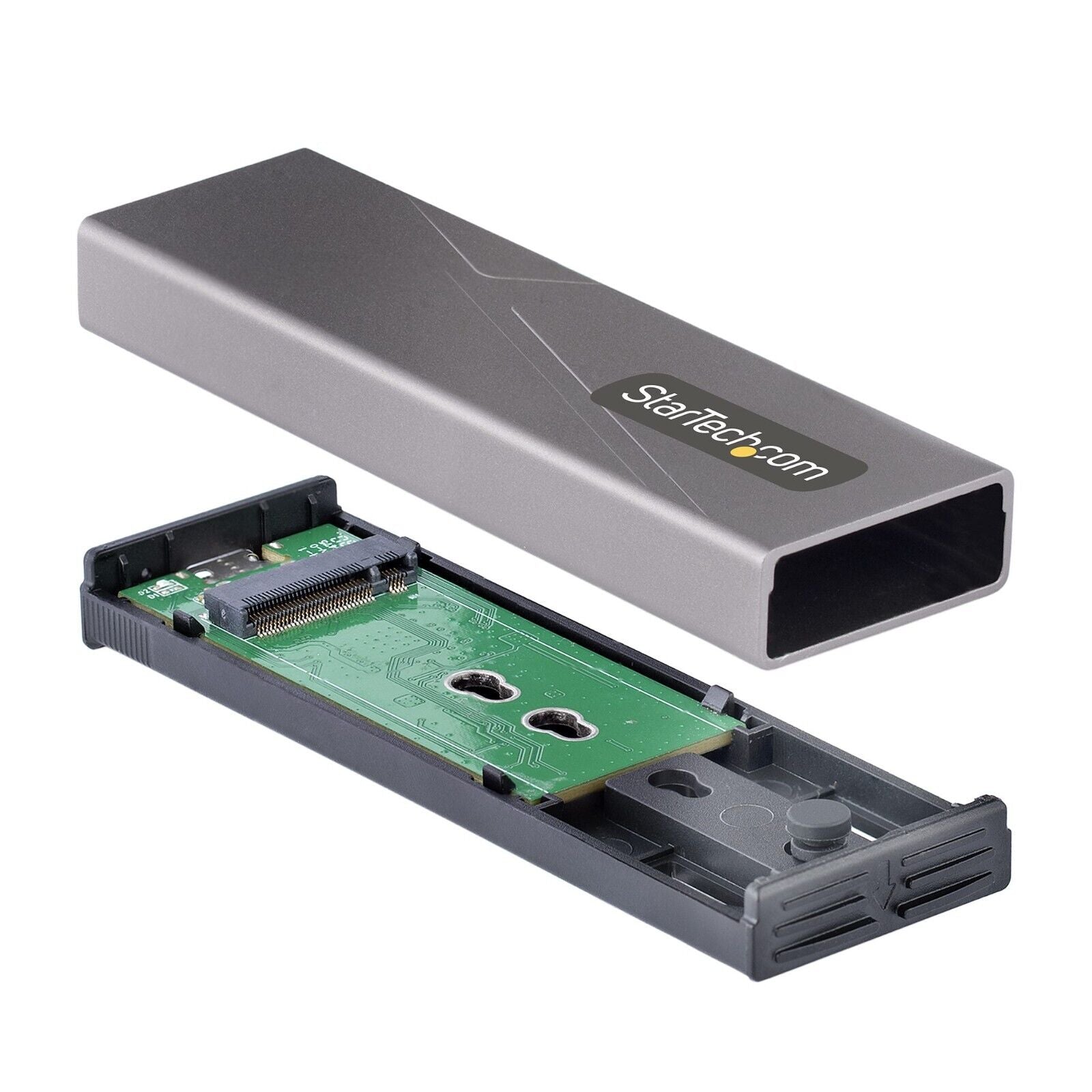

Drive Installation

Fixed

Supported Drive Height(s)

2230

2242

2260

2280

Chipset ID

Realtek - RTL9210B

Indicators

LED Indicators

1 - Power & Activity

Packaging Information

Package Height

1,2 in [3,0 cm]

Package Length

6,9 in [17,5 cm]

Shipping (Package) Weight

6,2 oz [176,0 g]

Package Width

5,6 in [14,2 cm]

Package Quantity

Performance

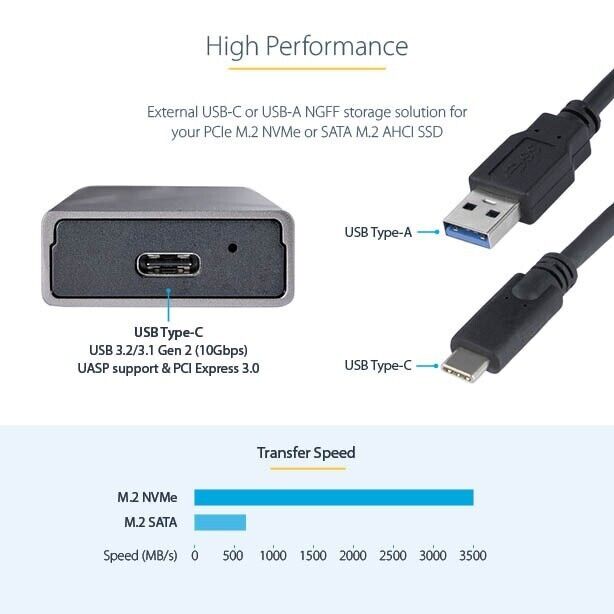

Maximum Data Transfer Rate

10 Gbps

Type and Rate

USB 3.2 Gen 2 - 10 Gbit/s

UASP Support

Yes

TRIM Support

Yes

4Kn Support

Yes

Type and Rate

NVMe (PCIe Gen 3)

Insertion Rating

USB-C: 10,000 cycles
M.2: 60 Cycles

General Specifications

Fully compatible with M.2 SATA, AHCI and PCIe NVMe based drives

MTBF

112,000 Hours

Physical Characteristics

Color

Space Gray

Product Height

0,6 in [1,4 cm]

Product Length

4,1 in [10,5 cm]

Weight of Product

1,8 oz [52,0 g]

Product Width

1,4 in [3,5 cm]

Material

Aluminum

Cable Length

12,6 in [32 cm]

Power

Power Source

USB-Powered

Input Voltage

5V DC

Output Voltage

5 DC

Special Notes / Requirements

Note

Windows 7 and earlier Windows versions do not support TRIM with USB storage devices.

What's in the Box

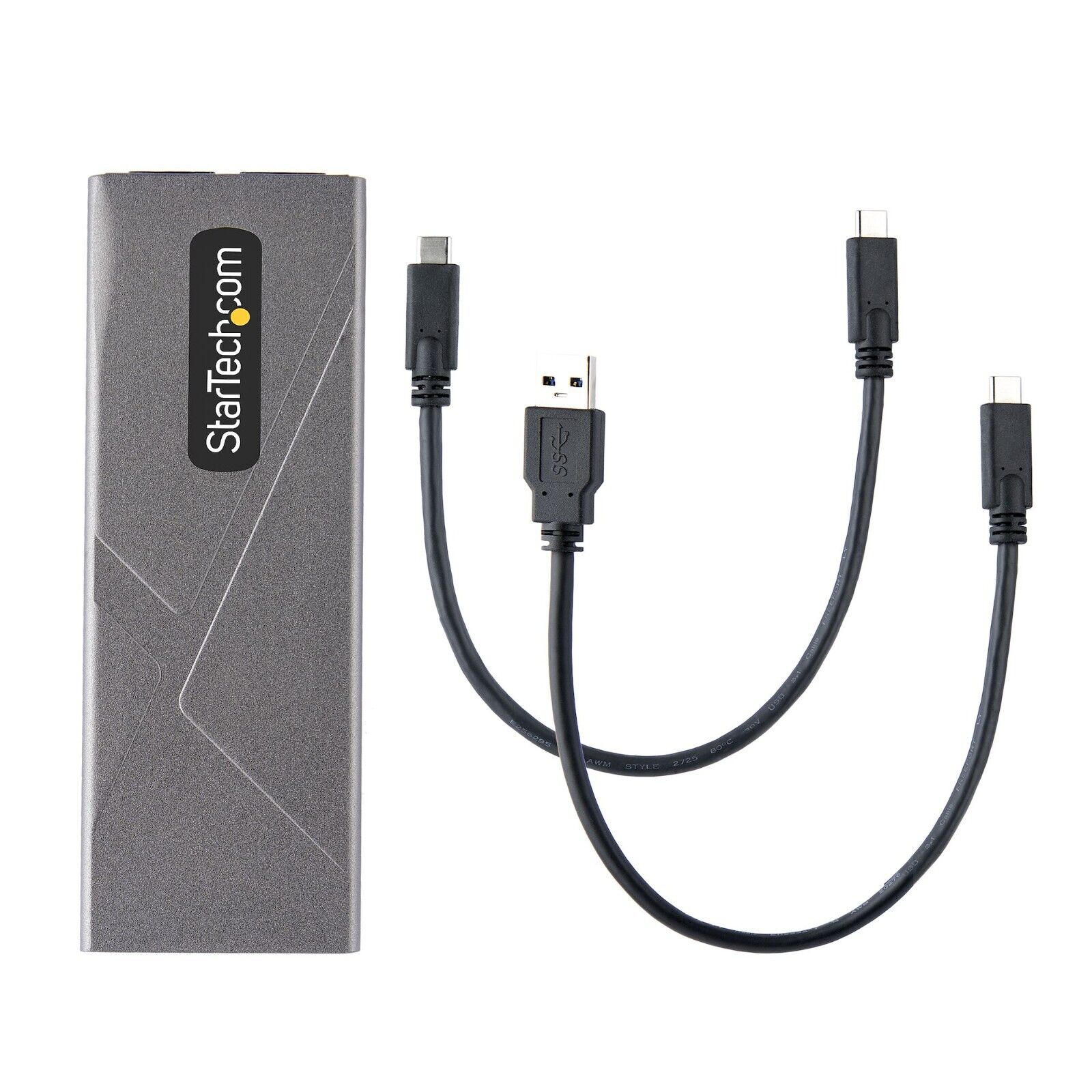

Included in Package

1 - M.2 SSD Enclosure

1 - 12 in [30 cm] USB-C to USB-C Host Cable

1 - 12 in [30 cm] USB-C to USB-A Host Cable

1 - Thermal Pad

2 - SSD Fastener Pegs

1 - Quick-Start Guide
