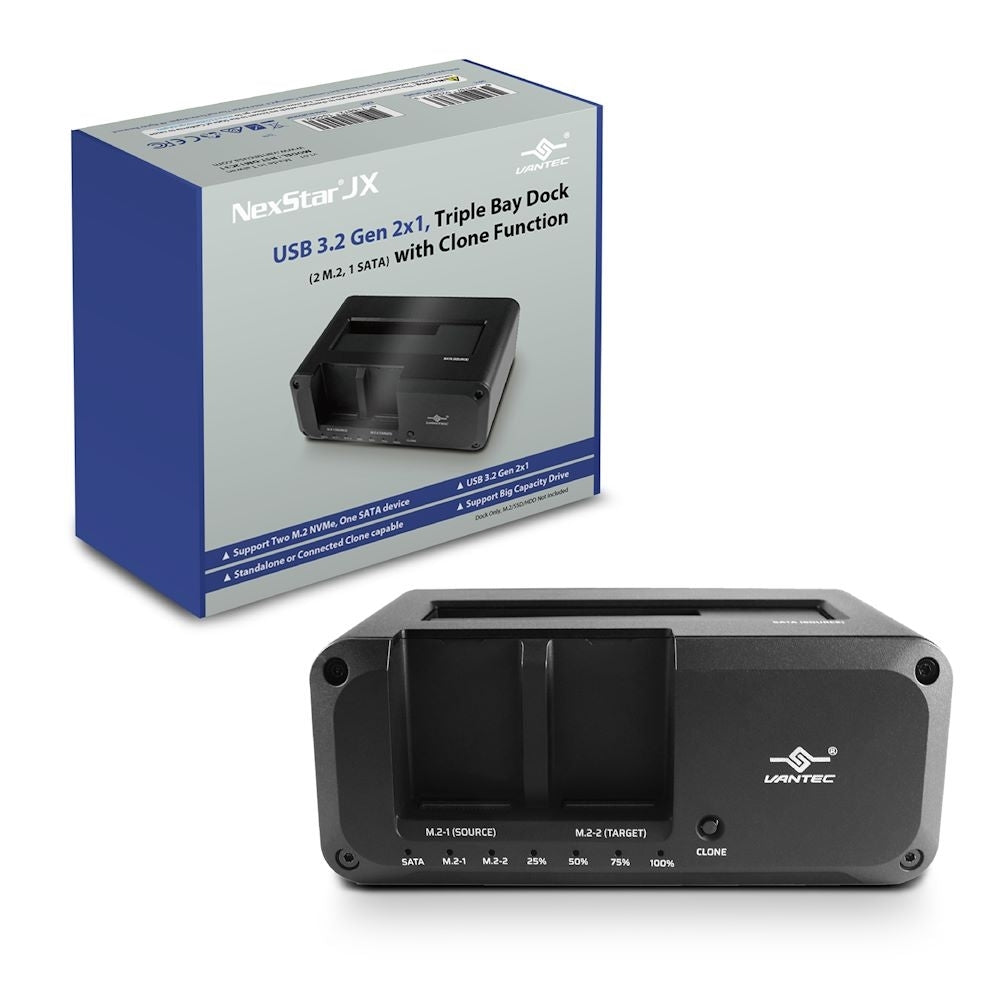

Vantec NST-DM12C31 NexStar JX USB3.2 Gen2x1 Triple Bay Dock with Clone Function

Marketing Information

• This new generation NexStar JX Triple Bay Dock with Clone Function is designed to work with TWO M.2 NVMe, ONE SATA III Drives, and for duplicating M.2 NVMe and SATA III drives of big capacity*. Normal Dock only gives you access to TWO devices, We offer THREE, it is capable of duplicating in many combinations, M.2 NVMe to M.2 NVMe OR SATA to M.2 NVMe when using Standalone clone and many more using software clone. This simple docking design offers quick access and removal of your M.2 NVMe or SATA drives for storage or data duplication. With its built-in one-button cloning; you can copy sector-by-sector as a standalone device without even connecting to a computer. When connected to a computer, the device transforms into a Fast USB 3.2 Gen2x1 (10Gbps) storage device for THREE high-capacities Storage devices. Whether your need is storage or duplication, the Vantec NexStar JX Triple Bay Dock with Clone Function is the perfect solution.

Features:

• Support 3 Storage Media as USB Storage Dock
• - Two M.2 NVMe, One SATA III (2.5” or 3.5” SSD/HDD)
• - Support M.2 size: 2230/2242/2260/2280/22110 and latest 2580/25110
• - Capable of supporting a total of 40TB of Storage***

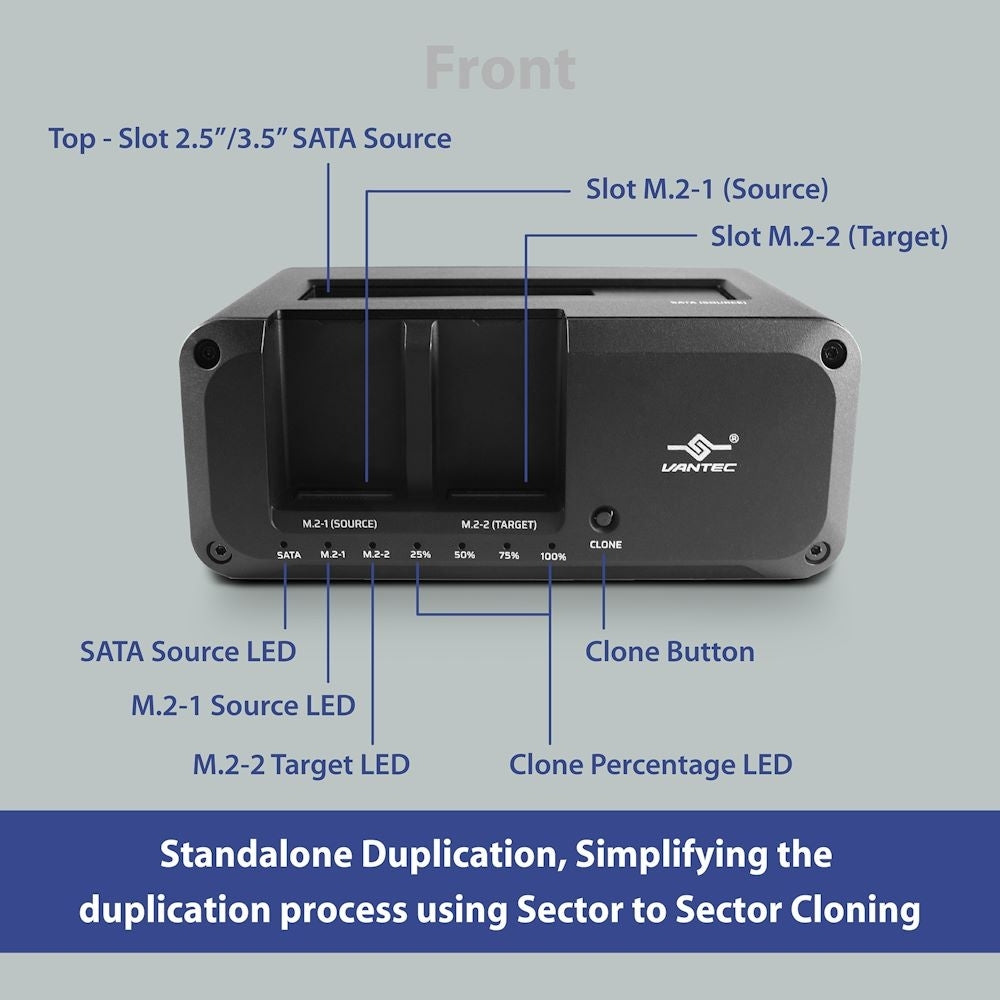

• Standalone Duplication, Simplifying the duplication process using Sector to Sector Cloning*
• - Design to use without connecting to a system
• - Fast cloning speed M.2 NVMe to M.2 NVMe - 1TB/20 minutes****
• - One Touch Duplication (OTD) for easy worry-free Cloning
• - Clone Mode: Flexible design to support Two Types of Source Interface for Clone Function
• > M.2 NVMe to M.2 NVMe
• > 2.5” or 3.5” SSD/HDD to M.2 NVMe

Connected Duplication, Connected via USB to System to use Clone Software**

Detail Specifications

• Model: NST-DM12C31
• Dock Support: M.2 NVMe SATA III/II/I, HDD/SSD/Hybrid Drive
• Dock M.2 Size: 2230/2242/2260/2280/22110/new 2580/25110
• M.2 with HeatSink Measurement:
• (W) less than or equal 28mm x (L) >110mm x (Db) 3.5mm (Df) >8.5mm Drawing
• Dock SATA Size:
• 2.5/3.5 SATA SSD/HDD/Hybrid Drive
• Internal Interface:
• Two M.2 NVMe, One Standard SATA III/II/I

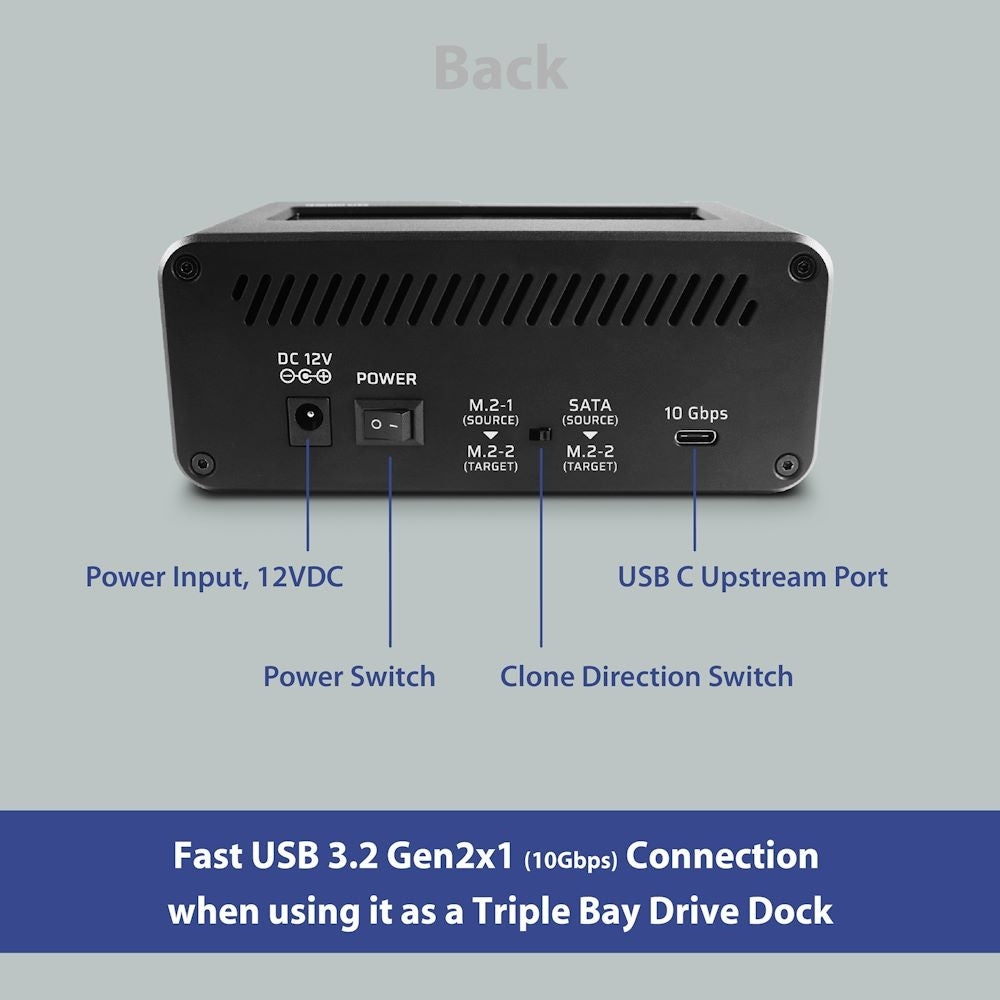

• External Interface:
• USB 3.2 Gen2x1 Type C
• Interface Cable:
• USB 3.2 Gen2x1 Type C to C/A
• USB cable Length:
• 100 cm / 39 inches
• Power Supply:
• Universal Switching AC adapter, Output: 12VDC, 3A
• Storage Device Capacity:
• High Capacity M.2 NVMe (1/2/4/8/16/32TB), High Capacity SATA III SSD/HDD (20TB or more)
• Stand Alone Clone Speed:
• M.2 NVMe to M.2 NVMe - 1TB/20 minutes
• Material:
  • Heavy Duty ABS, Metal
  • Check VantecUSA.com Website FAQ for more current support capacity.
  • Stand-Alone Cloning speed tests using Samsung 970 Pro, other media may vary.
  • Support M.2 NVMe with mounted heatsink with width <28mm.
• System Requirements:
  • Windows OS (7/8/10/11) / OS X 10.6 or later / Latest Linux OS
  • Computer with USB 3.2 Gen2 Type C/A
• Package Contents:
• Triple Bay Dock, USB cable, Universal Switching AC adapter, Quick Guide
• Country of Origin:
• Made in Taiwan
• Environmental:
  • Operating Temperature 0 oC to +45oC
  • Operating Humidity 10% to 85 % RH (no condensation)
  • Storage Temperature -10oC to +70oC
  • Storage Humidity 5% to 90% RH (no condensation)
• Warranty Information: 1-Year from Vantec
