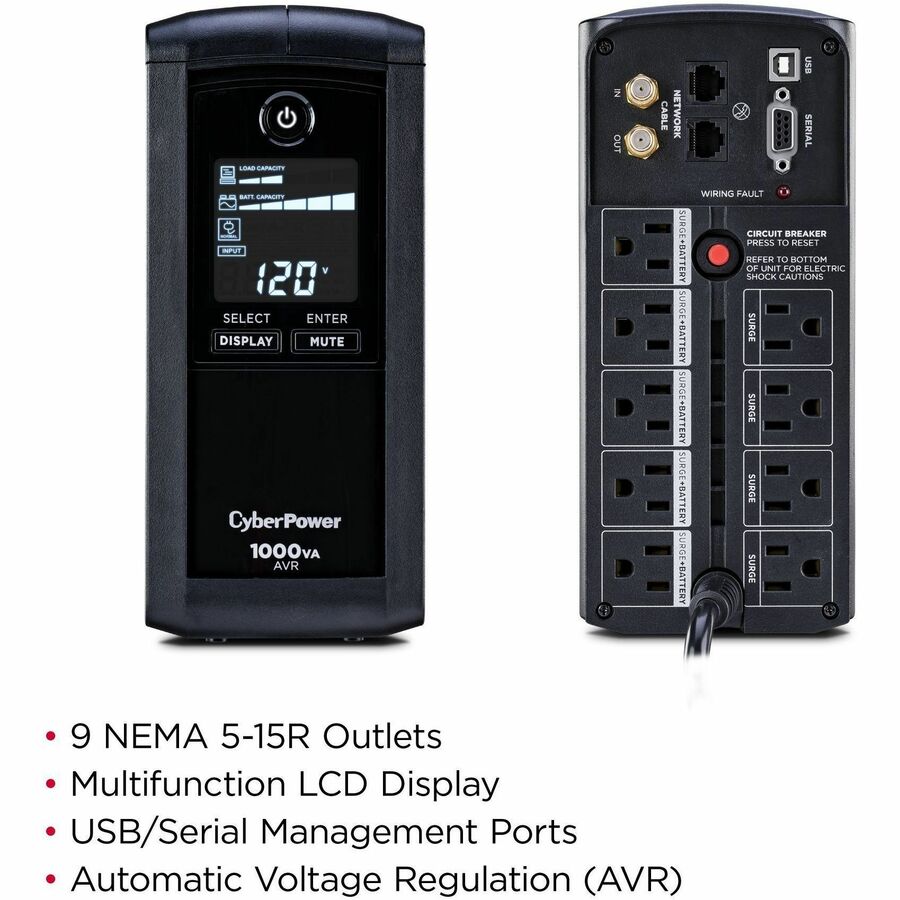

CyberPower CP1000AVRLCD Intelligent LCD UPS Systems - 1000VA/600W - 9 Outlets

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: CP1000AVRLCD
• Product Model: CP1000AVRLCD
• Product Name: Intelligent LCD CP1000AVRLCD 1000VA Tower UPS
• Product Series: Intelligent LCD UPS
• Product Type: Line-interactive UPS

Technical Information

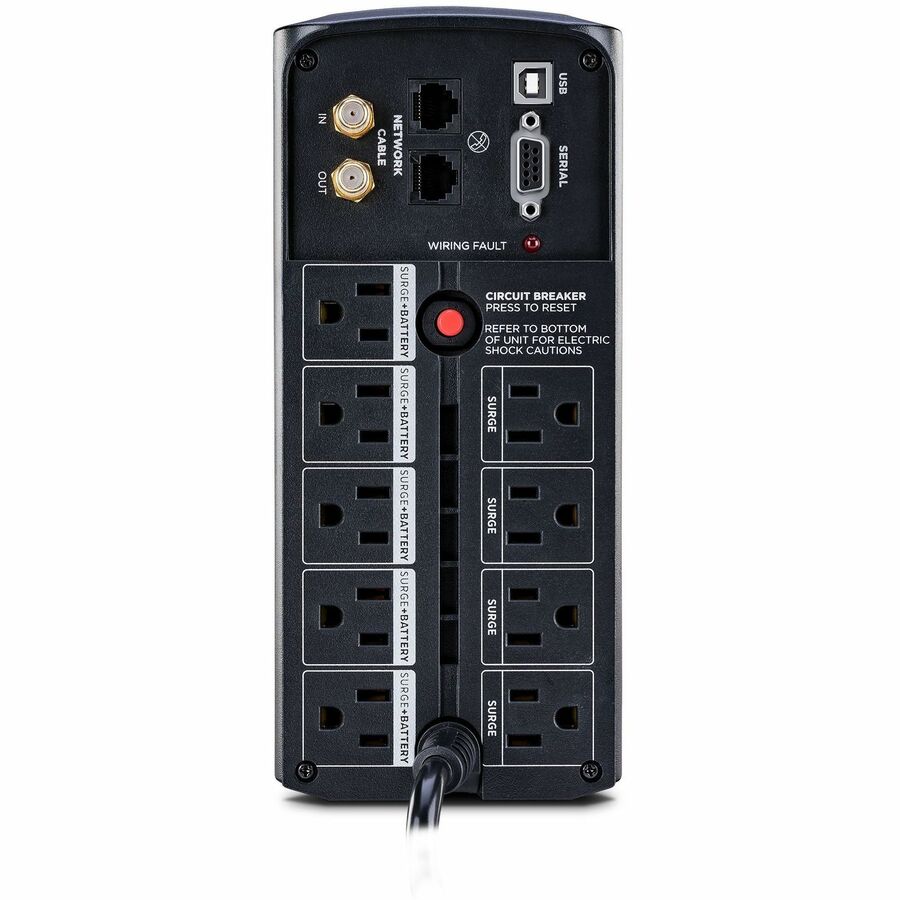

• Dataline Protection RJ-45
• RG-6
• Overload Protection: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• EMI/RFI Noise Filter: Yes
• Energy Saving GreenPower UPS™ Bypass Technology
• Number of Battery & Surge Outlets: 5
• Number of Surge-only Outlets: 4
• Transfer Time: 4 ms
• Receptacle Detail: 9 x NEMA 5-15R

Management

• Alarm: Battery Mode

Interfaces/Ports

• USB: Yes
• Serial Port: Yes

• USB (HID Compliant) Port: Yes

Battery Information

• Battery Size: 12V
• Number of Batteries: 1
• Backup/Run Time (Half Load): 9 Minute
• Backup/Run Time (Full Load): 2 Minute
• Typical Battery Recharge Time: 8 Hour

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%
• Storage Temperature 5°F (-15°C) - 113°F (45°C)

Power Description

• Surge Energy Rating: 1080 J
• Waveform Type: Simulated Sine Wave
• Input Frequency: 63 Hz
• Load Capacity (VA): 1000 VA
• Load Capacity (Watt): 600 W

Physical Characteristics

• Height: 9"
• Width: 3.9"
• Depth: 10.2"
• Product Color: Black
• Color Family: Black

Miscellaneous

• Additional Information
  • Replacement Battery Cartridge Quantity : 1
  • Plug Style : Right Angle - 45° Offset
  • Automatic Voltage Regulation : Single Boost
  • On Battery Frequency : 60 Hz ± 1%
  • On Battery Voltage : 120 VAC ± 5%
  • Under/Over-Voltage Correction : +10%
  • Coax Protection RG6 COMPUTED : 1 in
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000)

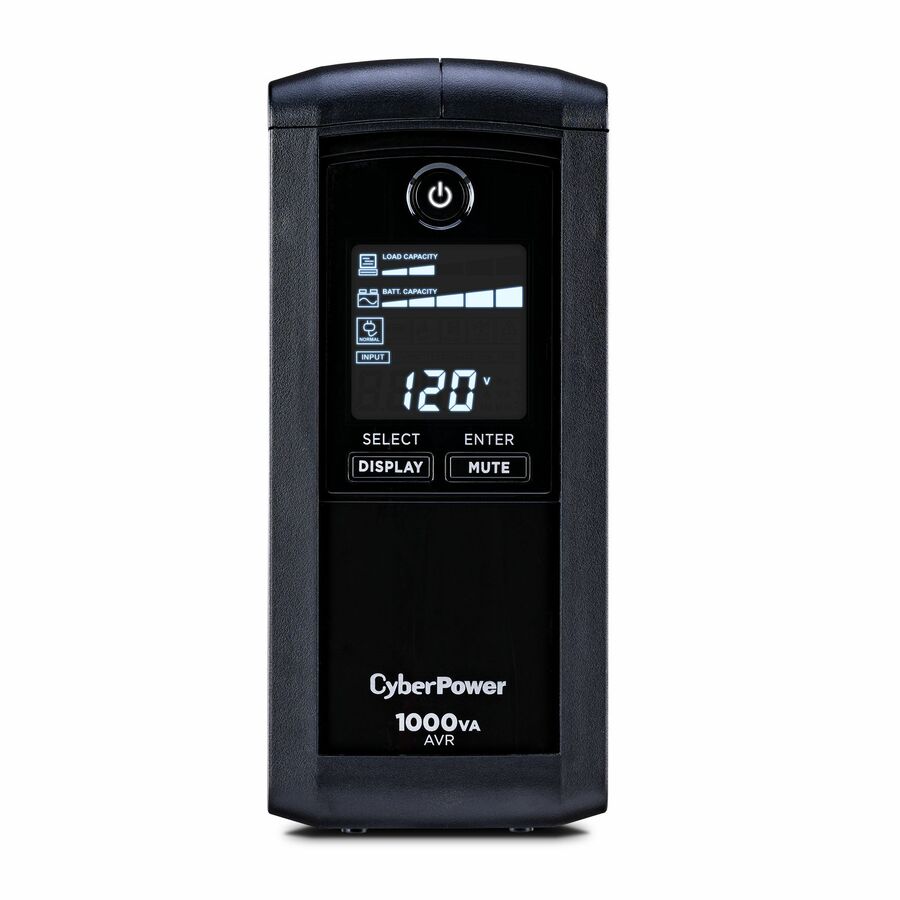

  • LCD : Multifunction LCD
  • Management Cable : USB Cable
  • Software (Free Download) : PowerPanel® Personal
  • Operating Relative Humidity : 0 - 90 % ()
• Package Contents
  • Intelligent LCD CP1000AVRLCD 1000VA Tower UPS
  • User's Manual
  • USB Cable
  • Software Download Card
  • Registration Information Card
• Certifications & Standards
• UL1778
• cUL 107 5th
• FCC Class B
• Country of Origin China
• Environmentally Friendly: Yes
• Energy Star: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from CyberPower
