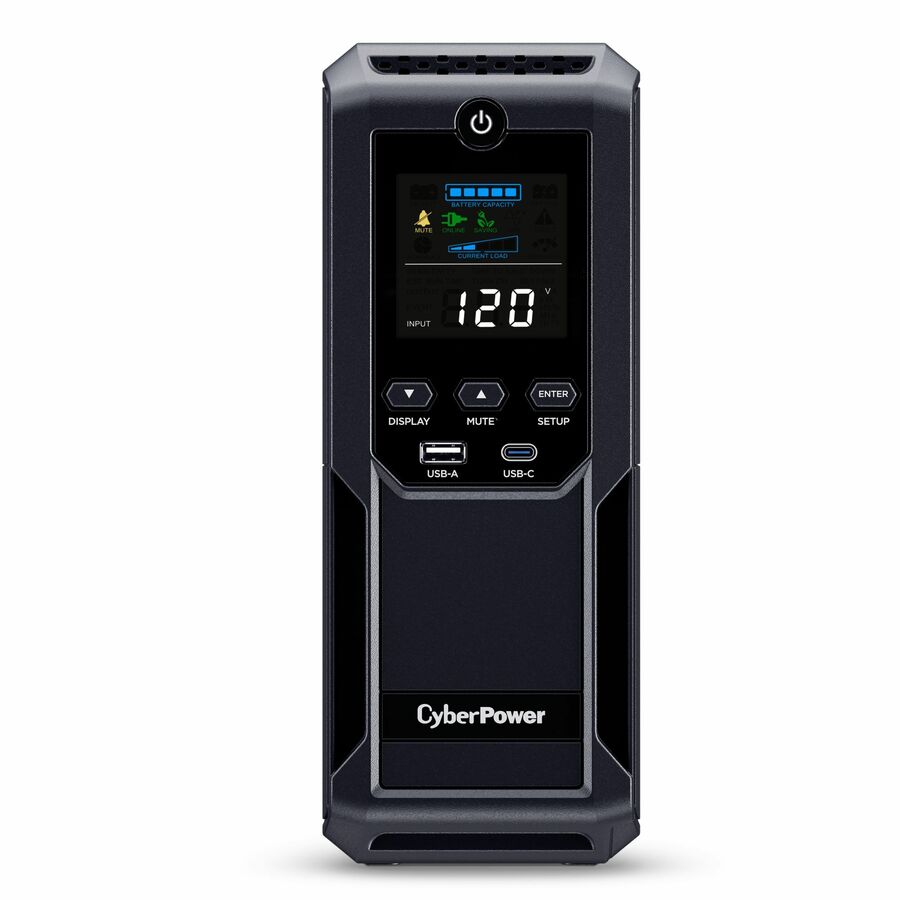

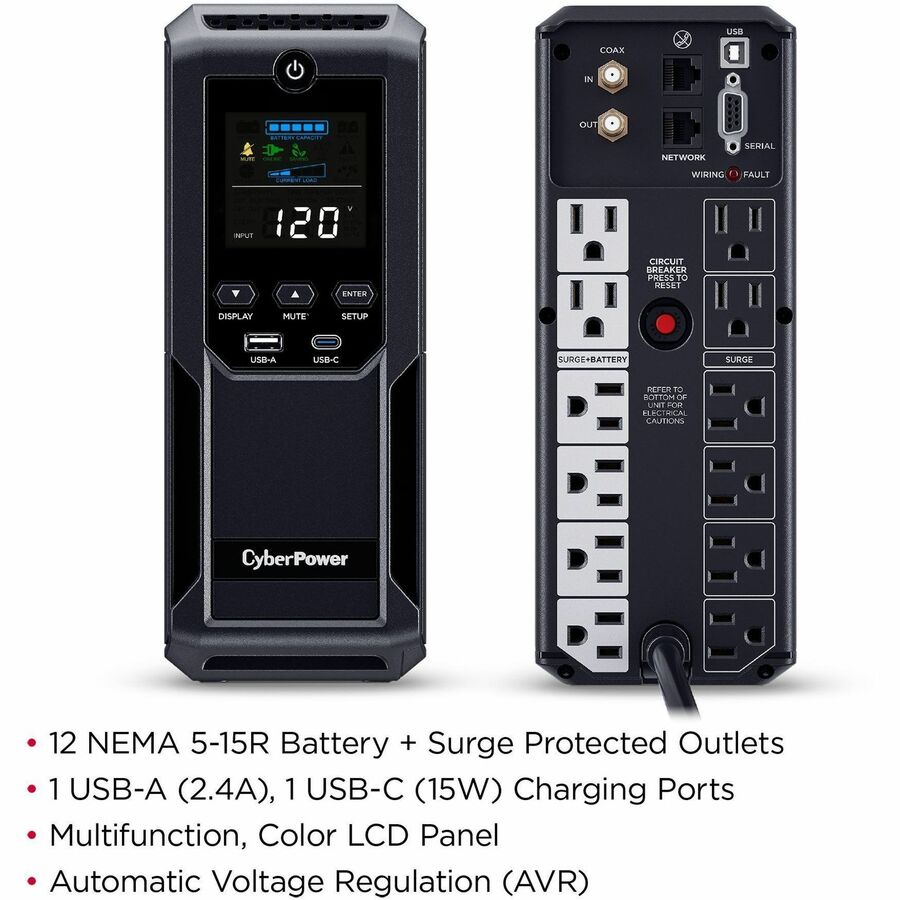

CyberPower CP1500AVRLCD3 Intelligent LCD UPS Systems - 1500VA/900W, 120 VAC

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: CP1500AVRLCD3
• Product Line: Intelligent LCD
• Product Model: CP1500AVRLCD3
• Product Name: Intelligent LCD CP1500AVRLCD3 1500VA Mini-tower UPS
• Product Type: Line-interactive UPS

Marketing Information:

• A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

Technical Information

• AVR: Yes

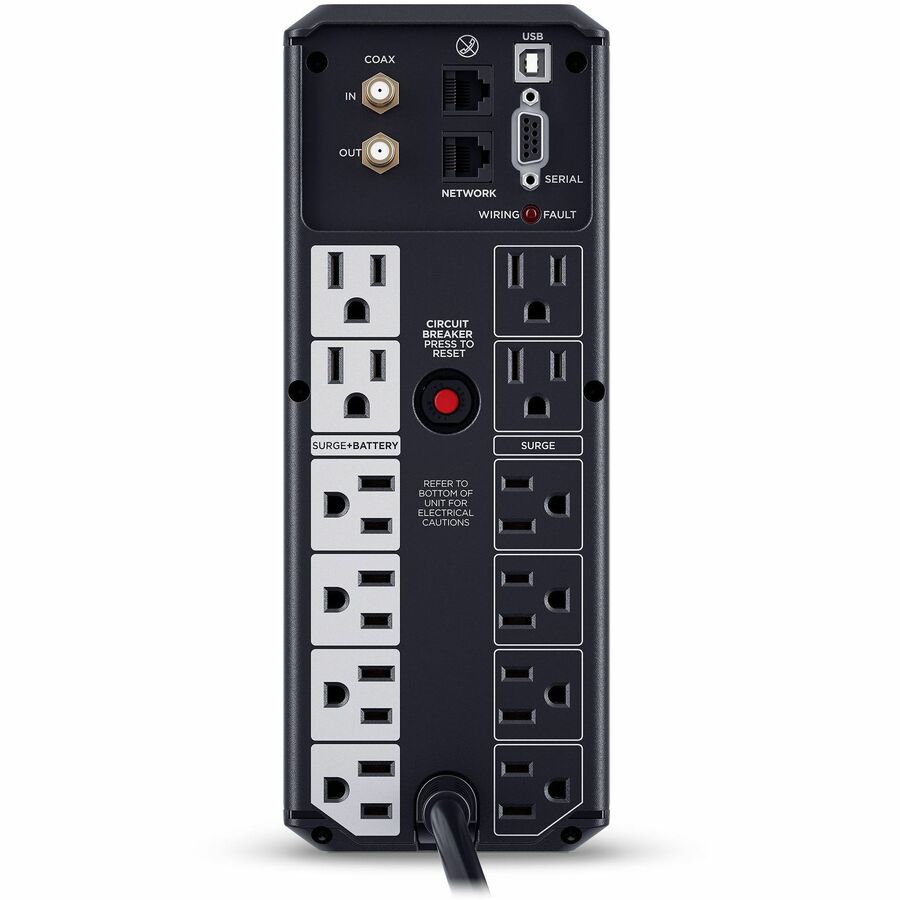

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type:
• USB Type A
• USB Type C
• NEMA 5-15R
• Receptacle Detail:
• 1 x USB Type A
• 1 x USB Type C
• 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Dataline Protection:
• RJ-45
• Coax
• Overload Protection: Yes
• Cord Length: 6 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology
• Application/Usage:
• Desktop Computer
• Workstation
• Network Device
• Home Entertainment System
• SOHO Network
• Computer Peripheral
• Home Theater
• Equipment
• Personal Electronic
• Home Network
• Router
• Modem
• VoIP Phone System
• Surge Suppression: Yes
• Features: Audible Alarm

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 900 W
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Input Frequency:
• 57 Hz
• 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1500 J
• Circuit Breaker: Yes
• Output Power Factor: 0.6
• Display & Graphics
• Display: LCD

Management

• Network Management: RS-232
• Alarm:
• Battery Mode
• Low Battery
• Overload
• Fault
• Controls/Indicators
• Status Indicators:
• LED Indicators:
• Power On
• Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• Network (RJ-45): Yes
• USB: Yes
• USB (HID Compliant) Port: Yes
• Number of USB Ports: 2

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 12 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 95%
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 10.2"
• Width: 3.9"
• Depth: 13.8"
• Form Factor: Mini-tower

Miscellaneous

• Certifications & Standards:
• UL1778
• cUL 107 5th
• FCC DOC Class B
• Energy Star: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
