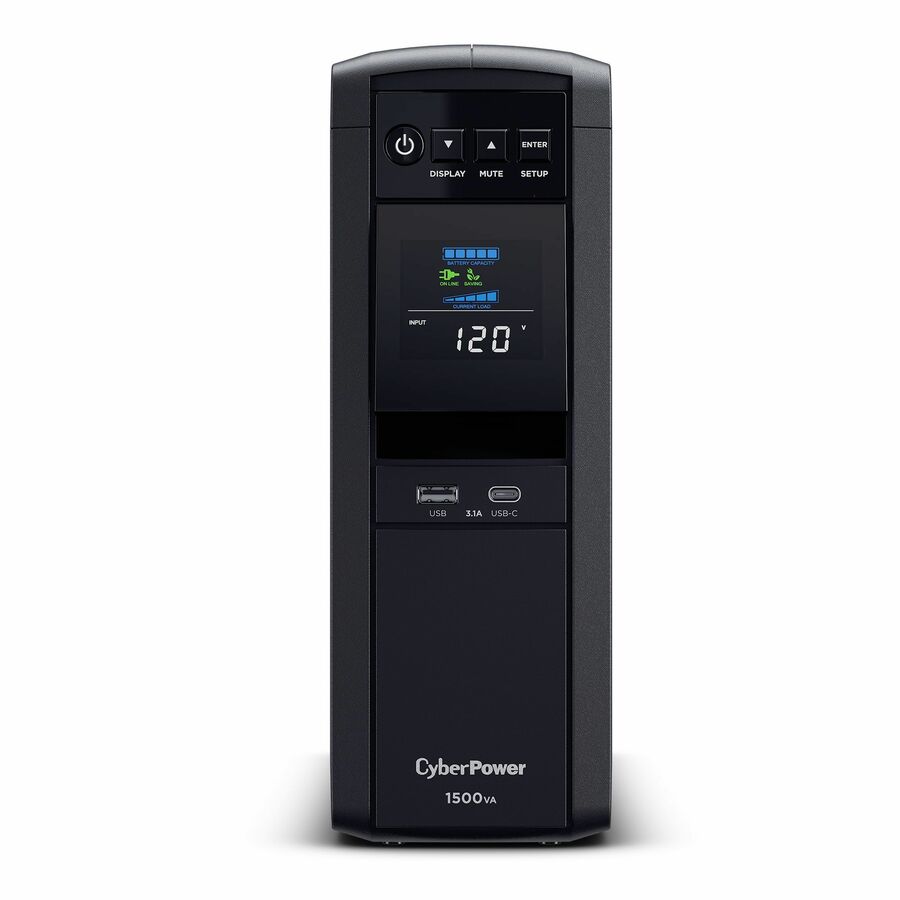

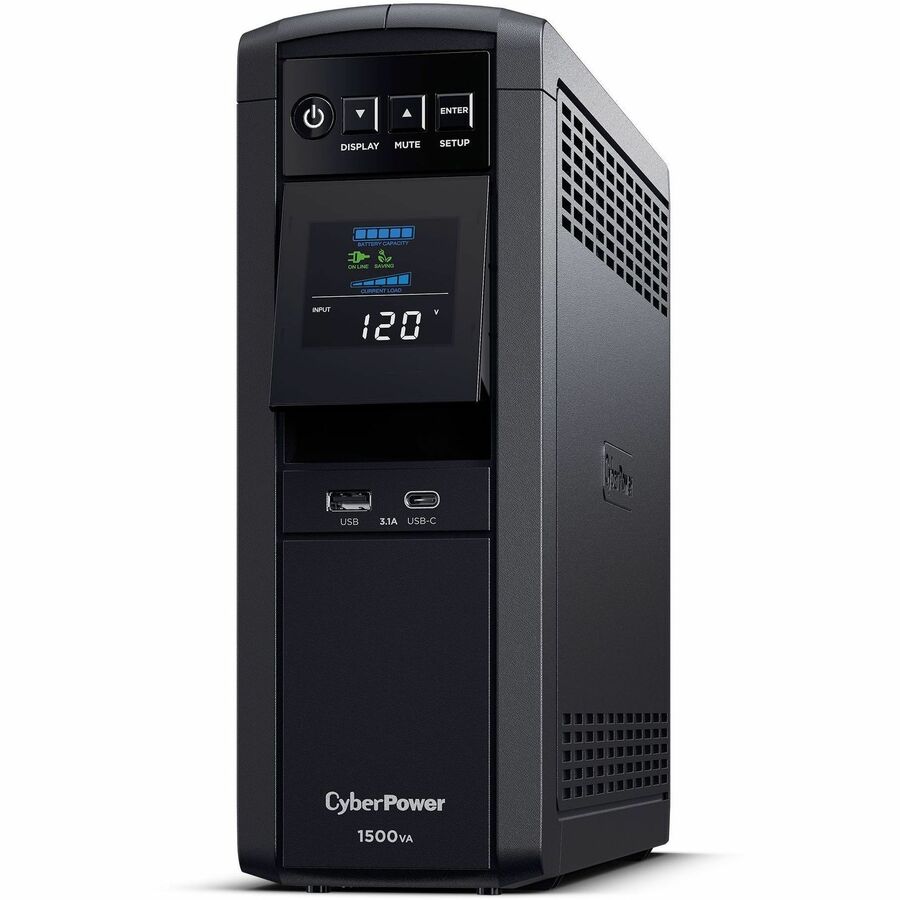

CyberPower CP1500PFCLCD PFC Sinewave UPS Systems - 1500VA/1000W, 120 VAC

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: CP1500PFCLCD
• Product Series: PFC Sinewave UPS
• Product Model: CP1500PFCLCD
• Product Name: CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
• Product Type: Line-interactive UPS

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

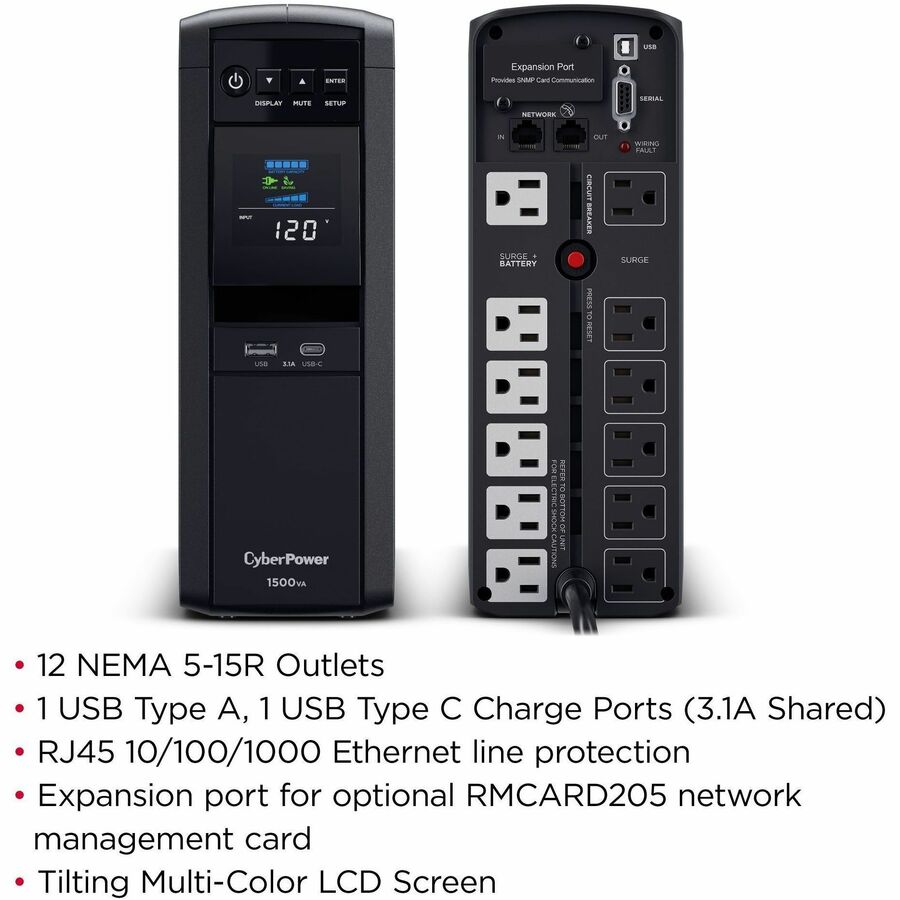

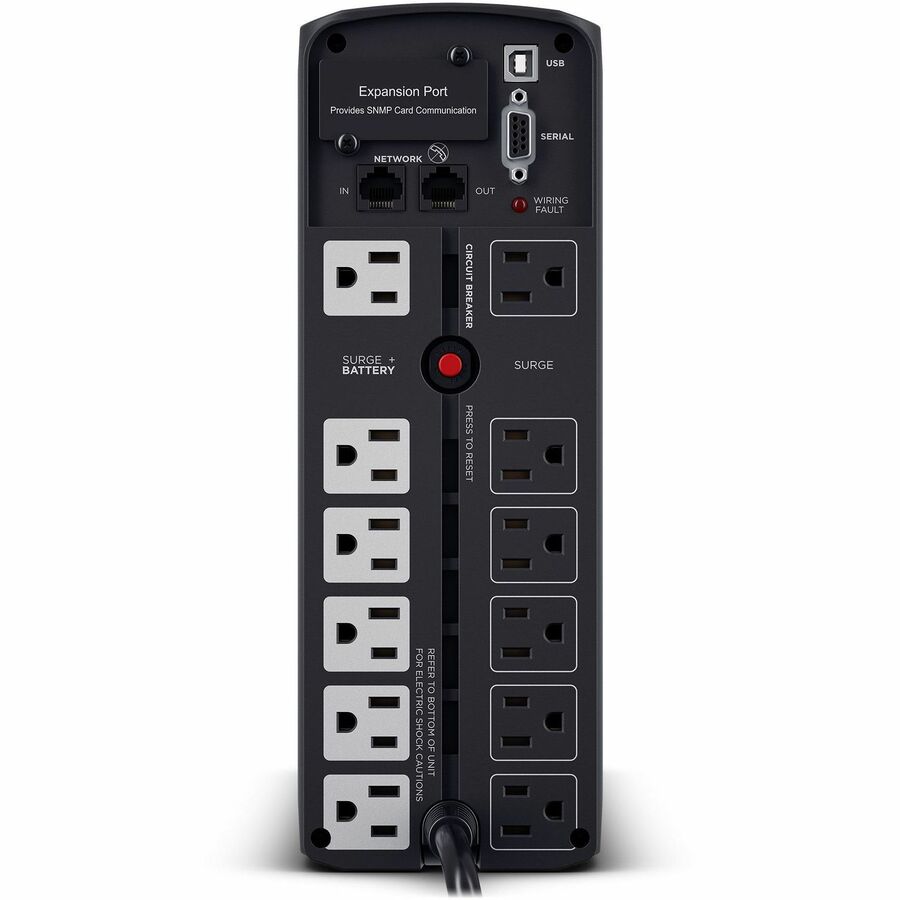

• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Overload Protection: Yes
• Cord Length: 5 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 1000 W
• Input Voltage: 120 V AC
• Input Voltage Range: 88 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1445 J

Management

• Network Management: SNMP/HTTP Remote Monitoring
• Alarm:
• Low Battery
• Overload
• Fault
• On Battery
• Controls/Indicators
• Status Indicators:
• Power On
• Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• DC System Voltage: 12 V DC
• Number of Batteries: 2
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Backup/Run Time (Full Load): 2.50 Minute
• Backup/Run Time (Half Load): 10 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Maximum Operating Elevation: 10000 ft

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 11"
• Width: 3.9"
• Depth: 14"
• Form Factor: Mini-tower

Miscellaneous

• Package Contents:
  • CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
  • PowerPanel Personal Edition Software
  • USB Cable
  • User Manual
  • Registration Card
  • Coax Cable
• Additional Information:
• Active PFC Compatible : Yes
• Replacement Battery Cartridge Quantity : 1
• Plug Style : Right Angle - 45° Offset
• On Battery Frequency : 60 Hz ± 1%
• Automatic Voltage Regulation : Single Boost
• On Battery Voltage : 120 VAC ± 5%
• USB Charge Port Quantity : 2
• USB Charge Port Type COMPUTED : 1 Type A
• USB Charge Port Amperage COMPUTED : 3.1 Amps (Shared)
• Outlets - Widely Spaced : 2
• Overload Protection : Internal Circuitry Limiting
• Under/Over-Voltage Correction : +11.5%
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• Management Cable : USB Cable
• Dry Contacts : Yes
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Certifications & Standards:
• UL1778
• cUL 107.3
• FCC DOC Class B
• Software Included:
• PowerPanel® Business
• Energy Star: Yes
• Country of Origin: Philippines
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from CyberPower
