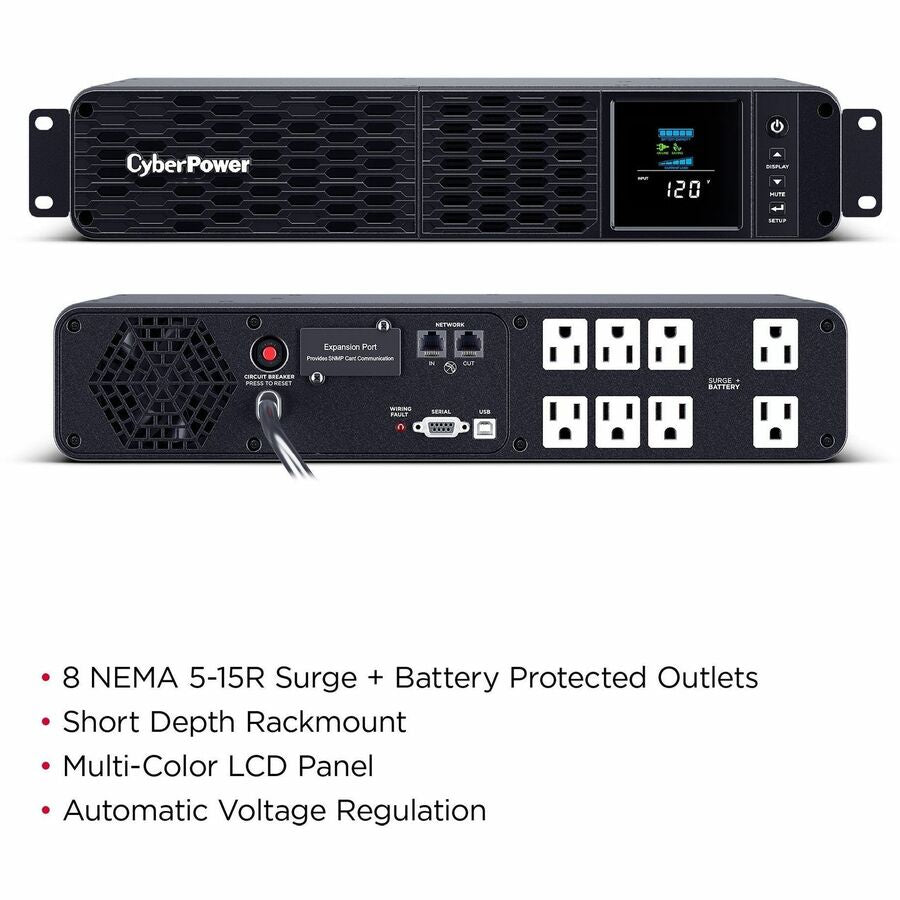

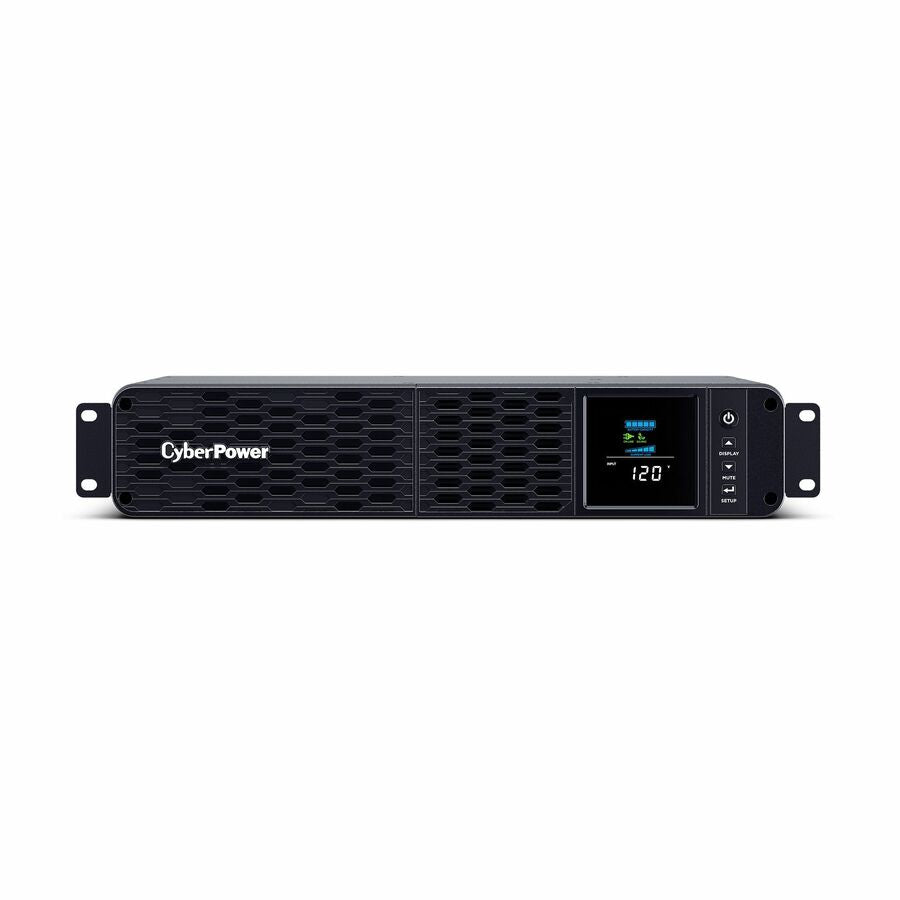

CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems - 1500VA/1000W, 120 VAC

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: CP1500PFCRM2U
• Product Line: PFC Sinewave
• Product Model: CP1500PFCRM2U
• Product Name: CP1500PFCRM2U PFC Sinewave UPS Systems
• Product Type: Line-interactive UPS

Marketing Information:

The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Number of Battery & Surge Outlets: 8
• Dataline Protection: Coax
• Overload Protection: Yes
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Application/Usage:
• Surveillance System
• Security System
• POS
• Network Device
• Storage Device
• Audio System

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 1000 W
• Input Voltage: 120 V AC
• Input Voltage Range: 88 VAC - 144 VAC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1500 J

Management

• Network Management:
• SNMP/HTTP Remote Monitoring
• SNMP/Webcard
• Alarm:
• Battery Mode
• Low Battery
• Overload
• Fault
• Controls/Indicators
• Status Indicators:
• Multifunction LCD

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• DC System Voltage: 12 V DC
• Number of Batteries: 2
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3.10 Minute
• Backup/Run Time (Half Load): 10.20 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Thermal Dissipation: 15.24 W

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 3.4"
• Width: 17"
• Depth: 10.5"
• Rack Height: 2U
• Form Factor: Rack-mountable

Miscellaneous

• Energy Star: Yes
• Country of Origin: China
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from CyberPower
