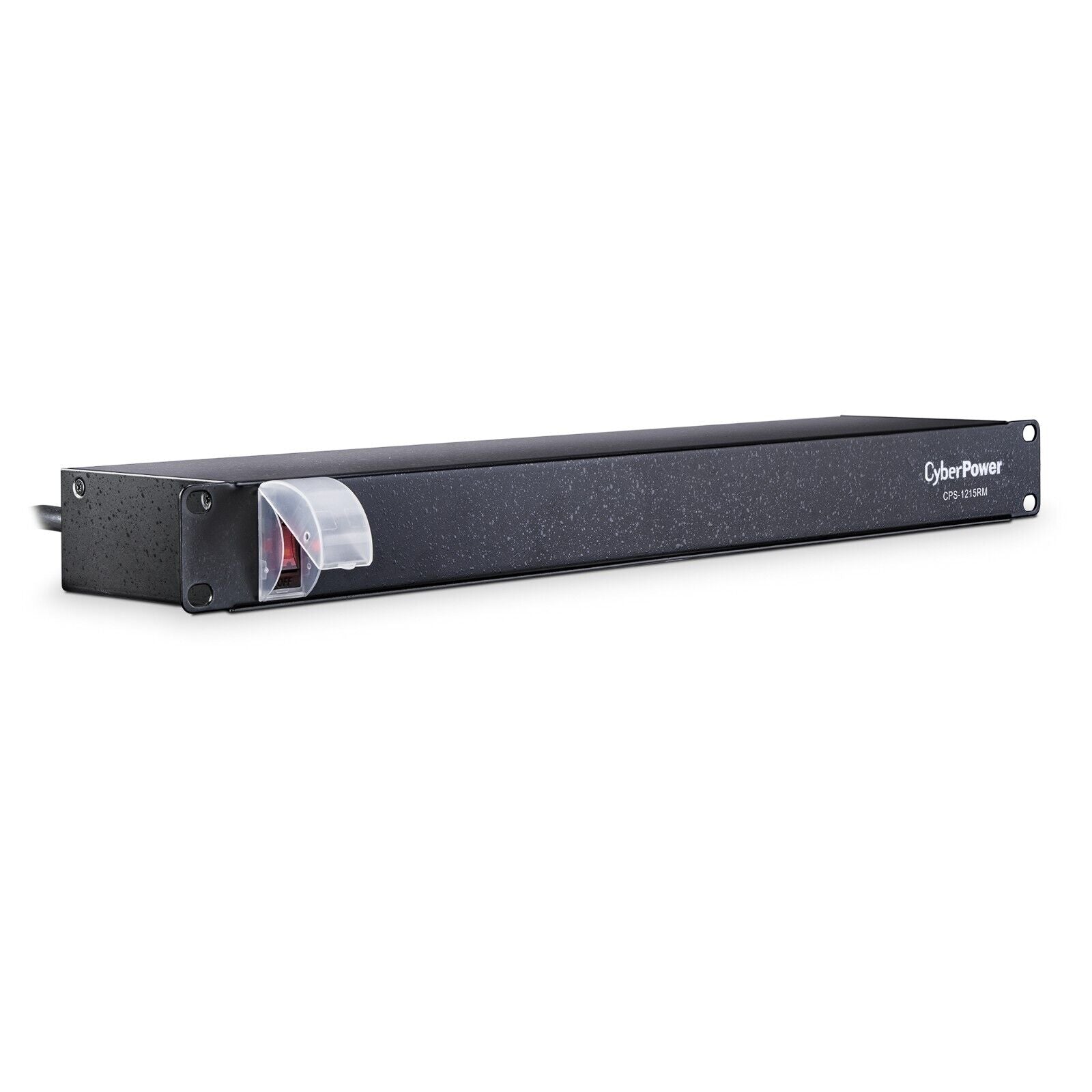

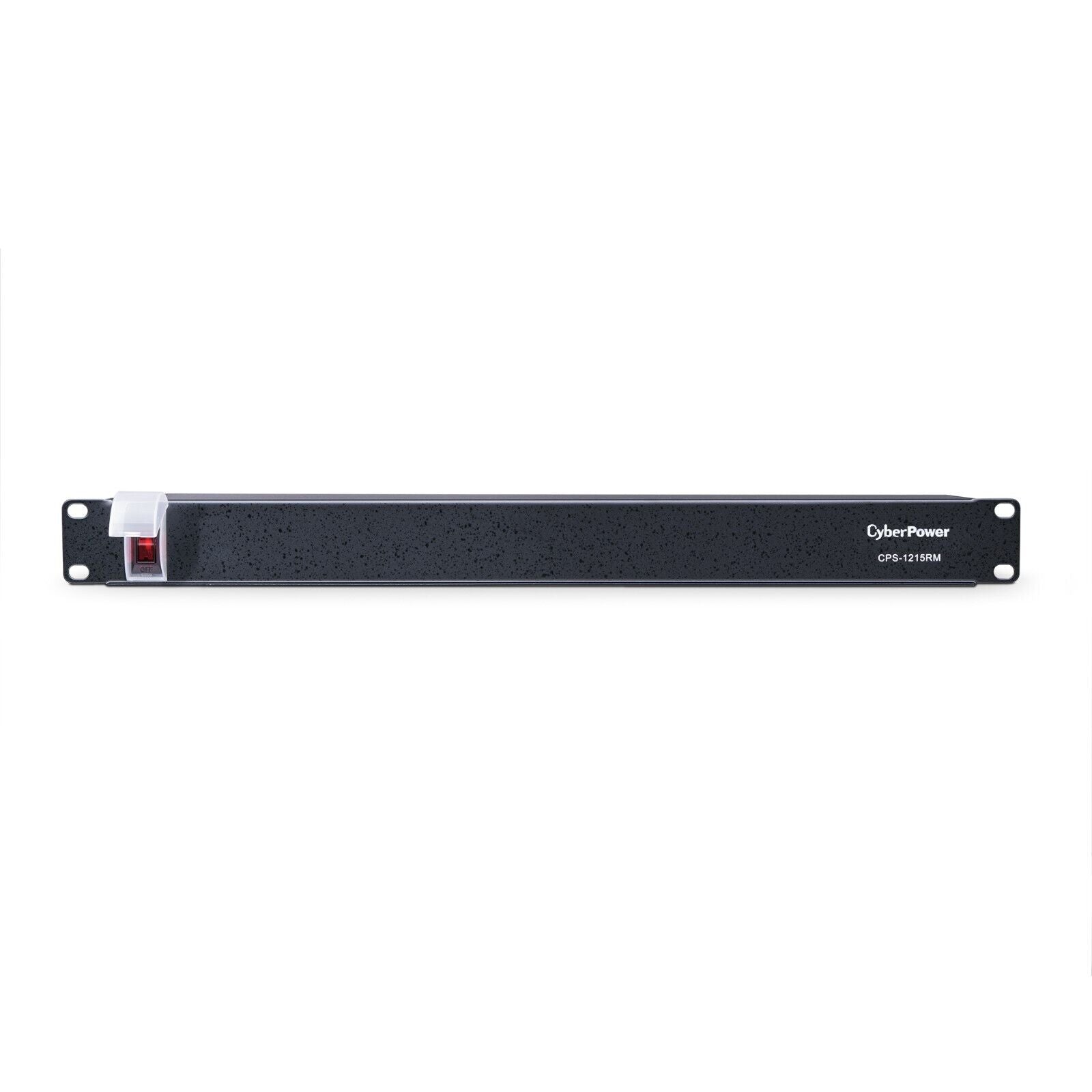

CyberPower CPS-1215RM 10 Outlets Single Phase 100-0120 15A Basic 1U Rack 19" PDU

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CPS-1215RM
• Brand Name: CyberPower
• Product Model: CPS-1215RM
• Product Name: Rackmount CPS-1215RM 15A PDU
• Product Condition: New
• Product Type: PDU

Marketing Information

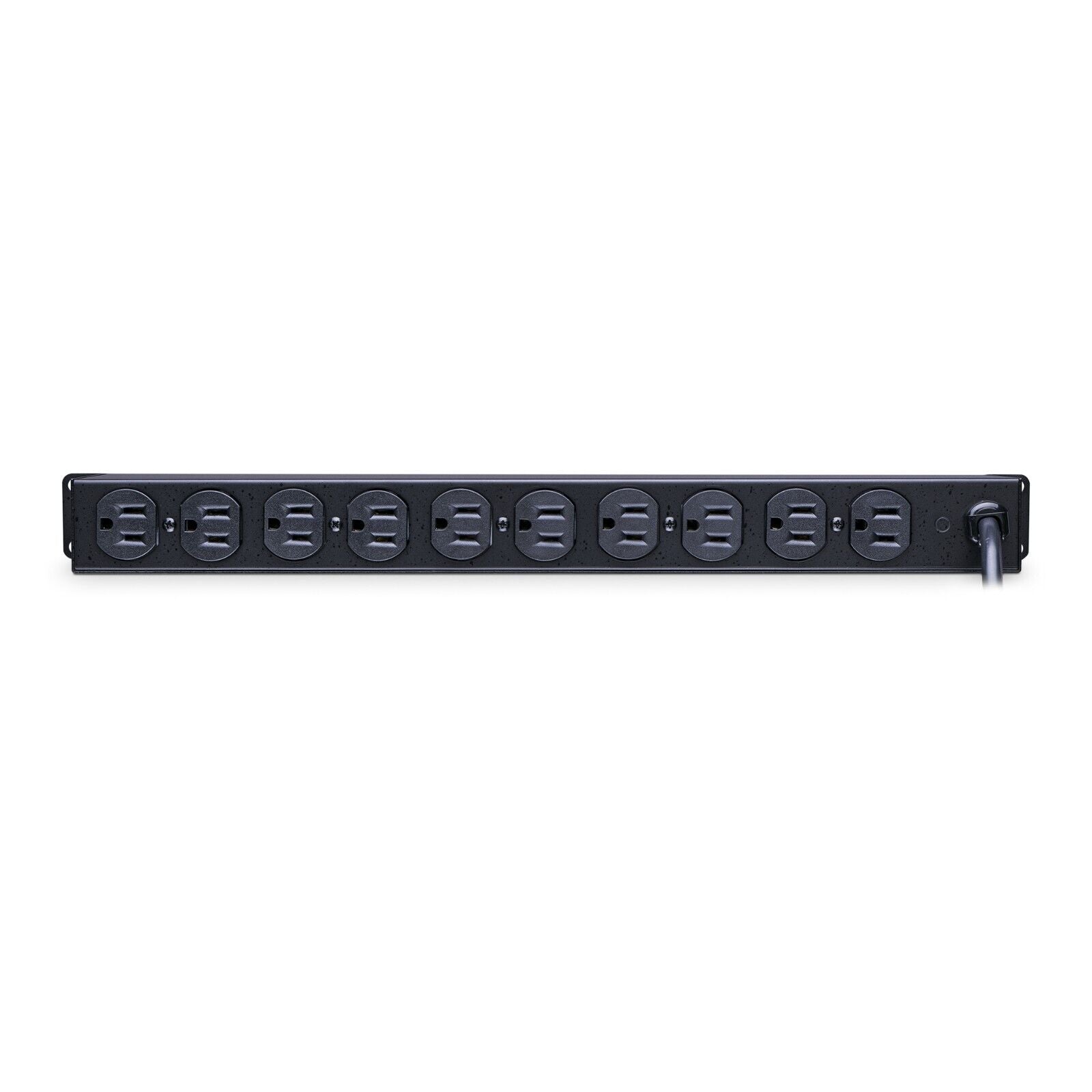

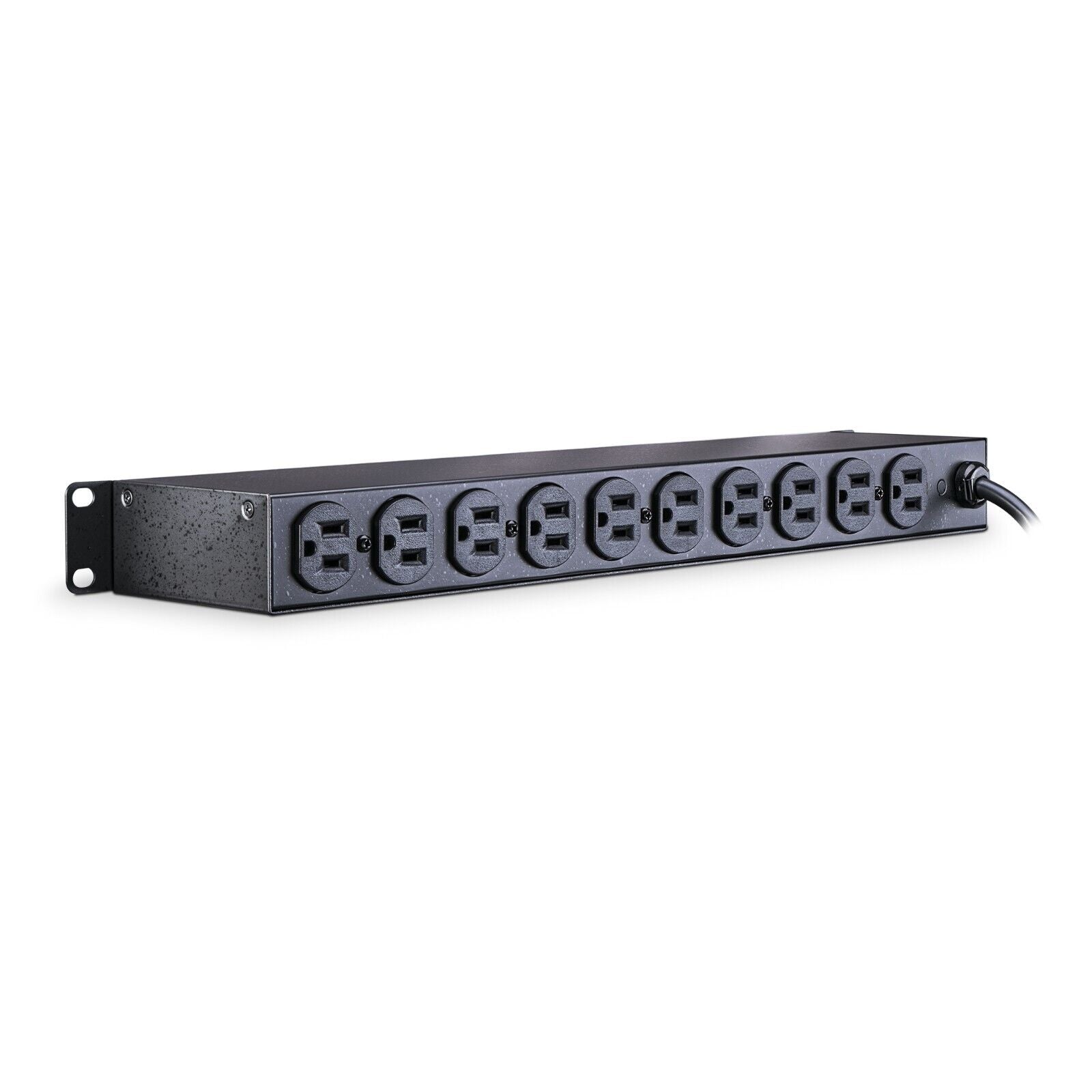

The CyberPower CPS1215RM, a 10-outlet (rear) rackmount power distribution unit (PDU), provides 100-125V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1215RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is UL Recognized. The CPS1215RM comes with a three-year limited warranty and covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Technical Information

• PDU Type: Basic
• Phase: Single Phase
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 10 x NEMA 5-15R
• Protection Type: Short Circuit Protection

Power Description

• Input Voltage: 120 V AC
• Input Voltage Range: 100 V AC - 125 V AC
• Output Voltage Range: 100 V AC - 120 V AC
• Power Rating (VA): 1800 VA
• Input Current: 15 A
• Circuit Breaker: Yes

Physical Characteristics

• Product Color: Black
• Mount Type:
  • Rack-mountable
  • Rail-mountable
• Rack Height: 1U
• Number of Cord/Cable: 1
• Cord Length: 15 ft

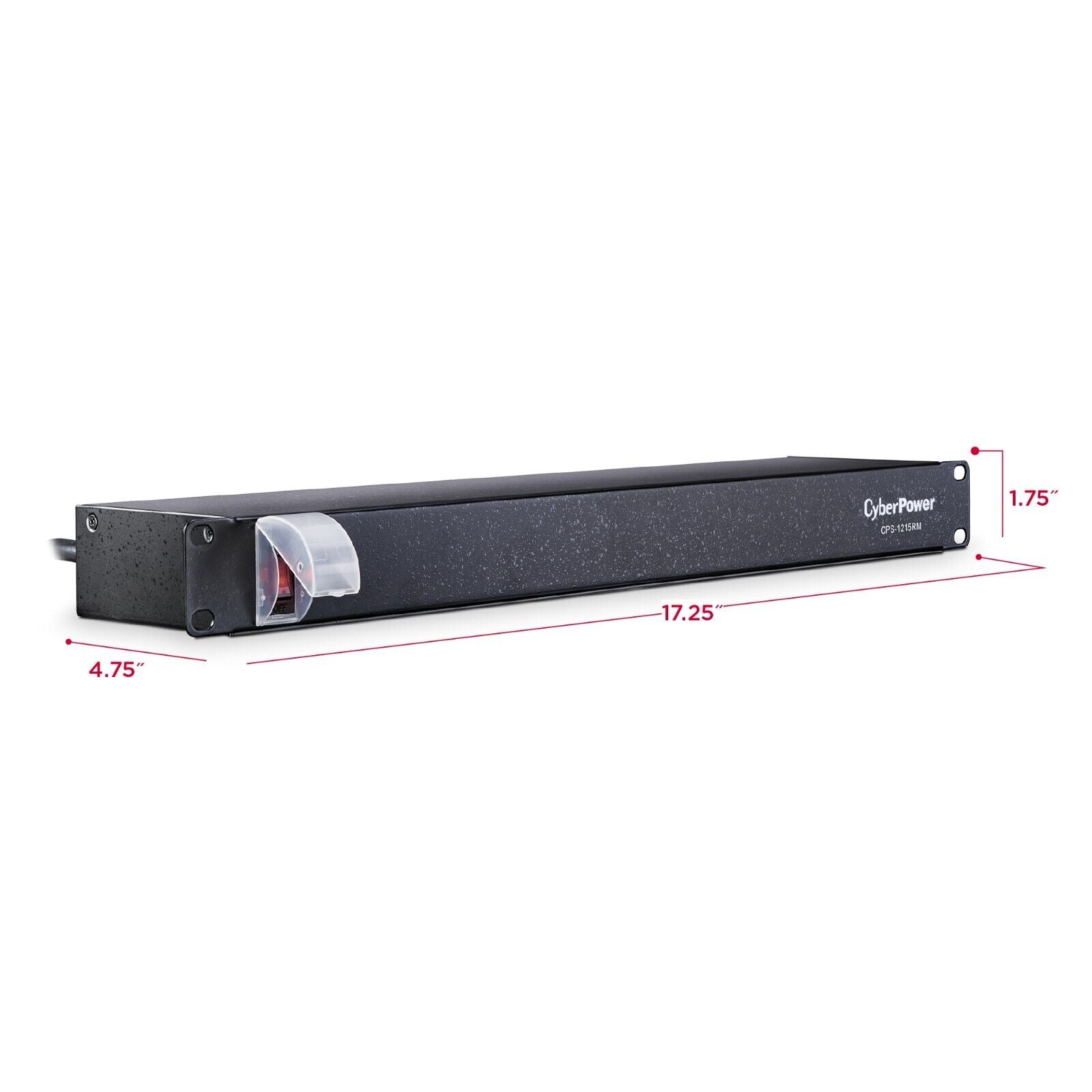

• Height: 1.8"
• Width: 17.3"
• Depth: 4.8"
• Weight (Approximate): 5 lb

Package Contents:

• CPS-1215RM Unit
• Warranty Card/Manual

Additional Information:

• Circuit Breaker | 15 A
• Plug Style | Straight
• Switch | Lighted On/Off
• Outlets - Front | 0
• Outlets - # of Banks | 1
• Outlets - Rear | 10
• Outlets - Total | 10
• Overload Protection | 15A
• Clamping Voltage | 800V (H-N)
• Clamping Voltage | 800V (H-N)
• Cord Retention Tray/Cord Organizers | Yes
• Material of Construction | Metal
• Operating Elevation | 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity | 0 - 95 % (non-condensing)
• Operating Temperature | 32 - 104 °F (0 - 40 °C)
• Storage Elevation | 0 - 50000 ft (0 - 15239 m)
• Storage Temperature | 5 - 113 °F (-15 - 45 °C)

Certifications & Standards: UL Recognized

Country of Origin: China

Limited Warranty: 3 Year from CyberPower
