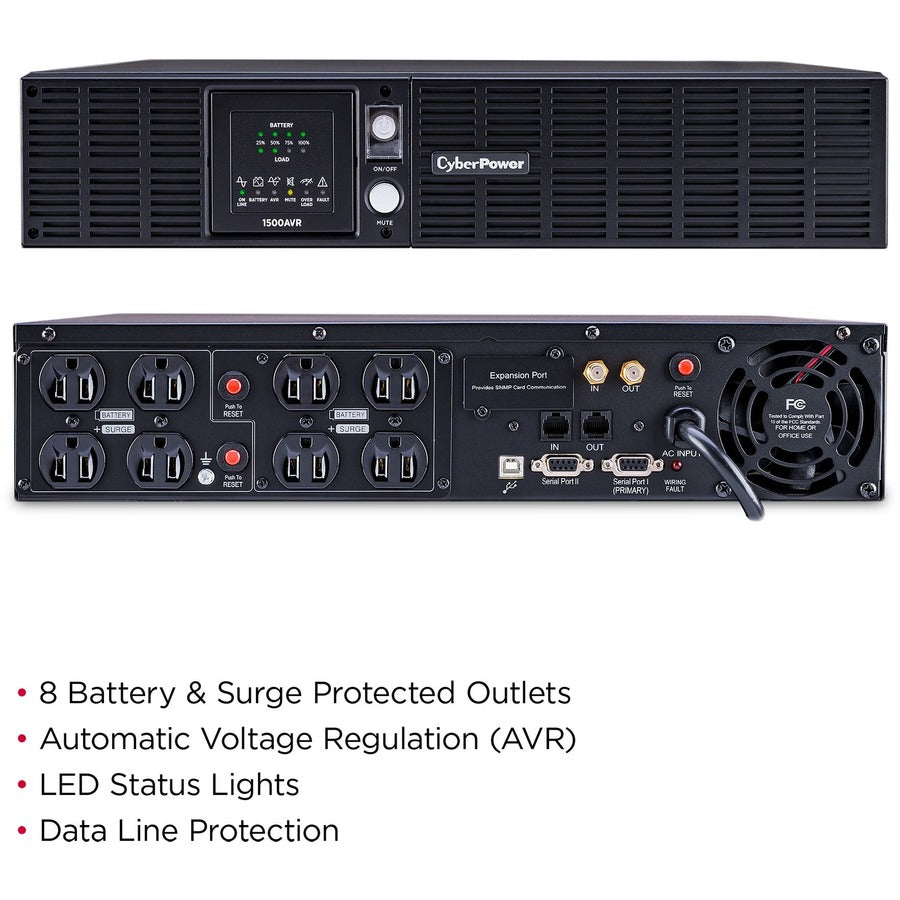

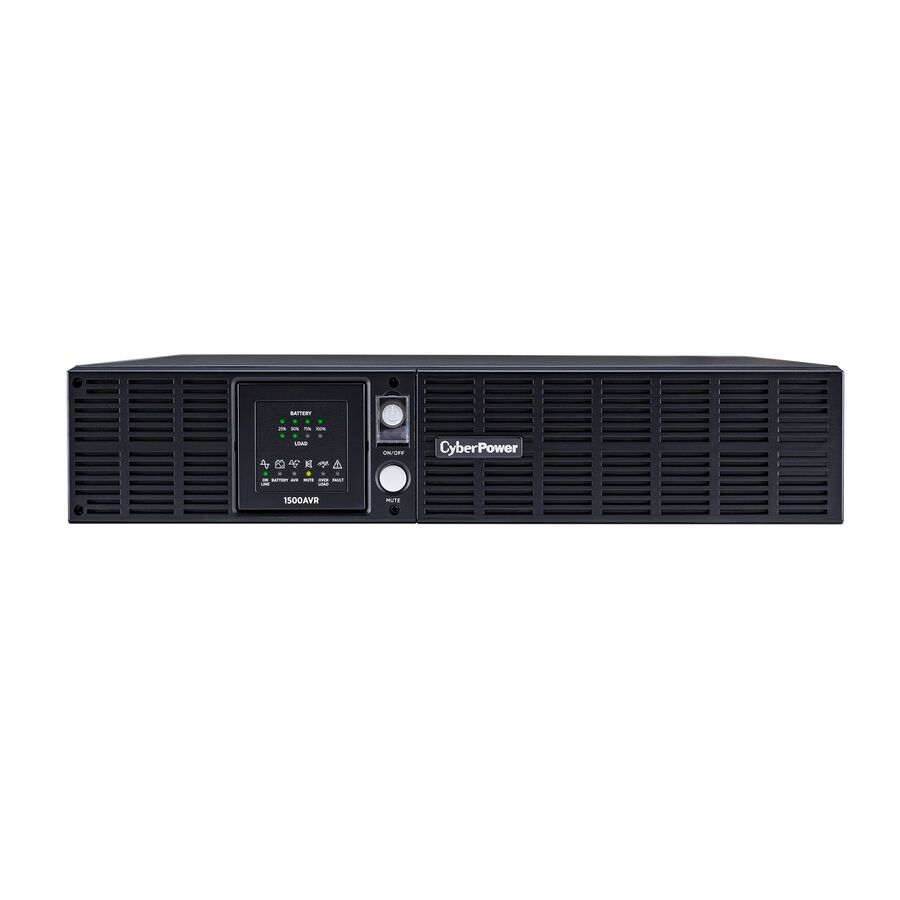

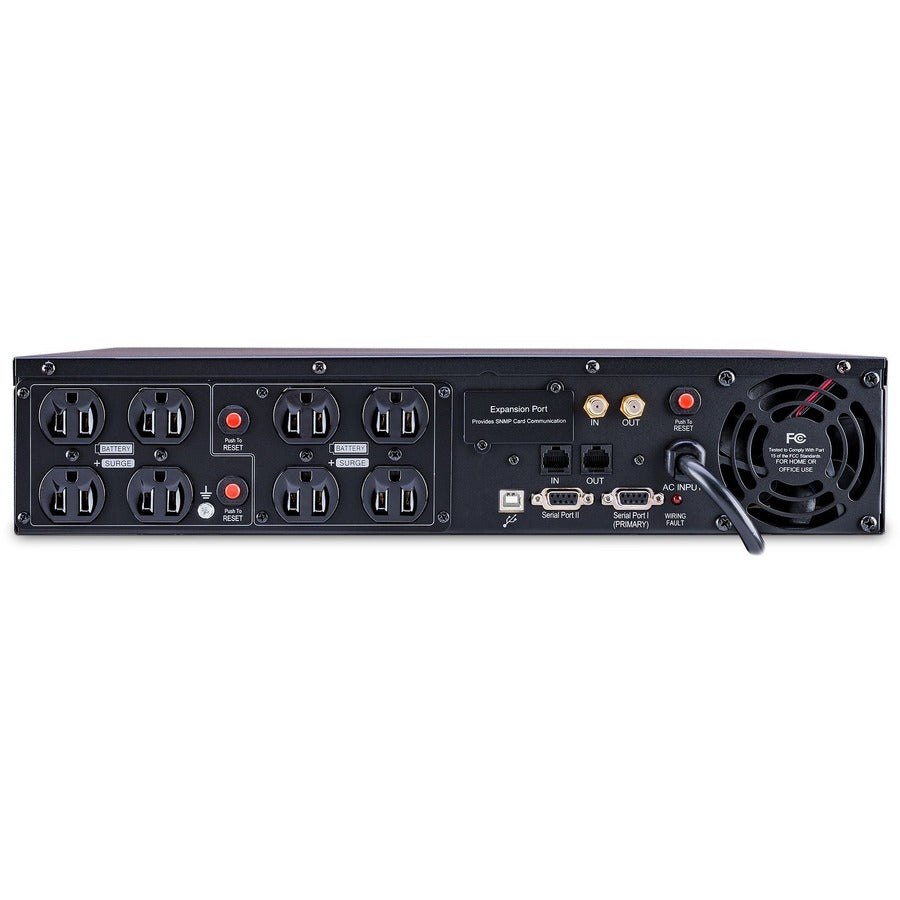

CyberPower CPS1500AVR Smart App LCD UPS Systems - 1500VA/900W, 120 VAC

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: CPS1500AVR
• Product Series: Smart App LCD UPS
• Product Model: CPS1500AVR
• Product Name: Smart App AVR CPS1500AVR 1500VA UPS

Marketing Information:

A rack/tower UPS with line interactive topology, the CyberPower Smart App CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

• Data Line Protection
• Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
• Surge Protection
• Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Line Interactive Topology
• Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Automatic Voltage Regulation (AVR)
• Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
• Simulated Sine Wave Output
• Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
• Rack/Tower Versatility
• Allows for horizontal rack or vertical tower installation.
• LED Status Lights
• Indicate Power On, Wiring Fault.
• PowerPanel® Business Edition Software
• Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Download tab..
• Connected Equipment Guarantee
• CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Number of Battery & Surge Outlets: 8
• Transfer Time: 4 ms
• Dataline Protection:
• RJ-45
• RJ-11
• Coax
• Protection Type:
• Surge
• Spike
• Overload Protection: Yes
• EMI/RFI Noise Filter: Yes

Power Description

• Load Capacity (VA): 1500 VA
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1840 J

Management

• Network Management: SNMP Manageable

Controls/Indicators

• Status Indicators:
• Load Level
• Battery Level
• Power On
• Online
• Using Battery
• Replace Battery
• AVR
• Mute
• Overload
• Fault
• Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• Modem (RJ-11): Yes
• Network (RJ-45): Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 7 Minute
• Backup/Run Time (Half Load): 18 Minute
• Typical Battery Recharge Time: 8 Hour
• Environmental Conditions
• Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Form Factor: Rack/Tower
• Rack Height: 2U
• Height: 3.5"
• Width: 17.3"
• Depth: 15.8"

Miscellaneous

• Package Contents:
  • Smart App AVR CPS1500AVR 1500VA UPS
  • Rack Mount Kit
  • User Manual
  • Power Management Software
  • Warranty Card
  • Serial Cable
  • Serial-to-USB Adapter

Additional Information:

• Automatic Voltage Regulation (AVR): Incoming AC power is electronically regulated for dips and spikes AVR takes this irregular AC power and converts it into a consistent Sinewave so sensitive electronic equipment can achieve its optimal performance
• RM/T Configuration: The PR series can be mounted either in Tower or Rackmount (2U) form.
• EMI/RFI: Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or humming that occurs over telephone lines or stereo electronics
• USB Connectivity: Plug N Play software and convenient USB ports allow for quick and easy installation
• PowerPanel Plus Smart Power Management Software: In the event of a power outage, PowerPanel Plus will safely save and close your open files and shut your computer down in an orderly, intelligent manner. The software allows users to view detailed information about their electrical power and the vitals of the UPS. It includes configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
• Metal Housing: Rigid metal construction allows for placement in areas with a demanding environment
• LED Indicators: LED status lights indicate Power-On, Wiring faults, AVR, and Battery level
• Audible Alarms: Audible tones identify when the unit is running off battery power, unit overloads and low battery
• Resettable Circuit Breaker: Convenient unit reset switch in case of an overload
• Windows Vista (TM) Compliant: Our Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista
• Standard Warranty: 3 Year Parts & Labor
• Certifications & Standards:
• FCC Class B certified
• cUL
• UL 1778
• Software Included: PowerPanel Business Edition
• Energy Star: No
• Country of Origin: China
• Environmentally Friendly: Yes
