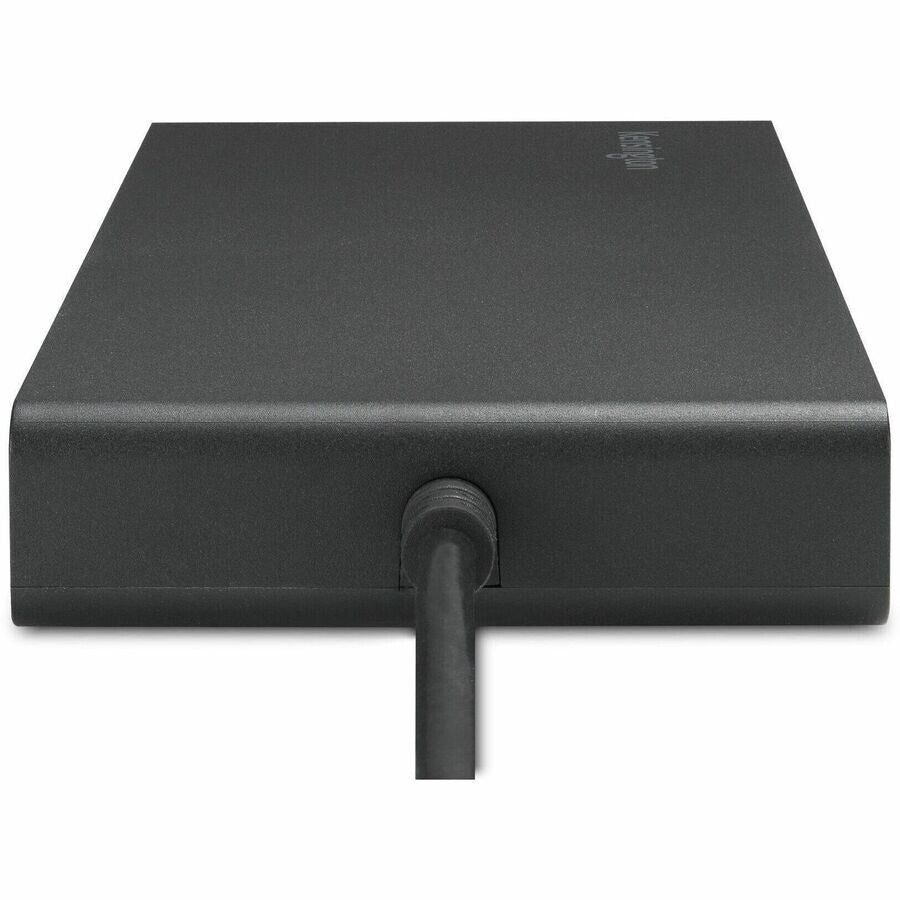

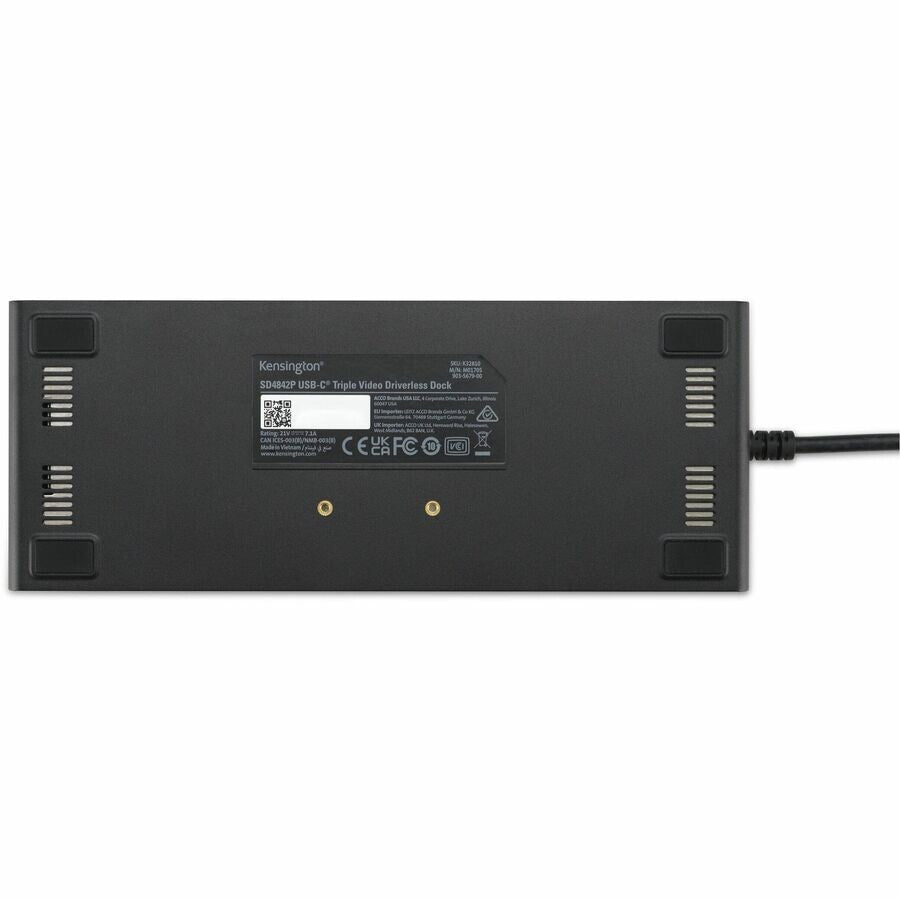

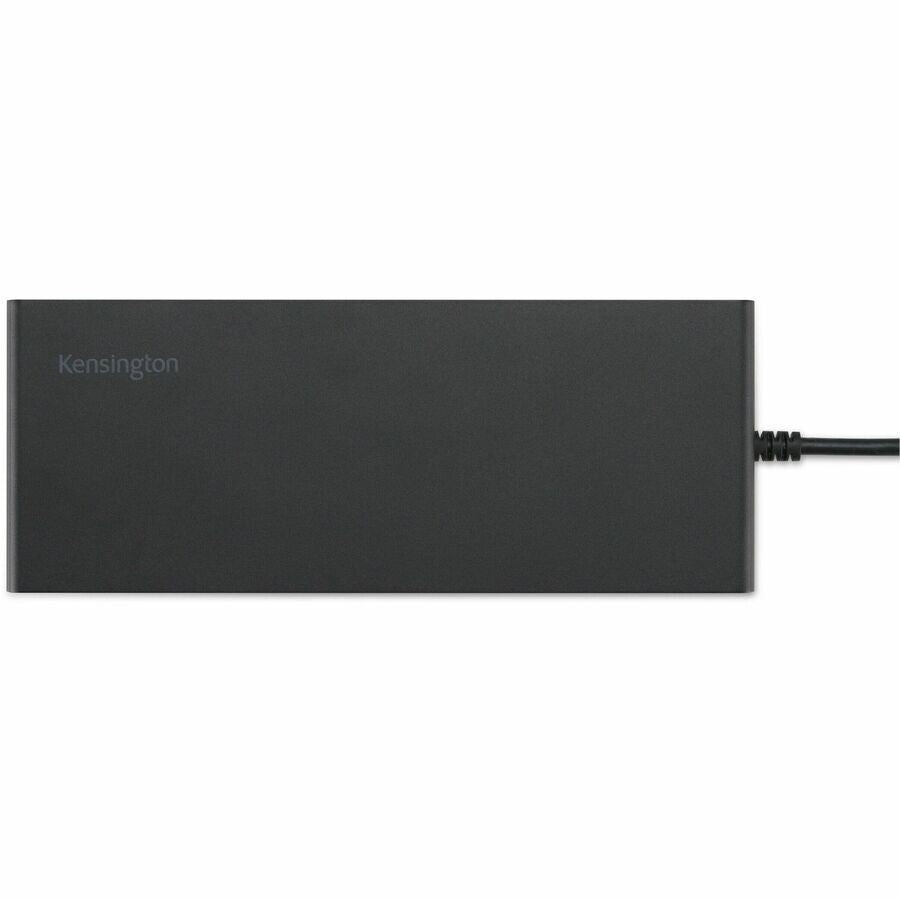

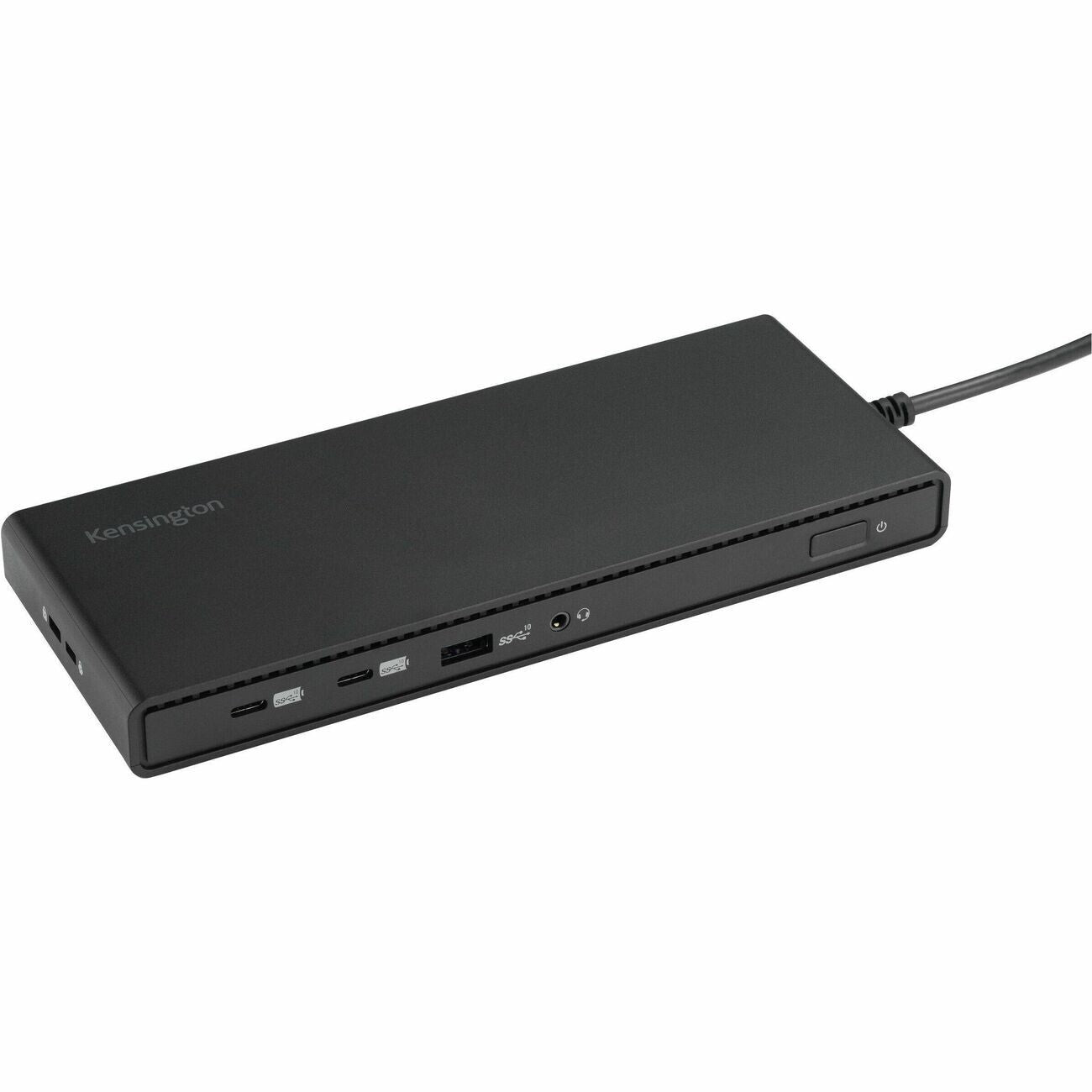

Kensington K32810NA SD4842P EQ USB-C Triple 8K Video Docking Charge Station

GENERAL INFORMATION

• Manufacturer: Kensington Computer Products Group
• Manufacturer Part Number: K32810NA
• Brand Name: Kensington
• Product Model: SD4842P
• Product Name: SD4842P EQ USB-C 10Gbps Triple Video Driverless Docking Station
• Packaged Quantity: 1
• Package Type: Retail
• Product Type: Docking Station

FEATURES

• Supports up to 3 external displays (1080p @ 120Hz) via DP and HDMI®
• Composed of 73% post-consumer recycled content (PCR)
• Plug-and-play for Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® Alt-Mode
• Up to 100W laptop charging using a compact GaN technology power supply unit
• Equipped with a compact GaN technology power supply unit, it offers better power efficiency
• 5 x plug & charge USB ports, Gigabit Ethernet port, and combo audio jack
• Fixed host cable ensures reliable connection and prevents cable theft
• Up to 10Gbps data transfer speeds
• Accommodates Zero-Footprint Mounting and Kensington Security Lock
• Free Kensington Dockworks™ software

TECHNICAL INFORMATION

• Connectivity Technology: Wired
• Charging Capability: Yes
• Number of Displays Supported: 3
• Screen Mode Supported:
  • Full HD
  • 8K @ 30Hz
  • 4K @ 60Hz
  • 4K UHD
• Supported Resolutions:
  • 1920 x 1080
  • 3840 x 2160
  • 7680 x 4320
• Maximum Data Transfer Rate: 1.25 GB/s

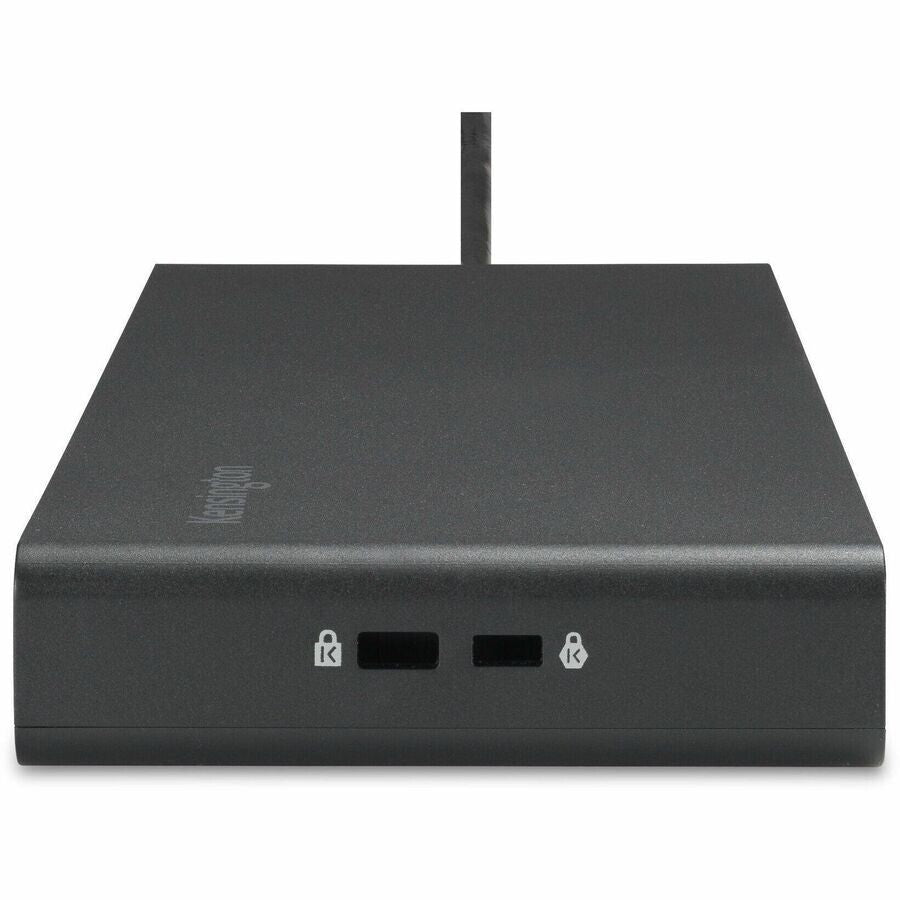

• Security Slot Type: Kensington Security Slot
• Kensington Security Slot: Yes

NETWORK & COMMUNICATION

• Ethernet Technology: Gigabit Ethernet

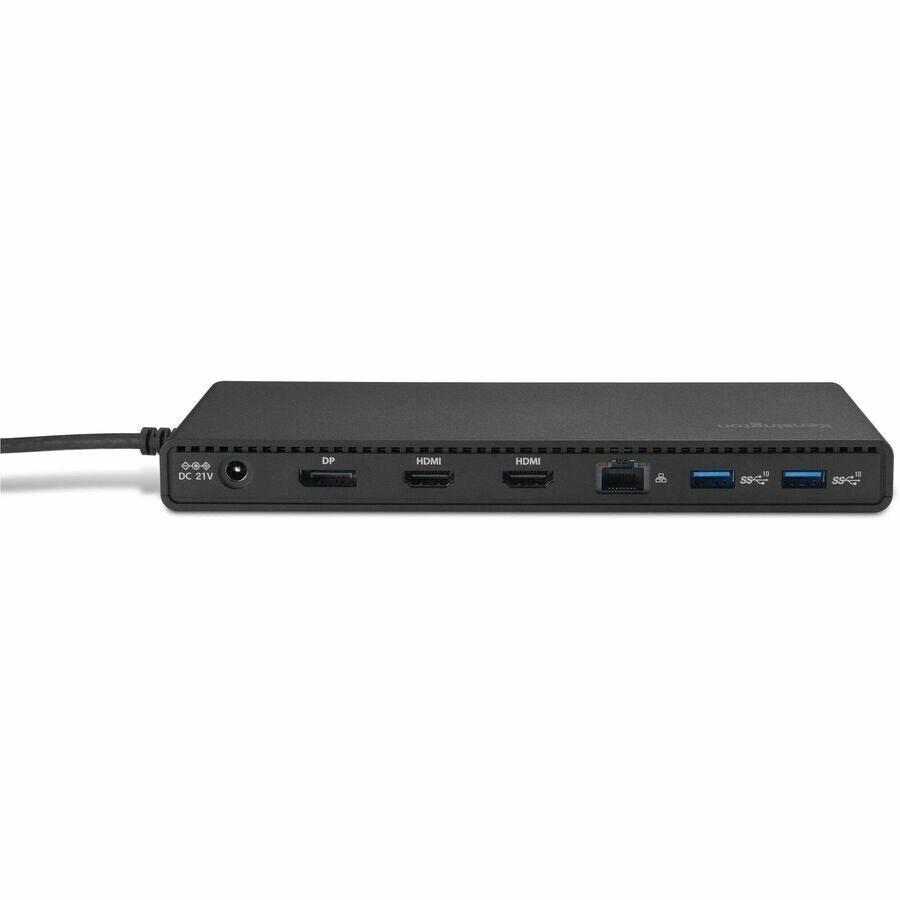

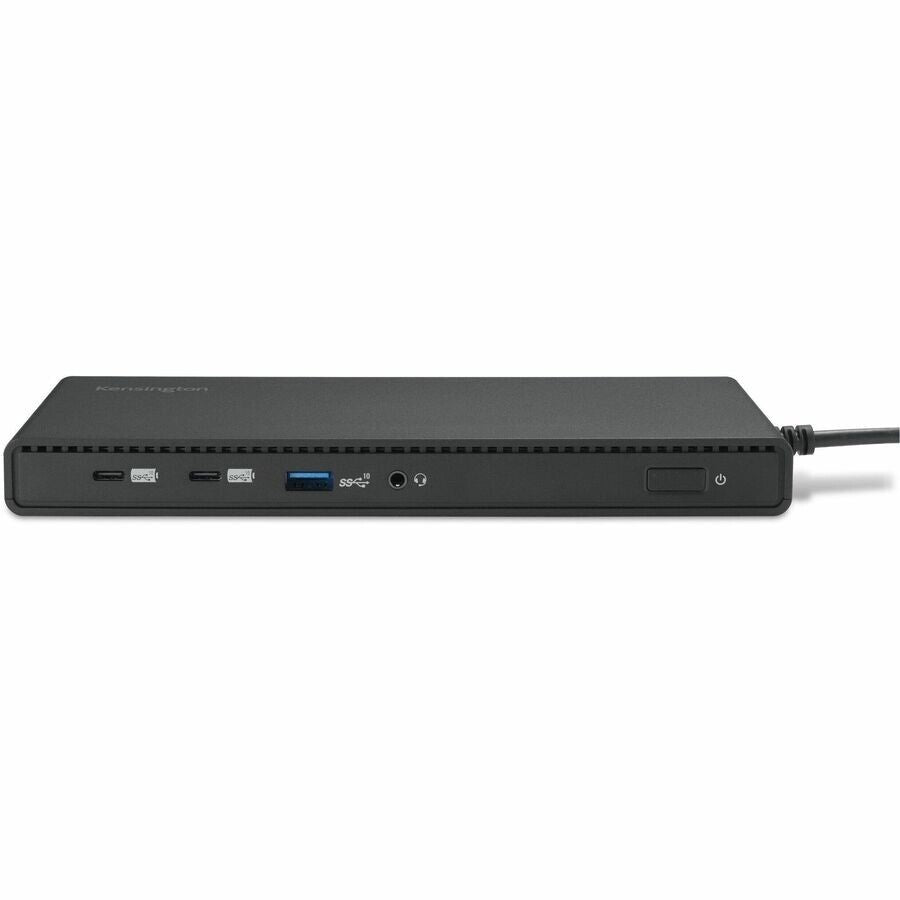

INTERFACES/PORTS

• Host Interface: USB Type C
• Total Number of USB Ports: 5
• Number of USB 3.2 Gen 2 Type-A Ports: 3
• Number of USB Type-A Ports: 3
• Number of USB Type-C Ports: 2
• USB Type-A: Yes
• USB Type-C: Yes
• USB Type-C Detail: 2 x USB-C® 3.2 Gen2, 10 Gbps (hasta 5 V/3 A)
• Network (RJ-45): Yes
• Number of RJ-45 Ports: 1
• Number of DisplayPorts: 1
• DisplayPort: Yes
• DisplayPort Version: 1.4
• Headphone/Microphone Combo Port: Yes
• Number of HDMI Ports: 2
• HDMI: Yes
• HDMI Version: 2.1
• USB Power Delivery: 100W

SOFTWARE

• Operating System Supported: Windows 10, Windows 11

POWER DESCRIPTION

• Maximum Power Supply Wattage: 149.10 W
• Power Source Type: Power Supply

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 7.68"
• Width: 4.09"
• Depth: 1.42"
• Weight (Approximate): 10.24 oz

PACKAGE CONTENTS:

• SD4842P EQ USB-C 10Gbps Triple Video Driverless Docking Station
• 1 x 149.1W Power Supply Unit
• 1 x NA Power Cord
• 1 x Quick Installation Guide
• 1 x Compliance Sheet
• 1 x Warranty Card
• 1 x Welcome Card

OTHER INFORMATION

• Post-consumer-waste%: 73%
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
• Energy Efficiency Compliance: Energy-related Products Directive (ErP)
• Warranty: 3 Years from Kensington
