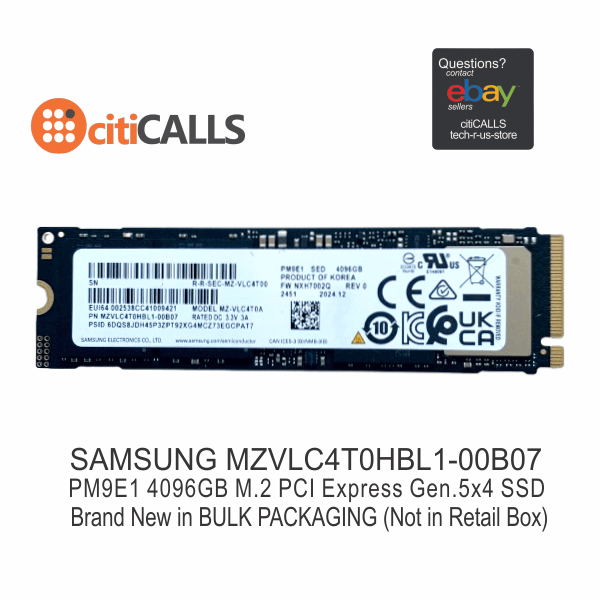

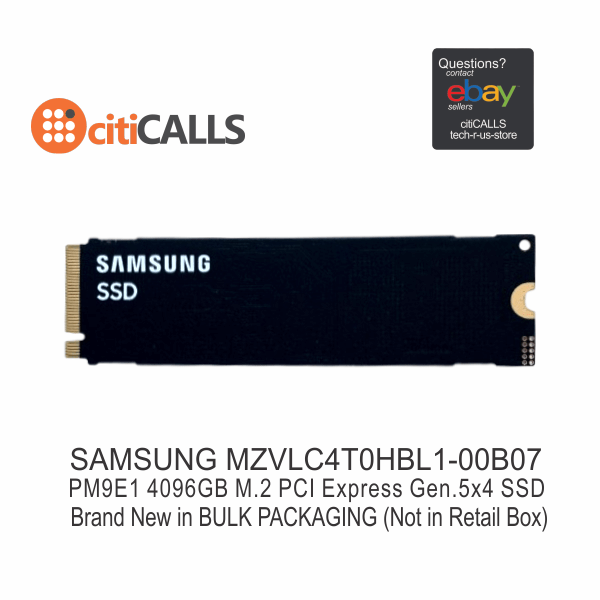

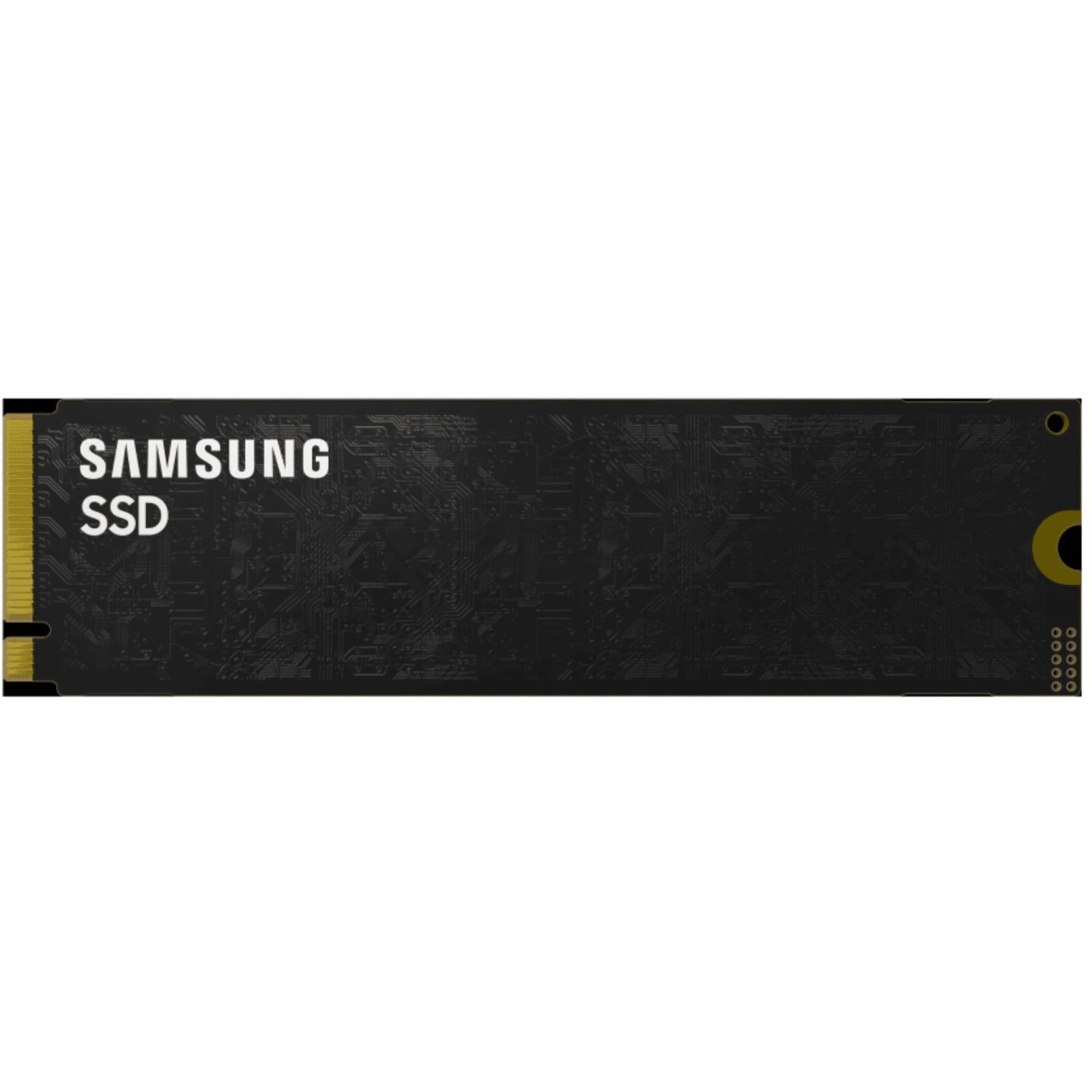

Samsung MZVLC4T0HBL1-00B07 PM9E1 4096GB M.2 PCI Express Gen.5 x4 SSD

MPN: MZVLC4T0HBL1-00B07

Main Features

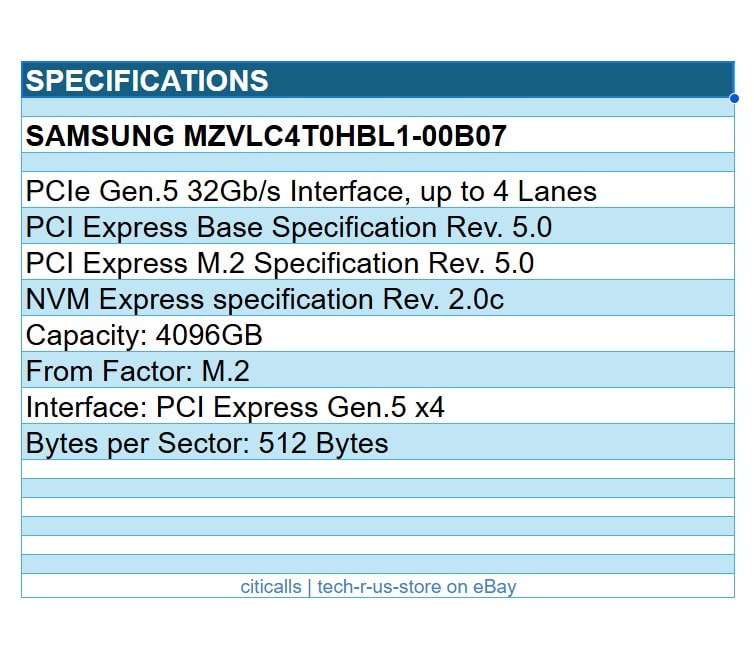

• Features
• -PCIe Gen.5 32Gb/s Interface, up to 4 Lanes
• -PCI Express Base Specification Rev. 5.0
• -PCI Express M.2 Specification Rev. 5.0
• -NVM Express specification Rev. 2.0c
• -Power Saving Modes: Supporting APST; Supporting L1.2 Mode
• -Support Admin & NVM Command Set
• -RoHS / Halogen Free Compliant
• -Hardware based AES-XTS 256-bit Encryption Engine for SED
• -TCG OPAL (v2.0) Compliant for SED
• Drive Configuration
• -Capacity: 4096GB
• -From Factor: M.2
• -Interface: PCI Express Gen.5 x4
• -Bytes per Sector: 512 Bytes
• Performance Specifications
• -Sequential Read: Up to 14,500 MB/s
• -Sequential Write: Up to 12,600 MB/s
• -Random Read: Up to 2,000 KIOPS
• -Random Write: Up to 2,640 KIOPS
• Reliability Specifications
• -Uncorrectable Bit Error Rate: < 1 sector per 10^15 bits read
• -MTBF: 1.5 Million Hours
• Environmental Specifications
• -Temperature: Operating: 0°C to 70°C; Non-operating: -40°C to 85°C
• -Humidity (non-condensing): Non-operating: 5 ~ 95%
• -Linear Shock: Non-operating (0.5ms duration with 1/2 sine wave): 1500 Gpeak
• -Vibration: Non-operating (20 ~ 2,000 Hz, Sinusoidal): 20 G
• Power Specifications
• -Supply Voltage / Tolerance: 3.3V +/- 5%
• -Active (Typ, RMS): Read (3.3V): 8.92 W; Write (3.3V): 8.21 W
• -Idle (Typ.): 10 mW
• -Sleep (Typ): 7 mW
• Physical Dimension
• -Width: 22.00 +/- 0.15 mm
• -Length: 80.00 +/- 0.15 mm
• -Height: Max. 2.38 mm
• -Weight: Under 9.0g
