ASRock RX9070XT TC 16GO AMD Radeon RX 9070 XT Taichi 16GB OC GDDR6 Video Card

Marketing Information

• Reverse Spin
• The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
• Taichi 3X Cooling System
• Crafted for the best balance between the thermal efficiency and silence by all the details improved.
• Striped Ring Fan
• Designed For Enhanced Airflow
• ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
• 0dB Silent Cooling
• Spin For Cooling, Stop For Silence.
• The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
• Air Deflecting Fin
• Guide Airflow to Go Through Regularly & Quickly.
• Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
• Ultra-fit Heatpipe
• Consolidated to Maximize the Contact.
• The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
• Nickel-plated Copper Base
• Maximize GPU Contact Area.
• With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
• High-density Metal Welding
• Improve Heat Dissipation.
• Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

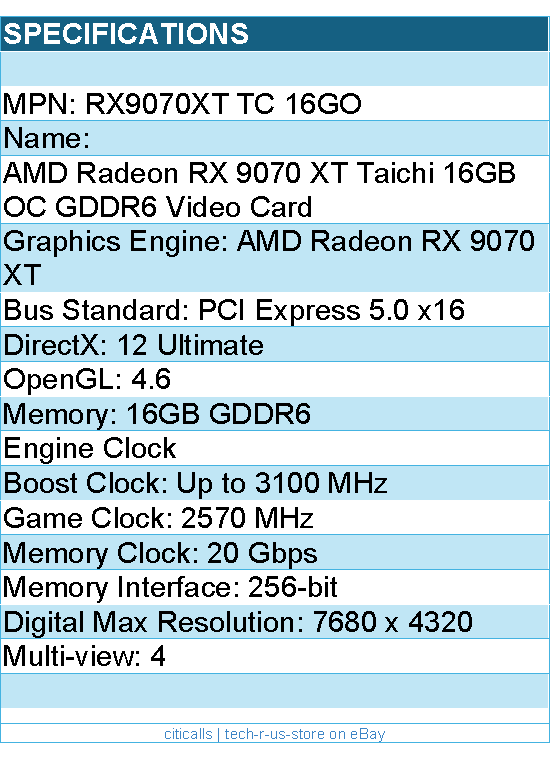

Detail Specifications

• Graphics Engine: AMD RadeonTM RX 9070 XT
• Bus Standard: PCI Express5.0 x16
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Memory: 16GB GDDR6
• Engine Clock:
  • Boost Clock: Up to 3100 MHz
  • Game Clock: 2570 MHz
• Stream Processors: 4096
• Memory Clock: 20 Gbps
• Memory Interface: 256-bit
• Resolution: Digital Max Resolution: 7680 x 4320
• Interface:
  • 1 x HD- 2.1b
  • 3 x DisplayPortTM 2.1a
• HDCP: Yes
• Multi-view: 4
• Recommended PSU: 850W
• Power Connector: 1 x 12V-2x6-pin
• Accessories
  • 1 x Quick Installation Guide
  • 1 x 16Pin to 3x8 Pin Power Cable

• 1 x Graphics Card Stand

Warranty Information

• New ASRock graphics cards purchased by end users will have a warranty period of 3 years (36 months) and SI customers one year that covers damage due to regular usage, but not physical damage caused to the graphics card.
• The warranty period will begin on the date of purchase the end user made from an authorized retailer if an invoice is provided as a proof of purchase. If the end user is unable to provide the invoice, then the warranty period will begin based off that products manufactured date.
• The Warranty Period may differ regionally. The 3-Year limited local warranty does not apply to the Mining usage. - from ASRock
