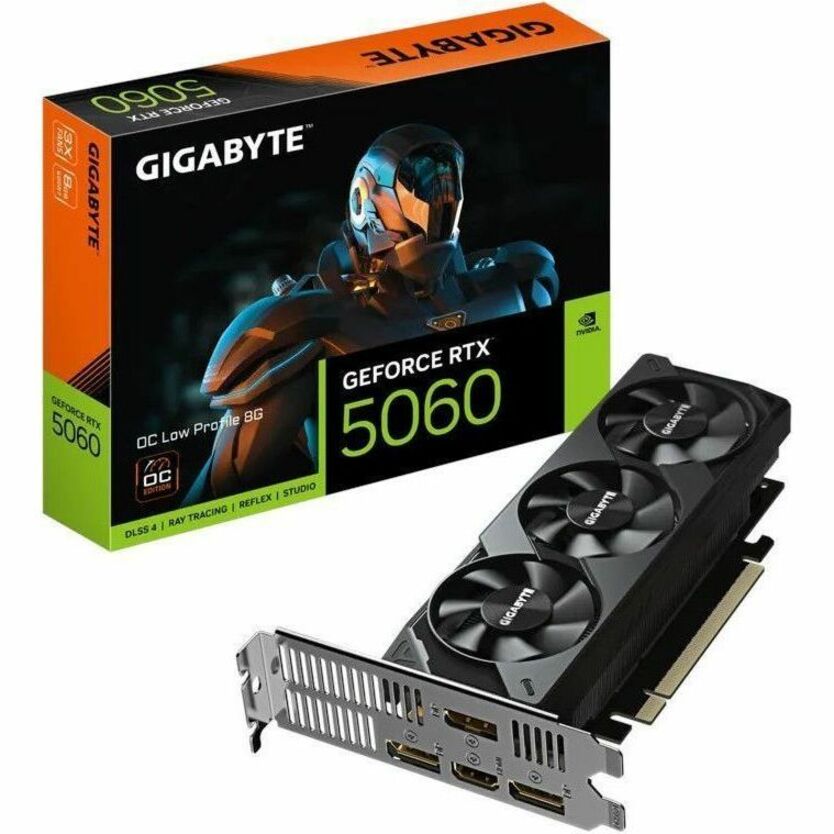

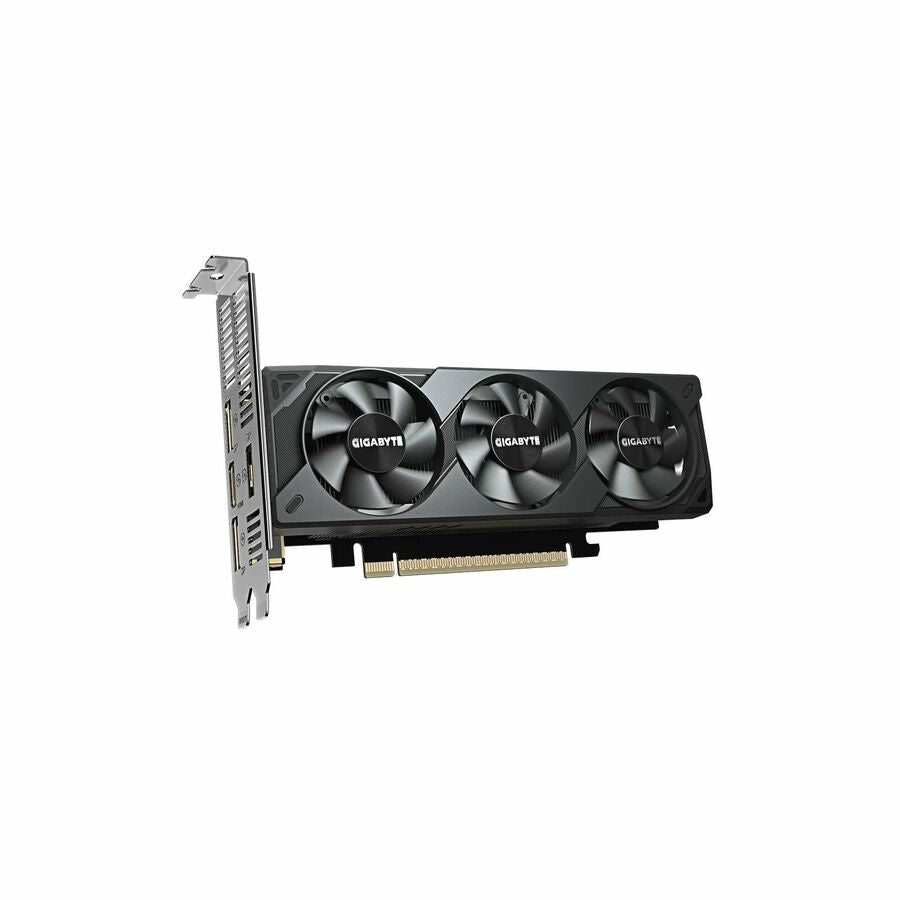

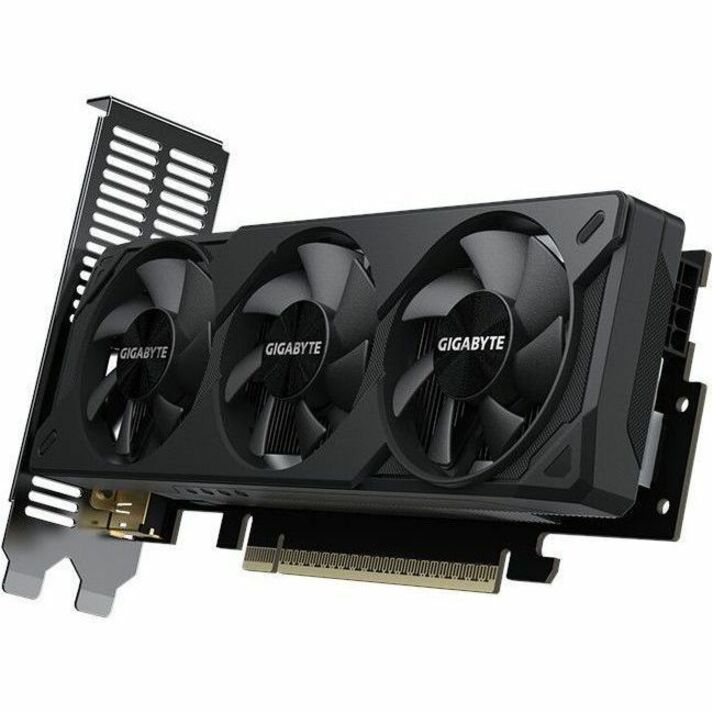

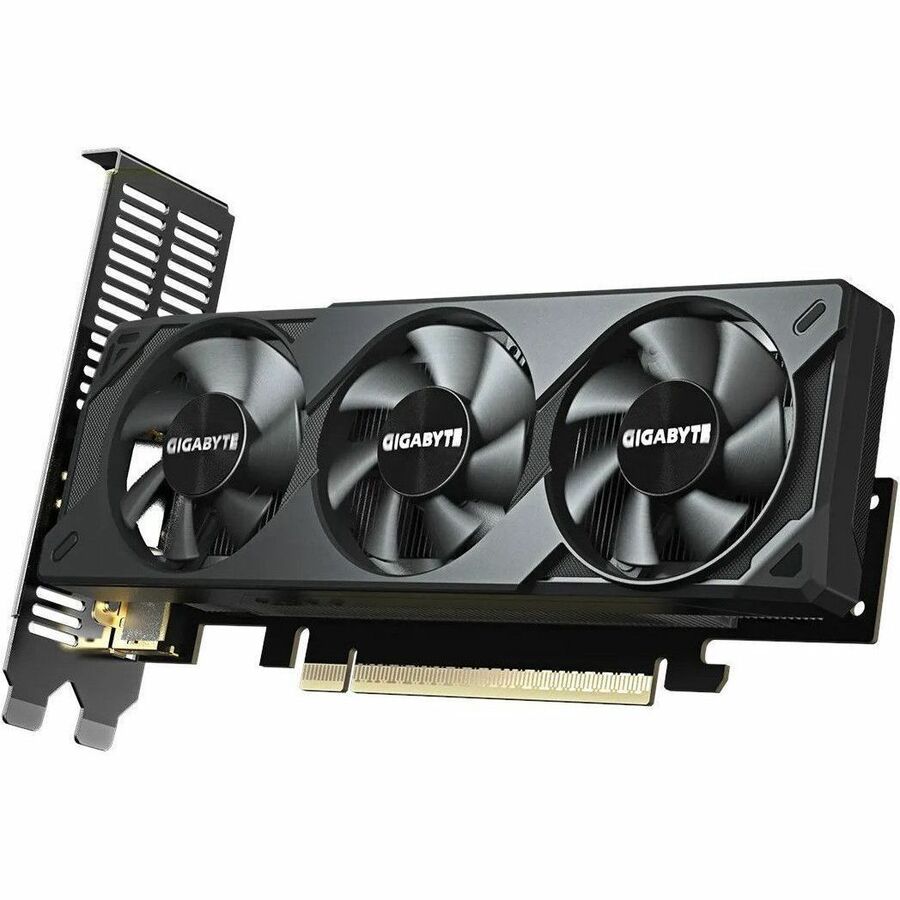

Gigabyte GV-N5060OC-8GL Graphic Card - GeForce RTX 5060 OC Low Profile 8G GDDR7

General Information

• Manufacturer: GIGABYTE Technology, Inc
• Manufacturer Part Number: GVN5060OC8GL
• Brand Name: Gigabyte
• Product Model: GV-N5060OC-8GL
• Product Name: GeForce RTX 5060 OC Low Profile 8G Graphic Card
• Product Type: Graphic Card

Marketing Information:

• CORE CLOCK
• 2512 MHz (Reference card: 2497MHz)
• The Ultimate Platform for Gamers and Creators
• Fifth-Gen Tensor Cores
• Max AI performance with FP4 and DLSS 4
• New Streaming Multiprocessors
• Optimized for neural shaders
• Fourth-Gen Ray Tracing Cores
• Built for Mega Geometry
• AI-Enhanced Graphics and Performance
• NVIDIA DLSS 4 with Multi Frame Generation
• Game-Winning Responsiveness
• NVIDIA Reflex 2 with Frame Warp
• True-to-Life Graphics
• Full ray tracing with neural rendering
• Digital Humans and AI Assistants
• NVIDIA ACE
• Accelerate Your Creativity
• NVIDIA Studio creator tools and technology
• Enhance Any Video with AI
• NVIDIA Broadcast and ninth-gen NVIDIA Encoder
• Performance and Reliability
• NVIDIA app with Game Ready and Studio Drivers
• The Ultimate Gaming Display Technologies
• NVIDIA G-SYNC

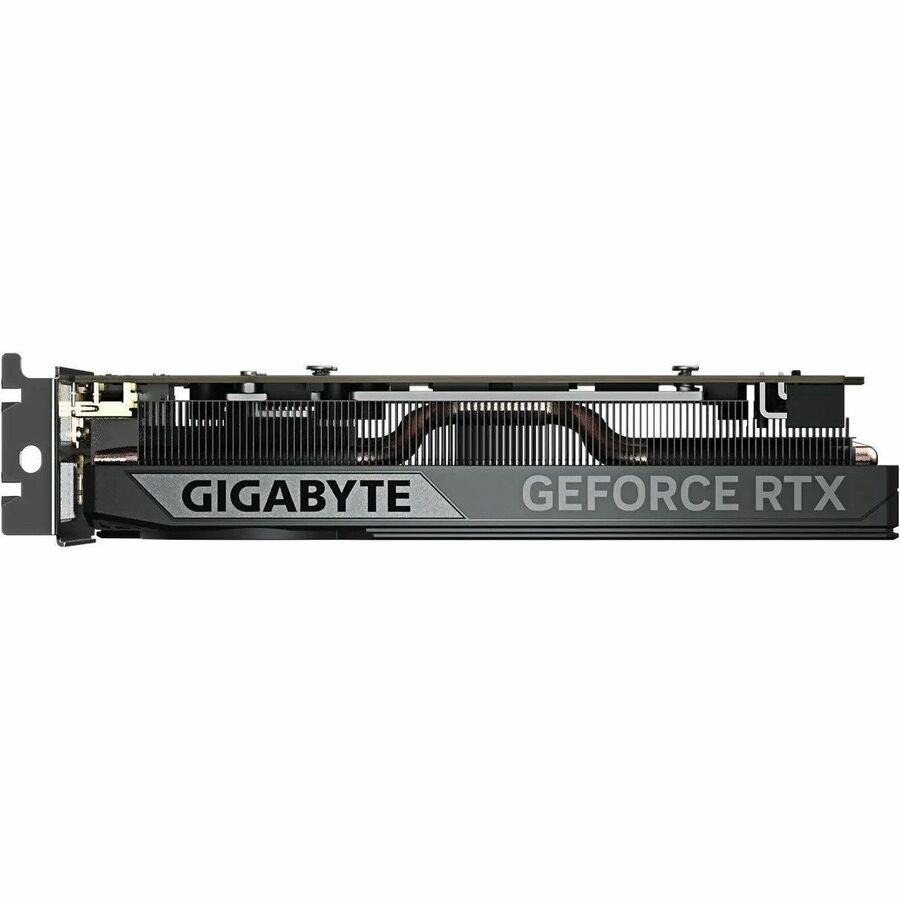

• GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
• GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.
• SERVER-GRADE THERMAL CONDUCTIVE GEL
• To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

Technical Information

• API Supported:
• DirectX 12
• OpenGL 4.6
• Number of Monitors Supported: 4
• Features: Triple-fan Cooler
• Maximum Digital Display Resolution: 7680 x 4320
• CUDA Cores: 3840
• AI-powered: Yes

Processor & Chipset

• Chipset Manufacturer: NVIDIA
• Chipset Line: GeForce
• Chipset Series: RTX
• Chipset Model: RTX 5060
• GPU Clock: 2.51 GHz

Memory

• Standard Memory: 8 GB
• Memory Technology: GDDR7
• Bus Width: 128 bit

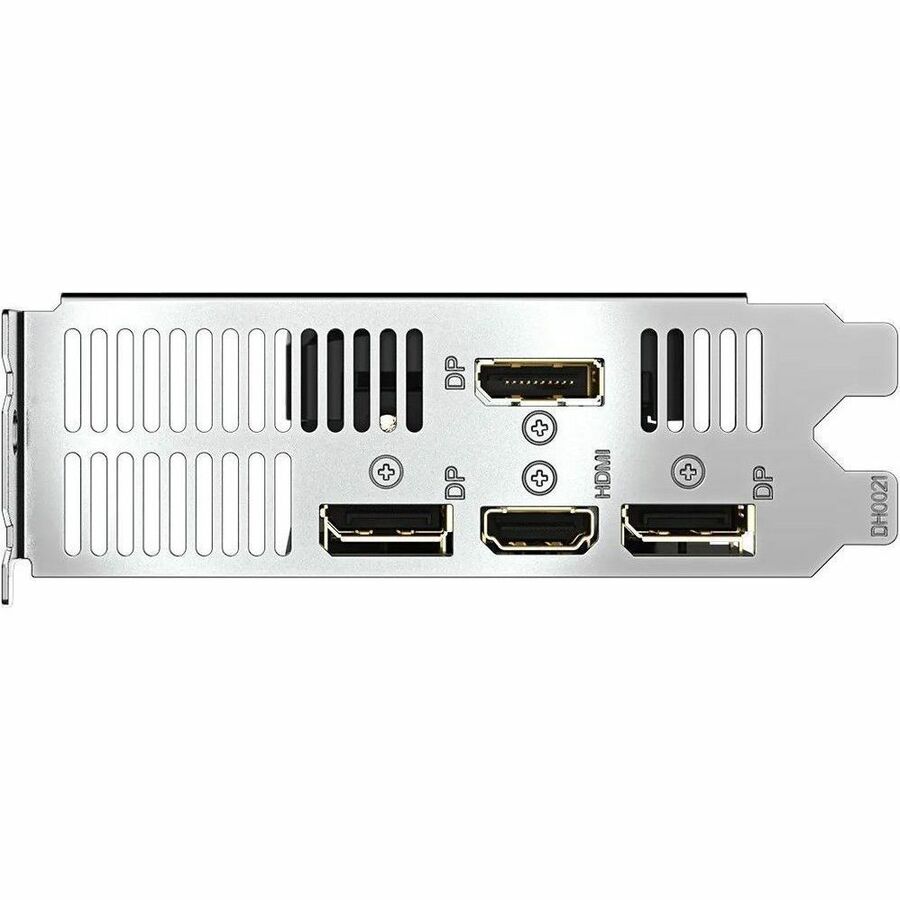

Interfaces/Ports

• Host Interface: PCI Express 5.0
• DisplayPort
• Yes
• Number of DisplayPort Outputs: 3
• HDMI: Yes
• Number of HDMI Outputs: 1

Power Description

• Power Supply Wattage: 450 W
• Power Connector: 1x 8-pin

Physical Characteristics

• Slot Space Required: Dual
• Form Factor: Plug-in Card
• Card Height: Low-profile
• Cooler Type: Fan Cooler
• Height: 1.4"
• Width: 2.7"
• Length: 7.2"

Miscellaneous

• Platform Supported: PC
