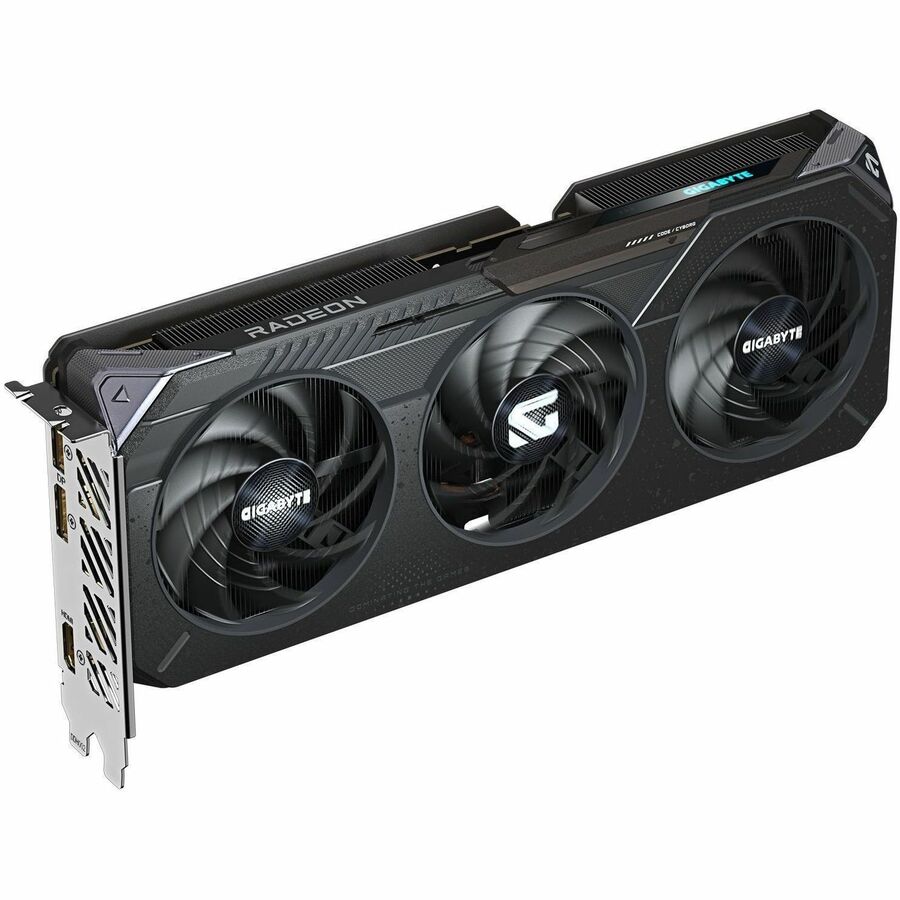

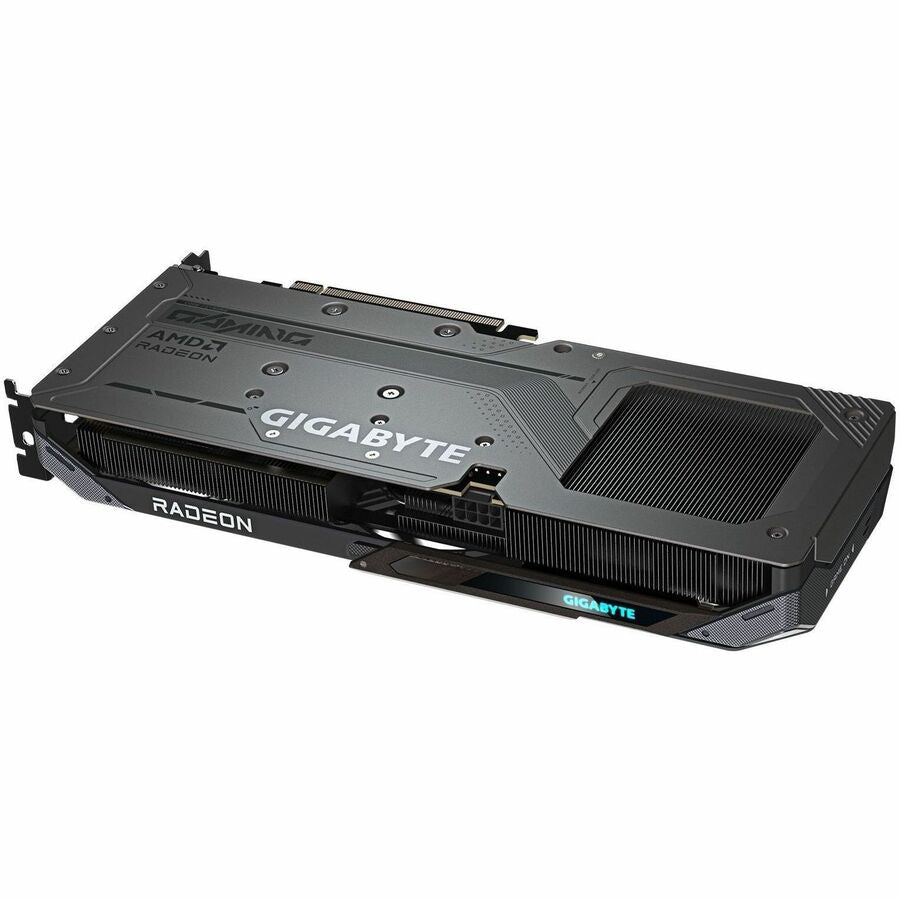

GIGABYTE GV-R9060XTGAMING OC-16GD AMD Radeon RX 9060 XT Graphic Card

General Information

• Manufacturer: GIGABYTE Technology, Inc
• Brand Name: GIGABYTE
• Manufacturer Part Number: GV-R9060XTGAMING OC-16GD
• Product Model: GV-R9060XTGAMING OC-16GD
• Product Name: Radeon RX 9060 XT GAMING OC 16G Graphic Card
• Product Type: Graphic Card

Marketing Information:

• WINDFORCE COOLING SYSTEM
• The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
• ASTONISHING EXTERIOR DESIGN
• The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
• MULTI-LAYERED VISUAL
• Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
• RGB LIGHTING
• With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
• SLIDING SIDE PLATE
• Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
• This animation is for illustrative purposes only. Actual product appearance may vary.
• REINFORCED STRUCTURE

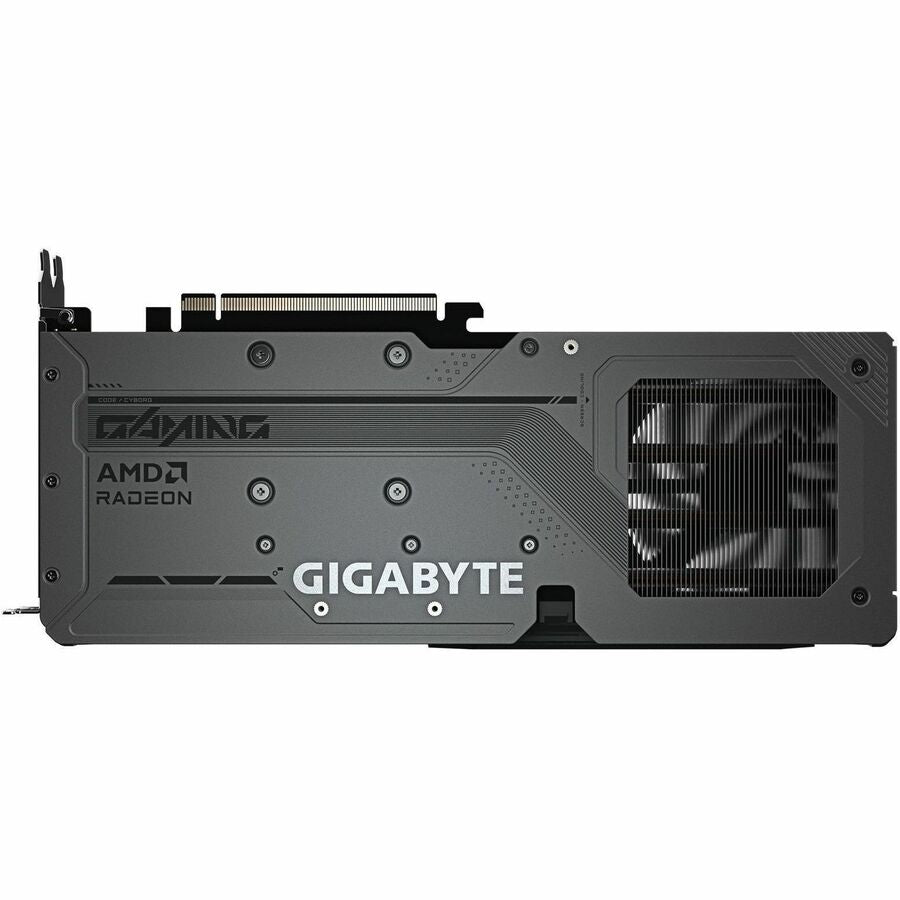

• The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
• GIGABYTE CONTROL CENTER
• GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

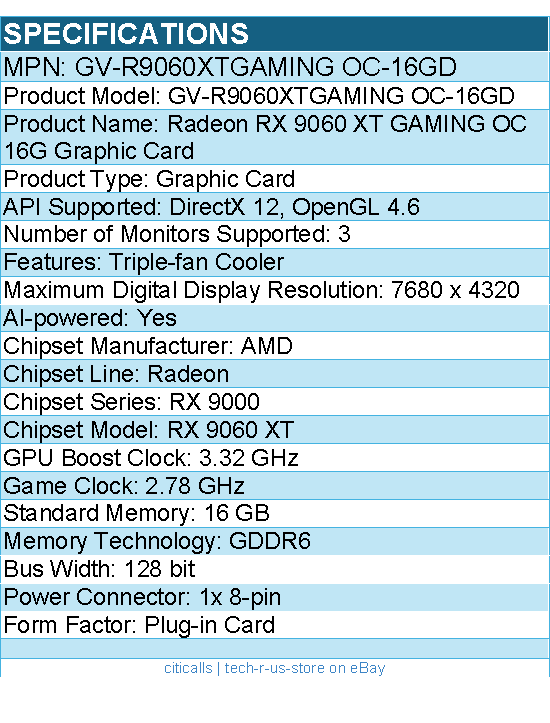

Technical Information

• API Supported:
  • DirectX 12
  • OpenGL 4.6
• Number of Monitors Supported: 3
• Features: Triple-fan Cooler
• Maximum Digital Display Resolution: 7680 x 4320
• AI-powered: Yes

Processor & Chipset

• Chipset Manufacturer: AMD
• Chipset Line: Radeon
• Chipset Series: RX 9000
• Chipset Model: RX 9060 XT
• GPU Boost Clock: 3.32 GHz
• Game Clock: 2.78 GHz

Memory

• Standard Memory: 16 GB
• Memory Technology: GDDR6
• Bus Width: 128 bit

Interfaces/Ports

• Host Interface: PCI Express 5.0
• DisplayPort: Yes
• Number of DisplayPort Outputs: 2
• HD-: Yes
• Number of HD- Outputs: 1

Power Description

• Power Supply Wattage: 450 W
• Power Connector: 1x 8-pin

Physical Characteristics

• Form Factor: Plug-in Card

• Cooler Type: Active Cooler

Miscellaneous

• Package Contents:
  • Radeon RX 9060 XT GAMING OC 16G Graphic Card
  • VGA manual
• Platform Supported: PC

Warranty

• Limited Warranty: 3 Year from GIGABYTE

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fresno, CA 93725
• Newman, GA 30265
• Bolingbrook, IL
• Middletown, PA 17057
• Harrisburg PA 17112

International orders may take an additional 2 to 3 days.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
