Gigabyte GV-R9060XTGAMING OC-8GD Graphic Card -Radeon RX 9060 XT GAMING OC - 8GB

Product Information

• Manufacturer: GIGABYTE Technology, Inc
• Brand Name: Gigabyte
• SKU: 298844
• Manufacturer Part Number: GV-R9060XTGAMING OC-8GD

Based on the RDNA 4 architecture and designed to handle the demands of gaming at high frame rates, the Gigabyte Radeon RX 9060 XT GAMING OC 8G Graphics Card provides an immersive gaming experience with your PC games. The GPU features 2048 stream processors with 8GB of GDDR6 VRAM and a 128-bit memory interface, offering improved performance and power efficiency over the previous RDNA-based generation.

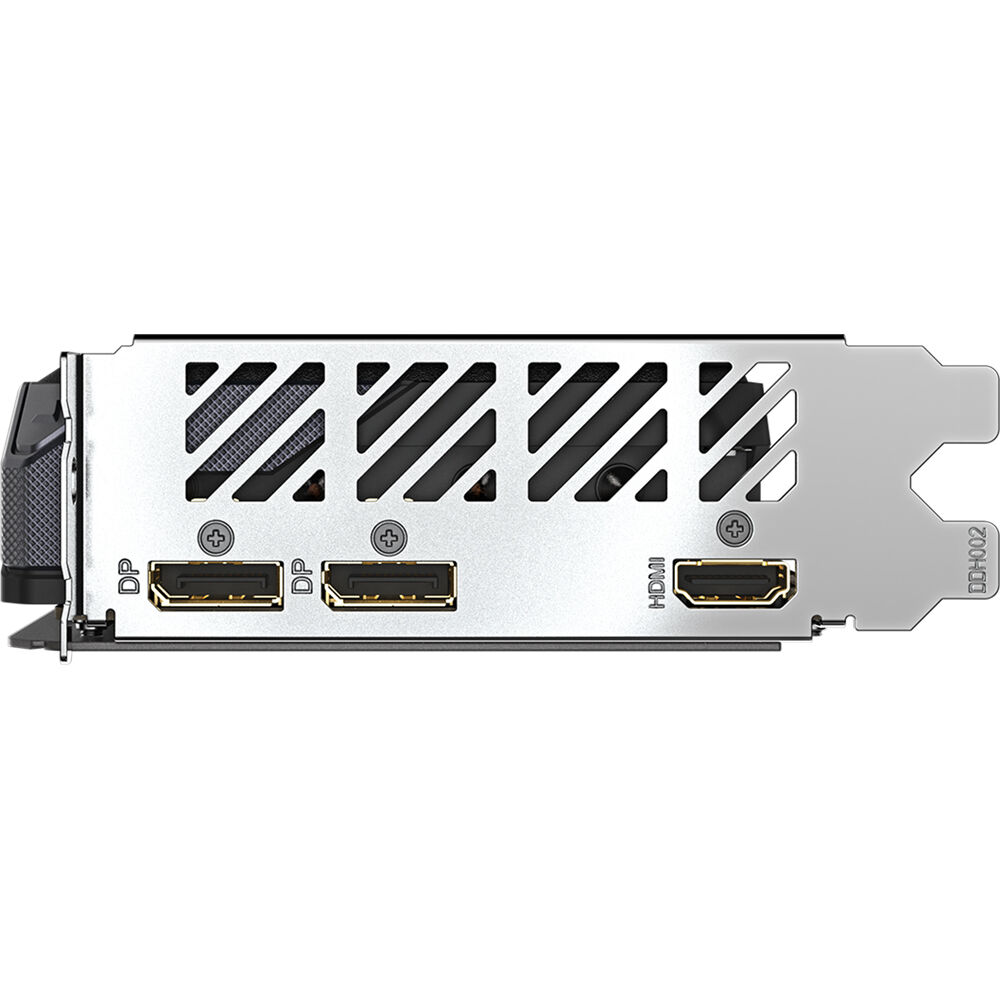

The front panel of the card features a variety of outputs, such as DisplayPort 2.1 and HDMI 2.1. DisplayPort 2.1 technology with UHBR 13.5 offers up to 54 Gb/s of display link bandwidth and enables high-refresh 4K (up to 480 Hz) or 8K (up to 165 Hz) gaming on next-gen displays. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60 fps, 4K @ 120 fps, and even up to 10K.

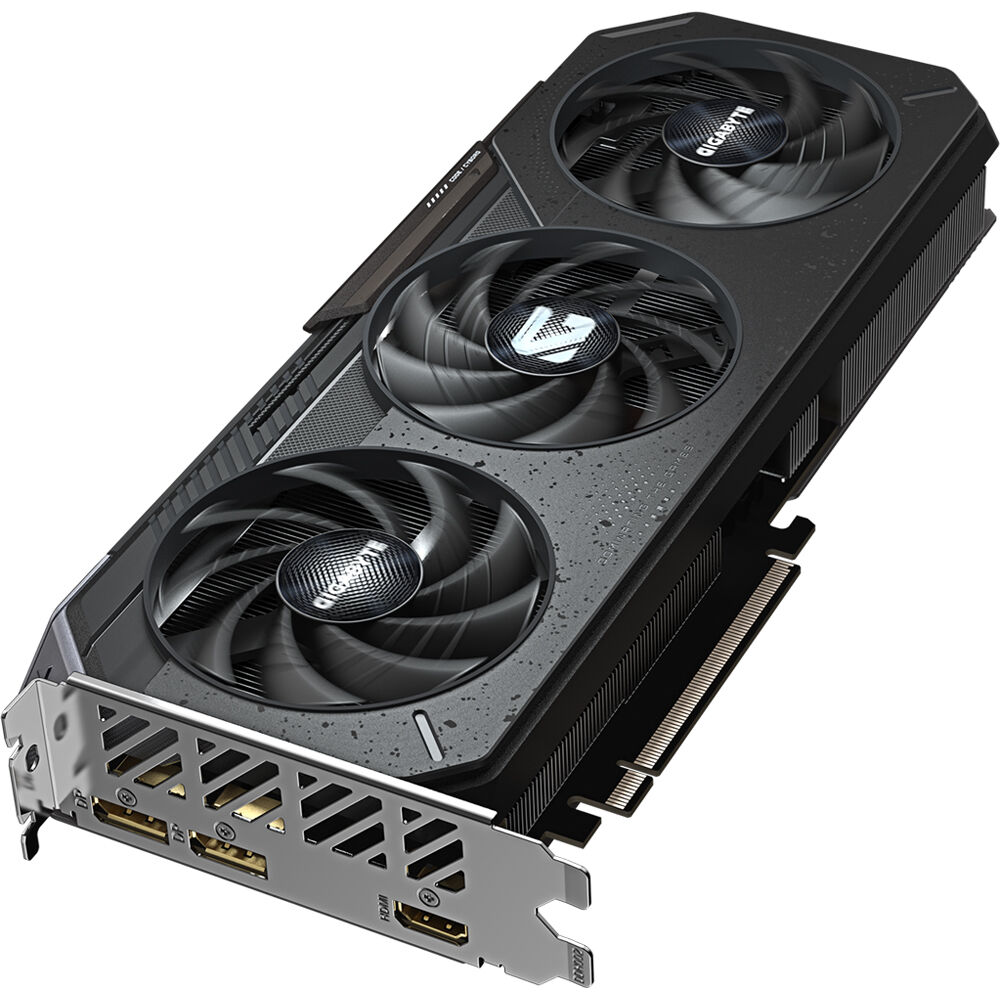

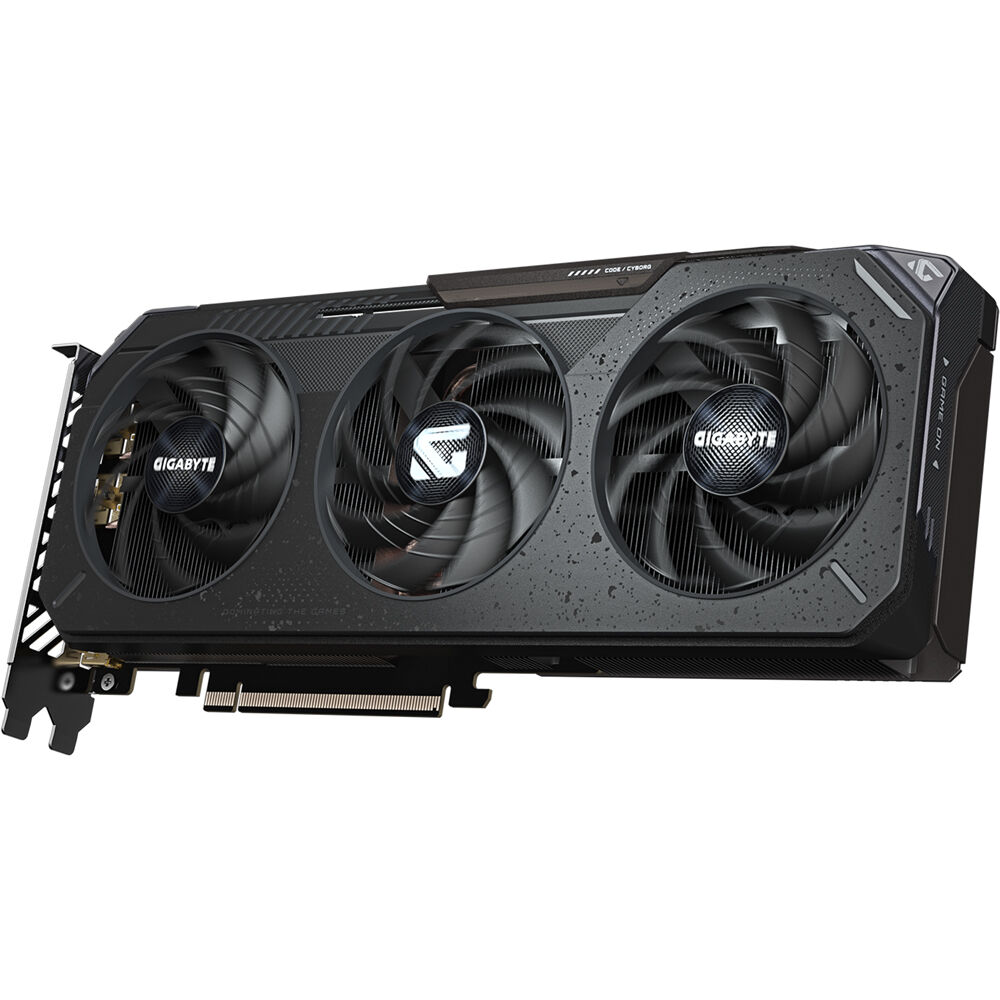

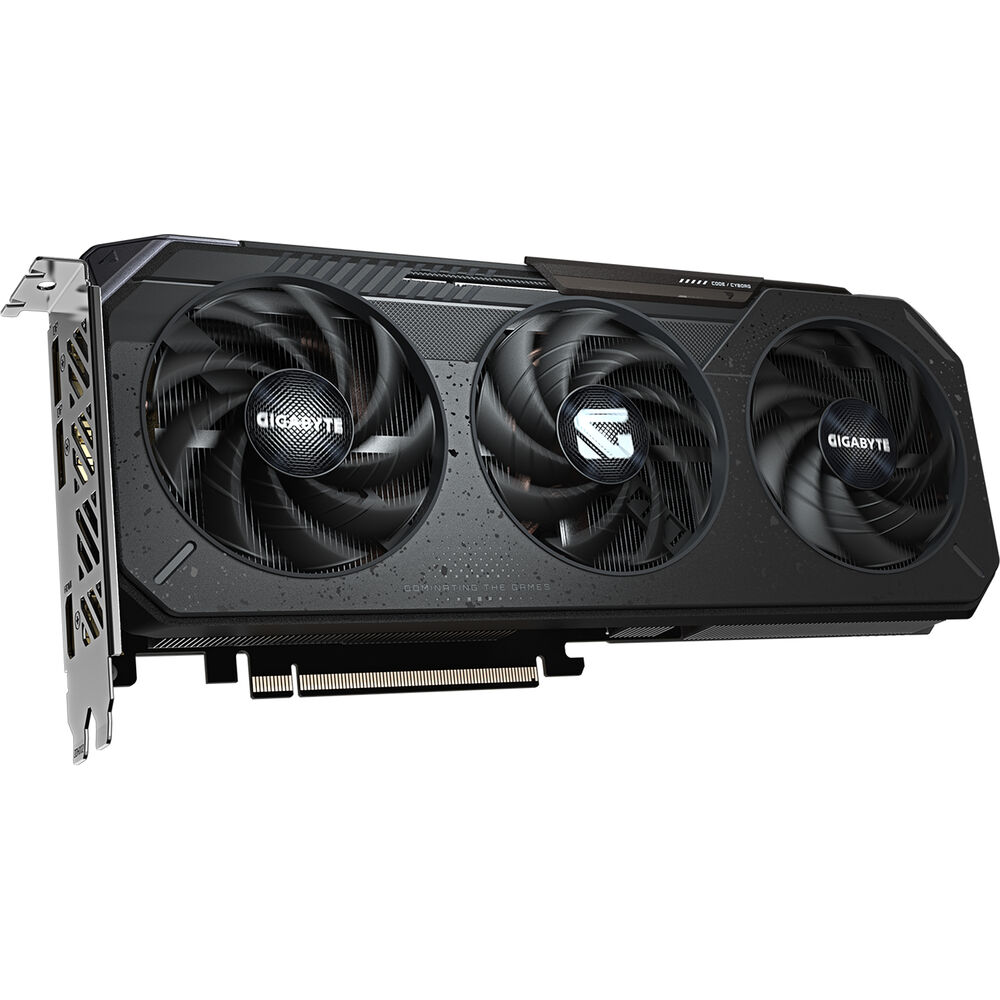

For cooling, Gigabyte implemented the WINDFORCE cooling system. The cooling system features three Hawk alternate spinning fans, composite copper heat pipes, thermal conductive gel, a large copper plate, and screen cooling, which together provide high efficiency heat dissipation. It also has RGB lighting, which has customizable color options and a variety of lighting effects. You can also use it to synchronize with other devices. The GPU has a power armor design, complete with a sliding side plate.

• GPU Model: AMD Radeon RX 9060 XT
• Stream Processors: 2048
• Dedicated AI Cores: Yes: 821 TOPS
• Interface: PCI Express 5.0 x16
• Video RAM: 8 GB GDDR6
• Video Output:
• 2x DisplayPort 2.1a
• 1x HDMI 2.1b
• Power Connection: 1x 8-Pin PCI Connector
• Recommended System Power Requirement: 450 W
• GPU Width: 2.5-Slot

GPU

• GPU Model: AMD Radeon RX 9060 XT
• Stream Processors: 2048
• Clock Speed: Boost Mode: 3320 MHz, Gaming Mode: 2780 MHz
• Dedicated AI Cores: Yes: 821 TOPS
• Interface: PCI Express 5.0 x16
• Supported APIs
• DirectX: 12
• OpenGL: 4.6

Memory

• Video RAM: 8 GB GDDR6
• Memory Speed: 20 Gb/s
• Memory Interface Width: 128-Bit
• Memory Bandwidth: 320 GB/s

Display Support

• Video Output
• 2x DisplayPort 2.1a
• 1x HDMI 2.1b

Power Requirements

• Max Power Consumption: 150 W
• Power Connection: 1x 8-Pin PCI Connector
• Recommended System Power Requirement: 450 W
